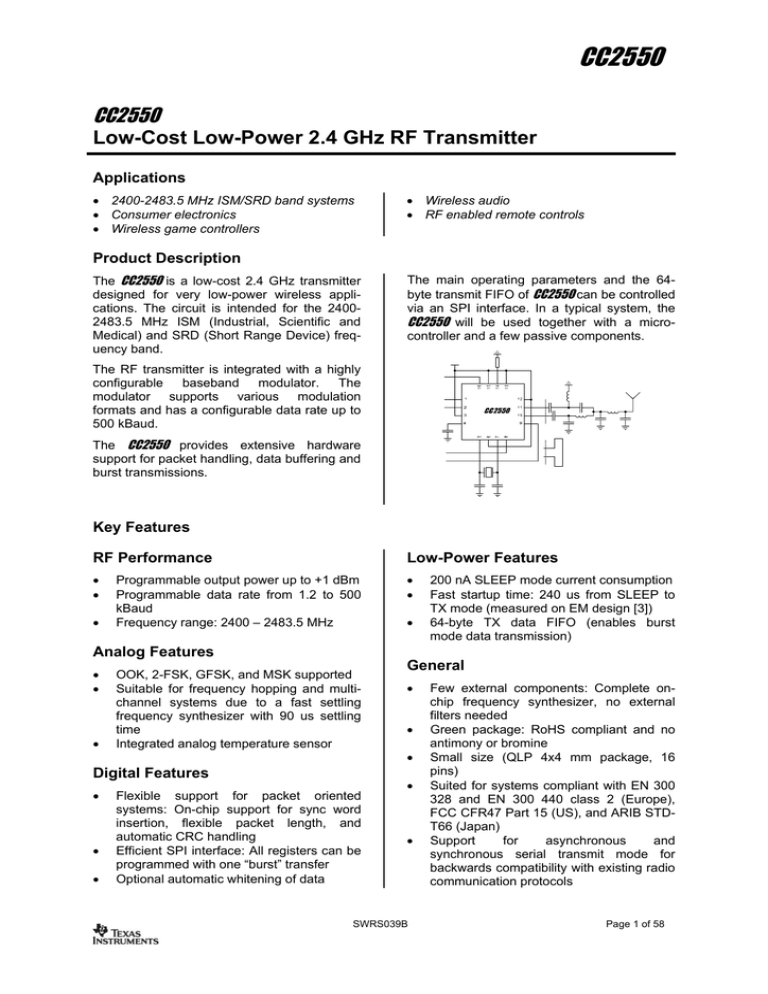

Low-Cost Low-Power 2.4 GHz RF Transmitter

Applications

2400-2483.5 MHz ISM/SRD band systems

Consumer electronics

Wireless game controllers

Product Description

The

CC2550 is a low-cost 2.4 GHz transmitter designed for very low-power wireless applications. The circuit is intended for the 2400-

2483.5 MHz ISM (Industrial, Scientific and

Medical) and SRD (Short Range Device) frequency band.

The RF transmitter is integrated with a highly configurable baseband modulator. The modulator supports various modulation formats and has a configurable data rate up to

500 kBaud.

The

CC2550 provides extensive hardware support for packet handling, data buffering and burst transmissions.

Wireless audio

RF enabled remote controls

The main operating parameters and the 64byte transmit FIFO of

CC2550 can be controlled via an SPI interface. In a typical system, the

CC2550 will be used together with a microcontroller and a few passive components.

Key Features

RF Performance

• Programmable output power up to +1 dBm

• Programmable data rate from 1.2 to 500 kBaud

• Frequency range: 2400 – 2483.5 MHz

Analog Features

• OOK, 2-FSK, GFSK, and MSK supported

• Suitable for frequency hopping and multichannel systems due to a fast settling frequency synthesizer with 90 us settling time

• Integrated analog temperature sensor

Digital Features

• Flexible support for packet oriented systems: On-chip support for sync word insertion, flexible packet length, and automatic CRC handling

• Efficient SPI interface: All registers can be programmed with one “burst” transfer

• Optional automatic whitening of data

Low-Power Features

• 200 nA SLEEP mode current consumption

• Fast startup time: 240 us from SLEEP to

TX mode (measured on EM design [3])

• 64-byte TX data FIFO (enables burst mode data transmission)

General

• Few external components: Complete onchip frequency synthesizer, no external filters needed

• Green package: RoHS compliant and no antimony or bromine

• Small size (QLP 4x4 mm package, 16 pins)

• Suited for systems compliant with EN 300

328 and EN 300 440 class 2 (Europe),

FCC CFR47 Part 15 (US), and ARIB STD-

T66 (Japan)

Support for asynchronous and synchronous serial transmit mode for backwards compatibility with existing radio communication protocols

SWRS039B Page 1 of 58

Table of Contents

CC2550

APPLICATIONS ...........................................................................................................................................1

PRODUCT DESCRIPTION.........................................................................................................................1

KEY FEATURES ..........................................................................................................................................1

RF PERFORMANCE ...................................................................................................................................1

ANALOG FEATURES .................................................................................................................................1

DIGITAL FEATURES..................................................................................................................................1

LOW-POWER FEATURES.........................................................................................................................1

GENERAL .....................................................................................................................................................1

TABLE OF CONTENTS ..............................................................................................................................2

ABBREVIATIONS........................................................................................................................................4

1 ABSOLUTE MAXIMUM RATINGS ..............................................................................................4

2 OPERATING CONDITIONS ..........................................................................................................5

3 GENERAL CHARACTERISTICS..................................................................................................5

4 ELECTRICAL SPECIFICATIONS ................................................................................................5

4.1

C

URRENT

C

ONSUMPTION

.....................................................................................................................5

4.2

RF T

RANSMIT

S

ECTION

........................................................................................................................6

4.3

C

RYSTAL

O

SCILLATOR

.........................................................................................................................7

4.4

F

REQUENCY

S

YNTHESIZER

C

HARACTERISTICS

.....................................................................................7

4.5

A

NALOG

T

EMPERATURE

S

ENSOR

.........................................................................................................8

4.6

DC C

HARACTERISTICS

.........................................................................................................................8

4.7

P

OWER

-O

N

R

ESET

................................................................................................................................8

5 PIN CONFIGURATION...................................................................................................................9

6 CIRCUIT DESCRIPTION .............................................................................................................10

7 APPLICATION CIRCUIT .............................................................................................................10

8 CONFIGURATION OVERVIEW .................................................................................................13

9 CONFIGURATION SOFTWARE.................................................................................................14

10 4-WIRE SERIAL CONFIGURATION AND DATA INTERFACE ...........................................14

10.1

C

HIP

S

TATUS

B

YTE

............................................................................................................................15

10.2

R

EGISTERS

A

CCESS

............................................................................................................................16

10.3

SPI R

EAD

...........................................................................................................................................16

10.4

C

OMMAND

S

TROBES

..........................................................................................................................17

10.5

FIFO A

CCESS

.....................................................................................................................................17

10.6

PATABLE A

CCESS

.............................................................................................................................17

11 MICROCONTROLLER INTERFACE AND PIN CONFIGURATION ...................................18

11.1

C

ONFIGURATION

I

NTERFACE

..............................................................................................................18

11.2

G

ENERAL

C

ONTROL AND

S

TATUS

P

INS

..............................................................................................18

12 DATA RATE PROGRAMMING...................................................................................................19

13 PACKET HANDLING HARDWARE SUPPORT .......................................................................19

13.1

D

ATA WHITENING

...............................................................................................................................19

13.2

P

ACKET

F

ORMAT

................................................................................................................................20

13.3

P

ACKET

H

ANDLING IN

T

RANSMIT

M

ODE

............................................................................................22

13.4

P

ACKET

H

ANDLING IN

F

IRMWARE

......................................................................................................22

14 MODULATION FORMATS ..........................................................................................................22

14.1

F

REQUENCY

S

HIFT

K

EYING

................................................................................................................23

14.2

M

INIMUM

S

HIFT

K

EYING

....................................................................................................................23

14.3

A

MPLITUDE

M

ODULATION

.................................................................................................................23

15 FORWARD ERROR CORRECTION WITH INTERLEAVING ..............................................23

15.1

F

ORWARD

E

RROR

C

ORRECTION

(FEC)...............................................................................................23

15.2

I

NTERLEAVING

...................................................................................................................................24

16 RADIO CONTROL.........................................................................................................................25

SWRS039B Page 2 of 58

CC2550

16.1

P

OWER

-O

N

S

TART

-U

P

S

EQUENCE

......................................................................................................25

16.2

C

RYSTAL

C

ONTROL

............................................................................................................................26

16.3

V

OLTAGE

R

EGULATOR

C

ONTROL

.......................................................................................................26

16.4

TX M

ODE

...........................................................................................................................................27

16.5

T

IMING

...............................................................................................................................................27

17 TX FIFO ...........................................................................................................................................27

18 FREQUENCY PROGRAMMING.................................................................................................28

19 VCO ..................................................................................................................................................29

19.1

VCO

AND

PLL S

ELF

-C

ALIBRATION

...................................................................................................29

20 VOLTAGE REGULATORS ..........................................................................................................29

21 OUTPUT POWER PROGRAMMING .........................................................................................30

22 CRYSTAL OSCILLATOR.............................................................................................................32

22.1

R

EFERENCE

S

IGNAL

...........................................................................................................................32

23 EXTERNAL RF MATCH ..............................................................................................................32

24 PCB LAYOUT RECOMMENDATIONS......................................................................................33

25 GENERAL PURPOSE / TEST OUTPUT CONTROL PINS ......................................................33

26 ASYNCHRONOUS AND SYNCHRONOUS SERIAL OPERATION .......................................34

26.1

A

SYNCHRONOUS

O

PERATION

.............................................................................................................34

26.2

S

YNCHRONOUS

S

ERIAL

O

PERATION

...................................................................................................35

27 SYSTEM CONSIDERATIONS AND GUIDELINES ..................................................................35

27.1

SRD R

EGULATIONS

............................................................................................................................35

27.2

F

REQUENCY

H

OPPING AND

M

ULTI

-C

HANNEL

S

YSTEMS

.....................................................................35

27.3

W

IDEBAND

M

ODULATION NOT

U

SING

S

PREAD

S

PECTRUM

................................................................36

27.4

D

ATA

B

URST

T

RANSMISSIONS

............................................................................................................36

27.5

C

ONTINUOUS

T

RANSMISSIONS

...........................................................................................................36

27.6

S

PECTRUM

E

FFICIENT

M

ODULATION

..................................................................................................36

27.7

L

OW

C

OST

S

YSTEMS

..........................................................................................................................36

27.8

B

ATTERY

O

PERATED

S

YSTEMS

..........................................................................................................36

27.9

I

NCREASING

O

UTPUT

P

OWER

.............................................................................................................37

28 CONFIGURATION REGISTERS.................................................................................................37

28.1

C

ONFIGURATION

R

EGISTER

D

ETAILS

.................................................................................................41

28.2

S

TATUS

R

EGISTER

D

ETAILS

................................................................................................................49

29 PACKAGE DESCRIPTION (QLP 16) ..........................................................................................52

29.1

R

ECOMMENDED

PCB L

AYOUT FOR

P

ACKAGE

(QLP 16) ....................................................................53

29.2

P

ACKAGE

T

HERMAL

P

ROPERTIES

.......................................................................................................53

29.3

S

OLDERING

I

NFORMATION

.................................................................................................................53

29.4

T

RAY

S

PECIFICATION

.........................................................................................................................54

29.5

C

ARRIER

T

APE AND

R

EEL

S

PECIFICATION

..........................................................................................54

30 ORDERING INFORMATION.......................................................................................................54

31 REFERENCES ................................................................................................................................54

32 GENERAL INFORMATION.........................................................................................................55

32.1

D

OCUMENT

H

ISTORY

.........................................................................................................................55

32.2

P

RODUCT

S

TATUS

D

EFINITIONS

.........................................................................................................56

33 ADDRESS INFORMATION ..........................................................................................................57

34 TI WORLDWIDE TECHNICAL SUPPORT...............................................................................57

SWRS039B Page 3 of 58

CFR

CRC

DC

ESR

FCC

FEC

FHSS

FIFO

2-FSK

GFSK

I/Q

ISM

LC

LO

CC2550

Abbreviations

Abbreviations used in this data sheet are described below.

ACP

ADC

AGC

AMR

ARIB

ASK

BER

Adjacent Channel Power

Analog to Digital Converter

Automatic Gain Control

Automatic Meter Reading

Association of Radio Industries and Businesses

Amplitude Shift Keying

Bit Error Rate

NA

NRZ

LO

OBW

OOK

PA

PCB

Not Applicable

Non Return to Zero (coding)

Local Oscillator

Occupied Bandwidth

On Off Keying

Power Amplifier

Printed Circuit Board

Code of Federal Regulations

Cyclic Redundancy Check

Direct Current

Equivalent Series Resistance

Federal Communications Commission

Forward Error Correction

Frequency Hopping Spread Spectrum

First-In-First-Out

Frequency Shift Keying

Gaussian shaped Frequency Shift Keying

In-Phase/Quadrature

Industrial, Scientific and Medical

Inductor-Capacitor

Local Oscillator

PER

PLL

POR

QPSK

QLP

RF

RX

SMD

SNR

SPI

SRD

TX

VCO

WLAN

XTAL Crystal

Packet Error Rate

Phase Locked Loop

Power-on Reset

Quadrature Phase Shift Keying

Quad Leadless Package

Radio Frequency

Receive, Receive Mode

Surface Mount Device

Signal to Noise Ratio

Serial Peripheral Interface

Short Range Device

Transmit, Transmit Mode

Voltage Controlled Oscillator

Wireless Local Area Networks

MSK Minimum Shift Keying

Under no circumstances must the absolute maximum ratings given in Table 1 be violated. Stress

exceeding one or more of the limiting values may cause permanent damage to the device.

Caution! ESD sensitive device.

Precaution should be used when handling the device in order to prevent permanent damage.

Parameter

Supply voltage

Voltage on any digital pin

Min

–0.3

Max

3.9

Units Condition/Note

V All supply pins must have the same voltage

–0.3 VDD+0.3, max 3.9

V

–0.3 2.0 V Voltage on the pins RF_P, RF_N and DCOUPL

Storage temperature range

Solder reflow temperature

ESD

–50 150

260

<500

°C

°C

V

According to IPC/JEDEC J-STD-020D

According to JEDEC STD 22, method A114,

Human Body Model

Table 1: Absolute Maximum Ratings

SWRS039B Page 4 of 58

CC2550

The

CC2550 operating conditions are listed in Table 2 below.

Parameter

Operating temperature

Operating supply voltage

Min

–40

1.8

Max

85

3.6

Unit Condition/Note

°C

V All supply pins must have the same voltage

Table 2: Operating Conditions

Parameter

Frequency range

Data rate

Min

2400

1.2

1.2

26

Typ Max

2483.5

250

500

Unit

MHz kBaud kBaud

Condition/Note

2-FSK

GFSK and OOK

(Shaped) MSK (also known as differential offset QPSK)

Optional Manchester encoding (the data rate in kbps will be half the baud rate).

Table 3: General Characteristics

Tc = 25

°C, VDD = 3.0 V if nothing else stated. All measurement results obtained using the CC2550EM reference design

([3]).

Parameter

Current consumption in power down modes

Current consumption

Current consumption, TX states

Min Typ Max Unit Condition/Note

200 nA Voltage regulator to digital part off (SLEEP state). All GDO pins programmed to 0x2F (HW to o)

160 µA Voltage regulator to digital part on, all other modules in power down (XOFF state)

1.4

7.3 mA Only voltage regulator to digital part and crystal oscillator running

(IDLE state) mA Only the frequency synthesizer is running (FSTXON state). This current consumption is also representative for the other intermediate states when going from IDLE to TX, including the calibration state.

11.2

14.7

19.4

21.3 mA mA mA mA

Transmit mode, –12 dBm output power

Transmit mode, -6 dBm output power

Transmit mode, 0 dBm output power

Transmit mode, +1 dBm output power

Table 4: Current Consumption

SWRS039B Page 5 of 58

CC2550

4.2 RF Transmit Section

Tc = 25

°C, VDD = 3.0 V, 0 dBm if nothing else stated. All measurement results obtained using the CC2550EM reference

design ([3]).

Parameter

Differential load impedance

Output power, highest setting

Output power, lowest setting

Adjacent channel power (ACP) @2440

MHz

Spurious emissions

25 MHz – 1 GHz

47-74, 87.5-118, 174-

230, 470-862 MHz

1800-1900 MHz

At 2·RF and 3·RF

Otherwise above 1

GHz

TX latency

Min Typ

80 + j74

Max Unit Condition/Note

Differential impedance as seen from the RF-port (RF_P and RF_N) towards the antenna. Follow the CC2550EM

reference design ([3]) available from the TI website.

+1 Output power is programmable and full range is available across the entire frequency band.

Delivered to 50

Ω single-ended load via CC2550EM

reference design ([3]) RF matching network.

–30 Output power is programmable and full range is available across the entire frequency band.

Delivered to 50

Ω single-ended load via CC2550EM

reference design ([3]) RF matching network.

It is possible to program less than -30 dBm output power, but this is not recommended due to large variation in output power across operating conditions and processing corners for these settings.

-25 dBc

-25 dBc

-25

-24 dBc dBc

2.4 kBaud, 38.2 kHz deviation, 2-FSK, 250 kHz channel spacing

10 kBaud, 38.2 kHz deviation, 2-FSK, 250 kHz channel spacing

250 kBaud, MSK, 750 kHz channel spacing

500 kBaud, MSK, 1 MHz channel spacing

–36

–54

–47

–41

–30 dBm dBm dBm dBm dBm

Restricted band in Europe

Restricted bands in USA

8 bit Serial operation. Time from sampling the data on the transmitter data input pin until it is observed on the RF output ports.

Table 5: RF Transmit Parameters

SWRS039B Page 6 of 58

CC2550

Tc = 25

°C, VDD = 3.0 V if nothing else stated. All measurement results obtained using the CC2550EM reference design

([3]).

Parameter

Crystal frequency

Tolerance

Min

26

Typ

26

±40

Max

27

Unit

MHz

Condition/Note

ppm This is the total tolerance including a) initial tolerance, b) crystal loading, c) aging and d) temperature dependence.

The acceptable crystal tolerance depends on RF frequency and channel spacing / bandwidth.

Start-up time 150 µs

Measured on CC2500EM reference design ([3]) using crystal

AT-41CD2 from NDK.

This parameter is to a large degree crystal dependent.

Table 6: Crystal Oscillator Parameters

4.4 Frequency Synthesizer Characteristics

Tc = 25

°C, VDD = 3.0 V if nothing else stated. All measurement results obtained using the CC2550EM reference design

([3]). Min figures are given using a 27 MHz crystal. Typ and max figures are given using a 26 MHz crystal.

Parameter

Programmed frequency resolution

Synthesizer frequency tolerance

Min Typ

397 F

XOSC

2

16

/

±40

RF carrier phase noise

@2440 MHz

PLL turn-on / hop time 85.1

PLL calibration time

Max Unit

427 Hz

Condition/Note

26-27 MHz crystal.

694

–74

–74

–77

–97

–106

–114

–117

88.4

721

88.4

721 ppm Given by crystal used. Required accuracy (including temperature and aging) depends on frequency band and channel bandwidth / spacing. dBc/Hz @ 50 kHz offset from carrier dBc/Hz @ 100 kHz offset from carrier dBc/Hz @ 200 kHz offset from carrier dBc/Hz @ 1 MHz offset from carrier dBc/Hz @ 2 MHz offset from carrier dBc/Hz @ 5 MHz offset from carrier dBc/Hz @ 10 MHz offset from carrier

µs

Time from leaving the IDLE state until arriving in the

FSTXON or TX state, when not performing calibration.

Crystal oscillator running.

µs

Calibration can be initiated manually or automatically before entering or after leaving RX/TX.

Table 7: Frequency Synthesizer Parameters

SWRS039B Page 7 of 58

CC2550

4.5 Analog Temperature Sensor

The characteristics of the analog temperature sensor at 3.0 V supply voltage are listed in Table 8

below. Note that it is necessary to write 0xBF to the PTEST register to use the analog temperature

sensor in the IDLE state.

Parameter

Output voltage at –40

°C

Output voltage at 0

°C

Output voltage at +40

°C

Output voltage at +80

°C

Temperature coefficient

Error in calculated temperature, calibrated

Min Typ Max Unit Condition/Note

0.660 V

0.755 V

0.859 V

0.958 V

-2

*

2.54 mV/

°C Fitted from –20°C to +80°C

–20

°C to +80°C when using 2.54 mV / °C, after 1-point calibration at room temperature

*

The indicated minimum and maximum error with 1point calibration is based on simulated values for typical process parameters

0.3 mA Current consumption increase when enabled

Table 8: Analog Temperature Sensor Parameters

Tc = 25

°C if nothing else stated.

Digital Inputs/Outputs

Logic "0" input voltage

Logic "1" input voltage

Logic "0" output voltage

Logic "1" output voltage

Logic "0" input current

Logic "1" input current

Min

0

VDD-0.7

0

VDD-0.3

NA

NA

Max

0.7

VDD

0.5

VDD

-50

50

Unit Condition/Note

V

V

V For up to 4 mA output current

V nA nA

For up to 4 mA output current

Input equals 0 V

Input equals VDD

Table 9: DC Characteristics

When the power supply complies with the requirements in Table 10 below, proper Power-On-

Reset functionality is guaranteed. Otherwise, the chip should be assumed to have unknown state

until transmitting an SRES strobe over the SPI interface. See Section 16.1 on page 25 for further

details.

Parameter Min Typ Max Unit Condition/Note

Power-up ramp-up time

Power off time 1

5 ms ms

From 0 V until reaching 1.8 V

Minimum time between power off and power-on.

Table 10: Power-on Reset Requirements

SWRS039B Page 8 of 58

CC2550

SCLK 1

SO (GDO1) 2

DVDD 3

DCOUPL 4

16 15 14 13

5 6 7 8

12 AVDD

11 RF_N

10 RF_P

9 CSn

GND

Exposed die attach pad

Pin # Pin Name

1

2

SCLK

SO

(GDO1)

3

4

7

8

5

6

Figure 1: Pinout Top View

Note: The exposed die attach pad must be connected to a solid ground plane as this is the main ground connection for the chip.

DVDD

DCOUPL

XOSC_Q1

AVDD

XOSC_Q2

GDO0

(ATEST)

9

CSn

10

RF_P

11

RF_N

12 AVDD

13 AVDD

14

RBIAS

15 DGUARD

16

SI

Pin Type

Digital Input

Digital Output

Power (Digital)

Power (Digital)

Analog I/O

Power (Analog)

Analog I/O

Digital I/O

Digital Input

RF Output

RF Output

Power (Analog)

Power (Analog)

Analog I/O

Power (Digital)

Digital Input

Description

Serial configuration interface, clock input

Serial configuration interface, data output.

Optional general output pin when CSn is high

1.8 - 3.6 V digital power supply for digital I/O’s and for the digital core voltage regulator

1.6 - 2.0 V digital power supply output for decoupling.

NOTE: This pin is intended for use with the

CC2550 used to provide supply voltage to other devices.

only. It can not be

Crystal oscillator pin 1, or external clock input

1.8 - 3.6 V analog power supply connection

Crystal oscillator pin 2

Digital output pin for general use:

• Test

• FIFO status signals

• Clock output, down-divided from XOSC

• Serial input TX data

Also used as analog test I/O for prototype/production testing

Serial configuration interface, chip select

Positive RF output signal from PA

Negative RF output signal from PA

1.8 - 3.6 V analog power supply connection

1.8 - 3.6 V analog power supply connection

External bias resistor for reference current

Power supply connection for digital noise isolation

Serial configuration interface, data input

Table 11: Pinout Overview

SWRS039B Page 9 of 58

CC2550

RADIO CONTROL

RF_P

RF_N

PA

FREQ

SYNTH

SCLK

SO (GDO1)

SI

CSn

GDO0 (ATEST)

BIAS XOSC

RBIAS XOSC_Q1 XOSC_Q2

Figure 2:

CC2550 Simplified Block Diagram

A simplified block diagram of

CC2550 is shown

in Figure 2.

The

CC2550 transmitter is based on direct synthesis of the RF frequency.

The frequency synthesizer includes a completely on-chip LC VCO.

A crystal is to be connected to XOSC_Q1 and

XOSC_Q2

. The crystal oscillator generates the reference frequency for the synthesizer, as well as clocks for the digital part.

A 4-wire SPI serial interface is used for configuration and data buffer access.

The digital baseband includes support for channel configuration, packet handling and data buffering.

Only a few external components are required for using the

CC2550. The recommended

application circuit is shown in Figure 3. The external components are described in Table

12, and typical values are given in Table 13.

Bias resistor

The bias resistor R141 is used to set an accurate bias current.

Balun and RF matching

The components between the RF_N/RF_P pins and the point where the two signals are joined together (C102, C112, L101, and L111) form a balun that converts the differential RF signal on

CC2550 to a single-ended RF signal. C101 and C111 are needed for DC blocking.

Together with an appropriate LC network, the balun components also transform the impedance to match a 50

Ω antenna (or

cable). Suggested values are listed in Table

13.

The balun and LC filter component values and their placement are important to keep the performance optimized. It is highly recommended to follow the CC2550EM

reference design ([3]).

Crystal

The crystal oscillator uses an external crystal with two loading capacitors (C51 and C71).

See Section 22 on page 32 for details.

Power supply decoupling

The power supply must be properly decoupled close to the supply pins. Note that decoupling capacitors are not shown in the application circuit. The placement and the size of the decoupling capacitors are very important to achieve the optimum performance. The

CC2550EM reference design ([3]) should be

followed closely.

SWRS039B Page 10 of 58

CC2550

Component Description

C41

C51/C71

Decoupling capacitor for on-chip voltage regulator to digital part

Crystal loading capacitors, see Section 22 on page 32 for details

C101/C111 RF balun DC blocking capacitors

C102/C112 RF balun/matching capacitors

C103/C104 RF LC filter/matching capacitors

L101/L111

L102

R141

XTAL

RF balun/matching inductors (inexpensive multi-layer type)

RF LC filter inductor (inexpensive multi-layer type)

Resistor for internal bias current reference

26-27 MHz crystal, see Section 22 on page 32 for details

Table 12: Overview of External Components (excluding supply decoupling capacitors)

1.8V-3.6V power supply

SI

R141

SCLK

SO

(GDO1)

1 SCLK AVDD 12

2 SO (GDO1)

CC2550

3 DVDD

RF_N 11

DIE ATTACH PAD:

RF_P 10

CSn 9

C41

GDO0

(optional)

CSn

L111

C111

C101

C112

L101

C102

L102

C103

Antenna

(50 Ohm)

C104

Alternative:

Folded dipole PCB antenna (no external components needed)

XTAL

C51 C71

Figure 3: Typical Application and Evaluation Circuit (excluding supply decoupling capacitors)

SWRS039B Page 11 of 58

CC2550

Component

C41

C51

L101

L102

L111

R141

XTAL

C71

C101

C102

C103

C104

C111

C112

Value

100 nF±10%, 0402 X5R

27 pF±5%, 0402 NP0

27 pF±5%, 0402 NP0

100 pF±5%, 0402 NP0

1.0 pF±0.25pF, 0402 NP0

1.8 pF±0.25pF, 0402 NP0

1.5 pF±0.25pF, 0402 NP0

100 pF±5%, 0402 NP0

1.0 pF±0.25pF, 0402 NP0

1.2 nH±0.3nH, 0402 monolithic

1.2 nH±0.3nH, 0402 monolithic

1.2 nH±0.3nH, 0402 monolithic

56 kΩ±1%, 0402

26.0 MHz surface mount crystal

Manufacturer

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata GRM15 series

Murata LQG15 series

Murata LQG15 series

Murata LQG15 series

Koa RK73 series

NDK, AT-41CD2

Table 13: Bill of Materials for the Application Circuit

Measurements have been performed with multi-layer inductors from other manufacturers

(e.g. Würth) and the measurement results were the same as when using the Murata part.

The Gerber files for the CC2550EM reference

design ([3]) are available from the TI website.

SWRS039B Page 12 of 58

CC2550

CC2550 can be configured to achieve optimum performance for many different applications.

Configuration is done using the SPI interface.

The following key parameters can be programmed:

• Power-down / power up mode

• Crystal oscillator power-up / power – down

• Transmit mode

• RF channel selection rate

• Modulation

• RF output power

• Data buffering with 64-byte transmit FIFO

• Packet radio hardware support

• Forward Error Correction (FEC) with interleaving

Whitening

Details of each configuration register can be

found in Section 28, starting on page 37.

Figure 4 shows a simplified state diagram that

explains the main

CC2550 states, together with typical usage and current consumption. For detailed information on controlling the

CC2550 state machine, and a complete state diagram,

see Section 16, starting on page 25.

Figure 4: Simplified State Diagram with Typical Current Consumption

SWRS039B Page 13 of 58

CC2550

CC2550 can be configured using the SmartRF

®

Studio software ([4]). The SmartRF

®

Studio software is highly recommended for obtaining optimum register settings, and for evaluating performance and functionality. A screenshot of the SmartRF

®

Studio user interface for

is shown in Figure 5.

CC2550

After chip reset, all the registers have default

values as shown in the tables in Section 28.

The optimum register setting might differ from the default value. After a reset all registers that shall be different from the default value therefore needs to be programmed through the

SPI interface.

Figure 5: SmartRF

®

Studio [4] User Interface

10 4-wire Serial Configuration and Data Interface

CC2550 is configured via a simple 4-wire SPIcompatible interface (SI, SO, SCLK and CSn) where

CC2550 is the slave. This interface is also used to write buffered data. All transfer on the SPI interface are done most significant bit first.

All transactions on the SPI interface start with a header byte containing a R/W bit, a burst access bit (B), and a 6-bit address (A

5

– A

0

).

The CSn pin must be kept low during transfers on the SPI bus. If CSn goes high during the transfer of a header byte or during read/write from/to a register, the transfer will be cancelled. The timing for the address and data

transfer on the SPI interface is shown in Figure

6 with reference to Table 14.

When CSn is pulled low, the MCU must wait until

CC2500 SO pin goes low before starting to transfer the header byte. This indicates that the crystal is running. Unless the chip was in the SLEEP or XOFF states, the SO pin will always go low immediately after taking CSn low.

SWRS039B Page 14 of 58

CC2550 t sp t ch t cl t sd t hd t ns

SCLK:

CSn:

X

S I

S O

Hi-Z

Write to register:

0

S7

B

B

A5

S5

Read from register:

A4

S4

X

S I

S O

Hi-Z

1

S7

B

B

A5

S5

A4

S4

A3

S3

A3

S3

A2

S2

A2

S2

A1

S1

A1

S1

A0

S0

X

D

W

7 D

W

6

S7

S6

D

W

5 D

W

4 D

W

3 D

W

2

S5 S4 S3

S2

D

W

1 D

W

0

S1 S0

A0

S0 D

R

7 D

R

6

X

D

R

5 D

R

4 D

R

3 D

R

2 D

R

1 D

R

0

X

Hi-Z

Hi-Z

Figure 6: Configuration Registers Write and Read Operations

t sp,pd t sp t ch t cl t rise t fall t sd

Parameter Description

f

SCLK

SCLK

frequency

100 ns delay inserted between address byte and data byte (single access), or between address and data, and between each data byte (burst access).

SCLK

frequency, single access

No delay between address and data byte

SCLK

frequency, burst access

No delay between address and data byte, or between data bytes

CSn

low to positive edge on SCLK, in power-down mode t hd

CSn

low to positive edge on SCLK, in active mode

Clock rise time

Clock fall time

Setup data (negative SCLK edge) to positive edge on SCLK

(t sd

applies between address and data bytes, and between data bytes)

Hold data after positive edge on SCLK

Single access

Burst access t ns

Negative edge on SCLK to CSn high

Min Max Units

150 -

µs

20 - ns

-

-

55

76

-

-

5

5 ns ns ns ns

20 - ns

20 - ns

Table 14: SPI Interface Timing Requirements

Note:

The minimum t sp,pd

figure in Table 14 can be used in cases where the user does not read the

CHIP_RDYn

signal. CSn low to positive edge on SCLK when the chip is woken from power-down

depends on the start-up time of the crystal being used. The 150 us in Table 14 is the crystal oscillator

start-up time measured on CC2550EM reference design ([3]) using crystal AT-41CD2 from NDK.

When the header byte, data byte, or command strobe is sent on the SPI interface, the chip status byte is sent by the

CC2550 on the SO pin. The status byte contains key status signals, useful for the MCU. The first bit, s7, is

the CHIP_RDYn signal; this signal must go low

before the first positive edge of SCLK. The

CHIP_RDYn

signal indicates that the crystal is

running.

Bits 6, 5, and 4 comprise the STATE value.

This value reflects the state of the chip. The

XOSC and power to the digital core is on in the

IDLE state, but all other modules are in power

SWRS039B Page 15 of 58

CC2550 down. The frequency and channel configuration should only be updated when the chip is in this state. The TX state is active when the chip is transmitting.

The last four bits (3:0) in the status byte

contains FIFO_BYTES_AVAILABLE. For write

operations (the R/W bit in the header byte is

set to 0), the FIFO_BYTES_AVAILABLE field

contains the number of bytes that can be written to the TX FIFO. When

FIFO_BYTES_AVAILABLE

=15, 15 or more

bytes are available/free.

Table 15 gives a status byte summary.

Bits Name Description

7

6:4

CHIP_RDYn

STATE[2:0]

Stays high until power and crystal have stabilized. Should always be low when using the SPI interface.

Indicates the current main state machine mode

Value State

000 IDLE

Description

(Also reported for some transitional states instead of SETTLING or CALIBRATE)

001 Not used

010 TX

011 FSTXON

100

101

CALIBRATE

SETTLING

Frequency synthesizer is on, ready to start transmitting

Frequency synthesizer calibration is running

PLL is settling

111 TXFIFO_UNDERFLOW TX FIFO has underflowed. Acknowledge with

SFTX

3:0 FIFO_BYTES_AVAILABLE[3:0] The number of free bytes in the TX FIFO (the R/W bit in the header byte must be set to 0)

Table 15: Status Byte Summary

The configuration registers on the

CC2550 are located on SPI addresses from 0x00 to 0x2E.

Table 24 on page 39 lists all configuration

registers. It is highly recommended to use

SmartRF

®

Studio [4] to generate optimum

register settings. The detailed description of

each register is found in Section 28.1, starting on page 41. All configuration registers can be

both written to and read. The R/W bit controls if the register should be written to or read.

When writing to registers, the status byte is sent on the SO pin each time a header byte or data byte is transmitted on the SI pin. When reading from registers, the status byte is sent on the SO pin each time a header byte is transmitted on the SI pin.

Registers with consecutive addresses can be accessed in an efficient way by setting the burst bit (B) in the header byte. The address bits (A

5

– A

0

) sets the start address in an internal address counter. This counter is incremented by one each new byte (every 8 clock pulses). The burst access is either a read or a write access and must be terminated by setting CSn high.

For register addresses in the range 0x30-

0x3D, the burst bit is used to select between status registers, burst bit is one, and command

strobes, burst bit is zero (see Section 10.4

below). Because of this, burst access is not available for status registers and they must be accessed one at a time. The status registers can only be read.

When reading register fields over the SPI interface while the register fields are updated

SWRS039B Page 16 of 58

by the radio hardware (e.g. MARCSTATE or

TXBYTES

), there is a small, but finite, probability that a single read from the register is being corrupt. As an example, the probability of any single read from TXBYTES being corrupt, assuming the maximum data rate is used, is approximately 80 ppm. Refer to the

CC2550 Errata Note [1] for more details.

Command strobes may be viewed as single byte instructions to

CC2550. By addressing a command strobe register, internal sequences will be started. These commands are used to disable the crystal oscillator, enable transmit mode, flush the TX FIFO etc. The 9 command

strobes are listed in Table 23 on page 38.

The command strobe registers are accessed by transferring a single header byte (no data is being transferred). That is, only the R/W bit, the burst access bit (set to 0), and the six address bits (in the range 0x30 through 0x3D) are written.

When writing command strobes, the status byte is sent on the SO pin.

A command strobe may be followed by any other SPI access without pulling CSn high.

However, if an SRES strobe is being issued,

one will have to wait for SO to go low again before the next header byte can be issued as

shown in Figure 7. The command strobes are

executed immediately, with the exception of

the SPWD and the SXOFF strobes that are

executed when CSn goes high.

CC2550 one header byte and then consecutive data bytes until terminating the access by setting

CSn

high.

The following header bytes access the FIFO:

• 0x3F: Single byte access to TX FIFO

• 0x7F: Burst access to TX FIFO

When writing to the TX FIFO, the status byte

(see Section 10.1) is output for each new data byte on SO, as shown in Figure 6. This status

byte can be used to detect TX FIFO underflow while writing data to the TX FIFO. Note that the status byte contains the number of bytes free before writing the byte in progress to the

TX FIFO. When the last byte that fits in the TX

FIFO is transmitted on SI, the status byte received concurrently on SO will indicate that one byte is free in the TX FIFO.

The TX FIFO may be flushed by issuing a

SFTX

command strobe. A SFTX command

strobe can only be issued in the IDLE or

TX_UNDERFLOW states. The TX FIFO is flushed when going to the SLEEP state.

Figure 8 gives a brief overview of different

register access types possible.

10.6 PATABLE Access

Figure 7: SRES Command Strobe

The 64-byte TX FIFO is accessed through the

0x3F address and is write-only.

The burst bit is used to determine if the FIFO access is a single byte access or a burst access. The single byte access method expects a header byte with the burst bit set to zero and one data byte. After the data byte a new header byte is expected; hence, CSn can remain low. The burst access method expects

The 0x3E address is used to access the

PATABLE

, which is used for selecting PA power control settings. The PATABLE is an 8byte table, but not all entries into this table are used. The entries to use are selected by the 3-

bit value FREND0.PA_POWER.

• When using 2-FSK, GFSK, or MSK modulation only the first entry into this table is used (index 0).

• When using OOK modulation the first two entries into this table are used (index 0 and index 1).

Since the PATABLE is an 8-byte table, the table is written and read from the lowest setting (0) to the highest (7), one byte at a time. An index counter is used to control the access to the table. This counter is incremented each time a byte is read or written to the table, and set to the lowest index when

CSn

is high. When the highest value is reached the counter restarts at 0.

SWRS039B Page 17 of 58

The access to the PATABLE is either single byte or burst access depending on the burst bit. When using burst access the index counter will count up; when reaching 7 the counter will restart at 0. The R/W bit controls whether the access is a write access (R/W=0) or a read access (R/W=1).

If one byte is written to the PATABLE and this value is to be read out then CSn must be set high before the read access in order to set the index counter back to zero.

CC2550

Note that the content of the PATABLE is lost when entering the SLEEP state.

See Section 21 on page 30 for output power

programming details.

Figure 8: Register Access Types

In a typical system,

• Write buffered data

• Read back status information via the 4-wire

SPI-bus configuration interface (SI, SO,

SCLK

and CSn)

The microcontroller uses four I/O pins for the

SPI configuration interface (SI, SO, SCLK and

CSn

). The SPI is described in Section 14 on page 14.

CC2550 will interface to a microcontroller. This microcontroller must be able to:

11.2 General Control and Status Pins

The

CC2550 has one dedicated configurable pin (GDO0) and one shared pin (GDO1) that can output internal status information useful for control software. These pins can be used to generate interrupts on the MCU. See Section

25 page 33 for more details of the signals that

can be programmed. GDO1 is shared with the

SO

pin in the SPI interface. The default setting for GDO1/SO is 3-state output. By selecting any other of the programming options the

GDO1/SO

pin will become a generic pin. When

CSn

is low, the pin will always function as a normal SO pin.

In the synchronous and asynchronous serial modes, the GDO0 pin is used as a serial TX data input pin while in transmit mode.

The GDO0 pin can also be used for an on-chip analog temperature sensor. By measuring the voltage on the GDO0 pin with an external ADC, the temperature can be calculated.

Specifications for the temperature sensor are

found in Section 4.5 on page 8.

With default PTEST register setting (0x7F) the

temperature sensor output is only available when the frequency synthesizer is enabled

(e.g. the MANCAL, FSTXON and TX states).

It is necessary to write 0xBF to the PTEST

register to use the analog temperature sensor in the IDLE state. Before leaving the IDLE

state, the PTEST register should be restored to

its default value (0x7F).

SWRS039B Page 18 of 58

12 Data Rate Programming

CC2550

The data rate used when transmitting is

programmed by the MDMCFG3.DRATE_M and

the

MDMCFG4.DRATE_E

configuration

registers. The data rate is given by the formula below. As the formula shows, the programmed data rate depends on the crystal frequency.

R

DATA

=

(

256

+

DRATE

2

28

_

M

)

2

DRATE

_

E

f

XOSC

The following approach can be used to find suitable values for a given data rate:

DRATE

_

E

DRATE

_

M

=

=

⎢ log

2

⎜⎜

R

DATA f

XOSC

2

20

f

R

DATA

2

XOSC

2

28

DRATE

_

E

⎟⎟

256

If DRATE_M is rounded to the nearest integer and becomes 256, increment DRATE_E and use DRATE_M=0.

The data rate can be set from 1.2 kBaud to

500 kBaud with a minimum step size of:

Data Rate

Start

[kBaud]

Typical

Data Rate

[kBaud]

Data Rate

Stop

[kBaud]

Data Rate

Step Size

[kBaud]

0.8 1.2/2.4 3.17 0.0062

3.17 4.8 6.35 0.0124

6.35 9.6 12.7 0.0248

50.8 76.8 101.6 0.1984

101.6 153.6 203.1 0.3967

203.1 250 406.3 0.7935

406.3 500 500 1.5869

Table 16: Data Rate Step Size

13 Packet Handling Hardware Support

The

CC2550 has built-in hardware support for packet oriented radio protocols.

In transmit mode, the packet handler can be configured to add the following elements to the packet stored in the TX FIFO:

• A programmable number of preamble bytes

• A two byte synchronization (sync) word.

Can be duplicated to give a 4-byte sync word. It is not possible to only insert preamble or only insert a sync word.

• A CRC checksum computed over the data field.

In a system where

CC2550 is used as the transmitter and

CC2500 as the receiver, the recommended setting is 4-byte preamble and

4-byte sync word, except for 500 kBaud data rate where the recommended preamble length is 8 bytes.

In addition, the following can be implemented on the data field and the optional 2-byte CRC checksum:

• Whitening of the data with a PN9 sequence.

• Forward error correction by the use of interleaving and coding of the data

(convolutional coding).

Note that register fields that control the packet handling features should only be altered when

CC2550 is in the IDLE state.

From a radio perspective, the ideal over the air data are random and DC free. This results in the smoothest power distribution over the occupied bandwidth. This also gives the regulation loops in the receiver uniform operation conditions (no data dependencies).

Real world data often contain long sequences of zeros and ones. Performance can then be improved by whitening the data before transmitting, and de-whitening the data in the receiver. With

CC2550, in combination with a

CC2500 at the receiver end, this can be done

automatically by setting PKTCTRL0

SWRS039B Page 19 of 58

CC2550

.WHITE_DATA=1. All data, except the

preamble and the sync word, are then XOR-ed with a 9-bit pseudo-random (PN9) sequence

before being transmitted as shown in Figure 9.

At the receiver end, the data are XOR-ed with the same pseudo-random sequence. This way, the whitening is reversed, and the original data appear in the receiver. The PN9 sequence is reset to all 1’s.

Data whitening can only be used when

PKTCTRL0.CC2400_EN

=0 (default).

Figure 9: Data Whitening in TX Mode

The format of the data packet can be configured and consists of the following items

(see Figure 10):

• Preamble

Optional data whitening

Optionally FEC encoded/decoded

Optional CRC-16 calculation word

• Optional length byte

• Optional address byte

• Payload

• Optional 2 byte CRC

Preamble bits

(1010...1010)

Data field

Legend:

Inserted automatically in TX, processed and removed in RX.

Optional user-provided fields processed in TX, processed but not removed in RX.

Unprocessed user data (apart from FEC and/or whitening)

8 x n bits 16/32 bits

8 bits

8 bits

8 x n bits 16 bits

Figure 10: Packet Format

The preamble pattern is an alternating sequence of ones and zeros (101010101…).

The minimum length of the preamble is programmable. When enabling TX, the modulator will start transmitting the preamble.

When the programmed number of preamble bytes has been transmitted, the modulator will send the sync word and then data from the TX

FIFO if data is available. If the TX FIFO is empty, the modulator will continue to send preamble bytes until the first byte is written to the TX FIFO. The modulator will then send the

SWRS039B Page 20 of 58

sync word and then the data bytes. The number of preamble bytes is programmed with

the MDMCFG1.NUM_PREAMBLE value.

CC2550

Note that the minimum packet length supported (excluding the optional length byte and CRC) is one byte of payload data.

The synchronization word is a two-byte value

set in the SYNC1 and SYNC0 registers. A one-

byte sync word can be emulated by setting the

SYNC1

value to the preamble pattern. It is also

possible to emulate a 32 bit sync word by

using MDMCFG2.SYNC_MODE=3 or 7. The sync

word will then be repeated twice.

CC2550 supports both fixed packet length protocols and variable packet length protocols.

Variable or fixed packet length mode can be used for packets up to 255 bytes. For longer packets, infinite packet length mode must be used.

Fixed packet length mode is selected by

setting PKTCTRL0.LENGTH_CONFIG=0. The desired packet length is set by the PKTLEN

register.

In variable packet length mode,

PKTCTRL0.LENGTH_CONFIG

=1, the packet

length is configured by the first byte after the sync word. The packet length is defined as the payload data, excluding the length byte and the optional automatic CRC.

With PKTCTRL0.LENGTH_CONFIG=2, the

packet length is set to infinite and transmission will continue until turned off manually. As described in the next section, this can be used to support packet formats with different length configuration than natively supported by

CC2550. One should make sure that TX mode is not turned off during the transmission of the first half of any byte. Refer to the

CC2550

Errata Notes [1] for more details.

13.2.1 Packet Length > 255

Reprogramming the packet automation control register, PCKCTRL0, during TX mode opens the possibility to transmit packets that are longer than 256 bytes and still be able to use the packet handling hardware support. At the start of the packet, the infinite packet length mode (PCKCTRL0.LENGTH_CONFIG=2) must

be active. The PKTLEN register is set to

mod(length, 256). When less than 256 bytes remains of the packet the MCU disables infinite packet length mode and activates fixed packet length mode. When the internal byte

counter reaches the PKTLEN value, the

transmission ends the radio enters the state determined by TXOFF_MODE). Automatic CRC appending can be used (by setting

PKTCTRL0.CRC_EN

=1).

When for example a 600-byte packet is to be transmitted, the MCU should do the following

(see also Figure 11):

• Set

=2.

• Pre-program the PKTLEN register to

mod(600,256)=88.

• Transmit at least 345 bytes (600 – 255), for example by filling the 64-byte TX FIFO six times (384 bytes transmitted).

• Set

=0.

• The transmission ends when the packet counter reaches 88. A total of 600 bytes are transmitted.

Figure 11: Packet Length > 255

SWRS039B Page 21 of 58

CC2550

13.3 Packet Handling in Transmit Mode

The payload that is to be transmitted must be written into the TX FIFO. The first byte written must be the length byte when variable packet length is enabled. The length byte has a value equal to the payload of the packet (including the optional address byte). If fixed packet length is enabled, then the first byte written to the TX FIFO is interpreted as the destination address, if this feature is enabled in the device that receives the packet.

The modulator will first send the programmed number of preamble bytes. If data is available in the TX FIFO, the modulator will send the two-byte (optionally 4-byte) sync word and then the payload in the TX FIFO. If CRC is enabled, the checksum is calculated over all the data pulled from the TX FIFO and the result is sent as two extra bytes at the end of the payload data. If the TX FIFO runs empty before the complete packet has been transmitted, the radio will enter

TXFIFO_UNDERFLOW state. The only way to exit this state is by issuing an SFTX strobe.

Writing to the TX FIFO after it has underflowed will not restart TX mode.

If whitening is enabled, everything following the sync words will be whitened. This is done before the optional FEC/Interleaver stage.

Whitening is enabled by setting

PKTCTRL0.WHITE_DATA

=1.

If FEC/Interleaving is enabled, everything following the sync words will be scrambled by the interleaver, and FEC encoded before being modulated. FEC is enabled by setting

MDMCFG.FEC_EN

=1.

the TX FIFO needs to be refilled while in TX.

This means that the MCU needs to know the number of bytes that can be written to TX

FIFO. There are two possible solutions to get the necessary status information: a) Interrupt driven solution

It is possible to use one of the GDO pins to give an interrupt when a sync word has been transmitted and/or when a complete packet has been transmitted (IOCFGx=0x06). In addition, there are 2 configurations for the

IOCFGx

register that are associated with the

TX FIFO (IOCFGx=0x02 and IOCFG=0x03) that can be used as interrupt sources to provide information on how many bytes are in

the TX FIFO. See Table 22.

b) SPI polling

The PKTSTATUS register can be polled at a given rate to get information about the current

GDO0

value. The TXBYTES register can be polled at a given rate to get information about the number of bytes in the TX FIFO.

Alternatively, the number of bytes in the TX

FIFO can be read from the chip status byte returned on the MISO line each time a header byte, data byte, or command strobe is sent on the SPI bus. This only valid when R/W = 0.

As explained in Section 10.3 and the

CC2550

Errata Notes [1], when using SPI polling there

is a small, but finite, probability that a single read from registers PKTSTATUS and TXBYTES is being corrupt. The same is the case when reading the chip status byte. It is therefore recommended to employ an interrupt driven solution.

Refer to the TI website for SW examples ([5] and [6]).

13.4 Packet Handling in Firmware

When implementing a packet oriented radio protocol in firmware, the MCU needs to know when a packet has been transmitted.

Additionally, for packets longer than 64 bytes

CC2550 supports amplitude, frequency and phase shift modulation formats. The desired modulation format is set in the

MDMCFG2.MOD_FORMAT

register.

Optionally, the data stream can be Manchester coded by the modulator. This option is enabled

by setting MDMCFG2.MANCHESTER_EN=1.

Manchester encoding is not supported at the same time as using the FEC/Interleaver option.

SWRS039B Page 22 of 58

14.1 Frequency Shift Keying

2-FSK can optionally be shaped by a

Gaussian filter with BT=1, producing a GFSK modulated signal.

The frequency deviation is programmed with

the DEVIATION_M and DEVIATION_E values in the DEVIATN register. The value has an

exponent/mantissa form, and the resultant deviation is given by:

f dev

=

f xosc

2

17

( 8

+

DEVIATION

_

M

)

2

DEVIATION

_

E

The symbol encoding is shown in Table 17.

CC2550

14.2 Minimum Shift Keying

When using MSK

1

, the complete transmission

(preamble, sync word and payload) will be

MSK modulated.

Phase shifts are performed with a constant transition time.

The fraction of a symbol period used to change the phase can be modified with the

DEVIATN.DEVIATION_M

setting. This is

equivalent to changing the shaping of the symbol.

The MSK modulation format implemented in

CC2550 inverts the sync word and data compared to e.g. signal generators.

Format Symbol

2-FSK\GFSK ‘0’

Coding

Table 17: Symbol Encoding for 2-FSK/GFSK

Modulation

The supported amplitude modulation On-Off

Keying (OOK) simply turns on or off the PA to modulate 1 and 0 respectively.

1

Identical to offset QPSK with half-sine shaping (data coding may differ)

15 Forward Error Correction with Interleaving

15.1 Forward Error Correction (FEC)

CC2550 has built in support for Forward Error

Correction (FEC) that can be used with

CC2500

[9] at the receiver end. To enable this option,

set MDMCFG1.FEC_EN=1. FEC is employed on

the data field and CRC word in order to reduce the gross bit error rate when operating near the sensitivity limit. Redundancy is added to the transmitted data in such a way that the

CC2500 [9] can restore the original data in the

presence of some bit errors.

The use of FEC allows correct reception at a lower SNR, thus extending communication range. Alternatively, for a given SNR, using

FEC decreases the bit error rate (BER). As the packet error rate (PER) is related to BER by:

PER

=

1

( 1

BER

)

packet

_

length

a lower BER can be used to allow longer packets, or a higher percentage of packets of a given length, to be transmitted successfully.

Finally, in realistic ISM radio environments, transient and time-varying phenomena will produce occasional errors even in otherwise good reception conditions. FEC will mask such errors and, combined with interleaving of the coded data, even correct relatively long periods of faulty reception (burst errors).

The FEC scheme adopted for

CC2550 is convolutional coding, in which n bits are generated based on k input bits and the m most recent input bits, forming a code stream able to withstand a certain number of bit errors between each coding state (the m-bit window).

The convolutional coder is a rate 1/2 code with a constraint length of m=4. The coder codes one input bit and produces two output bits; hence, the effective data rate is halved. I.e. to transmit at the same effective data rate when using FEC, it is necessary to use twice as high over-the-air data rate. I.e. to transmit at the same effective data rate when using FEC, it is necessary to use twice as high over-the-air data rate. This will require a higher

CC2500 [9]

receiver bandwidth, and thus reduced sensitivity. In other words, the improved reception by using FEC and the degraded

SWRS039B Page 23 of 58

sensitivity from a higher receiver bandwidth will be counteracting factors.

CC2550

15.2 Interleaving

Data received through radio channels will often experience burst errors due to interference and time-varying signal strengths. In order to increase the robustness to errors spanning multiple bits, interleaving is used when FEC is enabled. After de-interleaving on the receiver side, a continuous span of errors in the received stream will become single errors spread apart.

CC2550 employs matrix interleaving, which is

illustrated in Figure 12. The on-chip

interleaving buffer is a 4 x 4 matrix. The data bits from the rate ½ convolutional coder are written into the rows of the matrix, whereas the bit sequence to be transmitted is read from the columns of the matrix. Conversely, in a

CC2500

[9] receiver, the received symbols are written

into the rows of the matrix, whereas the data passed onto the convolutional decoder is read from the columns of the matrix.

When FEC and interleaving is used at least one extra byte is required for trellis termination. In addition, the amount of data transmitted over the air must be a multiple of the size of the interleaver buffer (two bytes).

The packet control hardware therefore automatically inserts one or two extra bytes at the end of the packet, so that the total length of the data to be interleaved is an even number. Note that these extra bytes are invisible to the user, as they are removed before the received packet enters the RX FIFO in a

CC2500 [9].

When FEC and interleaving is used the minimum data payload is 2 bytes.

Note that for the

CC2500 [9] transceiver FEC is

only supported in fixed packet length mode

(PKTCTRL0.LENGTH_CONFIG=0).

Interleaver

Write buffer

Interleaver

Read buffer

Packet

Engine

FEC

Encoder

Modulator

Figure 12: General Principle of Matrix Interleaving

SWRS039B Page 24 of 58

CC2550

MANCAL

3,4,5

SIDLE

CAL_COMPLETE

SCAL

IDLE

1

SPWD

CSn = 0

SXOFF

CSn = 0

SLEEP

0

STX | SFSTXON

FS_WAKEUP

6,7

FS_AUTOCAL = 00 | 10 | 11

&

STX | SFSTXON

FS_AUTOCAL = 01

&

STX | SFSTXON

CALIBRATE

8

XOFF

2

CAL_COMPLETE

FSTXON

18

SFSTXON

SETTLING

9,10,11

STX

TXOFF_MODE = 01

STX

TXOFF_MODE = 10

TX

19,20

TXFIFO_UNDERFLOW

TX_UNDERFLOW

22

TXOFF_MODE = 00

&

FS_AUTOCAL = 00 | 01

TXOFF_MODE = 00

&

FS_AUTOCAL = 10 | 11

CALIBRATE

12

SFTX

IDLE

1

Figure 13: Complete Radio Control State Diagram

CC2550 has a built-in state machine that is used to switch between different operation states (modes). The change of state is done either by using command strobes or by internal events such as TX FIFO underflow.

A simplified state diagram, together with typical usage and current consumption, is

shown in Figure 4 on page 13. The complete

radio control state diagram is shown in Figure

13. The numbers refer to the state number

readable in the MARCSTATE status register.

This register is primarily for test purposes.

16.1 Power-On Start-Up Sequence

When the power supply is turned on, the system must be reset. One of the following two

SWRS039B Page 25 of 58

sequences must be followed: Automatic power-on reset (POR) or manual reset.

CC2550

XOSC and voltage regulator switched on

40 us

CSn

A power-on reset circuit is included in the

CC2550. The minimum requirements stated in

Section 4.7 must be followed for the power-on

reset to function properly. The internal power-

up sequence is completed when CHIP_RDYn goes low. CHIP_RDYn is observed on the SO

pin after CSn is pulled low. See Section 10.1

for more details on CHIP_RDYn.

When the

CC2550 reset is completed the chip will be in the IDLE state and the crystal oscillator will be running. If the chip has had sufficient time for the crystal oscillator to stabilize after the power-on-reset, the SO pin will go low immediately after taking CSn low. If

CSn

is taken low before reset is completed the

SO

pin will first go high, indicating that the crystal oscillator is not stabilized, before going

low as shown in Figure 14.

Figure 14: Power-On Reset

SO

SI

SRES

XOSC Stable

Figure 15: Power-On Reset with SRES

Note that the above reset procedure is only required just after the power supply is first turned on. If the user wants to reset the

CC2550 after this, it is only necessary to issue an SRES command strobe.

The crystal oscillator is automatically turned on when CSn goes low. It will be turned off if the

SXOFF

or SPWD command strobes are issued; the state machine then goes to XOFF or

SLEEP respectively. This can only be done from the IDLE state .

The XOSC will be turned off when CSn is released (goes high). The

XOSC will be automatically turned on again when CSn goes low. The state machine will then go to the IDLE state. The SO pin on the

SPI interface must be pulled low before the

SPI interface is ready to be used; as described

in Section 10.1 on page 15.

Crystal oscillator start-up time depends on crystal ESR and load capacitances. The electrical specification for the crystal oscillator

can be found in Section 4.3 on page 7.

The other global reset possibility on

CC2550 is the SRES command strobe. By issuing this strobe, all internal registers and states are set to the default, IDLE state. The manual power-

up sequence is as follows (see Figure 15):

• Strobe

low / high.

• Hold

high for at least 40 µs relative to pulling CSn low

• Pull

low and wait for SO to go low

(CHIP_RDYn).

the strobe on the SI line.

• When SO goes low again, reset is complete and the chip is in the IDLE state.

16.3 Voltage Regulator Control

The voltage regulator to the digital core is controlled by the radio controller. When the chip enters the SLEEP state, which is the state with the lowest current consumption, the voltage regulator is disabled. This occurs after

CSn

is released when a SPWD command strobe has been sent on the SPI interface. The chip is now in the SLEEP state. Setting CSn low again will turn on the regulator and crystal oscillator and make the chip enter the IDLE state.

All

CC2550 register values (with the exception

of the MCSM0.PO_TIMEOUT field) are lost in

SWRS039B Page 26 of 58

the SLEEP state. After the chip gets back to the IDLE state, the registers will have default

(reset) contents and must be reprogrammed over the SPI interface.

CC2550

• FSTXON: Frequency synthesizer on and ready at the TX frequency. Activate TX with STX.

• TX: Start sending preambles

The SIDLE command strobe can always be used to force the radio controller to go to the

IDLE state.

Transmit mode is activated by the MCU by using the STX command strobe.

The frequency synthesizer must be calibrated regularly.

CC2550 has one manual calibration option (using the SCAL strobe), and three automatic calibration options, controlled by the

MCSM0.FS_AUTOCAL

setting:

• Calibrate when going from IDLE to TX (or

FSTXON)

• Calibrate when going from TX to IDLE automatically

• Calibrate every fourth time when going from TX to IDLE automatically

If the radio goes from TX to IDLE by issuing an

SIDLE

strobe, calibration will not be performed. The calibration takes a constant

number of XOSC cycles (see Table 18 for

timing details).

After activating TX mode, the chip will remain in the TX state until the current packet has been successfully transmitted. Then the state will change as indicated by the

MCSM1.TXOFF_MODE

setting. The possible

destinations are:

• IDLE

16.5 Timing

The radio controller controls most timing in

CC2550, such as synthesizer calibration and

PLL lock time. Timing from IDLE to TX is constant, dependent on the auto calibration setting. The calibration time is constant 18739

clock periods. Table 18 shows timing in crystal

clock cycles for key state transitions.

Power on time and XOSC start-up times are

variable, but within the limits stated in Table 6.

Note that in a frequency hopping spread spectrum or a multi-channel protocol the calibration time can be reduced from 721 µs to approximately 150 µs. This is explained in

Section 27.2.

Description

Idle to TX/FSTXON, no calibration

XOSC

Periods

2298

26 MHz

Crystal

88.4 µs

Idle to TX/FSTXON, with calibration ~21037 809 µs

TX to IDLE, no calibration 2 0.1 µs

TX to IDLE, including calibration

Manual calibration

~18739 721 µs

~18739 721 µs

Table 18: State Transition Timing

The

CC2550 contains a 64 byte FIFO for data to be transmitted. The SPI interface is used for

writing to the TX FIFO. Section 10.5 contains

details on the SPI FIFO access. The FIFO controller will detect underflow in the TX FIFO.

When writing to the TX FIFO it is the responsibility of the MCU to avoid TX FIFO overflow. A TX FIFO overflow will result in an error in the TX FIFO content.

The chip status byte that is available on the SO pin while transferring the SPI address contains the fill grade of the TX FIFO if the R/W bit in

the header byte is 0. Section 10.1 on page 15

contains more details on this.

The number of bytes in the TX FIFO can also

be read from the TXBYTES.NUM_TXBYTES

status register.

The 4-bit FIFOTHR.FIFO_THR setting is used

to program threshold points in the FIFO. Table

19 lists the 16 FIFO_THR settings and the

corresponding thresholds for the TX FIFO.

A signal will assert when the number of bytes in the FIFO is equal to or higher than the programmed threshold. The signal can be

SWRS039B Page 27 of 58

viewed on the GDO pins (see Section 25 on page 33).

Figure 17 shows the number of bytes in the TX

FIFO when the threshold flag toggles, in the

case of FIFO_THR=13. Figure 16 shows the

signal as the FIFO is filled above the threshold, and then drained below.

CC2550

NUM_TXBYTES

GDO

6 7 8 9 10 9 8 7 6

Figure 16: FIFO_THR=13 vs. Number of

Bytes in FIFO (GDOx_CFG=0x02)

FIFO_THR

0 (0000)

1 (0001)

2 (0010)

3 (0011)

4 (0100)

5 (0101)

6 (0110)

7 (0111)

8 (1000)

9 (1001)

10 (1010)

11 (1011)

12 (1100)

13 (1101)

14 (1110)

15 (1111)

Bytes in TX FIFO

45

41

37

33

29

61

57

53

49

13

9

5

1

25

21

17

FIFO_THR=13

Underflow margin

8 bytes

TXFIFO

Figure 17: Example of FIFO at Threshold

Table 19: FIFO_THR Settings and the

Corresponding FIFO Thresholds

The frequency programming in

CC2550 is designed to minimize the programming needed in a channel-oriented system.

The base or start frequency is set by the 24 bit

frequency word located in the FREQ2, FREQ1 and FREQ0 registers. This word will typically

To set up a system with channel numbers, the desired channel spacing is programmed with the

MDMCFG0.CHANSPC_M

and

be set to the centre of the lowest channel frequency that is to be used.

The desired channel number is programmed

MDMCFG1.CHANSPC_E

registers. The channel

spacing registers are mantissa and exponent respectively. with the 8-bit channel number register,

CHANNR.CHAN

, which is multiplied by the channel offset. The resultant carrier frequency is given by:

f carrier

=

f

XOSC

2

16

(

FREQ

+

CHAN

(

(

256

+

CHANSPC

_

M

)

2

CHANSPC

_

E

2

) )

SWRS039B Page 28 of 58

With a 26 MHz crystal the maximum channel spacing is 405 kHz. To get e.g. 1 MHz channel spacing one solution is to use 333 kHz channel spacing and select each third channel

in CHANNR.CHAN.

CC2550

If any frequency programming register is altered when the frequency synthesizer is running, the synthesizer may give an undesired response. Hence, the frequency programming should only be updated when the radio is in the IDLE state.

19 VCO

The VCO is completely integrated on-chip.

19.1 VCO and PLL Self-Calibration

The VCO characteristics will vary with temperature and supply voltage changes, as well as the desired operating frequency. In order to ensure reliable operation,

CC2550 includes frequency synthesizer self-calibration circuitry. This calibration should be done regularly, and must be performed after turning on power and before using a new frequency

(or channel). The number of XOSC cycles for completing the PLL calibration is given in

Table 18 on page 27.

The calibration can be initiated automatically or manually. The synthesizer can be automatically calibrated each time the synthesizer is turned on, or each time the synthesizer is turned off automatically. This is

configured with the MCSM0.FS_AUTOCAL

register setting. In manual mode, the calibration is initiated when the SCAL command strobe is activated in the IDLE mode.

The calibration values are not maintained in sleep mode. Therefore, the

CC2550 must be recalibrated after reprogramming the configuration registers when the chip has been in the SLEEP state.

To check that the PLL is in lock the user can program register IOCFGx.GDOx_CFG to 0x0A and use the lock detector output available on the GDOx pin as an interrupt for the MCU (x =

0 or 1). A positive transition on the GDOx pin means that the PLL is in lock. As an alternative the user can read register FSCAL1. The PLL is in lock if the register content is different from

0x3F. Refer also to the

CC2550 Errata Notes

[1]. For more robust operation the source code

could include a check so that the PLL is recalibrated until PLL lock is achieved if the PLL does not lock the first time.

CC2550 contains several on-chip linear voltage regulators, which generate the supply voltage needed by low-voltage modules. These voltage regulators are invisible to the user, and can be viewed as integral parts of the various modules. The user must however make sure that the absolute maximum ratings and

required pin voltages in Table 1 and Table 11

are not exceeded. The voltage regulator for the digital core requires one external decoupling capacitor.

Setting the CSn pin low turns on the voltage regulator to the digital core and starts the crystal oscillator. The SO pin on the SPI interface must go low before the first positive

edge of SCLK (setup time is given in Table 14).

If the chip is programmed to enter power-down mode, (SPWD strobe issued), the power will be turned off after CSn goes high. The power and crystal oscillator will be turned on again when

CSn

goes low.

The voltage regulator output should only be used for driving the

CC2550.

SWRS039B Page 29 of 58

21 Output Power Programming

CC2550

The RF output power level from the device has two levels of programmability, as illustrated in

Figure 18.

The RF output power level from the device is programmed through the PATABLE register.

• If 2-FSK, GFSK or MSK modulation is used the desired output power is programmed to index 0 in the PATABLE register (PATABLE(0)[7:0]). The 3-bit

FREND0.PA_POWER

value shall be set to 0

(reset default value).

• If OOK modulation is used the desired output power for the logic 0 and logic 1 power levels are programmed to index 0 and index 1 in the PATABLE register respectively (PATABLE(0)[7:0] and

PATABLE(1)[7:0]

). The 3-bit

FREND0.PA_POWER

value shall be set to

1.

Table 20 contains recommended PATABLE

settings for various output levels and

frequency bands. See Section 10.6 on page

17 for PATABLE programming details. The

SmartRF

®

Studio software [4] should be used

to obtain optimum PATABLE settings for various output powers.

PATABLE must be programmed in burst mode if writing to other entries than PATABLE(0)

(OOK modulation). Note that all content of the

PATABLE

is lost when entering the SLEEP state.

Figure 18: PA_POWER and PATABLE

SWRS039B Page 30 of 58

CC2550

PATABLE(7)[7:0]

PATABLE(6)[7:0]

PATABLE(5)[7:0]

PATABLE(4)[7:0]

PATABLE(3)[7:0]

PATABLE(2)[7:0]

PATABLE(1)[7:0]

PATABLE(0)[7:0]

The PA uses this setting.

Settings 0 to PA_POWER are used during ramp-up at start of transmission and ramp-down at end of transmission, and for

OOK modulation.

Index into PATABLE(7:0) e.g 6

PA_POWER[2:0] in FREND0 register

The SmartRF® Studio software should be used to obtain optimum

PATABLE settings for various output powers.

Figure 19: PA_POWER and PATABLE

Output Power, Typical,

+25 o

C, 3.0 V [dBm]

PATABLE

Value

Current Consumption,

Typical [mA]

(–55 or less) 0x00 8.0

–30 0x44 9.3

–28 0x41 9.2

–26 0x43 9.7

–24 0x84 9.8

–22 0x82 9.7

–20 0x47 10.0

–18 0xC8 11.6

–16 0x85 10.2

–14 0x59 11.6

–12 0xC6 11.2

–10 0x97 12.0

–8 0xD6 12.9

–6 0x7F 14.7

–4 0xA9 16.2

–2 0xBF 18.1

Table 20: Optimum PATABLE Settings for Various Output Power Levels

SWRS039B Page 31 of 58

CC2550

A crystal in the frequency range 26-27 MHz must be connected between the XOSC_Q1 and

XOSC_Q2

pins. The oscillator is designed for parallel mode operation of the crystal. In addition, loading capacitors (C51 and C71) for the crystal are required. The loading capacitor values depend on the total load capacitance,

C

L

, specified for the crystal. The total load capacitance seen between the crystal terminals should equal C

L

for the crystal to oscillate at the specified frequency.

C

L

=

1

C

51

1

+

1

C

71

+

C parasitic

The parasitic capacitance is constituted by pin input capacitance and PCB stray capacitance.

Total parasitic capacitance is typically 2.5 pF.

The crystal oscillator circuit is shown in Figure

20. Typical component values for different

values of C

L

are given in Table 21.

The crystal oscillator is amplitude regulated.

This means that a high current is used to start up the oscillations. When the amplitude builds up, the current is reduced to what is necessary to maintain approximately 0.4 Vpp signal swing. This ensures a fast start-up, and keeps the drive level to a minimum. The ESR of the crystal should be within the specification in order to ensure a reliable start-up (see Section

4.3 on page 7).

XOSC_Q1 XOSC_Q2

XTAL

C51 C71

Figure 20: Crystal Oscillator Circuit

Component

C51

C71

C

L

= 10 pF

15 pF

15 pF

C

L

=13 pF

22 pF

22 pF

Table 21: Crystal Oscillator Component Values

C

L

=16 pF

27 pF

27 pF

The chip can alternatively be operated with a reference signal from 26 to 27 MHz instead of a crystal. This input clock can either be a fullswing digital signal (0 V to VDD) or a sine wave of maximum 1 V peak-peak amplitude.

The reference signal must be connected to the

XOSC_Q1

input. The sine wave must be connected to XOSC_Q1 using a serial capacitor. When using a full-swing digital signal this capacitor can be omitted. The

XOSC_Q2

line must be left un-connected. C51 and C71 can be omitted when using a reference signal

23 External RF Match

The balanced RF output of

CC2550 is designed for a simple, low-cost matching and balun network on the printed circuit board. A few passive external components ensure proper matching.

Although

CC2550 has a balanced RF output, the chip can be connected to a single-ended antenna with few external low cost capacitors and inductors.

The passive matching/filtering network connected to

CC2550 should have the following differential impedance as seen from the RFport (RF_P and RF_N) towards the antenna:

Z out

= 80 + j74 Ω

To ensure optimal matching of the

CC2550 differential output it is highly recommended to

follow the CC2550EM reference design [3] as

closely as possible. Gerber files for the reference designs are available for download from the TI website.

SWRS039B Page 32 of 58

24 PCB Layout Recommendations

CC2550

The top layer should be used for signal routing, and the open areas should be filled with metallization connected to ground using several vias.

The area under the chip is used for grounding and shall be connected to the bottom ground plane with several vias for good thermal performance and sufficiently low inductance to ground. In the CC2550EM reference designs

[3] 5 vias are placed inside the exposed die

attached pad. These vias should be “tented”

(covered with solder mask) on the component side of the PCB to avoid migration of solder through the vias during the solder reflow process.

The solder paste coverage should not be

100%. If it is, out gassing may occur during the reflow process, which may cause defects

(splattering, solder balling). Using “tented” vias reduces the solder paste coverage below

100%.

See Figure 21 for top solder resist and top

paste masks. See Figure 24 for recommended

PCB layout for QLP 16 package.

Each decoupling capacitor should be placed as close as possible to the supply pin it is supposed to decouple. Each decoupling capacitor should be connected to the power line by separate vias. The best routing is from the power line to the decoupling capacitor and then to the

CC2550 supply pin. Supply power filtering is very important.

Each decoupling capacitor ground pad should be connected to the ground plane using a separate via. Direct connections between neighboring power pins will increase noise coupling and should be avoided unless absolutely necessary.

The external components should ideally be as small as possible (0402 is recommended) and surface mount devices are highly recommended. Please note that components smaller than those specified may have differing characteristics.

Precaution should be used when placing the microcontroller in order to avoid noise interfering with the RF circuitry.

A CC2500/2550DK Development Kit with a fully assembled CC2550EM Evaluation

Module is available. It is strongly advised that this reference layout is followed very closely in order to get the best performance. The schematic, BOM and layout Gerber files are all

available from the TI website [3].

Figure 21: Left: Top Paste Mask. Right: Top Solder Resist Mask (negative). Circles are Vias.

25 General Purpose / Test Output Control Pins

The two digital output pins GDO0 and GDO1 are general control pins configured with

IOCFG0.GDO0_CFG

and

IOCFG1.GDO1_CFG

respectively. Table 22

shows the different signals that can be monitored on the GDO pins. These signals can be used as inputs to the MCU. GDO1 is the same pin as the SO pin on the SPI interface, thus the output programmed on this pin will only be valid when CSn is high. The default value for GDO1 is 3-stated, which is useful when the SPI interface is shared with other devices.

The default value for GDO0 is a 135-141 kHz clock output (XOSC frequency divided by 192).

Since the XOSC is turned on at power-on-

SWRS039B Page 33 of 58

reset, this can be used to clock the MCU in systems with only one crystal. When the MCU is up and running, it can change the clock

frequency by writing to IOCFG0.GDO0_CFG.

An on-chip analog temperature sensor is enabled by writing the value 128 (0x80) to the

CC2550

IOCFG0.GDO0_CFG

register. The voltage on

the GDO0 pin is then proportional to

temperature. See Section 4.5 on page 8 for

temperature sensor specifications.

In SLEEP mode, GDO1 will be hardwired to 1 and GDO0 will be high impedance.

GDOx

_CFG[5:0] Description

0 (0x00) Reserved – defined in the transceiver version.

1 (0x01) Reserved – defined in the transceiver version.

2 (0x02)

Associated to the TX FIFO: Asserts when the TX FIFO is filled at or above the TX FIFO threshold. De-asserts when the

TX FIFO is below the same threshold.

Associated to the TX FIFO: Asserts when TX FIFO is full. De-asserts when the TX FIFO is drained below theTX FIFO

3 (0x03) threshold.

4 (0x04) Reserved – defined in the transceiver version.

5 (0x05) Asserts when the TX FIFO has underflowed. De-asserts when the FIFO is flushed.

6 (0x06)

Asserts when sync word has been sent, and de-asserts at the end of the packet. The pin will also de-assert if the TX

FIFO underflows.

7 (0x07) to Reserved

9 (0x09)

10 (0x0A)

11 (0x0B)

Lock detector output. The PLL is in lock if the lock detector output has a positive transition or is constantly logic high. To check for PLL lock the lock detector output should be used as an interrupt for the MCU.

Serial Clock. Synchronous to the data in synchronous serial mode.

In TX mode, data is sampled by

CC2550

on the rising edge of the serial clock when GDOx_INV=0.

12 (0x0C) to

40 (0x28)

Reserved – used for test.

41 (0x29) CHIP_RDY

42 (0x2A) Reserved – used for test.

43 (0x2B) XOSC_STABLE

44 (0x2C) Reserved – used for test.

45 (0x2D)

GDO0

_Z_EN_N. When this output is 0, GDO0 is configured as input (for serial TX data).

46 (0x2E) High impedance (3-state)

47 (0x2F) HW to 0 (HW1 achieved with _INV signal). Can be used to control an external PA

48 (0x30) CLK_XOSC/1

49 (0x31) CLK_XOSC/1.5

50 (0x32) CLK_XOSC/2

51 (0x33) CLK_XOSC/3

52 (0x34) CLK_XOSC/4

53 (0x35) CLK_XOSC/6

54 (0x36) CLK_XOSC/8

55 (0x37) CLK_XOSC/12

56 (0x38) CLK_XOSC/16

57 (0x39)

CLK_XOSC/24

58 (0x3A) CLK_XOSC/32

59 (0x3B) CLK_XOSC/48

60 (0x3C)

CLK_XOSC/64

61 (0x3D) CLK_XOSC/96

62 (0x3E) CLK_XOSC/128

63 (0x3F) CLK_XOSC/192

Note: There are 2 GDO pins, but only one CLK_XOSC/n can be selected as an output at any time. If CLK_XOSC/n is to be monitored on one of the GDO pins, the other GDO pin must be configured to a value less than 0x30. The GDO0 default value is CLK_XOSC/192.

Table 22: GDOx Signal Selection (x = 0 or 1)

Several features and modes of operation have been included in the

CC2550 to provide backward compatibility with previous Chipcon products and other existing RF communication systems. For new systems, it is recommended to use the built-in packet handling features, as they can give more robust communication, significantly offload the microcontroller and simplify software development.

For backward compatibility with systems already using the asynchronous data transfer from other Chipcon products, asynchronous

SWRS039B Page 34 of 58

transfer is also included in

CC2550. When asynchronous transfer is enabled, several of the support mechanisms for the MCU that are included in

CC2550 will be disabled, such as packet handling hardware, buffering in the

FIFO and so on. The asynchronous transfer mode does not allow the use of the data whitener, interleaver and FEC, and it is not possible to use Manchester encoding.

CC2550 the synchronous mode, data is transferred on a two wire serial interface. The

CC2550 provides a clock that is used to set up new data on the data input line. Data input (TX data) is the GDO0 pin. This pin will automatically be configured as an input when

TX is active.

Note that MSK is not supported for asynchronous transfer.

Setting

PKTCTRL0.PKT_FORMAT

to 3 enables asynchronous serial mode.

The GDO0 pin is used for data input (TX data).

Preamble and sync word insertion may or may not be active, dependent on the sync mode set

by the MDMCFG3.SYNC_MODE. If preamble and

sync word is disabled, all other packet handler features and FEC should also be disabled.

The MCU must then handle preamble and sync word insertion in software. If preamble and sync word insertion is left on, all packet handling features and FEC can be used.

The

CC2550 modulator samples the level of the asynchronous input 8 times faster than the programmed data rate. The timing requirement for the asynchronous stream is that the error in the bit period must be less than one eighth of the programmed data rate.

When using the packet handling features in synchronous serial mode, the

CC2550 will insert the preamble and sync word and the

MCU will only provide the data payload. This is equivalent to the recommended FIFO operation mode.

26.2 Synchronous Serial Operation

Setting

PKTCTRL0.PKT_FORMAT

to 1 enables synchronous serial operation mode. In

27 System considerations and Guidelines

International regulations and national laws regulate the use of radio receivers and transmitters. The most important regulations for the 2.4 Ghz band are EN 300 440 and EN

300 328 (Europe), FCC CFR47 part 15.247 and 15.249 (USA), and ARIB STD-T66

(Japan). A summary of the most important aspects of these regulations can be found in

Application Note AN032 [2].

Please note that compliance with regulations is dependent on complete system performance. It is the customer’s responsibility to ensure that the system complies with regulations.

Channel Systems

The 2.400 – 2.4835 GHz band is shared by many systems both in industrial, office and home environments. It is therefore recommended to use frequency hopping spread spectrum (FHSS) or a multi-channel protocol because the frequency diversity makes the system more robust with respect to interference from other systems operating in the same frequency band. FHSS also combats multipath fading.

CC2550 is highly suited for FHSS or multichannel systems due to its agile frequency synthesizer and effective communication interface. Using the packet handling support and data buffering is also beneficial in such systems as these features will significantly offload the host controller.

Charge pump current, VCO current and VCO capacitance array calibration data is required for each frequency when implementing frequency hopping for

CC2550. There are 3 ways of obtaining the calibration data from the chip:

1) Frequency hopping with calibration for each hop. The PLL calibration time is approximately

720 µs. The blanking interval between each frequency hop is then approximately 810 us.

2) Fast frequency hopping without calibration for each hop can be done by calibrating each frequency at startup and saving the resulting

SWRS039B Page 35 of 58

CC2550

FSCAL3

, FSCAL2 and FSCAL1 register values in MCU memory. Between each frequency hop, the calibration process can then be replaced by writing the FSCAL3, FSCAL2 and

FSCAL1

register values corresponding to the next RF frequency. The PLL turn on time is approximately 90 µs. The blanking interval between each frequency hop is then approximately 90 us. The VCO current calibration result is available in FSCAL2 and is not dependent on the RF frequency. Neither is the charge pump current calibration result available in FSCAL3. The same value can therefore be used for all frequencies.

3) Run calibration on a single frequency at startup. Next write 0 to FSCAL3[5:4] to disable the charge pump calibration. After writing to FSCAL3[5:4] strobe STX with

MCSM0.FS_AUTOCAL

=1 for each new frequency hop. That is, VCO current and VCO capacitance calibration is done but not charge pump current calibration. When charge pump current calibration is disabled the calibration time is reduced from approximately 720 µs to approximately 150 µs. The blanking interval between each frequency hop is then approximately 240 us

There is a trade off between blanking time and memory space needed for storing calibration data in non-volatile memory. Solution 2) above gives the shortest blanking interval, but requires more memory space to store calibration values. Solution 3) gives approximately 570 µs smaller blanking interval than solution 1).

27.4 Data Burst Transmissions

The high maximum data rate of

CC2550 opens up for burst transmissions. A low average data rate link (e.g. 10 kBaud), can be realized using a higher over-the-air data rate. Buffering the data and transmitting in bursts at high data rate (e.g. 500 kBaud) will reduce the time in

TX mode, and hence also reduce the average current consumption significantly. Reducing the time in TX mode will reduce the likelihood of collisions with other systems, e.g. WLAN.

In data streaming applications the

CC2550 opens up for continuous transmissions at 500 kBaud effective data rate. As the modulation is done with a closed loop PLL, there is no limitation in the length of a transmission (open loop modulation used in some transceivers often prevents this kind of continuous data streaming and reduces the effective data rate.)

27.6 Spectrum Efficient Modulation

CC2500 also has the possibility to use

Gaussian shaped 2-FSK (GFSK). This spectrum-shaping feature improves adjacent channel power (ACP) and occupied bandwidth. In ‘true’ 2-FSK systems with abrupt frequency shifting, the spectrum is inherently broad. By making the frequency shift ‘softer’, the spectrum can be made significantly narrower. Thus, higher data rates can be transmitted in the same bandwidth using

GFSK.

27.3 Wideband Modulation not Using

Spread Spectrum

Digital modulation systems under FCC part

15.247 includes 2-FSK and GFSK modulation.

A maximum peak output power of 1 W (+30 dBm) is allowed if the 6 dB bandwidth of the modulated signal exceeds 500 kHz. In addition, the peak power spectral density conducted to the antenna shall not be greater than +8 dBm in any 3 kHz band.

Operating at high data rates and high frequency separation, the

CC2550 is suited for systems targeting compliance with digital modulation systems as defined by FCC part

15.247. An external power amplifier is needed to increase the output above +1 dBm.

A differential antenna will eliminate the need for a balun, and the DC biasing can be

achieved in the antenna topology, see Figure

3. The CC25XX Folded Dipole reference

design [7] contains schematics and layout files

for a CC2500EM with a folded dipole PCB antenna. This design note can also be used with the

CC2550. Please see DN004 [8] for

more details on this design.

A HC-49 type SMD crystal is used in the

CC2550EM reference design. Note that the crystal package strongly influences the price.

In a size constrained PCB design a smaller, but more expensive, crystal may be used.

27.8 Battery Operated Systems

In low power applications, the SLEEP state should be used when the

CC2550 is not active.

SWRS039B Page 36 of 58

27.9 Increasing Output Power

In some applications it may be necessary to extend the link range by adding an external power amplifier.

CC2550

The power amplifier should be inserted between the antenna and the balun as shown

in Figure 22.

Figure 22: Block Diagram of

CC2550 Usage with External Power Amplifier

The configuration of

CC2550 is done by programming 8-bit registers. The optimum configuration data based on selected system parameters are most easily found by using the

SmartRF

®

Studio software [4]. Complete

descriptions of the registers are given in the following tables. After chip reset, all the registers have default values as shown in the tables. The optimum register setting might differ from the default value. After a reset all registers that shall be different from the default value therefore needs to be programmed through the SPI interface.

There are 9 command strobe registers, listed

in Table 23. Accessing these registers will

initiate the change of an internal state or mode. There are 29 normal 8-bit configuration

registers, listed in Table 24. Some of these

registers are for test purposes only, and need not be written for normal operation of

CC2550.

There are also 6 status registers, which are

listed in Table 25. These registers, which are

read-only, contain information about the status of

CC2550.

The TX FIFO is accessed through one 8-bit register. Only write operations are allowed to the TX FIFO.

During the header byte transfer and while writing data to a register or the TX FIFO, a status byte is returned on the SO line. This

status byte is described in Table 15 on page

16.

Table 26 summarizes the SPI address space.

Registers that are only defined in the

CC2500 transceiver are also listed.

CC2500 and CC2550 are register compatible, but registers and fields only implemented in the transceiver always contain 0 in

CC2550. The address to use is given by adding the base address to the left and the burst and R/W bits on the top. Note that the burst bit has different meaning for base addresses above and below 0x2F.

Note that all registers, (with the exception of the MSCM0.PO_TIMEOUT field) will lose their content in SLEEP mode.

SWRS039B Page 37 of 58

Address Strobe Name Description

0x32

0x36

0x3B

0x3D

SXOFF Turn off crystal oscillator.

IDLE state without setting manual calibration mode (MCSM0.FS_AUTOCAL=0).

SIDLE Exit TX and turn off frequency synthesizer.

SFTX

SNOP

Flush the TX FIFO buffer.

No operation. May be used to get access to the chip status byte.

Table 23: Command Strobes

CC2550

SWRS039B Page 38 of 58

Address Register Description

0x01 IOCFG1

output pin configuration

0x02 IOCFG0

output pin configuration

0x04

0x05

0x08

0x0D

0x0E

0x0F

0x15

0x17

0x18

0x22

0x23

0x24

0x25

0x26

0x29

0x2C

0x2D

0x2E

SYNC1

SYNC0

PKTCTRL0

FREQ2

FREQ1

FREQ0

DEVIATN

MCSM1

MCSM0

FREND0

FSCAL3

FSCAL2

FSCAL1

FSCAL0

FSTEST

TEST2

TEST1

TEST0

Sync word, high byte

Sync word, low byte

Packet automation control

Modulator deviation setting

Main Radio Control State Machine configuration

Main Radio Control State Machine configuration

Front end TX configuration

Frequency synthesizer calibration

Frequency synthesizer calibration

Frequency synthesizer calibration

Frequency synthesizer calibration

Frequency synthesizer calibration control

Various test settings

Various test settings

Various test settings

CC2550

Frequency control word, high byte

Frequency control word, middle byte

Frequency control word, low byte

Details on Page Number

41

46

47

47

44

45

45

46

48

48

48

48

49

49

49

49

49

41

41

42

42

42

42

43

43

43

43

43

43

Table 24: Configuration Registers Overview

Address

0x30 (0xF0)

0x31 (0xF1)

0x35 (0xF5)

0x38 (0xF8)

0x39 (0xF9)

0x3A (0xFA)

Register

PARTNUM

VERSION

Description

CC2550

part number

Current version number

MARCSTATE

PKTSTATUS

Control state machine state

Current GDOx status and packet status

VCO_VC_DAC

Current setting from PLL calibration module

TXBYTES

Underflow and number of bytes in the TX FIFO

Details on Page Number

49

49

50

50

51

51

Table 25: Status Registers Overview

SWRS039B Page 39 of 58

CC2550

0x38

0x39

0x3A

0x3B

0x3C

0x3D

0x3E

0x3F

0x30

0x31

0x32

0x33

0x34

0x35

0x36

0x37

0x28

0x29

0x2A

0x2B

0x2C

0x2D

0x2E

0x2F

0x20

0x21

0x22

0x23

0x24

0x25

0x26

0x27

0x18

0x19

0x1A

0x1B

0x1C

0x1D

0x1E

0x1F

0x10

0x11

0x12

0x13

0x14

0x15

0x16

0x17

0x08

0x09

0x0A

0x0B

0x0C

0x0D

0x0E

0x0F

0x00

0x01

0x02

0x03

0x04

0x05

0x06

0x07

Write

Single byte Burst

Reserved

Reserved

FREND0

FSCAL3

FSCAL2

FSCAL1

FSCAL0

Reserved

Reserved

FSTEST

PTEST

Reserved

TEST2

TEST1

TEST0

MDMCFG4

MDMCFG3

MDMCFG2

MDMCFG1

MDMCFG0

DEVIATN

Reserved

MCSM1

MCSM0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

IOCFG1

IOCFG0

FIFOTHR

SYNC1

SYNC0

PKTLEN

Reserved

PKTCTRL0

Reserved

CHANNR

Reserved

Reserved

FREQ2

FREQ1

FREQ0

Single byte

+0x80

SRES

SFSTXON

SXOFF

SCAL

Reserved

STX

SIDLE

Reserved

SPWD

Reserved

SFTX

Reserved

SNOP

PATABLE

TX FIFO

PATABLE

TX FIFO

SRES

SFSTXON

SXOFF

SCAL

Reserved

STX

SIDLE

Reserved

SPWD

Reserved

SFTX

Reserved

SNOP

Reserved

RX FIFO

Read

Burst

+0xC0

PARTNUM

VERSION

FREQEST

Reserved

Reserved

MARCSTATE

Reserved

Reserved

PKTSTATUS

VCO_VC_DAC

TXBYTES

Reserved

Reserved

RX FIFO

Table 26: SPI Address Space

SWRS039B Page 40 of 58

28.1 Configuration Register Details

CC2550

Bit Field Name

7 GDO_DS

6 GDO1_INV

5:0 GDO1_CFG[5:0]

0x01: IOCFG1 – GDO1 Output Pin Configuration

Reset R/W Description

0

0

R/W Set high (1) or low (0) output drive strength on the

GDO pins.

R/W Invert output, i.e. select active low (1) / high (0)

46 (0x2E)

R/W Default is 3-state (see Table 22 on page 34)

6 GDO0_INV

5:0 GDO0_CFG[5:0]

0x02: IOCFG0 – GDO0 Output Pin Configuration

Bit Field Name

7 TEMP_SENSOR_ENABLE

Reset R/W Description

0 R/W Enable analog temperature sensor. Write 0 in all other register bits when using temperature sensor.

Note: PTEST must be written to 0xBF to make the on-chip temperature sensor available in the IDLE state.

0 R/W Invert output, i.e. select active low (1) / high (0)

63 (0x3F)

R/W Default is CLK_XOSC/192 (see Table 22on page 34)

Bit Field Name

7:4 Reserved

3:0 FIFO_THR[3:0]

0x03: FIFOTHR – TX FIFO Threshold

Reset R/W Description

0 (0000) R/W Write 0 (0000) for compatibility with possible future extensions

7 (0111) R/W Set the threshold for the TX FIFO. The threshold is exceeded when the number of bytes in the FIFO is equal to or higher than the threshold value.

Setting Bytes in TX FIFO

0 (0000)

1 (0001)

2 (0010)

3 (0011)

4 (0100)

5 (0101)

6 (0110)

7 (0111)

8 (1000)

9 (1001)

10 (1010)

11 (1011)

12 (1100)

13 (1101)

14 (1110)

15 (1111)

61

57

53

49

45

41

37

33

29

25

21

17

13

9

5

1

SWRS039B Page 41 of 58

CC2550

Bit Field Name

7:0 SYNC[15:8]

0x04: SYNC1– Sync Word, High Byte

Reset R/W Description

211 (0xD3) R/W 8 MSB of 16-bit sync word

Bit Field Name

7:0 SYNC[7:0]

0x05: SYNC0 – Sync Word, Low Byte

Reset R/W Description

145 (0x91) R/W 8 LSB of 16-bit sync word

Bit Field Name

7:0 PACKET_LENGTH

0x06: PKTLEN – Packet Length

Reset

255 (0xFF)

R/W Description

R/W Indicates the packet length when fixed packet length is enabled.

Bit Field Name

7 Reserved

6 WHITE_DATA

5:4 PKT_FORMAT[1:0]

0x08: PKTCTRL0 – Packet Automation Control

Reset R/W Description

R0

1 R/W Turn data whitening on / off

0: Whitening off

1: Whitening on

Data whitening can only be used when

PKTCTRL0.CC2400_EN=0 (default).

0 (00) R/W Format of TX data

3 CC2400_EN

2 CRC_EN

1:0 LENGTH_CONFIG[1:0]

0 (00) Normal mode, use TX FIFO

1 (01)

Synchronous serial mode, used for backwards compatibility

2 (10)

Random TX mode; sends random data using PN9 generator. Used for test.

3 (11) Asynchronous serial mode. Data in on GDO0.

0 R/W CC2400

CC2400.

PKTCTRL0.WHITE_DATA must be 0 if

PKTCTRL0.CC2400_EN=1.

1 R/W 1: CRC calculation enabled

0: CRC disabled

1 (01) R/W Configure the packet length

Setting Packet length configuration

0 (00) Fixed packet length mode. Length configured in

PKTLEN register

1 (01) Variable packet length mode. Length configured by the first byte after sync word

2 (10) Infinite packet length mode

3 (11) Reserved

SWRS039B Page 42 of 58

CC2550

Bit Field Name

7:0 CHAN[7:0]

0x0A: CHANNR – Channel Number

Reset

0 (0x00)

R/W Description

R/W The 8-bit unsigned channel number, which is multiplied by the channel spacing setting and added to the base frequency.

Bit Field Name

7:6 FREQ[23:22]

5:0 FREQ[21:16]

0x0D: FREQ2 – Frequency Control Word, High Byte

Reset

1 (01)

30

(0x1E)

R/W Description

R FREQ[23:22] is always binary 01 (the FREQ2 register is in the range

85 to 95 with 26-27 MHz crystal)

R/W FREQ[23:0] is the base frequency for the frequency synthesiser in increments of F

XOSC

/2

16

.

f carrier

=

f

XOSC

2

16

FREQ

[

23 : 0

]

Bit Field Name

7:0 FREQ[15:8]

0x0E: FREQ1 – Frequency Control Word, Middle Byte

Reset R/W Description

196 (0xC4) R/W Ref. FREQ2 register

Bit Field Name

7:0 FREQ[7:0]

0x0F: FREQ0 – Frequency Control Word, Low Byte

Reset R/W Description

236 (0xEC) R/W Ref. FREQ2 register

Bit Field Name

7:4 Reserved

3:0 DRATE_E[3:0]

Bit Field Name

7:0 DRATE_M[7:0]

0x10: MDMCFG4 – Modulator Configuration

Reset R/W Description

R0 Defined in the transceiver version

12 (1100) R/W The exponent of the user specified symbol rate

0x11: MDMCFG3 – Modulator Configuration

Reset R/W Description

34 (0x22) R/W The mantissa of the user specified symbol rate. The symbol rate is configured using an unsigned, floating-point number with 9-bit mantissa and 4-bit exponent. The 9 th

bit is a hidden ‘1’. The resulting data rate is:

R

DATA

=

(

256

+

DRATE

_

M

)

2

DRATE

_

E

2

28

f

XOSC

The default values give a data rate of 115.051 kBaud

(closest setting to 115.2 kBaud), assuming a 26.0 MHz crystal.

SWRS039B Page 43 of 58

Bit Field Name

7 Reserved

6:4 MOD_FORMAT[2:0]

0x12: MDMCFG2 – Modulator Configuration

Reset R/W Description

R0

1 (001) R/W The modulation format of the radio signal

CC2550

3 MANCHESTER_EN

2:0 SYNC_MODE[2:0]

0

0 (000) 2-FSK

1 (001) GFSK

2 (010) -

3 (011) OOK

4 (100) -

5 (101) -

6 (110) -

7 (111) MSK

R/W Enables Manchester encoding

0 = Disable

1 = Enable (Only supported for fixed packet length

mode, i.e. PKTCTRL0.LENGTH_CONFIG=0)

2 (010) R/W Sync-word mode.

0 (000) Disable preamble and sync word transmission

1 (001) Enable 16-bit sync word transmission

2 (010) Enable 16-bit sync word transmission

3 (011) Repeated sync word transmission

4 (100) Disable preamble and sync word transmission

5 (101) Enable 16-bit sync word transmission

6 (110) Enable 16-bit sync word transmission

7 (111) Repeated sync word transmission

SWRS039B Page 44 of 58

CC2550

Bit Field Name

7 FEC_EN

3:2 Reserved

1:0 CHANSPC_E[1:0]

0x13: MDMCFG1 – Modulator Configuration

Reset

0

6:4 NUM_PREAMBLE[2:0] 2 (010)

2 (10)

R/W Description

R/W Enable Forward Error Correction (FEC) with interleaving for packet payload

0 = Disable

1 = Enable

R/W Sets the minimum number of preamble bytes to be transmitted

Setting

0 (000)

1 (001)

2 (010)

3 (011)

4 (100)

5 (101)

6 (110)

7 (111)

R0

Number of preamble bytes

2

3

4

6

8

12

16

24

R/W 2 bit exponent of channel spacing

0x14: MDMCFG0 – Modulator Configuration

Bit Field Name Reset R/W Description

7:0 CHANSPC_M[7:0] 248 mantissa of channel spacing (initial 1 assumed). The channel spacing is multiplied by the channel number CHAN and added to the base frequency. It is unsigned and has the format:

f

CHANNEL

=

f

XOSC

2

18

(

256

+

CHANSPC

_

M

)

2

CHANSPC

_

E

CHAN

The default values give 199.951 kHz channel spacing (the closest setting to 200 kHz), assuming 26.0 MHz crystal frequency.

SWRS039B Page 45 of 58

CC2550

Bit Field Name

7 Reserved

6:4 DEVIATION_E[2:0]

3 Reserved

2:0 DEVIATION_M[2:0]

0x15: DEVIATN – Modulator Deviation Setting

Reset

4 (100)

7 (111)

R/W Description

R0

R/W Deviation exponent

R0

R/W When MSK modulation is enabled:

Sets fraction of symbol period used for phase change. Refer to the SmartRF

®

Studio software [4] for correct DEVIATN

setting when using MSK.

When 2-FSK/GFSK modulation is enabled:

Deviation mantissa, interpreted as a 4-bit value with MSB implicit 1. The resulting deviation is given by:

f dev

=

f xosc

2

17

( 8

+

DEVIATION

_

M

)

2

DEVIATION

_

E

The default values give ±47.607 kHz deviation, assuming

26.0 MHz crystal frequency.

0x17: MCSM1 – Main Radio Control State Machine Configuration

Bit Field Name

7:6 Reserved

5:2 Reserved

1:0 TXOFF_MODE[1:0]

Reset

0 (00)

R/W Description

R0

R0 Defined in the transceiver version

R/W Select what should happen when a packet has been sent

(TX)

Setting Next state after finishing packet transmission

0 (00) IDLE

1 (01)

2 (10)

FSTXON

3 (11)

Stay in TX (start sending preamble)

Do not use, not implemented in

(Go to RX)

CC2550

SWRS039B Page 46 of 58

CC2550

1:0 Reserved

0x18: MCSM0 – Main Radio Control State Machine Configuration

Bit Field Name

7:6 Reserved

5:4 FS_AUTOCAL[1:0]

3:2 PO_TIMEOUT

Reset R/W Description

R0

0 (00) R/W Automatically calibrate when going to TX or back to IDLE

Setting When to perform automatic calibration

0 (00) Never (manually calibrate using SCAL strobe)

1 (01) When going from IDLE to TX (or FSTXON)

2 (10) When going from TX back to IDLE

3 (11) Every 4 th

time when going from TX to IDLE

2 (10) R/W Programs the number of times the six-bit ripple counter must expire after XOSC has stabilized before CHP_RDYn goes low.

If XOSC is on (stable) during power-down, PO_TIMEOUT should be set so that the regulated digital supply voltage has time to stabilize before CHP_RDYn goes low (PO_TIMEOUT=2 recommended). Typical start-up time for the voltage regulator is 50 us.

If XOSC is off during power-down and the regulated digital supply voltage has sufficient time to stabilize while waiting for the crystal to be stable, PO_TIMEOUT can be set to 0. For robust operation it is recommended to use PO_TIMEOUT=2.

Setting Expire count Timeout after XOSC start

0 (00) 1

1 (01) 16

2 (10) 64

3 (11) 256

Approx. 2.3 – 2.4 µs

Approx. 37 – 39 µs

Approx. 149 – 155 µs

Approx. 597 – 620 µs

R0

Exact timeout depends on crystal frequency.

In order to reduce start up time from the SLEEP state, this field is preserved in powerdown (SLEEP state).

Defined in the transceiver version

0x22: FREND0 – Front End TX Configuration

Bit Field Name Reset R/W Description

7:6 Reserved R0

5:4 LODIV_BUF_CURRENT_TX[1:0] 1 R/W Adjusts current TX LO buffer (input to PA). The value to use in this field is given by the SmartRF

®

Studio software [4].

3 Reserved R0

2:0 PA_POWER[2:0] 0 (000) R/W Selects PA power setting. This value is an index to the PATABLE. In OOK mode, this selects the

PATABLE index to use when transmitting a ‘1’.

PATABLE index zero is used in OOK when transmitting a ‘0’.

SWRS039B Page 47 of 58

CC2550

Bit Field Name

7:6 FSCAL3[7:6]

0x23: FSCAL3 – Frequency Synthesizer Calibration

5:4 CHP_CURR_CAL_EN[1:0]

3:0 FSCAL3[3:0]

Reset R/W Description

2 (10) R/W Frequency synthesizer calibration configuration. The value to write in this register before calibration is given by the SmartRF

®

Studio

software [4].

2 (10) R/W Disable charge pump calibration stage when 0

9

(1001)

R/W Frequency synthesizer calibration result register. Digital bit vector defining the charge pump output current, on an exponential scale:

IOUT=I

0

·2

FSCAL3[3:0]/4

Fast frequency hopping without calibration for each hop can be done by calibrating upfront for each frequency and saving the resulting FSCAL3, FSCAL2 and FSCAL1 register values. Between each frequency hop, calibration can be replaced by writing the

FSCAL3, FSCAL2 and FSCAL1 register values corresponding to the next RF frequency.

0x24: FSCAL2 – Frequency Synthesizer Calibration

Bit Field Name

7:6 Reserved

5 VCO_CORE_H_EN

4:0 FSCAL2[5:0]

Reset R/W Description

0

10

(0x0A)

R0

R/W Choose high (1) / low (0) VCO

R/W Frequency synthesizer calibration result register. VCO current calibration result and override value

Fast frequency hopping without calibration for each hop can be done by calibrating upfront for each frequency and saving the resulting FSCAL3, FSCAL2 and FSCAL1 register values. Between each frequency hop, calibration can be replaced by writing the

FSCAL3, FSCAL2 and FSCAL1 register values corresponding to the next RF frequency.

Bit Field Name

7:6 Reserved

5:0 FSCAL1[5:0]

0x25: FSCAL1 – Frequency Synthesizer Calibration

Reset R/W Description

32

(0x20)

R0

R/W Frequency synthesizer calibration result register. Capacitor array setting for VCO coarse tuning.

Fast frequency hopping without calibration for each hop can be done by calibrating upfront for each frequency and saving the resulting FSCAL3, FSCAL2 and FSCAL1 register values. Between each frequency hop, calibration can be replaced by writing the

FSCAL3, FSCAL2 and FSCAL1 register values corresponding to the next RF frequency.

Bit Field Name

7 Reserved

6:5 Reserved

4:0 FSCAL0[4:0]

0x26: FSCAL0 – Frequency Synthesizer Calibration

Reset R/W Description

R0

0 (00) R0

13

(0x0D)

Defined in the transceiver version

R/W Frequency synthesizer calibration control. The value to use in register field is given by the SmartRF

®

Studio software [4].

SWRS039B Page 48 of 58

0x29: FSTEST – Frequency Synthesizer Calibration Control

Bit Field Name

7:0 FSTEST[7:0]

Reset R/W Description

87

(0x57)

R/W For test only. Do not write to this register.

0x2A: PTEST – Production Test

CC2550

Bit Field Name

7 PTEST[7:0]

Reset R/W Description

127

(0x7F)

R/W Writing 0xBF to this register makes the on-chip temperature sensor available in the IDLE state. The default 0x7F value should then be written back before leaving the IDLE state.

Other use of this register is for test only.

Bit Field Name

7:0 TEST2[7:0]

Reset

152

(0x98)

0x2C: TEST2 – Various Test Settings

R/W Description

R/W

The value to use in this register is given by the SmartRF

®

Studio

software [4].

0x2D: TEST1 – Various Test Settings

Reset R/W Description

(0x31) R/W The value to use in this register is given by the SmartRF

®

Studio software [4].

Bit Field Name

7:0 TEST1[7:0]

0x2E: TEST0 – Various Test Settings

Bit Field Name Reset R/W Description

7:2 TEST0[7:2]

1 VCO_SEL_CAL_EN

0 TEST0[0]

1

(0x02) R/W The value to use in this register is given by the SmartRF

®

Studio software [4].

1

R/W Enable VCO selection calibration stage when 1

The value to use in this register is given by the SmartRF

®

Studio software [4].

28.2 Status Register Details

Bit Field Name

7:0 PARTNUM[7:0]

0x30 (0xF0): PARTNUM – Chip ID

Reset

130 (0x82)

R/W Description

R Chip part number

Bit Field Name

7:0 VERSION[7:0]

0x31 (0xF1): VERSION – Chip ID

Reset R/W Description

2 (0x02) R Chip version number

SWRS039B Page 49 of 58

CC2550

0x35 (0xF5): MARCSTATE – Main Radio Control State Machine State

Bit Field Name

7:5 Reserved

4:0 MARC_STATE[4:0]

Reset R/W Description

R0

R Main Radio Control FSM State

Value State name State (Figure 13, page 25)

0 (0x00)

1 (0x01)

2 (0x02)

3 (0x03)

SLEEP

IDLE

XOFF

VCOON_MC

4 (0x04)

5 (0x05)

6 (0x06)

7 (0x07)

8 (0x08)

REGON_MC

MANCAL

VCOON

REGON

STARTCAL

9 (0x09) BWBOOST

10 (0x0A) FS_LOCK

SLEEP

IDLE

XOFF

MANCAL

MANCAL

MANCAL

FS_WAKEUP

FS_WAKEUP

CALIBRATE

SETTLING

SETTLING

11 (0x0B) IFADCON

12 (0x0C) ENDCAL

13 (0x0D) NA

14 (0x0E) NA

15 (0x0F) NA

SETTLING

CALIBRATE

NA

NA

NA

16 (0x10) NA

17 (0x11) NA

18 (0x12) FSTXON

NA

NA

FSTXON

19 (0x13) TX

20 (0x14) TX_END

TX

TX

21 (0x15) NA NA

22 (0x16) TX_UNDERFLOW TX_UNDERFLOW

Note: it is not possible to read back the SLEEP or XOFF state numbers because setting CSn low will make the chip enter the

IDLE mode from the SLEEP or XOFF states.

0x38 (0xF8): PKTSTATUS – Current GDOx Status and Packet Status

Bit Field Name

7:2 Reserved

1 Reserved

0 GDO0

Reset R/W Description

R0 Defined in the transceiver version

R0

R Current GDO0 value. Note: the reading gives the non-inverted value irrespective what IOCFG0.GDO0_INV is programmed to.

It is not recommended to check for PLL lock by reading

PKTSTATUS[0] with GDO0_CFG = 0x0A.

SWRS039B Page 50 of 58

0x39 (0xF9): VCO_VC_DAC – Current Setting from PLL Calibration Module

Bit Field Name

7:0 VCO_VC_DAC[7:0]

Reset R/W Description

R Status register for test only

CC2550

Bit Field Name

0x3A (0xFA): TXBYTES – Underflow and Number of Bytes

Reset

7 TXFIFO_UNDERFLOW

6:0 NUM_TXBYTES

R/W Description

R

R Number of bytes in TX FIFO

SWRS039B Page 51 of 58

29 Package Description (QLP 16)

CC2550

All dimensions are in millimetres, angles in degrees. NOTE: The

CC2550 is available in RoHS lead-free package only.

Figure 23: Package Dimensions Drawing (the actual package has 16 pins)

Package type

QLP 16 (4x4)

A A1 A2 D D1 D2 E E1 E2 L T b e

Typ. 0.85 0.025 0.65 4.00 3.75 2.30 4.00 3.75 2.30 0.55 0.28 0.65

Table 27: Package Dimensions

SWRS039B Page 52 of 58

CC2550

29.1 Recommended PCB Layout for Package (QLP 16)

Figure 24: Recommended PCB layout for QLP 16 package

Note: The figure is an illustration only and not to scale. There are five 10 mil diameter via holes distributed symmetrically in the ground pad under the package. See also the CC2550EM

reference design [3].

29.2 Package Thermal Properties

Thermal Resistance

Air velocity [m/s]

Rth,j-a [K/W]

0

40.1

Table 28: Thermal Properties of QLP 16 Package

The recommendations for lead-free reflow in IPC/JEDEC J-STD-020D should be followed.

SWRS039B Page 53 of 58

CC2550

CC2550 can be delivered in standard QLP 4x4 mm shipping trays.

Tray Specification

Package Tray Width

QLP 16 135.9 mm

Tray Height

7.62 mm

Tray Length

322.6 mm

Table 29: Tray Specification

Units per Tray

490

29.5 Carrier Tape and Reel Specification

Carrier tape and reel is in accordance with EIA Specification 481.

Tape and Reel Specification

QLP 16 12 mm

Component

Pitch

Hole

Pitch

8 mm 4 mm

Reel

Diameter

13 inches

Table 30: Carrier Tape and Reel Specification

Units per Reel

2500

Part Number

CC2550RTK

CC2550RTKR

CC2500-CC2550DK

CC2550EMK

Description

CC2550

QLP16 RoHS Pb-free 490/tray

CC2550

QLP16 RoHS Pb-free 2500/T&R

CC2500_CC2550

Development Kit

CC2500

Evaluation Module Kit

Table 31: Ordering Information

1

1

Minimum Order Quantity (MOQ)

490 (tray)

2500 (tape and reel)
