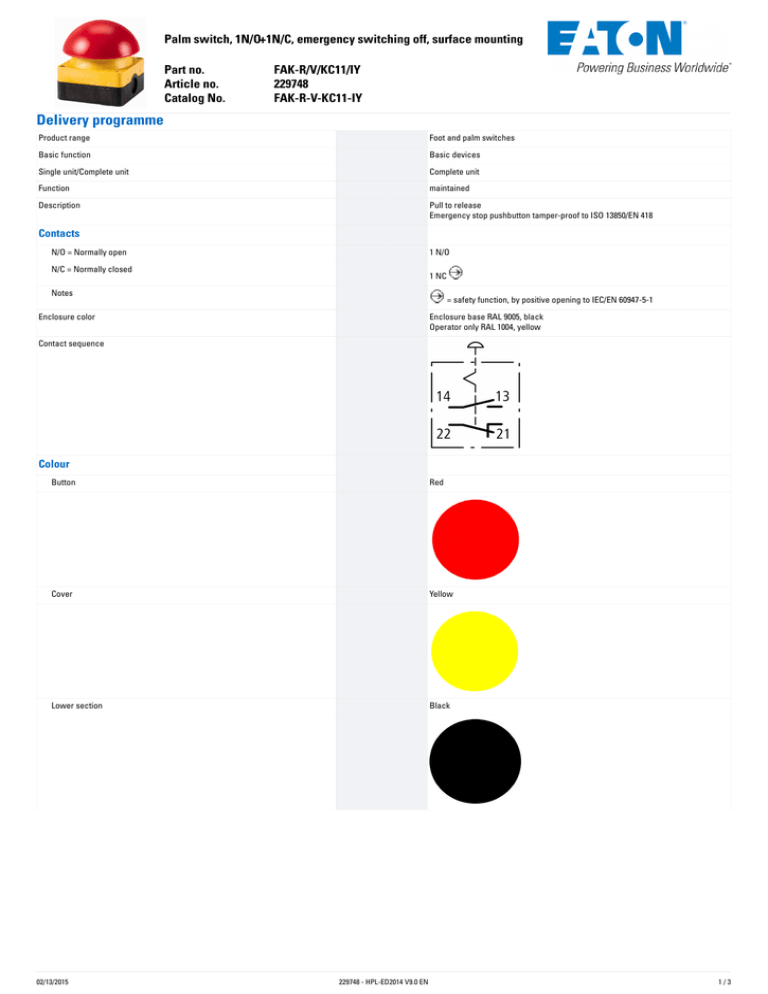

Palm�switch,�1N/O+1N/C,�emergency�switching�off,�surface�mounting Part�no.  FAK-R/V/KC11/IY Article�no.

Palm�switch,�1N/O+1N/C,�emergency�switching�off,�surface�mounting Part�no.  FAK-R/V/KC11/IY Article�no.
Palm�switch,�1N/O+1N/C,�emergency�switching�off,�surface�mounting
Delivery�programme
Part�no. Article�no. Catalog�No. FAK-R/V/KC11/IY
229748
FAK-R-V-KC11-IY
Product range
Foot and palm switches
Basic function
Basic devices
Single unit/Complete unit
Complete unit
Function
maintained
Description
Pull to release
Emergency stop pushbutton tamper-proof to ISO 13850/EN 418
Contacts
N/O = Normally open
1 N/O
N/C = Normally closed
Notes
Enclosure color
Contact sequence
Colour
Button
Red
Cover
Lower section
02/13/2015
229748 - HPL-ED2014 V9.0 EN
1 NC
= safety function, by positive opening to IEC/EN 60947-5-1
Enclosure base RAL 9005, black
Operator only RAL 1004, yellow
Yellow
Black
1/3
Approval
Connection to SmartWire-DT
Lifespan, mechanical
Operations
x 10
Operating frequency
Operations/h Actuating force
N
40 - 60
Degree of protection, IEC/EN 60529
IP67, IP69K
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature
°C
°C
- 25 - + 40
Mounting position
As required
Mechanical shock resistance
g
> 15
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27
no
Technical�data
General
Open
Data�for�design�verification�according�to�IEC/EN�61439
Technical data for design verification
6
> 0.1
600
Rated operational current for specified heat dissipation
In
A
6
Heat dissipation per pole, current-dependent
Pvid
W
0.11
Equipment heat dissipation, current-dependent
Pvid
W
0
Static heat dissipation, non-current-dependent
Pvs
W
0
Heat dissipation capacity
Pdiss
W
0
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat
and fire due to internal electric effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties
02/13/2015
229748 - HPL-ED2014 V9.0 EN
2/3
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will
provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction
leaflet (IL) is observed.
Technical�data�ETIM�5.0
Low-voltage industrial components (EG000017) / Foot-/palm switch complete (EC000231)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Foot, palm switch ([email protected] [AKF035010])
Unlocking method
Pull release
Colour cap
Red
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Switching function latching
Yes
Spring-return
No
Hole diameter
mm
0
Degree of protection (IP)
IP67
Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 3R, 4X, 12, 13
Approvals
Dimensions
3 x M20 (PG 13.5) on the side
1 x M16 in the base
Additional�product�information�(links)
IL04716006Z�(AWA1160-1696)�Indicator�light
IL04716006Z (AWA1160-1696) Indicator light
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL04716006Z2011_02.pdf
IL04716017Z�(AWA1160-1467)�Foot�and�palm�switches
IL04716017Z (AWA1160-1467) Foot and palm
switches
02/13/2015
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL04716017Z2011_02.pdf
Eaton Industries GmbH
http://www.eaton.eu
© 12/2014 by Eaton Industries GmbH
229748 - HPL-ED2014 V9.0 EN
3/3
