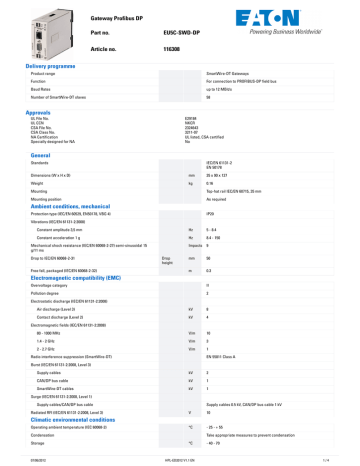

Gateway�Profibus�DP Part�no. EU5C-SWD-DP Article�no.

Gateway�Profibus�DP Part�no. EU5C-SWD-DP Article�no.
Gateway�Profibus�DP
Part�no.
EU5C-SWD-DP
Article�no.
116308
Delivery�programme
Product range
SmartWire-DT Gateways
Function
For connection to PROFIBUS-DP field bus
Baud Rates
up to 12 MBit/s
Number of SmartWire-DT slaves
58
Approvals
UL File No.
UL CCN
CSA File No.
CSA Class No.
NA Certification
Specially designed for NA
General
E29184
NKCR
2324643
3211-07
UL listed, CSA certified
No
Standards
IEC/EN 61131-2
EN 50178
Dimensions (W x H x D)
mm
35 x 90 x 127
Weight
kg
0.16
Mounting
Top-hat rail IEC/EN 60715, 35 mm
Mounting position
As required
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 61131-2:2008)
Constant amplitude 3,5 mm
Hz
5 - 8.4
Constant acceleration 1 g
8.4 - 150
Ambient�conditions,�mechanical
Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15
g/11 ms
Impacts 9
Drop to IEC/EN 60068-2-31
Drop
height
mm
50
Free fall, packaged (IEC/EN 60068-2-32)
m
0.3
Overvoltage category
II
Pollution degree
2
Electrostatic discharge (IEC/EN 61131-2:2008)
Air discharge (Level 3)
kV
8
Contact discharge (Level 2)
kV
4
80 - 1000 MHz
V/m
10
1.4 - 2 GHz
V/m
3
2 - 2.7 GHz
Electromagnetic�compatibility�(EMC)
Electromagnetic fields (IEC/EN 61131-2:2008)
V/m
1
Radio interference suppression (SmartWire-DT)
EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)
Supply cables
kV
2
CAN/DP bus cable
kV
1
SmartWire-DT cables
kV
1
Surge (IEC/EN 61131-2:2008, Level 1)
Supply cables 0.5 kV, CAN/DP bus cable 1 kV
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
Supply cables/CAN/DP bus cable
V
10
Operating ambient temperature (IEC 60068-2)
°C
- 25 - + 55
Condensation
Take appropriate measures to prevent condensation
Storage
°C
- 40 - 70
Climatic�environmental�conditions
07/06/2012
HPL-ED2012 V1.1 EN
1/4
relative humidity, non-condensing (IEC/EN 60068-2-30)
%
5 - 95
Rated operational voltage
V
24 V DC (-15/+20%)
Residual ripple on the input voltage
%
Protection against polarity reversal
Yes
Max. current
Imax
A
3
Short-circuit rating
no, external fuse FAZ Z3
Power loss
W
Normally 1
Potential isolation
No
Rated operating voltage of 24-V-DC slaves
V
typ. UAux - 0.2
Supply voltage
V
24 DC -15 % + 20 %
Input voltage ripple
%
Siemens MPI, (optional)
yes
Rated current
I
A
0.7
Overload proof
yes
Inrush current and duration
A
12.5 A/6 ms
Heat dissipation at 24 V DC
W
3.8
Potential isolation between UPow and 15 V SmartWire-DT supply voltage
No
Bridging voltage dips
ms
10
Repetition rate
s
1
Status indication
LED
yes
Rated operating voltage
Ue
V
14,5 ± 3 %
max. current
Imax
A
0.7
Short-circuit rating
Yes
Connection type
Solid
mm
Flexible with ferrule
UL/CSA solid or stranded
Supply�voltage�UAux
Supply�voltage�UPow
SmartWire-DT�supply�voltage
Connection�supply�voltages
5
5
Push in terminals
2
0.2 - 1.5
mm
2
0.25 - 1.5
AWG
24 - 16
Station type
SmartWire-DT master
Number of SmartWire-DT slaves
58
Baud Rates
kBd
125
250
Address allocation
automatic
Status indication
LED
SmartWire-DT master LED: green
Configurations LED: red
Connections
Plug, 8-pole
Plug connectors
Blade terminal SWD4-8MF2
PROFIBUS DP slave
Protocol
PROFIBUS-DP
Input data, max.
Byte
240
Output data, max.
Byte
240
Baud Rates
up to 12 MBit/s
Baud rates switching
automatic
Station address
2 … 125
Address allocation
DIP switch
Status display interface
LED
Two-coloured red/green
Terminating resistor
switchable via plug
Connection design for field bus
1 x D-SUB socket, 9-pin
Potential isolation
Yes
SmartWire-DT�network
Fieldbus�interface
07/06/2012
HPL-ED2012 V1.1 EN
2/4
Notes
If contactors with a total current consumption > 3 A are connected, a
power feeder module EU5C-SWD-PF1/2 has to be used.
If SWD modules with a total current consumption > 0.7 A are connected,
a power feeder module EU5C-SWD-PF2 has to be used.
Dimensions
SmartWire-DT Gateways
SmartWire-DT gateways, SmartWire-DT input/output modules, powerfeed modules
07/06/2012
HPL-ED2012 V1.1 EN
3/4
Additional�product�information�(links)
IL05006001Z�(AWA2723-2478)�SmartWire-DT:�Modules:�PROFIBUS-DP,�CANopen,�Powerfeed,�Modbus
IL05006001Z (AWA2723-2478)
SmartWire-DT: Modules: PROFIBUSDP, CANopen, Powerfeed, Modbus
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL05006001Z2011_07.pdf
MN05013002Z�(AWB2723-1612),�SWD-Gateways
MN05013002Z (AWB2723-1612 ), SWDGateways - Deutsch
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN05013002Z_DE.pdf
MN05013002Z (AWB2723-1612), SWDGateways - English
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN05013002Z_EN.pdf
MN05013002Z (AWB2723-1612 ), SWDGateways - italiano
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN05013002Z_IT.pdf
