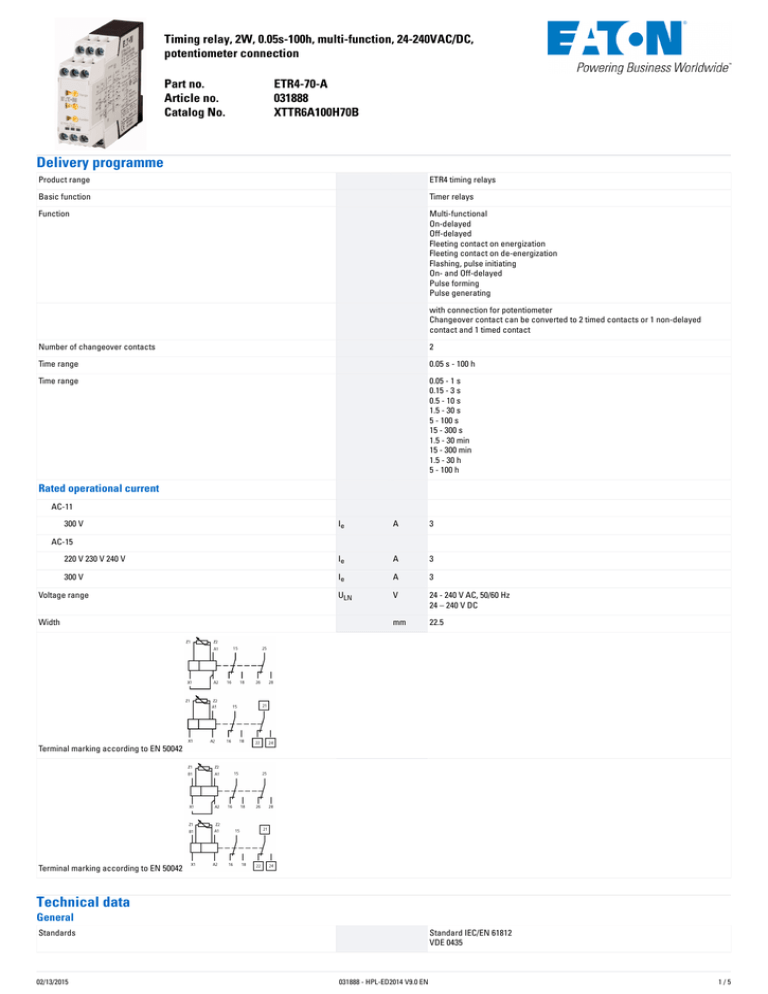

Timing�relay,�2W,�0.05s-100h,�multi-function,�24-240VAC/DC, potentiometer�connection Part�no.  ETR4-70-A

Timing�relay,�2W,�0.05s-100h,�multi-function,�24-240VAC/DC, potentiometer�connection Part�no.  ETR4-70-A
Timing�relay,�2W,�0.05s-100h,�multi-function,�24-240VAC/DC,
potentiometer�connection
Part�no. Article�no. Catalog�No. Delivery�programme
ETR4-70-A
031888
XTTR6A100H70B
Product range
ETR4 timing relays
Basic function
Timer relays
Function
Multi-functional
On-delayed
Off-delayed
Fleeting contact on energization
Fleeting contact on de-energization
Flashing, pulse initiating
On- and Off-delayed
Pulse forming
Pulse generating
with connection for potentiometer
Changeover contact can be converted to 2 timed contacts or 1 non-delayed
contact and 1 timed contact
Number of changeover contacts
2
Time range
0.05 s - 100 h
Time range
0.05 - 1 s
0.15 - 3 s
0.5 - 10 s
1.5 - 30 s
5 - 100 s
15 - 300 s
1.5 - 30 min
15 - 300 min
1.5 - 30 h
5 - 100 h
Rated�operational�current
Ie
A
3
AC-11
300 V
AC-15
220 V 230 V 240 V
Ie
A
3
300 V
Ie
A
3
Voltage range
ULN
V
24 - 240 V AC, 50/60 Hz
24 – 240 V DC
Width
mm
22.5
Standards
Standard IEC/EN 61812
VDE 0435
02/13/2015
031888 - HPL-ED2014 V9.0 EN
Terminal marking according to EN 50042
Terminal marking according to EN 50042
Technical�data
General
1/5
Lifespan, mechanical
AC operated
Operations
x 10
6
30
DC operated
Operations
x 10
6
30
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature
°C
Ambient temperature, storage
°C
- 45 - + 60
Open
°C
- 25 - + 60
Enclosed
°C
- 25 - + 45
Mounting position
As required
Mechanical shock resistance (IEC/EN 60068-2-27)
Half-sinusoidal shock, 20 ms
g
Make contact
g
4
Degree of protection
IP20
Weight
kg
Terminal capacities
mm
Solid
mm
Flexible with ferrule
Solid or stranded
Terminals
0.1
2
2
1 x (0.75 - 2.5)
2 x (0.75 - 1.5)
mm
2
1 x (0.75 - 2.5)
2 x (0.75 - 1.5)
AWG
1 x (20 - 14)
Rated impulse withstand voltage
Uimp
V AC
4000
Overvoltage category/pollution degree
III/2
Rated insulation voltage
Ui
V AC
400
Rated operational voltage
Ue
V AC
300
Safe isolation to EN 61140
Contacts
between coil and auxiliary contacts
V AC
250
between the auxiliary contacts
V AC
250
AC-14 cos ϕ = 0.3 400 V
A
48
AC-15 cos ϕ = 0.3 220 V
A
50
DC-11 L/R - 40 ms
x Ie
1.1
AC-14 cos ϕ = 0.3 440 V
A
3
AC-15 cos ϕ = 0.3 220 V
A
3
DC-11 L/R - 40 ms
x Ie
1.1
Rated operational current
Ie
A
Ie
A
3
Ie
A
3
Note
Making and breaking conditions to DC13, time constant as stated
L/R max. 15 ms
A
Ie
A
1.5
A
1.2
Conv. thermal current
Ith
A
6
Short-circuit rating without welding
Making capacity
Breaking capacity
AC--14
440 V
AC-15
220 V 230 V 240 V
DC-11
24 V
L/R max. 50 ms
Note
When supplied directly from mains or transformer > 1000 VA
Max. fuse, make contacts
A gG/gL 6
Max. fuse, break contacts
A gG/gL 6
Max. overcurrent protective device, 220/230 V
Type
FAZ-B4/1-HI
Voltage tolerance
x Uc
02/13/2015
031888 - HPL-ED2014 V9.0 EN
Magnet�systems
2/5
Pick-up voltage
x Us
Min. pick-up voltage, AC operated
xUc
0.85
Pick-up voltage AC operated, max.
xUc
1.1
Pick-up voltage DC operated, min.
x Uc
0.7
Max. pick-up voltage, DC operated
x Uc
1.1
Power consumption
Pick-up AC
VA
2
Sealing AC
VA
2
Pick-up DC
W
1.8
Sealing DC
W
1.8
Duty factor
% DF
100
Maximum operating frequency
Ops/h
4000
Minimum command time
AC
ms
50
DC
30
ms
Repetition accuracy (deviation)
%
Recovery time (after 100% time delay)
ms
70
Contact changeover time
tu
ms
4
Rated operational current for specified heat dissipation
In
A
6
Heat dissipation per pole, current-dependent
Pvid
W
1.4
Equipment heat dissipation, current-dependent
Pvid
W
0
Static heat dissipation, non-current-dependent
Pvs
W
1.8
Heat dissipation capacity
Pdiss
W
0
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat
and fire due to internal electric effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Data�for�design�verification�according�to�IEC/EN�61439
Technical data for design verification
IEC/EN 61439 design verification
0.5
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will
provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction
leaflet (IL) is observed.
02/13/2015
031888 - HPL-ED2014 V9.0 EN
3/5
Technical�data�ETIM�5.0
Relays (EG000019) / Timer relay (EC001439)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Relay and socket / Timed relay ([email protected] [AKF092009])
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Function floating contact on de-energization
Yes
Function star-delta
No
Function pulse shaping
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
With plug-in socket
No
Remote operation possible
Yes
Suitable only for remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ
V
24 - 240
Rated control supply voltage Us at AC 60HZ
V
24 - 240
Rated control supply voltage Us at DC
V
24 - 240
Voltage type for actuating
AC/DC
Time range
s
0.05 - 360000
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
2
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
2
Outputs, reversible delayed/undelayed
Yes
With semiconductor output
No
Width
mm
23
Height
mm
83
Depth
mm
103
Product Standards
IEC/EN 60947-…; UL 508; CSA-22.2 No. 14-05; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
12528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
IEC: IP20, UL/CSA Type: -
shipping classification
GL
02/13/2015
031888 - HPL-ED2014 V9.0 EN
Approvals
4/5
Dimensions
Additional�product�information�(links)
IL04910002Z�(AWA2527-1493)�Multi-function�relay
IL04910002Z (AWA2527-1493) Multi-function
relay
02/13/2015
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL04910002Z2015_02.pdf
Eaton Industries GmbH
http://www.eaton.eu
© 12/2014 by Eaton Industries GmbH
031888 - HPL-ED2014 V9.0 EN
5/5
