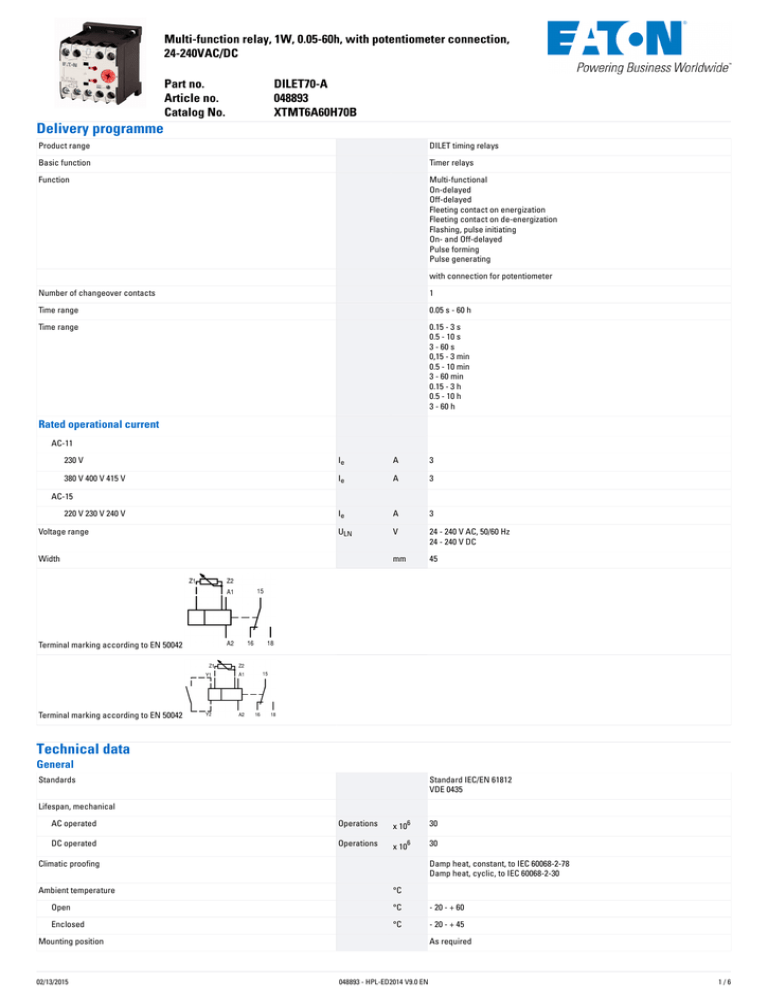

Multi-function�relay,�1W,�0.05-60h,�with�potentiometer�connection, 24-240VAC/DC Part�no.  DILET70-A

Multi-function�relay,�1W,�0.05-60h,�with�potentiometer�connection, 24-240VAC/DC Part�no.  DILET70-A
Multi-function�relay,�1W,�0.05-60h,�with�potentiometer�connection,
24-240VAC/DC
Delivery�programme
Part�no. Article�no. Catalog�No. DILET70-A
048893
XTMT6A60H70B
Product range
DILET timing relays
Basic function
Timer relays
Function
Multi-functional
On-delayed
Off-delayed
Fleeting contact on energization
Fleeting contact on de-energization
Flashing, pulse initiating
On- and Off-delayed
Pulse forming
Pulse generating
with connection for potentiometer
Number of changeover contacts
1
Time range
0.05 s - 60 h
Time range
0.15 - 3 s
0.5 - 10 s
3 - 60 s
0,15 - 3 min
0.5 - 10 min
3 - 60 min
0.15 - 3 h
0.5 - 10 h
3 - 60 h
Rated�operational�current
230 V
Ie
A
3
380 V 400 V 415 V
Ie
A
3
Ie
A
3
Voltage range
ULN
V
24 - 240 V AC, 50/60 Hz
24 - 240 V DC
Width
mm
45
Standards
Standard IEC/EN 61812
VDE 0435
Lifespan, mechanical
AC-11
AC-15
220 V 230 V 240 V
Terminal marking according to EN 50042
Terminal marking according to EN 50042
Technical�data
General
AC operated
Operations
x 10
6
30
DC operated
Operations
x 10
6
30
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature
°C
Open
°C
- 20 - + 60
Enclosed
°C
- 20 - + 45
Mounting position
As required
02/13/2015
048893 - HPL-ED2014 V9.0 EN
1/6
Mechanical shock resistance (IEC/EN 60068-2-27)
Half-sinusoidal shock, 20 ms
g
Make contact
g
4
Degree of protection
IP20
Weight
Terminals
kg
0.09
Terminal capacities
mm
Solid
mm
Flexible with ferrule
Solid or stranded
2
2
1 x (0.75 - 2.5)
2 x (0.75 - 2.5)
mm
2
1 x (0.75 - 1.5)
2 x (0.75 - 1.5)
AWG
1 x (18 - 14)
Rated impulse withstand voltage
Uimp
V AC
6000
Overvoltage category/pollution degree
III/2
Rated insulation voltage
Ui
V AC
600
Rated operational voltage
Ue
V AC
440
Safe isolation to EN 61140
Contacts
between coil and auxiliary contacts
V AC
250
between the auxiliary contacts
V AC
250
Making capacity
AC-14 cos ϕ = 0.3 400 V
A
48
AC-15 cos ϕ = 0.3 220 V
A
50
DC-11 L/R - 40 ms
x Ie
1.1
AC-14 cos ϕ = 0.3 440 V
A
3
AC-15 cos ϕ = 0.3 220 V
A
3
DC-11 L/R - 40 ms
x Ie
1.1
Rated operational current
Ie
A
Ie
A
3
Ie
A
3
Breaking capacity
AC--14
440 V
AC-15
220 V 230 V 240 V
DC-11
Note
Making and breaking conditions to DC13, time constant as stated
L/R max. 15 ms
A
Ie
A
1.5
A
1.2
Conv. thermal current
Ith
A
6
Short-circuit rating without welding
24 V
L/R max. 50 ms
Note
When supplied directly from mains or transformer > 1000 VA
Max. fuse, make contacts
A gG/gL 6
Max. fuse, break contacts
A gG/gL 6
Ue
V
AC
24 - 240
DC
24 - 240
x Uc
x Us
Min. pick-up voltage, AC operated
xUc
0.85
Pick-up voltage AC operated, max.
xUc
1.1
Pick-up voltage DC operated, min.
x Uc
0.7
Max. pick-up voltage, DC operated
x Uc
1.1
VA
2
Magnet�systems
Rated operational voltage
Voltage tolerance
Pick-up voltage
Power consumption
Pick-up AC
02/13/2015
048893 - HPL-ED2014 V9.0 EN
2/6
Sealing AC
VA
2
Pick-up DC
W
1.8
Sealing DC
W
1.8
Duty factor
% DF
100
Maximum operating frequency
Ops/h
4000
Minimum command time
AC
ms
50
DC
ms
30
Repetition accuracy (deviation)
%
Recovery time (after 100% time delay)
ms
70
Data�for�design�verification�according�to�IEC/EN�61439
Technical data for design verification
0.5
Rated operational current for specified heat dissipation
In
A
6
Heat dissipation per pole, current-dependent
Pvid
W
0.9
Equipment heat dissipation, current-dependent
Pvid
W
0
Static heat dissipation, non-current-dependent
Pvs
W
1.8
Heat dissipation capacity
Pdiss
W
0
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat
and fire due to internal electric effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will
provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction
leaflet (IL) is observed.
Technical�data�ETIM�5.0
Relays (EG000019) / Timer relay (EC001439)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Relay and socket / Timed relay ([email protected] [AKF092009])
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Function floating contact on de-energization
Yes
02/13/2015
048893 - HPL-ED2014 V9.0 EN
3/6
Function star-delta
No
Function pulse shaping
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
With plug-in socket
No
Remote operation possible
Yes
Suitable only for remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ
V
24 - 240
Rated control supply voltage Us at AC 60HZ
V
24 - 240
Rated control supply voltage Us at DC
V
24 - 240
Voltage type for actuating
AC/DC
Time range
s
0.05 - 216000
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
1
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
Yes
With semiconductor output
No
Width
mm
45
Height
mm
58
Depth
mm
52
Product Standards
IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking
UL File No.
E29184
UL Category Control No.
NKCR, NKCR7
CSA File No.
12528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
IEC: IP20, UL/CSA Type: -
02/13/2015
048893 - HPL-ED2014 V9.0 EN
Approvals
4/6
Characteristics
Component lifespan (operations)
Ie = Rated operational current
Dimensions
02/13/2015
048893 - HPL-ED2014 V9.0 EN
5/6
Electronic timing relay with sealable shroud
DILET… + HDILE
Additional�product�information�(links)
IL04910003Z�(AWA2527-1587)�Solid-state�timing�relay
IL04910003Z (AWA2527-1587) Solid-state timing ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL04910003Z2010_10.pdf
relay
02/13/2015
Eaton Industries GmbH
http://www.eaton.eu
© 12/2014 by Eaton Industries GmbH
048893 - HPL-ED2014 V9.0 EN
6/6
