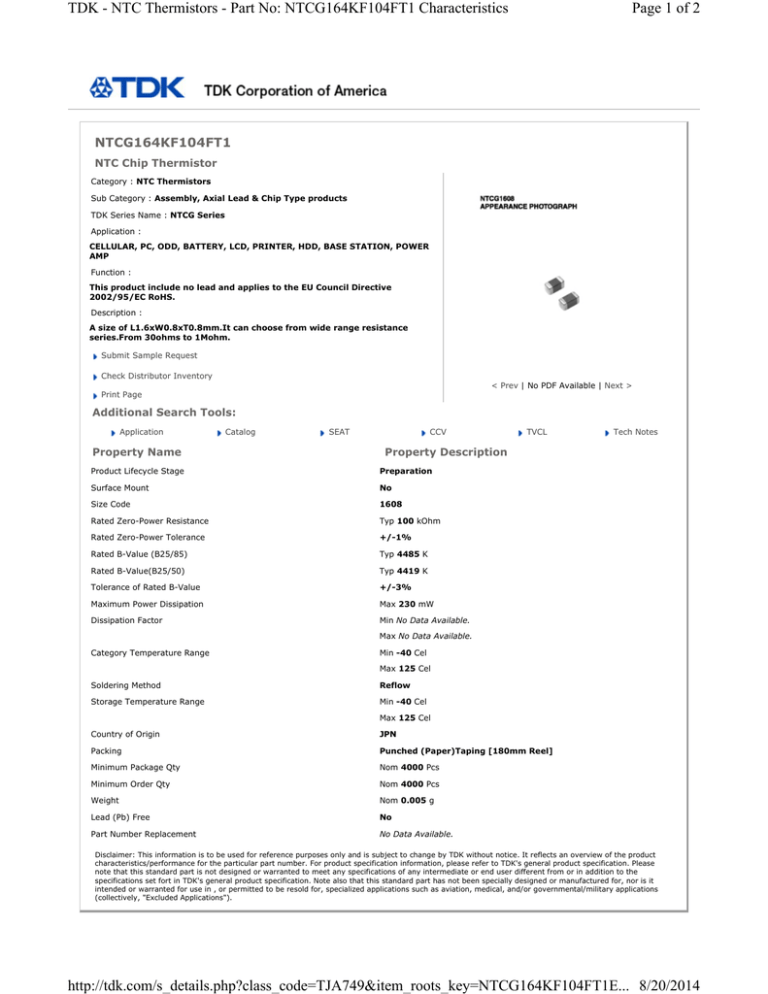

TDK - NTC Thermistors - Part No: NTCG164KF104FT1 Characteristics
Page 1 of 2
NTCG164KF104FT1
NTC Chip Thermistor
Category : NTC Thermistors
Sub Category : Assembly, Axial Lead & Chip Type products
TDK Series Name : NTCG Series
Application :
CELLULAR, PC, ODD, BATTERY, LCD, PRINTER, HDD, BASE STATION, POWER
AMP
Function :
This product include no lead and applies to the EU Council Directive
2002/95/EC RoHS.
Description :
A size of L1.6xW0.8xT0.8mm.It can choose from wide range resistance
series.From 30ohms to 1Mohm.
Submit Sample Request
Check Distributor Inventory
< Prev | No PDF Available | Next >
Print Page
Additional Search Tools:
Application
Property Name
Catalog
SEAT
CCV
Tech Notes
Property Description
Product Lifecycle Stage
Preparation
Surface Mount
No
Size Code
1608
Rated Zero-Power Resistance
Typ 100 kOhm
Rated Zero-Power Tolerance
+/-1%
Rated B-Value (B25/85)
Typ 4485 K
Rated B-Value(B25/50)
Typ 4419 K
Tolerance of Rated B-Value
+/-3%
Maximum Power Dissipation
Max 230 mW
Dissipation Factor
TVCL
Min No Data Available.
Max No Data Available.
Category Temperature Range
Min -40 Cel
Max 125 Cel
Soldering Method
Storage Temperature Range
Reflow
Min -40 Cel
Max 125 Cel
Country of Origin
JPN
Packing
Punched (Paper)Taping [180mm Reel]
Minimum Package Qty
Nom 4000 Pcs
Minimum Order Qty
Nom 4000 Pcs
Weight
Nom 0.005 g
Lead (Pb) Free
No
Part Number Replacement
No Data Available.
Disclaimer: This information is to be used for reference purposes only and is subject to change by TDK without notice. It reflects an overview of the product
characteristics/performance for the particular part number. For product specification information, please refer to TDK's general product specification. Please
note that this standard part is not designed or warranted to meet any specifications of any intermediate or end user different from or in addition to the
specifications set fort in TDK's general product specification. Note also that this standard part has not been specially designed or manufactured for, nor is it
intended or warranted for use in , or permitted to be resold for, specialized applications such as aviation, medical, and/or governmental/military applications
(collectively, "Excluded Applications").
