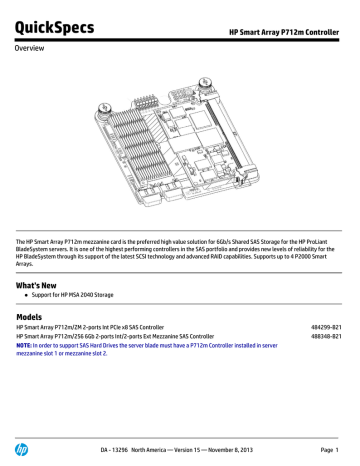

QuickSpecs HP Smart Array P712m Controller Overview

QuickSpecs HP Smart Array P712m Controller Overview

QuickSpecs

Overview

HP Smart Array P712m Controller

The HP Smart Array P712m mezzanine card is the preferred high value solution for 6Gb/s Shared SAS Storage for the HP ProLiant

BladeSystem servers. It is one of the highest performing controllers in the SAS portfolio and provides new levels of reliability for the

HP BladeSystem through its support of the latest SCSI technology and advanced RAID capabilities. Supports up to 4 P2000 Smart

Arrays.

What's New

Support for HP MSA 2040 Storage

Models

HP Smart Array P712m/ZM 2-ports Int PCIe x8 SAS Controller

HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller

NOTE: In order to support SAS Hard Drives the server blade must have a P712m Controller installed in server mezzanine slot 1 or mezzanine slot 2.

484299-B21

488348-B21

DA - 13296 North America — Version 15 — November 8, 2013 Page 1

QuickSpecs

Standard Features

The Smart Array

Advantage

HP Smart Array P712m Controller

HP's innovative design and integration work within the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart

Array family brings an unparalleled return on investment.

Data Compatibility. Data Compatibility with all Serial Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase.

Consistent Configuration and Management Tools. All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain HP server storage.

Pre-Failure Warranty. Pre-Failure Warranty means Systems Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center or refer to your HP Server documentation.

Key Features

Online Management

Features

Storage interface (SAS/SATA)

6 Gb/s SAS technology delivers up to 600 MB/s per physical link.

3 Gb/s SATA technology delivers up to 300 MB/s for directly attached SATA drives.

Mix-and-match SAS and SATA drives. Deploy drive technology as needed to fit the computing environment.

Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries.

RAID controller features

256 MB cache

RAID 0, 1

RAID 0, 1, 3, 5, 6, 10, 50 on P2000 G3 SA (for shared storage)

NOTE: RAID for Shared Storage is controlled by the controller of the array.

Recovery ROM protects against ROM corruption.

Smart Array PCIe mezzanine card that connects to a HP 6Gb/s SAS BL Switch through the c-Class enclosure high-speed mid-plane supporting shared SAS storage.

Four (4) 6Gb/s SAS physical links distributed across 2 external 2x ports to supports up to 2 6Gb/s

SAS Switches

Two (2) 6Gb/s SAS physical links distributed across 2 internal 1x ports to support up to 2 6Gb/s SAS

HDDs

Software consistency among all Smart Array family products: Array Configuration Utility, Systems

Insight Manager, Array Diagnostic Utility (ADU) and SmartStart

Online array expansion (with cache)

Online logical drive extension (with cache)

Online RAID level migration (with cache)

Online strip size migration (with cache)

User selectable rebuild priority

User selectable RAID level and stripe size

DA - 13296 North America — Version 15 — November 8, 2013 Page 2

QuickSpecs

Standard Features

HP P2000 G3 Modular

Smart Array Systems

HP Smart Array P712m Controller

Online Management Features:

HP Storage Management Utility (SMU).

Management access, out-of-band:

WEB GUI, CLI.

Interface Types:

USB, 10/100 Ethernet.

Protocols Supported:

SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP, Telnet

P2000 G3 Smart Array Systems - RAID 0, 1, 3, 5, 6, 10, 50:

In addition to the usual RAID levels, the P2000 G3 features several important additional levels. RAID 6 is the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50 combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance

6Gb/s SAS (600MB/s bandwidth per physical link)

256 MB Cache available (256 MB cache enables use of the external ports)

Capacity

Availability

Fault Prevention

Dependent upon attached arrays. See drive enclosure QuickSpecs for details.

Provides increased server uptime by providing advanced storage functionality:

Online RAID Level Migration (0,1)

Pre-Failure Warranty

NOTE: This is not applicable for P2000.

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at HP detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs.

Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.

Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

DA - 13296 North America — Version 15 — November 8, 2013 Page 3

QuickSpecs

Standard Features

Fault Tolerance RAID

Descriptions

HP Smart Array P712m Controller

Keeps data available and server running while a failed drive is being replaced; two fault tolerance configurations are supported for the internal connections including:

RAID 0 (striping) provides no extra data protection. Data is striped across all drives in the array to increase performance. RAID 0 requires a minimum of one drive.

RAID 1 (mirroring) protects against failure of one drive. Data is duplicated on a pair of drives. RAID 1 requires a minimum of two drives.

NOTE: Please see the HP P2000 G3 Modular Smart Array Systems QuickSpecs for Technical Specifications and additional information regarding RAID levels: http://h18000.www1.hp.com/products/quickspecs/13551_na/13551_na.html

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure:

Recovery ROM: This feature provides unique redundancy that protects from a ROM image corruption. A new version of firmware can be flashed to the ROM while the controller maintains the last known working version of firmware. If the firmware becomes corrupt, the controller will revert back to the previous version of firmware and continue operating. This reduces the risk of flashing firmware to the controller.

DRAM ECC corrects against single bit data and address corruption.

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

GUI based configuration, management and diagnostic software tools

Common data format between generations of products

DA - 13296 North America — Version 15 — November 8, 2013 Page 4

QuickSpecs

Compatibility

Supported Servers

HP Smart Array P712m Controller

HP ProLiant BL280c G6

HP ProLiant BL460c G7

HP ProLiant BL465c G7

HP ProLiant BL490c G7

HP ProLiant BL495c G5

HP ProLiant BL495c G6

HP ProLiant BL620c G7

HP ProLiant BL680c G7

HP ProLiant BL685c G7

NOTE: Some servers listed above may be discontinued.

NOTE: For more information on internal vs external connections, please refer to proper blade QuickSpecs please visit: http://h18000.www1.hp.com/products/quickspecs/division/12534.html

Operating Systems and

Virtualization Software

Support for ProLiant

Servers

Microsoft Windows 2003

Microsoft Windows 2008 R2

SLES 10 SP3

SLES 11 SP1

Red Hat Enterprise Linux 5

Red Hat Enterprise Linux 6

VMware ESX 4.0

VMware ESX 4.1

VMware ESXi 5.0

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization

Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/supportos .

Software Suite

All Smart Array products share a common set of configuration, management and diagnostic tools, including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager. This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain HP server storage.

Systems Insight Manager

Powerful server and server options/storage manager tool

Monitors over 1200 system wide parameters

Configuration/Diagnostic Utilities

HP Array Configuration

Utility (ACU)

Powerful Web based configuration utility for all Smart Array controllers

Provides a graphical view of HP server drive array configurations

Allows for management of multiple arrays over a secure internet connection from anywhere in the world

Easy to use Wizards for configuration

Runs offline (via Smart Start) and online on Windows

HP Option ROM

Configuration for Arrays

(ORCA)

An alternative method for easily viewing, creating, and deleting multiple arrays and logical volumes during system power up.

For advanced array configurations use ACU

DA - 13296 North America — Version 15 — November 8, 2013 Page 5

QuickSpecs

Compatibility

HP Storage Management

Utility

HP Array Diagnostic

Utility (ADU)

HP Smart Array P712m Controller

Initial System Configuration Wizard is the easiest and simplest method for configuring the storage system initially.

Command Line Interface (CLI) for command level method of configuring and managing the storage

Main User Interface for multi server environments that need customization for creation of storage Luns and targets.

P2000 G3 Arrays can be configured using Storage Management Utility

(SMU) or Command Line Interface (CLI) both of which are embedded in the P2000 G3 Array controller firmware.

In depth diagnostic and reporting utility for all Smart Array controllers

DA - 13296 North America — Version 15 — November 8, 2013 Page 6

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Warranty

HP Smart Array P712m Controller

The warranty for this device is 3 years parts only.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support

Center or refer to your HP Server Documentation.

Software Product Services Standalone telephone support

Rights to new license version

Media and documentation updates

Hardware Product

Services

Warranty Upgrade

Options

Installation services

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage

RAID setup and performance consulting via statement of work

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level this product attaches too.

HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage. Care Packs for this option is sold at the system level this option attaches too.

HP Care Pack is not available for less than the product's warranty duration.

HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer).

Proof of purchase may be required.

HP Care Pack services are prepaid.

NOTE: For additional HP Care Pack (hardware & software) information, as well as orderable part numbers, please refer to the URL: http://www.hp.com/hps/carepack/

DA - 13296 North America — Version 15 — November 8, 2013 Page 7

QuickSpecs

Related Options

HP Hard Drives

HP Smart Array P712m Controller

NOTE: Supports attached enclosures.

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch Disk

Enclosure

HP P2000 300GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

HP P2000 450GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

HP P2000 600GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000 3.5inch Disk Enclosure

HP StorageWorks P2000 1TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive

HP StorageWorks P2000 2TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk enclosure

HP StorageWorks MSA2 1TB 7.2K rpm 3.5 inch Dual-port SATA Hard Disk Drive

HP StorageWorks P2000 2TB 3G SATA 7.2K LFF MDL Hard Drive

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

NOTE: Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay).

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

NOTE: Please see QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

NOTE: Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay).

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

NOTE: Please see QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

NOTE: SFF SATA drives are single ported and therefore do not have a fail-over path intrinsic to their design.

NOTE: Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay).

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

507750-B21

512547-B21

507127-B21

581284-B21

581286-B21

507610-B21

AP858A

AP859A

AP860A

AP861A

AW555A

AJ740A

AW556A

DA - 13296 North America — Version 15 — November 8, 2013 Page 8

QuickSpecs

HP Smart Array P712m Controller

Related Options

HP P2000 G3 Modular

Smart Array Systems and

HP MSA 2040 Storage

Array

P2000 G3 SAS Controller

HP StorageWorks P2000 G3 SAS MSA Array System Controller

(four 6Gb SAS ports per controller)

P2000 Chassis

P2000 Controller-less Chassis (AC-powered)

HP StorageWorks P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)

NOTE: Will accept one or two controllers or Disk Enclosure I/O modules.

HP StorageWorks P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)

NOTE: Will accept one or two controllers, not I/O modules.

Configured Units, 6 Gb SAS Systems

HP StorageWorks P2000 G3 SAS MSA Dual Controller LFF Array System

HP StorageWorks P2000 G3 SAS MSA Dual Controller SFF Array System

Disk Enclosures

HP StorageWorks P2000 Dual I/O LFF Drive Enclosure, twelve 3.5" drive bays

(w/ two .5m mini-SAS to mini-SAS cables. Used with single or dual controller LFF or SFF array head)

HP StorageWorks P2000 LFF Drive Enclosure I/O Module (no cable included. Designed exclusively for use with the LFF chassis AP838A to create a single I/O JBOD)

HP StorageWorks D2700 SFF Disk Enclosure, twenty-five 2.5" drive bays

(w/ two .5m mini-SAS to mini-SAS cables. Used with single or dual controller LFF or SFF array head)

HP MSA 2040 Storage

HP MSA 2040 SAS Dual Controller LFF Storage

HP MSA 2040 SAS Dual Controller SFF Storage

NOTE: Please see the supported MSA QuickSpecs for a list of compatible hard drives: http://h18004.www1.hp.com/products/quickspecs/14603_na/14603_na.html

AW592A

AP838A

AP839A

AW593A

AW594A

AP843A

AJ844A

AJ941A

C8S54A

C8S55A

HP Tape Backup Tape Autoloaders

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

HP StorageWorks 1/8 G2 LTO-5 Ultrium 1760 SAS Tape Autoloader

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

Tape Libraries

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 SAS Drive Library

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL2048 1 LTO-5 Ultrium 3000 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-5 Ultrium 3000 SAS Drive Library

NOTE: HP recommends a maximum of 2 tape drives per 6Gb/s SAS BL Switch and 64K transfer sizes. Attaching a library with 4 tape drives requires purchasing a second tape library SAS cable (AN975A or AN976A) and attaching 2 drives to the redundant 6Gb/s

SAS BL Switch. Attaching more than 2 tape drives per switch and transfer sizes greater than 64K could result in a failed backup or restore. A future release of firmware on the tape library drives will allow more than 2 tape drives to be attached to a switch.

AK377A

BL536A

AH558A

AK378A

AH559A

BL537A

AK380A

BL538A

AK382A

BL539A

DA - 13296 North America — Version 15 — November 8, 2013 Page 9

QuickSpecs

Technical Specifications

HP Smart Array P712m Controller

Dimensions

Disk Drive and Enclosure

Protocol Support

SAS Connectors

Memory Bus Speed

4 in x 4.5 in x 0.8 in (10.1 cm x 11.4 cm x 2 cm)

SAS protocol: 6Gb/s, 3Gb/s, or 1.5Gb/s

SATA protocol: 3Gb/s or 1.5Gb/s two (2) 1x connectors for cabled drives, two (2) 2x connections for external connection to SAS switch

DDR2-800MHz and 40-bit wide bus (256MB module)

SAS Port Link Rate

Software Upgradeable

Firmware

6Gb/s per physical link

Yes

Cache Memory

256 MB Read/Write

ECC protection and removable

Logical Drives Supported Up to 2 logical drives internal, 512 logical drives external

Maximum Capacity

Variable depending upon enclosure

Memory Addressing

64-bit, supporting servers memory space greater than 4 GB

RAID Support

Internal drives support RAID 0 (Striping) and RAID 1 (Mirroring)

RAID 0, 1, 3, 5, 6, 10, 50 on P2000sa

Upgradeable Firmware

Flashable ROM with redundant firmware images

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

DA - 13296 North America — Version 15 — November 8, 2013 Page 10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
