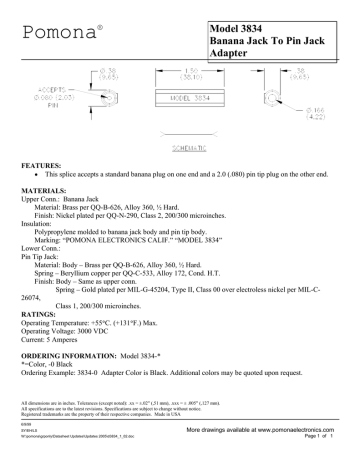

Pomona
Model 3834
Banana Jack To Pin Jack
Adapter
FEATURES:
This splice accepts a standard banana plug on one end and a 2.0 (.080) pin tip plug on the other end.
MATERIALS:
Upper Conn.: Banana Jack
Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation:
Polypropylene molded to banana jack body and pin tip body.
Marking: POMONA ELECTRONICS CALIF. MODEL 3834
Lower Conn.:
Pin Tip Jack:
Material: Body Brass per QQ-B-626, Alloy 360, ½ Hard.
Spring Beryllium copper per QQ-C-533, Alloy 172, Cond. H.T.
Finish: Body Same as upper conn.
Spring Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C26074,
Class 1, 200/300 microinches.
RATINGS:
Operating Temperature: +55 C. (+131 F.) Max.
Operating Voltage: 3000 VDC
Current: 5 Amperes
ORDERING INFORMATION: Model 3834-*
*=Color, -0 Black
Ordering Example: 3834-0 Adapter Color is Black. Additional colors may be quoted upon request.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02 (,51 mm), .xxx = ± .005 (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
W:\pomona\grponly\Datasheet Updates\Updates 2005\d3834_1_02.doc
More drawings available at www.pomonaelectronics.com
Page 1 of 1
