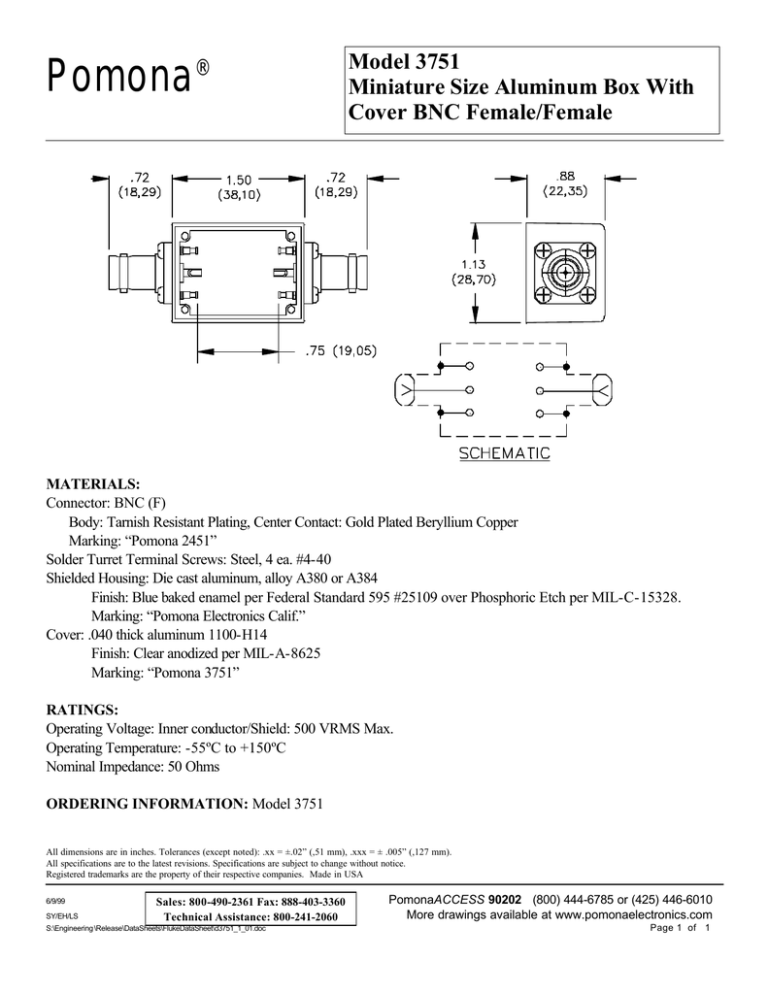

Pomona ® Model 3751 Miniature Size Aluminum Box With

Pomona ® Model 3751 Miniature Size Aluminum Box With
Pomona
®
Model 3751
Miniature Size Aluminum Box With
Cover BNC Female/Female
MATERIALS:
Connector: BNC (F)
Body: Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper
Marking: “Pomona 2451”
Solder Turret Terminal Screws: Steel, 4 ea. #4-40
Shielded Housing: Die cast aluminum, alloy A380 or A384
Finish: Blue baked enamel per Federal Standard 595 #25109 over Phosphoric Etch per MIL-C-15328.
Marking: “Pomona Electronics Calif.”
Cover: .040 thick aluminum 1100-H14
Finish: Clear anodized per MIL-A-8625
Marking: “Pomona 3751”
RATINGS:
Operating Voltage: Inner conductor/Shield: 500 VRMS Max.
Operating Temperature: -55ºC to +150ºC
Nominal Impedance: 50 Ohms
ORDERING INFORMATION: Model 3751
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d3751_1_01.doc
PomonaACCESS 90202 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
