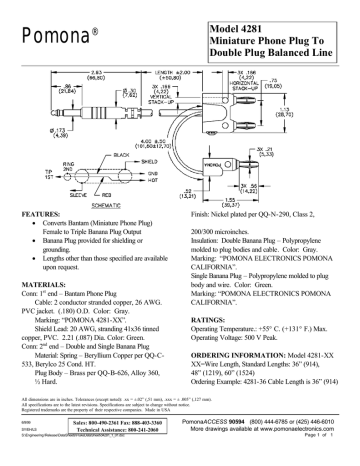

Pomona ® Model 4281 Miniature Phone Plug To

Pomona ® Model 4281 Miniature Phone Plug To
Pomona
®
FEATURES:
• Converts Bantam (Miniature Phone Plug)
Female to Triple Banana Plug Output
• Banana Plug provided for shielding or
grounding.
• Lengths other than those specified are available
upon request.
MATERIALS:
Conn: 1st end – Bantam Phone Plug
Cable: 2 conductor stranded copper, 26 AWG.
PVC jacket. (.180) O.D. Color: Gray.
Marking: “POMONA 4281-XX”.
Shield Lead: 20 AWG, stranding 41x36 tinned
copper, PVC. 2.21 (.087) Dia. Color: Green.
Conn: 2nd end – Double and Single Banana Plug
Material: Spring – Beryllium Copper per QQ-C533, Berylco 25 Cond. HT.
Plug Body – Brass per QQ-B-626, Alloy 360,
½ Hard.
Model 4281
Miniature Phone Plug To
Double Plug Balanced Line
Finish: Nickel plated per QQ-N-290, Class 2,
200/300 microinches.
Insulation: Double Banana Plug – Polypropylene
molded to plug bodies and cable. Color: Gray.
Marking: “POMONA ELECTRONICS POMONA
CALIFORNIA”.
Single Banana Plug – Polypropylene molded to plug
body and wire. Color: Green.
Marking: “POMONA ELECTRONICS POMONA
CALIFORNIA”.
RATINGS:
Operating Temperature.: +55° C. (+131° F.) Max.
Operating Voltage: 500 V Peak.
ORDERING INFORMATION: Model 4281-XX
XX=Wire Length, Standard Lengths: 36” (914),
48” (1219), 60” (1524)
Ordering Example: 4281-36 Cable Length is 36” (914)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d4281_1_01.doc
PomonaACCESS 90594 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
