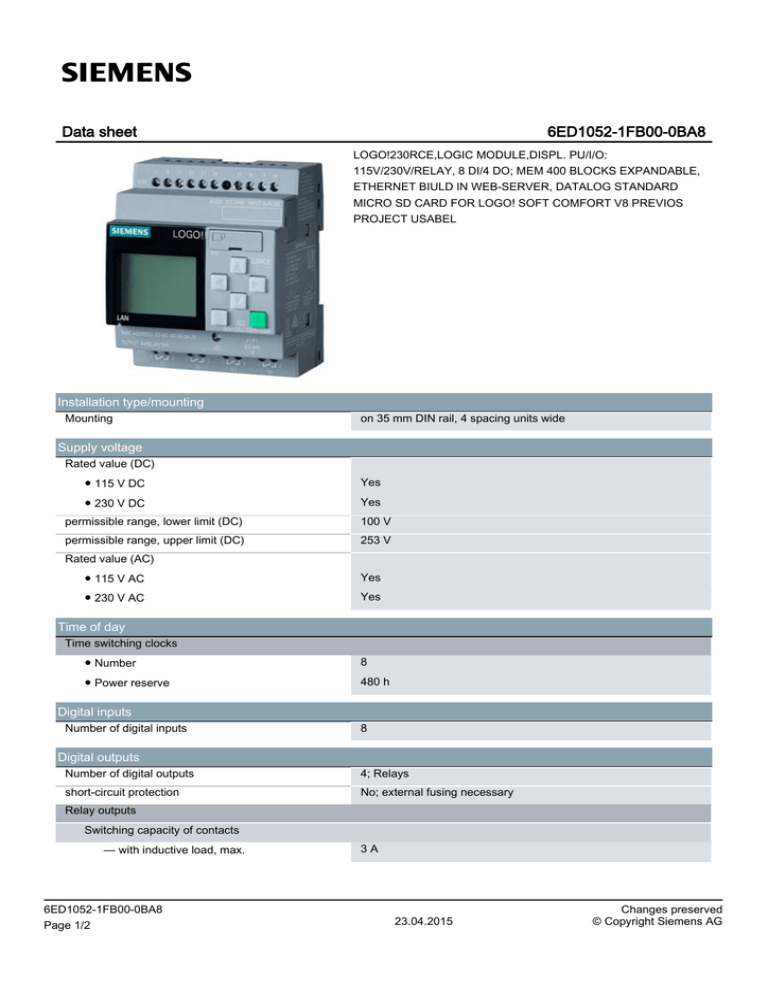

Data sheet
6ED1052-1FB00-0BA8
LOGO!230RCE,LOGIC MODULE,DISPL. PU/I/O:
115V/230V/RELAY, 8 DI/4 DO; MEM 400 BLOCKS EXPANDABLE,
ETHERNET BIULD IN WEB-SERVER, DATALOG STANDARD
MICRO SD CARD FOR LOGO! SOFT COMFORT V8 PREVIOS
PROJECT USABEL
Installation type/mounting
Mounting
on 35 mm DIN rail, 4 spacing units wide
Supply voltage
Rated value (DC)
● 115 V DC
Yes
● 230 V DC
Yes
permissible range, lower limit (DC)
100 V
permissible range, upper limit (DC)
253 V
Rated value (AC)
● 115 V AC
Yes
● 230 V AC
Yes
Time of day
Time switching clocks
● Number
8
● Power reserve
480 h
Digital inputs
Number of digital inputs
8
Digital outputs
Number of digital outputs
4; Relays
short-circuit protection
No; external fusing necessary
Relay outputs
Switching capacity of contacts
— with inductive load, max.
6ED1052-1FB00-0BA8
Page 1/2
3 A
23.04.2015
Changes preserved
© Copyright Siemens AG
— with resistive load, max.
10 A
EMC
Emission of radio interference acc. to EN 55 011
● Limit class B, for use in residential areas
Yes
Degree and class of protection
Degree of protection to EN 60529
● IP20
Yes
Standards, approvals, certificates
CSA approval
Yes
UL approval
Yes
FM approval
Yes
Developed in accordance with IEC 61131
Yes
according to VDE 0631
Yes
Marine approval
● Marine approval
Yes
Ambient conditions
Ambient temperature in operation
● Min.
0 °C
● max.
55 °C
Dimensions
Width
71.5 mm
Height
90 mm
Depth
60 mm
last modified:
20.04.2015
6ED1052-1FB00-0BA8
Page 2/2
23.04.2015
Changes preserved
© Copyright Siemens AG
