Prices as of April 27, 2016. Check Web site for most current prices.

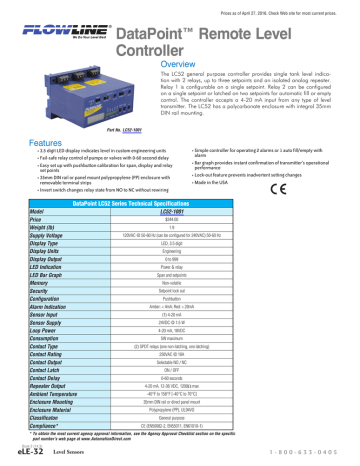

DataPoint™ Remote Level
Controller
Overview
The LC52 general purpose controller provides single tank level indication with 2 relays, up to three setpoints and an isolated analog repeater.
Relay 1 is configurable on a single setpoint. Relay 2 can be configured
on a single setpoint or latched on two setpoints for automatic fill or empty
control. The controller accepts a 4-20 mA input from any type of level
transmitter. The LC52 has a polycarbonate enclosure with integral 35mm
DIN rail mounting.
Part No. LC52-1001
Features
• 3.5 digit LED display indicates level in custom engineering units
• Fail-safe relay control of pumps or valves with 0-60 second delay
• Easy set up with pushbutton calibration for span, display and relay
set points
• 35mm DIN rail or panel mount polypropylene (PP) enclosure with
removable terminal strips
• Invert switch changes relay state from NO to NC without rewiring
• Simple controller for operating 2 alarms or 1 auto fill/empty with
alarm
• Bar graph provides instant confirmation of transmitter’s operational
performance
• Lock-out feature prevents inadvertent setting changes
• Made in the USA
DataPoint LC52 Series Technical Specifications
Model
Price
Weight (lb)
Supply Voltage
Display Type
Display Units
Display Output
LED Indication
LED Bar Graph
Memory
Security
Configuration
Alarm Indication
Sensor Input
Sensor Supply
Loop Power
Consumption
Contact Type
Contact Rating
Contact Output
Contact Latch
Contact Delay
Repeater Output
Ambient Temperature
Enclosure Mounting
Enclosure Material
Classificaton
Compliance*
LC52-1001
$344.00
1.9
120VAC @ 50-60 Hz (can be configured for 240VAC) 50-60 Hz
LED, 3.5 digit
Engineering
0 to 999
Power & relay
Span and setpoints
Non-volatile
Setpoint lock out
Pushbutton
Amber: < 4mA; Red: > 20mA
(1) 4-20 mA
24VDC @ 1.5 W
4-20 mA, 18VDC
5W maximum
(2) SPDT relays (one non-latching, one latching)
250VAC @ 10A
Selectable NO / NC
ON / OFF
0-60 seconds
4-20 mA, 12-36 VDC, 1200Ω max
-40°F to 158°F [-40°C to 70°C]
35mm DIN rail or direct panel mount
Polypropylene (PP), UL94VO
General purpose
CE (EN50082-2, EN55011, EN61010-1)
* To obtain the most current agency approval information, see the Agency Approval Checklist section on the specific
part number’s web page at www.AutomationDirect.com
Book 2 (14.3)
eLE-32
Level Sensors
1-800-633-0405
Prices as of April 27, 2016. Check Web site for most current prices.
DataPoint™ Remote Level
Controller
DELAY
0%
INPUT
100%
4
20
OP
UP
DOWN
SET
INPUT
RLY2B
RLY1
SPAN
3.1"
RLY2A
OFF SET
0%
100%
+
EASY CAL
4
20
OP
UP
DOWN
SET
Soft Starters
Motors
Display
EASY CAL
INVERT
DELAY
Continuous
Controller
RLY1
RELAY 2
INVERT
RLY2B
RELAY 1
LATCH
ON OFF
Continuous
Controller
OFF SET
POWER
Drives
Repeater Ouput (4-20mA) Wiring Example:
RLY2A
LC52 series: One 4-20mA sensor input,
2 relay outputs, 4-20mA repeater output
SPAN
Wiring
Company
Information
+
Power
Transmission
-
Motion: Servos
and Steppers
-
12-36 VDC
POWER
High Level Alarm Output
Wiring Example:
Low Level Alarm Output
Wiring Example:
Motor Controls
AutomaŒc Fill Output
Wiring Example:
Sensors:
Proximity
Sensors:
Photoelectric
Sensors:
Encoders
EchoSonic II (LU23, LU27, LU28 & LU29 Sensors &
EchoPod (DL10, DL14, DL24 & DL34)
Sourcing Mode (Factory Seng)
Wiring Example:
Symbol Key:
Sensors:
Limit Switches
EchoSpan (LU80, LU81, LU83 & LU84 Sensors)
Sourcing Mode (Factory Seng)
Wiring Example:
Sensors:
Current
Sensors:
Pressure
Power:
Horn:
Sensor
Sensors:
Temperature
Sensor
Sensors:
Level
Valve:
Sensors:
Flow
Dimensions
Pushbuttons
and Lights
inches [mm]
Stacklights
Signal
Devices
Process
Relays and
Timers
Pneumatics:
Air Prep
Compatible Products
EchoSonic® II
Ultrasonic Level
Transmiters
EchoPod®
Ultrasonic
Level
Transmitters
Pneumatics:
Directional Control
Valves
See our website www.AutomationDirect.com for complete Engineering drawings.
EchoSpan®
Ultrasonic Level
Transmitter
EchoTouch®
Ultrasonic Level
Transmitters
ProSense®
Submersible Level
Transmitters
Pneumatics:
Cylinders
Pneumatics:
Tubing
Pneumatics:
Air Fittings
Appendix
Book 2
Terms and
Conditions
Book 2 (14.3)
www.automationdirect.com/level-switches
Level Sensors
eLE-33
