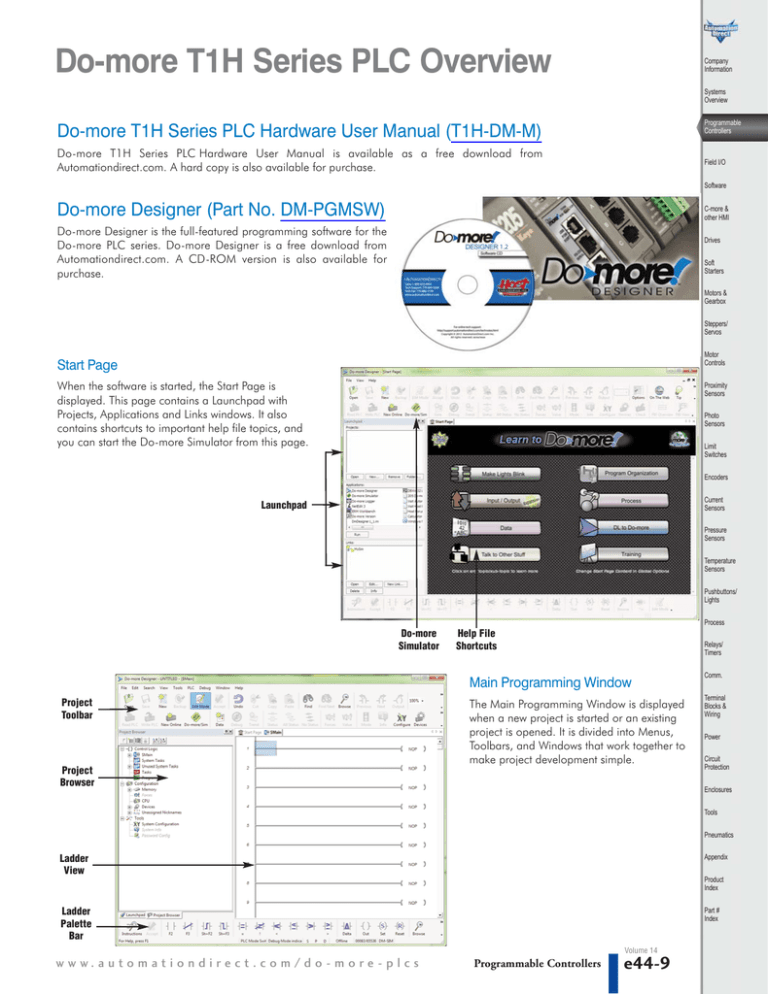

Do-more T1H Series PLC Overview

Do-more T1H Series PLC Overview
Do-more T1H Series PLC Overview
Company
Information
Systems
Overview
Programmable
Controllers
Do-more T1H Series PLC Hardware User Manual (T1H-DM-M)
Do-more T1H Series PLC Hardware User Manual is available as a free download from
Automationdirect.com. A hard copy is also available for purchase.
Field I/O
Software
Do-more Designer (Part No. DM-PGMSW)
C-more &
other HMI
Do-more Designer is the full-featured programming software for the
Do-more PLC series. Do-more Designer is a free download from
Automationdirect.com. A CD-ROM version is also available for
purchase.
Drives
1.2
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
Start Page
When the software is started, the Start Page is
displayed. This page contains a Launchpad with
Projects, Applications and Links windows. It also
contains shortcuts to important help file topics, and
you can start the Do-more Simulator from this page.
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Launchpad
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Do-more
Simulator
Help File
Shortcuts
Relays/
Timers
Main Programming Window
Project
Toolbar
The Main Programming Window is displayed
when a new project is started or an existing
project is opened. It is divided into Menus,
Toolbars, and Windows that work together to
make project development simple.
Project
Browser
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Ladder
View
Appendix
Product
Index
Ladder
Palette
Bar
Part #
Index
Volume 14
w w w. a u to m at i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e44-9
Do-more T1H Series PLC Overview
Do-more Designer Features
Do-more Designer has the following main features:
• Supports the Do-more PLC instruction set
• Project Browser (Window to organize the user project)
• Data View (Interface to monitor and edit PLC data in a list)
• Trend View (Interface to monitor PLC data with trend graphs)
• PID View (Interface to monitor and tune the individual PID control loop)
• PID Overview (Interface to monitor multiple PID control loops)
• Debug View (Interface to debug the ladder programs)
When Do-more Designer is installed on your PC, the following tools are also installed:
• Do-more Simulator (Offline simulator of ladder program execution and PID control)
• Do-more Logger (Software tool to log PLC data)
• ERM Workbench (Configuration tool for the ERM modules)
• NetEdit 3 (Configuration tool for the ECOM/EBC Ethernet modules)
PC Requirements
The Do-more Designer Windows-based programming software works with Windows®
XP (Home or Professional, 32-bit), Vista (Home, Basic, Premium, 32 or 64-bit),
Windows 7 (Home, Professional, Ultimate, 32 or 64-bit) or Windows 8 (Home,
Professional, Enterprise 32 or 64-bit; Windows 8 RT edition is NOT supported).
Please check the following requirements when choosing your PC configuration:
• Minimum PC to PLC Connectivity, at least one of the following:
- USB Port: connects to the CPU with USB-A connector (USB-A to USB-B cable)
- RS-232 Serial Port: connects to the CPU with RJ-12 connector (RJ-12 to DB9 or RJ-12 to USB-B
serial converter cable)
- Ethernet Port: connects to the CPU (T1H-DM1E) with RJ-45 10Base-T or 100Base-T (Cat5 Patch
Cable)
• Hard Disk: 100MB free disk space
• Video Display: 1024x768, 256 colors resolution (1280x720, true color recommended)
• Windows XP, 32-bit:
- 800MHz, single core CPU (2GHz, multi-core or hyperthreaded recommended)
- 512MB RAM (2GB recommended)
• Vista or Windows 7 or Windows 8, 32 or 64-bit:
- 1GHz, single core CPU (2GHz, multi-core recommended)
- 1GB RAM (3GB recommended)
Programming Cables
The Do-more T1H Series CPU module T1H-DM1 has two communication ports (USB
and RS-232 Serial) and the T1H-DM1E has three communication ports (USB, RS-232
Serial and Ethernet). You can use any of those ports for programming and monitoring.
Cables for these ports are listed below and can be purchased at Automationdirect.com.
USB Cables (USB 2.0, Type A-B connectors):
• USB-CBL-AB3 (3 ft.)
• USB-CBL-AB6 (6 ft.)
• USB-CBL-AB10 (10 ft.)
• USB-CBL-AB15 (15 ft.)
RS232 Serial Cable
• D2-DSCBL (12 ft. 9-pin D-sub to RJ12 connector)
Ethernet Cables (Cat5e)
Automationdirect.com sells many Ethernet patch cables in various colors and lengths. Please
check the Cables section in this catalog for further details.
Volume 14
e44-10
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more T1H Series PLC Overview
Company
Information
Systems
Overview
Programmable
Controllers
Do-more PLC Instruction Set
This Instruction Set was developed specifically
for the new Do-more PLC series; the
‘Instruction Palette’ displays all available
instructions.
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
You may see some similarities to the
DirectLOGIC PLC instruction set. However, the
instruction set for the Do-more PLC is more
advanced and intuitive. A good example is the
MATH instruction. Now, just one MATH
instruction covers all math operations and
also allows you to mix different data types in
one expression.
There are over 60 operators and functions
available with the MATH instruction.
Note: To learn more about the MATH instruction, please refer to the Do-more Designer
help topic ‘MATH – Calculate Expression’.
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Operators
+, -, *, /, %, **, <, <=, ==, !=, >=, >, &&, ||, &, |, ^, <<, >>, >>>, -, ~, !
Power
Funcons
Circuit
Protection
ABS, ACOS, ASIN, ATAN, AVGR, COS, COUNTIFEQ, COUNTIFNE,
COUNTIFGE, COUNTIFGT, COUNTIFLE, COUNTIFLT, DEG, E, FRAC, IF,
LN, LOG, MAXR, MAX, MINR, MIN, NOW, PI, RAD, RANDINT, RANDREAL,
REF, ROUND, SIN, SQRT, STDEVR, STDEVPR, SUMIFEQ, SUMIFNE,
SUMIFGE, SUMIFGT, SUMIFLE, SUMIFLT, SUMR, TAN, TICKms,
TICKus, TOINT, TOREAL, TRUNC
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u to m at i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e44-11
Do-more T1H Series PLC Overview
Data Types
The Do-more PLC supports the following seven primary data types:
• Bit (0 or 1)
• Unsigned Byte (0 to 255)
• Signed Byte (-128 to 127)
• Unsigned Word (0 to 65,535)
• Signed Word (-32,768 to 32,767)
• Signed DWord (-2,147,483,648 to 2,147,483,647)
• Real (-3.4028235E+038 to 3.4028235E+038)
Data Structures
The Do-more PLC supports data structures as additional data types. Structures use the
familiar PC programming organization of “dot notation”. All available elements of a
structure are shown in this format. The following data structures are currently available:
• Timer Structure
• Counter Structure
• String Structure
• PID Structure
• Date/Time Structure
• Task Structure
• Rampsoak Structure
• Program Structure
• DeviceRef Structure
• Drum Structure
• Stream Structure
• SIM_Process Structure
• Server Structure
• Peerlink Structure
• I/O_Master Structure
• Eth_IO_Master Structure
• GS Drive Structure
• Packet Structure
The data structure is a set of data. For instance, a Timer structure (Timer Struct) has the
following set of data:
• Acc (Accumulated Time, Signed DWord)
• Done (Bit)
• Zero (Bit)
• Timing (Bit)
• Reset (Bit)
When you use a timer instruction (TMR), a Timer structure is assigned to the instruction.
If you select ‘T0’, you can access the above data with dot notation. For instance, to
access the accumulated time (Acc), enter ‘T0.Acc’. To access the Done bit, enter
‘T0.Done’.
Memory Addressing
With the Do-more PLC, each memory address type has its own specific data type. Here
are some examples:
• V (Unsigned Word)
• N (Signed Word)
• D (Signed DWord)
• R (Real)
If you see address ‘V123’ in the ladder program, the memory address always stores an
Unsigned Word value. With this memory addressing method, it becomes easier to read
and write the ladder programs.
Although most of the memory addressing is decimal, the memory addresses DLX, DLY,
DLC and DLV use octal. These four memory address types can be used to exchange data
with DirectLOGIC PLCs, which use octal memory addressing.
Volume 14
e44-12
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more T1H Series PLC Overview
Company
Information
Systems
Overview
Programmable
Controllers
Array Addressing
The Do-more PLC supports one-dimensional array addressing with all memory
addresses. A V-memory address must be used as the index for an array. With the
Do-more PLC, the following ladder program is valid.
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Note: In this example, V0, V100, V101, V102 and V200 are indices.
Steppers/
Servos
Code-block, Program and Task
Motor
Controls
One Do-more project can consist of more than one ladder program. Each ladder
program is called a ‘Code-block’. The Do-more PLC supports two types of code-blocks,
Program and Task:
Proximity
Sensors
Program
Sensors
Programs are code-blocks that run based on an event using the RUN instruction. They
can be self-terminating or never terminate. Stage programming is only supported inside
Program code-blocks.
Limit
Switches
Task
Encoders
Tasks are code-blocks that are enabled and disabled using the ENTASK instruction. The
ENTASK instruction allows you to specify an interval to execute the task’s logic with a
millisecond resolution or to execute a single time on a leading edge input.
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Stages
The Do-more PLC supports Stages. You can use Stages only in the Program code-blocks.
(They are not available in the Task code-blocks.) The Do-more PLC supports the following
instructions for Stage Programming1:
Pushbuttons/
Lights
Process
Relays/
Timers
• SG (Stage)
• JMP (Jump To Stage)2
• JMPI (Index Jump)
• SGSET (Enable Stage)
• SGRST (Disable Stage)
• SGRSTR (Disable Range of Stages)
• SGCONVRG (Converge Multiple Stages to SG)
• SGDIVRG (Jump to Multiple Stages)
Comm.
Terminal
Blocks &
Wiring
Power
1 There is no ISG (Initial Stage) instruction for the Do-more PLC; the first stage in the Program codeblock becomes the initial stage automatically.
Circuit
Protection
2 Many asynchronous instructions can directly initiate a Jump to Stage.
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u to m at i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e44-13
