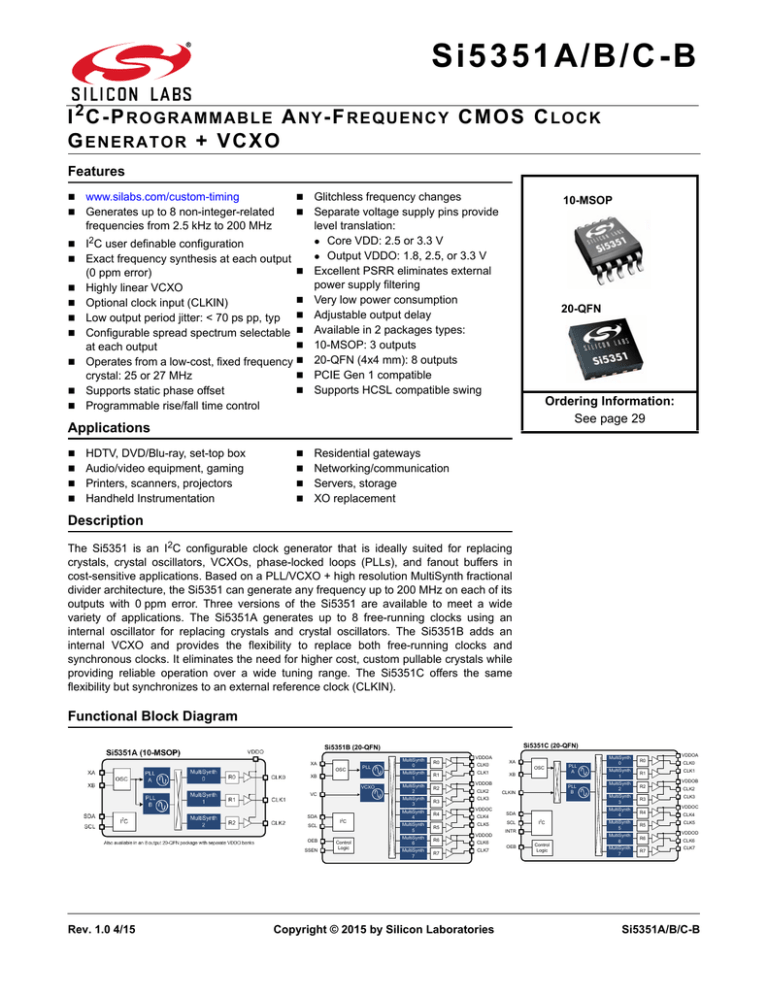

S i 5 3 5 1 A / B /... I C - P A

S i 5 3 5 1 A / B /... I C - P A

S i 5 3 5 1 A / B / C - B

I

2

C - P

R O G R A M M A B L E

A

N Y

- F

R E Q U E N C Y

C M O S C

L O C K

G

E N E R A T O R

+ V C X O

Features

 www.silabs.com/custom-timing

Generates up to 8 non-integer-related frequencies from 2.5 kHz to 200 MHz

I

2

C user definable configuration

Exact frequency synthesis at each output

(0 ppm error)

Highly linear VCXO

Optional clock input (CLKIN)

Low output period jitter: < 70 ps pp, typ

Configurable spread spectrum selectable

 at each output

Operates from a low-cost, fixed frequency

 crystal: 25 or 27 MHz

Supports static phase offset

Programmable rise/fall time control

Glitchless frequency changes

Separate voltage supply pins provide level translation:



Core VDD: 2.5 or 3.3 V



Output VDDO: 1.8, 2.5, or 3.3 V

Excellent PSRR eliminates external power supply filtering

Very low power consumption

Adjustable output delay

Available in 2 packages types:

10-MSOP: 3 outputs

20-QFN (4x4 mm): 8 outputs

PCIE Gen 1 compatible

Supports HCSL compatible swing

Applications

HDTV, DVD/Blu-ray, set-top box

Audio/video equipment, gaming

Printers, scanners, projectors

Handheld Instrumentation

Description

Residential gateways

Networking/communication

Servers, storage

XO replacement

The Si5351 is an I

2

C configurable clock generator that is ideally suited for replacing crystals, crystal oscillators, VCXOs, phase-locked loops (PLLs), and fanout buffers in cost-sensitive applications. Based on a PLL/VCXO + high resolution MultiSynth fractional divider architecture, the Si5351 can generate any frequency up to 200 MHz on each of its outputs with 0 ppm error. Three versions of the Si5351 are available to meet a wide variety of applications. The Si5351A generates up to 8 free-running clocks using an internal oscillator for replacing crystals and crystal oscillators. The Si5351B adds an internal VCXO and provides the flexibility to replace both free-running clocks and synchronous clocks. It eliminates the need for higher cost, custom pullable crystals while providing reliable operation over a wide tuning range. The Si5351C offers the same flexibility but synchronizes to an external reference clock (CLKIN).

10-MSOP

20-QFN

Ordering Information:

See page 29

Functional Block Diagram

XA

XB

VC

Si5351B (20-QFN)

OSC

PLL

VCXO

SDA

SCL

OEB

SSEN

I

2

C

Control

Logic

MultiSynth

0

MultiSynth

1

MultiSynth

2

MultiSynth

3

MultiSynth

4

MultiSynth

5

MultiSynth

6

MultiSynth

7

R0

R1

R2

R3

R4

R5

R6

R7

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

XA

XB

CLKIN

SDA

SCL

INTR

OEB

Si5351C (20-QFN)

OSC

I

2

C

Control

Logic

PLL

A

PLL

B

MultiSynth

0

MultiSynth

1

MultiSynth

2

MultiSynth

3

MultiSynth

4

MultiSynth

5

MultiSynth

6

MultiSynth

7

R0

R1

R2

R3

R4

R5

R6

R7

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

Rev. 1.0 4/15 Copyright © 2015 by Silicon Laboratories Si5351A/B/C-B

S i 5 3 5 1 A / B / C - B

Table 1. The Complete Si5350/51 Clock Generator Family

Part Number I2C or Pin Frequency Reference Programmed?

Si5351A-B-GT

Si5351A-B-GM

Si5351B-B-GM

Si5351C-B-GM

Si5351A-Bxxxxx-GT

Si5351A-Bxxxxx-GM

Si5351B-Bxxxxx-GM

Si5351C-Bxxxxx-GM

Si5350A-Bxxxxx-GT

Si5350A-Bxxxxx-GM

Si5350B-Bxxxxx-GT

Si5350B-Bxxxxx-GM

Si5350C-Bxxxxx-GT

Si5350C-Bxxxxx-GM

I2C

I2C

I2C

I2C

I2C

I2C

I2C

I2C

Pin

Pin

Pin

Pin

Pin

Pin

XTAL only

XTAL only

XTAL and/or Voltage

XTAL and/or CLKIN

XTAL only

XTAL only

XTAL and/or Voltage

XTAL and/or CLKIN

XTAL only

XTAL only

XTAL and/or Voltage

XTAL and/or Voltage

XTAL and/or CLKIN

XTAL and/or CLKIN

Blank

Blank

Blank

Blank

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Factory Pre-Programmed

Notes:

1. XTAL = 25/27 MHz, Voltage = 0 to VDD, CLKIN = 10 to 100 MHz. "xxxxx" = unique custom code.

2. Create custom, factory pre-programmed parts at www.silabs.com/ClockBuilder.

Outputs Datasheet

3

8

Si5351-B

Si5351-B

8

8

3

8

8

8

3

8

3

8

3

8

Si5351-B

Si5351-B

Si5351-B

Si5351-B

Si5351-B

Si5351-B

Si5350A-B

Si5350A-B

Si5350B-B

Si5350B-B

Si5350C-B

Si5350C-B

2 Rev. 1.0

S i 5 3 5 1 A / B / C - B

T

A B L E O F

C

O N T E N TS

Section Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2. Detailed Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1. Input Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2. Synthesis Stages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3. Output Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.4. Spread Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.5. Control Pins (OEB, SSEN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. I2C Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5. Configuring the Si5351 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.1. Writing a Custom Configuration to RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2. Si5351 Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.3. Replacing Crystals and Crystal Oscillators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.4. Replacing Crystals, Crystal Oscillators, and VCXOs . . . . . . . . . . . . . . . . . . . . . . . . 20

5.5. Replacing Crystals, Crystal Oscillators, and PLLs . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.6. Applying a Reference Clock at XTAL Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.7. HCSL Compatible Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6. Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.1. Power Supply Decoupling/Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.2. Power Supply Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.3. External Crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.4. External Crystal Load Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.5. Unused Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.6. Trace Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7. Register Map Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8. Register Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

9. Si5351 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

9.1. Si5351A 20-pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

9.2. Si5351B 20-Pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

9.3. Si5351C 20-Pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

9.4. Si5351A 10-Pin MSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

10. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

11. Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

11.1. 20-pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

12. Land Pattern: 20-Pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

12.1. 10-Pin MSOP Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

13. Land Pattern: 10-Pin MSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

14. Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

14.1. 20-Pin QFN Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

14.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

14.3. 10-Pin MSOP Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rev. 1.0

3

S i 5 3 5 1 A / B / C - B

14.4. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4 Rev. 1.0

S i 5 3 5 1 A / B / C - B

1. Electrical Specifications

Table 2. Recommended Operating Conditions

Parameter

Ambient Temperature

Core Supply Voltage

Symbol

T

V

A

DD

Test Condition Min

–40

3.0

2.25

Typ

25

3.3

2.5

Max

85

3.60

2.75

Unit

°C

V

V

Output Buffer Voltage V

DDOx

1.71

2.25

1.8

2.5

1.89

2.75

V

V

3.0

3.3

3.60

V

Notes:All minimum and maximum specifications are guaranteed and apply across the recommended operating conditions.

Typical values apply at nominal supply voltages and an operating temperature of 25 °C unless otherwise noted.

VDD and VDDOx can be operated at independent voltages.

Power supply sequencing for VDD and VDDOx requires that all VDDOx be powered up either before or at the same time as VDD.

Table 3. DC Characteristics

(V

DD

= 2.5 V ±10%, or 3.3 V ±10%, T

A

= –40 to 85 °C)

Parameter

Core Supply Current

Symbol

I

DD

Test Condition

Enabled 3 outputs

Enabled 8 outputs

Output Buffer Supply Current

(Per Output)*

I

DDOx

C

L

= 5 pF

Input Current

Output Impedance

I

CLKIN

I

VC

Z

O

*Note: Output clocks less than or equal to 100 MHz.

CLKIN, SDA, SCL

Vin < 3.6 V

VC

3.3 V VDDO, default high drive

Min

50

Typ

22

27

2.2

10

30

Max

35

45

5.6

µA

µA

Unit

mA mA mA

Rev. 1.0

5

6

S i 5 3 5 1 A / B / C - B

Table 4. AC Characteristics

(V

DD

= 2.5 V ±10%, or 3.3 V ±10%, T

A

= –40 to 85 °C)

Power-up Time

Power-up Time, PLL Bypass

Mode

Parameter

Output Enable Time

Symbol

T

T

T

RDY

BYP

OE

Test Condition

From V

DD

= V

DDmin

to valid output clock, C

L f

CLKn

= 5 pF,

> 1 MHz

From V

DD

= V

DDmin

to valid output clock, C

L f

CLKn

= 5 pF,

> 1 MHz

From OEB pulled low to valid clock output, C

L f

CLKn

= 5 pF,

> 1 MHz

Min

Output Frequency Transition

Time

Output Phase Offset

T

FREQ

f

CLKn

> 1 MHz —

P

STEP

Spread Spectrum Frequency

Deviation

SS

DEV

Down spread. Selectable in 0.1% steps.

Center spread. Selectable in

0.1% steps.

–0.1

±0.1

Spread Spectrum Modulation

Rate

SS

VCXO Specifications (Si5351B only)

MOD

VCXO Control Voltage Range

VCXO Gain (configurable)

Vc

Kv

KVL VCXO Control Voltage Linearity

VCXO Pull Range

(configurable)

PR

Vc = 10–90% of V

VCXO Modulation Bandwidth

*Note: Contact Silicon Labs for 2.5 V VCXO operation.

V

DD

DD

, V

= 3.3 V*

30

0

DD

= 3.3 V 18

Vc = 10–90% of V

DD

–5

±30

Typ

2

0.5

333

31.5

V

DD

0

10

Max

10

1

10

10

–2.5

±1.5

33

/2 V

DD

150

+5

±240

Unit

ms ms

µs

µs ps/step

%

% kHz

V ppm/V

% ppm kHz

Table 5. Input Clock Characteristics

(V

DD

= 2.5 V ±10%, or 3.3 V ±10%, T

A

= –40 to 85 °C)

Test Condition Parameter

Crystal Frequency

CLKIN Input Low Voltage

CLKIN Input High Voltage

CLKIN Frequency Range

Symbol

f

XTAL

V

IL

V

IH f

CLKIN

Min

25

–0.1

0.7 x V

DD

10

Typ

Max

27

0.3 x V

DD

3.60

100

Unit

MHz

V

V

MHz

Rev. 1.0

S i 5 3 5 1 A / B / C - B

Table 6. Output Clock Characteristics

(V

DD

= 2.5 V ±10%, or 3.3 V ±10%, T

A

= –40 to 85 °C)

Parameter

Frequency Range

Load Capacitance

1

Symbol

F

CLK

C

L

Test Condition Min

0.0025

Typ

Max

200

15

Unit

MHz pF

Duty Cycle DC

F

CLK

< 160 MHz, Measured at V

DD

/2

F

CLK

> 160 MHz, Measured at V

DD

/2

45

40

50

50

55

60

%

%

Rise/Fall Time

Output High Voltage

Output Low Voltage

V

V t r t f

OH

OL

20%–80%, C

L

= 5 pF,

Default high drive strength

C

L

= 5 pF

20-QFN, 4 outputs running,

1 per VDDO

V

DD

– 0.6

1

1

40

1.5

1.5

0.6

95 ns ns

V

V ps, pkpk

Period Jitter

2,3

J

PER

10-MSOP or 20-QFN, all outputs running

20-QFN, 4 outputs running,

1 per VDDO

70

50

155

90 ps, pkpk ps, pk

Cycle-to-Cycle Jitter

2,3

J

CC

10-MSOP or 20-QFN, all outputs running

20-QFN, 4 outputs running,

1 per VDDO

70

50

150

95 ps, pk ps, pkpk

Period Jitter VCXO

2,3

J

PER_VCXO

10-MSOP or 20-QFN, all outputs running

20-QFN, 4 outputs running,

1 per VDDO

70

50

155

90 ps, pkpk ps, pk

Cycle-to-Cycle Jitter

VCXO

2,3

J

CC_VCXO

10-MSOP or 20-QFN, all outputs running

— 70 150 ps, pk

Notes:

1. Only two unique frequencies above 112.5 MHz can be simultaneously output.

2. Measured over 10K cycles. Jitter is only specified at the default high drive strength (50

 output impedance).

3. Jitter is highly dependent on device frequency configuration. Specifications represent a “worst case, real world” frequency plan; actual performance may be substantially better. Three-output 10 MSOP package measured with clock outputs of 74.25, 24.576, and 48 MHz. Eight-output 20 QFN package measured with clock outputs of 33.333, 74.25,

27, 24.576, 22.5792, 28.322, 125, and 48 MHz.

Rev. 1.0

7

8

S i 5 3 5 1 A / B / C - B

Table 7. Crystal Requirements

1,2

Parameter Symbol Min Typ Max Unit

Crystal Frequency

Load Capacitance

Equivalent Series Resistance f

XTAL

C

L r

ESR

25

6

27

12

150

MHz pF

Crystal Max Drive Level d

L

100 — — µW

Notes:

1. Crystals which require load capacitances of 6, 8, or 10 pF should use the device’s internal load capacitance for optimum performance. See register 183 bits 7:6. A crystal with a 12 pF load capacitance requirement should use a combination of the internal 10 pF load capacitance in addition to external 2 pF load capacitance (e.g., by using 4 pF capacitors on XA and XB).

2. Refer to “AN551: Crystal Selection Guide” for more details.

Table 8. I

2

C Specifications (SCL,SDA)

1

Parameter Symbol Test Condition Standard Mode

100 kbps

Min Max Min

Fast Mode

400 kbps

Max

LOW Level

Input Voltage

HIGH Level

Input Voltage

V

ILI2C

–0.5

C

–0.5 0.3 x V

DDI2C

2

V

IHI2C

0.7 x V

DDI2

C

3.6

0.7 x V

DDI2C

2

3.6

Hysteresis of

Schmitt Trigger

Inputs

LOW Level

Output Voltage

(open drain or open collector) at 3 mA Sink

Current

V

HYS

V

OLI2C

2

V

DDI2C

2

= 2.5/3.3 V

— — 0.1

0 0.4 0 0.4

Input Current

Capacitance for

Each I/O Pin

I

2

C Bus

Timeout

I

C

II2C

T

II2C

TO

V

IN

= –0.1 to V

DDI2C

Timeout Enabled

–10 10 –10 10

25

4

35

25 35

Notes:

1. Refer to NXP’s UM10204 I

2

C-bus specification and user manual, revision 03, for further details, go to: www.nxp.com/acrobat_download/usermanuals/UM10204_3.pdf

.

2. Only I

2

C pullup voltages (VDDI2C) of 2.25 to 3.63 V are supported.

4

Unit

V

V

V

V

µA pF ms

Rev. 1.0

S i 5 3 5 1 A / B / C - B

Table 9. Thermal Characteristics

Parameter Symbol

Thermal Resistance

Junction to Ambient

Thermal Resistance

Junction to Case

JA

JC

Test Condition

Still Air

Still Air

Package

10-MSOP

20-QFN

20-QFN

Value

131

119

16

Unit

°C/W

°C/W

°C/W

Table 10. Absolute Maximum Ratings

1

Parameter

DC Supply Voltage

Input Voltage

Symbol

V

DD_max

V

IN_CLKIN

V

IN_VC

V

IN_XA/B

T

J

Test Condition

CLKIN, SCL, SDA

VC

Pins XA, XB

Value

–0.5 to 3.8

–0.5 to 3.8

–0.5 to (VDD+0.3)

–0.5 to 1.3 V

–55 to 150

Unit

V

V

V

V

°C Junction Temperature

Soldering Temperature (Pb-free profile)

2

T

PEAK

260 °C

Soldering Temperature Time at

TPEAK (Pb-free profile)

2

T

P

20–40 Sec

Notes:

1. Permanent device damage may occur if the absolute maximum ratings are exceeded. Functional operation should be restricted to the conditions as specified in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

2. The device is compliant with JEDEC J-STD-020.

Rev. 1.0

9

S i 5 3 5 1 A / B / C - B

2. Detailed Block Diagrams

XA

XB

SDA

SCL

OSC

VDD

PLL

A

PLL

B

I 2 C

Interface

GND

Si5351A 3-Output

VDDO

MultiSynth

0

R0

MultiSynth

1

R1

MultiSynth

2

R2

10-MSOP

CLK0

CLK1

CLK2

XA

XB

A0

SDA

SCL

OEB

SSEN

OSC

I 2 C

Interface

Control

Logic

PLL

A

PLL

B

VDD

Si5351A 8-Output

MultiSynth

0

MultiSynth

1

MultiSynth

2

MultiSynth

3

MultiSynth

4

MultiSynth

5

MultiSynth

6

MultiSynth

7

R0

R1

R2

R3

R4

R5

R6

R7

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

20-QFN

GND

Figure 1. Block Diagrams of 3-Output and 8-Output Si5351A Devices

10 Rev. 1.0

S i 5 3 5 1 A / B / C - B

VDD

XA

XB

VC

OSC

PLL

VCXO

SDA

SCL

OEB

SSEN

I

2

C

Interface

Control

Logic

GND

Si5351B

MultiSynth

0

MultiSynth

1

MultiSynth

2

MultiSynth

3

MultiSynth

4

MultiSynth

5

MultiSynth

6

MultiSynth

7

R0

R1

R2

R3

R4

R5

R6

R7

20-QFN

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

VDD

Si5351C

XA

XB

CLKIN

SDA

SCL

INTR

OEB

OSC

I 2 C

Interface

Control

Logic

PLL

A

PLL

B

MultiSynth

0

MultiSynth

1

MultiSynth

2

MultiSynth

3

MultiSynth

4

MultiSynth

5

MultiSynth

6

MultiSynth

7

R0

R1

R2

R3

R4

R5

R6

R7

GND

20-QFN

Figure 2. Block Diagrams of Si5351B and Si5351C 8-Output Devices

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

Rev. 1.0

11

S i 5 3 5 1 A / B / C - B

3. Functional Description

The Si5351 is a versatile I

2

C programmable clock generator that is ideally suited for replacing crystals, crystal oscillators, VCXOs, PLLs, and buffers. A block diagram showing the general architecture of the Si5351 is shown in

Figure 3. The device consists of an input stage, two synthesis stages, and an output stage.

The input stage accepts an external crystal (XTAL), a control voltage input (VC), or a clock input (CLKIN) depending on the version of the device (A/B/C). The first stage of synthesis multiplies the input frequencies to an high-frequency intermediate clock, while the second stage of synthesis uses high resolution MultiSynth fractional dividers to generate the desired output frequencies. Additional integer division is provided at the output stage for generating output frequencies as low as 2.5 kHz. Crosspoint switches at each of the synthesis stages allows total flexibility in routing any of the inputs to any of the outputs.

Because of this high resolution and flexible synthesis architecture, the Si5351 is capable of generating synchronous or free-running non-integer related clock frequencies at each of its outputs, enabling one device to synthesize clocks for multiple clock domains in a design.

Input

Stage

CLKIN

XA

XTAL

XB

VC

Div

OSC

VCXO

Synthesis

Stage 1

PLL A

(SSC)

PLL B

(VCXO)

Synthesis

Stage 2

Multi

Synth

0

Multi

Synth

1

Multi

Synth

2

Multi

Synth

3

Multi

Synth

4

Multi

Synth

5

Multi

Synth

6

Multi

Synth

7

Figure 3. Si5351 Block Diagram

R2

R3

R0

R1

R4

R5

R6

R7

Output

Stage

VDDOA

CLK0

CLK1

VDDOB

CLK2

CLK3

VDDOC

CLK4

CLK5

VDDOD

CLK6

CLK7

12 Rev. 1.0

S i 5 3 5 1 A / B / C - B

3.1. Input Stage

3.1.1. Crystal Inputs (XA, XB)

The Si5351 uses a fixed-frequency standard AT-cut crystal as a reference to the internal oscillator. The output of the oscillator can be used to provide a free-running reference to one or both of the PLLs for generating asynchronous clocks. The output frequency of the oscillator will operate at the crystal frequency, either 25 MHz or

27 MHz. The crystal is also used as a reference to the VCXO to help maintain its frequency accuracy.

Internal load capacitors are provided to eliminate the need for external components when connecting a crystal to the Si5351. The total internal XTAL load capacitance (C

L

) can be selected to be 0, 6, 8, or 10 pF. Crystals with alternate load capacitance requirements are supported using additional external load capacitance

2 pF (e.g., by using

4 pF capacitors on XA and XB) as shown in Figure 4. Refer to application note AN551 for crystal

recommendations.

XA

XB

Optional additional external load capacitance

(< 2 pF)

Optional internal load capacitance

0, 6, 8,10 pF

Figure 4. External XTAL with Optional Load Capacitors

3.1.2. External Clock Input (CLKIN)

The external clock input is used as a clock reference for the PLLs when generating synchronous clock outputs.

CLKIN can accept any frequency from 10 to 100 MHz. A divider at the input stage limits the PLL input frequency to

30 MHz.

3.1.3. Voltage Control Input (VC)

The VCXO architecture of the Si5351B eliminates the need for an external pullable crystal. Only a standard, lowcost, fixed-frequency (25 or 27 MHz) AT-cut crystal is required.

The tuning range of the VCXO is configurable allowing for a wide variety of applications. Key advantages of the

VCXO design in the Si5351 include high linearity, a wide operating range (linear from 10 to 90% of VDD), and

reliable startup and operation. Refer to Table 4 on page 6 for VCXO specification details.

A unique feature of the Si5351B is its ability to generate multiple output frequencies controlled by the same control voltage applied to the VC pin. This replaces multiple PLLs or VCXOs that would normally be locked to the same

reference. An example is illustrated in Figure 5 on page 14.

Rev. 1.0

13

S i 5 3 5 1 A / B / C - B

3.2. Synthesis Stages

The Si5351 uses two stages of synthesis to generate its final output clocks. The first stage uses PLLs to multiply the lower frequency input references to a high-frequency intermediate clock. The second stage uses highresolution MultiSynth fractional dividers to generate the required output frequencies. Only two unique frequencies above 112.5 MHz can be simultaneously output. For example, 125 MHz (CLK0), 130 MHz (CLK1), and 150 MHz

(CLKx) is not allowed. Note that multiple copies of frequencies above 112.5 MHz can be provided, for example,

125 MHz could be provided on four outputs (CLKS0-3) simultaneously with 130 MHz on four different outputs

(CLKS4-7).

A crosspoint switch at the input of the first stage allows each of the PLLs to lock to the CLKIN or the XTAL input.

This allows each of the PLLs to lock to a different source for generating independent free-running and synchronous clocks. Alternatively, both PLLs could lock to the same source. The crosspoint switch at the input of the second stage allows any of the MultiSynth dividers to connect to PLLA or PLLB. This flexible synthesis architecture allows any of the outputs to generate synchronous or non-synchronous clocks, with spread spectrum or without spread spectrum, and with the flexibility of generating non-integer related clock frequencies at each output.

All VCXO outputs are generated by PLLB only. The Multisynth high-resolution dividers synthesizes the VCXO output’s center frequency up to 112.5 MHz. The center frequency is then controlled (or pulled) by the VC input. An interesting feature of the Si5351 is that the VCXO output can be routed to more than one MultiSynth divider. This

creates a VCXO with multiple output frequencies controlled from one VC input as shown in Figure 5.

Frequencies down to 2.5 kHz can be generated by applying the R divider at the output of the Multisynth (see

Figure 5 below).

Control

Voltage

VC

XA

OSC

VCXO

XB

Fixed Frequency

Crystal (non-pullable)

Multi

Synth

0

Multi

Synth

1

Multi

Synth

2

R0

R1

R2

CLK0

The clock frequency generated from CLK0 is controlled by the VC input

CLK1

CLK2

Additional MultiSynths can be “linked” to the

VCXO to generate additional clock frequencies

Figure 5. Using the Si5351 as a Multi-Output VCXO

14 Rev. 1.0

S i 5 3 5 1 A / B / C - B

3.3. Output Stage

An additional level of division (R) is available at the output stage for generating clocks as low as 2.5 kHz. All output drivers generate CMOS level outputs with separate output voltage supply pins (VDDOx) allowing a different voltage signal level (1.8, 2.5, or 3.3 V) at each of the four 2-output banks.

3.4. Spread Spectrum

Spread spectrum can be enabled on any of the clock outputs that use PLLA as its reference. Spread spectrum is useful for reducing electromagnetic interference (EMI). Enabling spread spectrum on an output clock modulates its frequency, which effectively reduces the overall amplitude of its radiated energy. Note that spread spectrum is not available on clocks synchronized to PLLB or to the VCXO.

The Si5351 supports several levels of spread spectrum allowing the designer to chose an ideal compromise between system performance and EMI compliance.

Center

Frequency

Amplitude

Reduced

Amplitude and EMI

Reduced

Amplitude and EMI f c

No Spread

Spectrum

f c

Center Spread

Figure 6. Available Spread Spectrum Profiles

f c

Down Spread

3.5. Control Pins (OEB, SSEN)

The Si5351 offers control pins for enabling/disabling clock outputs and spread spectrum.

3.5.1. Output Enable (OEB)

The output enable pin allows enabling or disabling outputs clocks. Output clocks are enabled when the OEB pin is held low, and disabled when pulled high. When disabled, the output state is configurable as output high, output low, or high-impedance.

The output enable control circuitry ensures glitchless operation by starting the output clock cycle on the first leading edge after OEB is pulled low. When OEB is pulled high, the clock is allowed to complete its full clock cycle before going into a disabled state.

3.5.2. Spread Spectrum Enable (SSEN)—Si5351A and Si5351B only

This control pin allows disabling the spread spectrum feature for all outputs that were configured with spread spectrum enabled. Hold SSEN low to disable spread spectrum. The SSEN pin provides a convenient method of evaluating the effect of using spread spectrum clocks during EMI compliance testing.

Rev. 1.0

15

S i 5 3 5 1 A / B / C - B

4. I

2

C Interface

I

Many of the functions and features of the Si5351 are controlled by reading and writing to the RAM space using the

2

C interface. The following is a list of the common features that are controllable through the I

2 complete listing of available I

2

C interface. For a

C registers and programming steps, please see “AN619: Manually Generating an

Si5351 Register Map.”

Read Status Indicators



Crystal Reference Loss of signal, LOS_XTAL, reg0[3]



CLKIN Loss of signal, LOS_CLKIN, reg0[4]



PLLA and/or PLLB Loss of lock, LOL_A or LOL_B, reg0[6:5]

 Configuration of multiplication and divider values for the PLLs, MultiSynth dividers

 Configuration of the Spread Spectrum profile (down or center spread, modulation percentage)

 Control of the cross point switch selection for each of the PLLs and MultiSynth dividers

 Set output clock options



Enable/disable for each clock output



Invert/non-invert for each clock output



Output divider values (2 n

, n=1.. 7)



Output state when disabled (stop hi, stop low, Hi-Z)



Output phase offset

The I

2

C interface operates in slave mode with 7-bit addressing and can operate in Standard-Mode (100 kbps) or

Fast-Mode (400 kbps) and supports burst data transfer with auto address increments.

The I

2

C bus consists of a bidirectional serial data line (SDA) and a serial clock input (SCL) as shown in Figure 7.

Both the SDA and SCL pins must be connected to the VDD supply via an external pull-up as recommended by the

I

2

C specification.

VDD

I 2 C Bus

>1k

>1k

SCL

SDA

Si5351

4.7 k

INTR

I 2 C Address Select:

Pull-up to VDD (A0 = 1)

Pull-down to GND (A0 = 0)

A0

Figure 7. I

2

C and Control Signals

The 7-bit device (slave) address of the Si5351 consist of a 6-bit fixed address plus a user selectable LSB bit as

shown in Figure 8. The LSB bit is selectable as 0 or 1 using the optional A0 pin which is useful for applications that

require more than one Si5351 on a single I

2

C bus.

Slave Address

6 5 4 3 2 1 0

1 1 0 0 0 0 0/1

Figure 8. Si5351 I

2

C Slave Address

A0

16 Rev. 1.0

S i 5 3 5 1 A / B / C - B

Data is transferred MSB first in 8-bit words as specified by the I

2

C specification. A write command consists of a 7-

bit device (slave) address + a write bit, an 8-bit register address, and 8 bits of data as shown in Figure 9. A write

burst operation is also shown where every additional data word is written using to an auto-incremented address.

Write Operation – Single Byte

S Slv Addr [6:0] 0 A Reg Addr [7:0] A Data [7:0] A P

Write Operation - Burst (Auto Address Increment)

S Slv Addr [6:0] 0 A Reg Addr [7:0] A Data [7:0] A Data [7:0] A P

Reg Addr +1

From slave to master

From master to slave

1 – Read

0 – Write

A – Acknowledge (SDA LOW)

N – Not Acknowledge (SDA HIGH)

S – START condition

P – STOP condition

Figure 9. I

2

C Write Operation

A read operation is performed in two stages. A data write is used to set the register address, then a data read is performed to retrieve the data from the set address. A read burst operation is also supported. This is shown in

Figure 10.

Read Operation – Single Byte

S Slv Addr [6:0] 0 A Reg Addr [7:0] A P

S Slv Addr [6:0] 1 A Data [7:0] N P

Read Operation - Burst (Auto Address Increment)

S Slv Addr [6:0] 0 A Reg Addr [7:0] A P

S Slv Addr [6:0] 1 A Data [7:0] A Data [7:0] N P

Reg Addr +1

From slave to master

From master to slave

1 – Read

0 – Write

A – Acknowledge (SDA LOW)

N – Not Acknowledge (SDA HIGH)

S – START condition

P – STOP condition

Figure 10. I

2

C Read Operation

AC and DC electrical specifications for the SCL and SDA pins are shown in Table 8. The timing specifications and

timing diagram for the I

2

C bus is compatible with the I

2

C-Bus Standard. SDA timeout is supported for compatibility with SMBus interfaces.

Rev. 1.0

17

S i 5 3 5 1 A / B / C - B

5. Configuring the Si5351

The Si5351 is a highly flexible clock generator which is entirely configurable through its I

2

C interface. The device’s

default configuration is stored in non-volatile memory (NVM) as shown in Figure 11. The NVM is a one time

programmable memory (OTP) which can store a custom user configuration at power-up. This is a useful feature for applications that need a clock present at power-up (e.g., for providing a clock to a processor).

Power-Up

NVM

(OTP)

Default

Config

RAM

I

2

C

Figure 11. Si5351 Memory Configuration

During a power cycle the contents of the NVM are copied into random access memory (RAM), which sets the device configuration that will be used during normal operation. Any changes to the device configuration after power-up are made by reading and writing to registers in the RAM space through the I

2

C interface.

5.1. Writing a Custom Configuration to RAM

To simplify device configuration, Silicon Labs has released the ClockBuilder Desktop. The software serves two purposes: to configure the Si5351 with optimal configuration based on the desired frequencies and to control the

EVB when connected to a host PC.

The optimal configuration can be saved from the software in text files that can be used in any system, which configures the device over I

2

C. ClockBuilder Desktop can be downloaded from www.silabs.com/ClockBuilder and runs on Windows XP, Windows Vista, and Windows 7.

Once the configuration file has been saved, the device can be programmed via I

2

C by following the steps shown in

Figure 12.

18 Rev. 1.0

Disable Outputs

Set CLKx_DIS high; Reg. 3 = 0xFF

Powerdown all output drivers

Reg. 16, 17, 18, 19, 20, 21, 22, 23 =

0x80

Set interrupt masks

(see register 2 description)

Register

Map

Use ClockBuilder

Desktop v3.1 or later

Write new configuration to device using the contents of the register map generated by ClockBuilder Desktop. This step also powers up the output drivers.

Apply PLLA and PLLB soft reset

Reg. 177 = 0xAC

Enable desired outputs

(see Register 3)

Figure 12. I

2

C Programming Procedure

S i 5 3 5 1 A / B / C - B

Rev. 1.0

19

S i 5 3 5 1 A / B / C - B

5.2. Si5351 Application Examples

The Si5351 is a versatile clock generator which serves a wide variety of applications. The following examples show how it can be used to replace crystals, crystal oscillators, VCXOs, and PLLs.

5.3. Replacing Crystals and Crystal Oscillators

Using an inexpensive external crystal, the Si5351A can generate up to 8 different free-running clock frequencies for replacing crystals and crystal oscillators. A 3-output version packaged in a small 10-MSOP is also available for

applications that require fewer clocks. An example is shown in Figure 13.

27 MHz

XA

XB

OSC PLL

Multi

Synth

0

Multi

Synth

1

Multi

Synth

2

Multi

Synth

3

Multi

Synth

4

Multi

Synth

5

Multi

Synth

6

Multi

Synth

7

Si5351A

Note: Si5351A replaces crystals, XOs, and PLLs.

CLK0

CLK1

125 MHz

48 MHz

CLK2

CLK3

28.322 MHz

74.25 MHz

CLK4

CLK5

74.25/1.001 MHz

24.576 MHz

CLK6

CLK7

22.5792 MHz

33.3333 MHz

Ethernet

PHY

USB

Controller

HDMI

Port

Video/Audio

Processor

CPU

Figure 13. Using the Si5351A to Replace Multiple Crystals, Crystal Oscillators, and PLLs

5.4. Replacing Crystals, Crystal Oscillators, and VCXOs

The Si5351B combines free-running clock generation and a VCXO in a single package for cost sensitive video

applications. An example is shown in Figure 14.

27 MHz

XA

XB

OSC

PLL

Multi

Synth

0

Multi

Synth

1

Multi

Synth

2

CLK0

CLK1

CLK2

Free-running

Clocks

125 MHz

48 MHz

28.322 MHz

Ethernet

PHY

USB

Controller

HDMI

Port

VC

Si5351B

VCXO

Multi

Synth

3

Multi

Synth

4

Multi

Synth

5

CLK3

CLK4

CLK5

74.25 MHz

74.25/1.001 MHz

Video/Audio

Processor

24.576 MHz

VCXO Clock

Outputs

Note: F

BW

= 10 kHz

Figure 14. Using the Si5351B to Replace Crystals, Crystal Oscillators, VCXOs, and PLLs

20 Rev. 1.0

S i 5 3 5 1 A / B / C - B

5.5. Replacing Crystals, Crystal Oscillators, and PLLs

The Si5351C generates synchronous clocks for applications that require a fully integrated PLL instead of a VCXO.

Because of its dual PLL architecture, the Si5351C is capable of generating both synchronous and free-running

clocks. An example is shown in Figure 15.

Free-running

Clocks

25 MHz

XA

XB

OSC

PLL

Multi

Synth

0

Multi

Synth

1

Multi

Synth

2

CLK0

CLK1

CLK2

125 MHz

48 MHz

28.322 MHz

Ethernet

PHY

USB

Controller

HDMI

Port

54 MHz

CLKIN

PLL

Multi

Synth

3

Multi

Synth

4

Multi

Synth

5

CLK3

CLK4

CLK5

74.25 MHz

74.25/1.001 MHz

24.576 MHz

Video/Audio

Processor

Si5351C

Synchronous

Clocks

Figure 15. Using the Si5351C to Replace Crystals, Crystal Oscillators, and PLLs

5.6. Applying a Reference Clock at XTAL Input

The Si5351 can be driven with a clock signal through the XA input pin. This is especially useful when in need of generating clock outputs in two synchronization domains. With the Si5351C, one reference clock can be provided at the CLKIN pin and at XA.

V

IN

= 1 V

PP

25/27 MHz

XA

0.1 µF

XB

OSC

PLLA

PLLB

Note: Float the XB input while driving the XA input with a clock

Multi

Synth

0

Multi

Synth

1

Multi

Synth

N

Figure 16. Si5351 Driven by a Clock Signal

Rev. 1.0

21

S i 5 3 5 1 A / B / C - B

5.7. HCSL Compatible Outputs

The Si5351 can be configured to support HCSL compatible swing when the VDDO of the output pair of interest is set to 2.5 V (i.e., VDDOA must be 2.5 V when using CLK0/1; VDDOB must be 2.5 V for CLK2/3 and so on).

The circuit in the figure below must be applied to each of the two clocks used, and one of the clocks in the pair must also be inverted to generate a differential pair. See register setting CLKx_INV.

OSC

PLLA

PLLB

Multi

Synth

0

Multi

Synth

1

0

0

Z

O

= 50

Z

O

= 50

R

1

511

240

R

2

R

1

511

240

R

2

Multi

Synth

N

Note: The complementary -180 degree out of phase output clock is generated using the INV function

Figure 17. Si5351 Output is HCSL Compatible

HCSL

CLKIN

22 Rev. 1.0

S i 5 3 5 1 A / B / C - B

6. Design Considerations

The Si5351 is a self-contained clock generator that requires very few external components. The following general guidelines are recommended to ensure optimum performance. Refer to “AN554: Si5350/51 PCB Layout Guide” for additional layout recommendations.

6.1. Power Supply Decoupling/Filtering

The Si5351 has built-in power supply filtering circuitry and extensive internal Low Drop Out (LDO) voltage regulators to help minimize the number of external bypass components. All that is recommended is one 0.1 to

1.0 µF decoupling capacitor per power supply pin. This capacitor should be mounted as close to the VDD and

VDDOx pins as possible without using vias.

6.2. Power Supply Sequencing

The VDD and VDDOx (i.e., VDDO0, VDDO1, VDDO2, VDDO3) power supply pins have been separated to allow flexibility in output signal levels. Power supply sequencing for VDD and VDDOx requires that all VDDOx be powered up either before or at the same time as VDD. Unused VDDOx pins should be tied to VDD.

6.3. External Crystal

The external crystal should be mounted as close to the pins as possible using short PCB traces. The XA and XB traces should be kept away from other high-speed signal traces. See “AN551: Crystal Selection Guide” for more details.

6.4. External Crystal Load Capacitors

The Si5351 provides the option of using internal and external crystal load capacitors. If internal load capacitance is insufficient, capacitors of value < 2 pF may be used to increased equivalent load capacitance. If external load capacitors are used, they should be placed as close to the XA/XB pads as possible. See “AN551: Crystal Selection

Guide” for more details.

6.5. Unused Pins

Unused voltage control pin should be tied to GND.

Unused CLKIN pin should be tied to GND.

Unused XA/XB pins should be left floating. Refer to "5.6. Applying a Reference Clock at XTAL Input" on page 21

when using XA as a clock input pin.

Unused output pins (CLK0–CLK7) should be left floating.

Unused VDDOx pins should be tied to VDD.

6.6. Trace Characteristics

The Si5351A/B/C features various output current drive strengths. It is recommended to configure the trace

characteristics as shown in Figure 18 when the default high drive strength is used.

CLK

R = 0 ohms

(Optional resistor for

EMI management)

Z

O

= 50 ohms

Figure 18. Recommended Trace Characteristics with Default Drive Strength Setting

Rev. 1.0

23

S i 5 3 5 1 A / B / C - B

7. Register Map Summary

For many applications, the Si5351's register values are easily configured using ClockBuilder Desktop software.

However, for customers interested in using the Si5351 in operating modes beyond the capabilities available with

ClockBuilder™, refer to “AN619: Manually Generating an Si5351 Register Map” for a detailed description of the

Si5351 registers and their usage.

8. Register Descriptions

Refer to “AN619: Manually Generating an Si5351 Register Map” for a detailed description of Si5351 registers.

24 Rev. 1.0

S i 5 3 5 1 A / B / C - B

9. Si5351 Pin Descriptions

9.1. Si5351A 20-pin QFN

XA 1

XB 2

A0 3

SCL 4

SDA 5

GND

PAD

15

CLK7

14 VDDOD

13 CLK0

12 CLK1

11 VDDOA

Figure 19. Si5351A 20-QFN Top View

Table 11. Si5351A Pin Descriptions

Pin Name

XA

XB

CLK0

CLK1

CLK2

CLK3

CLK4

Pin

Number

1

2

13

12

9

Pin Type

O

O

O

O

I

I

O

1

Function

Input pin for external crystal.

Input pin for external crystal.

Output clock 0.

Output clock 1.

Output clock 2.

Output clock 3.

Output clock 4.

CLK5

CLK6

CLK7

A0

SCL

SDA

SSEN

OEB

VDD

VDDOA

VDDOB

VDDOC

8

19

17

16

15

3

4

5

6

7

20

11

10

18

I

I/O

I

I

O

O

O

I

P

P

P

P

Output clock 5.

Output clock 6.

Output clock 7.

I

2

C address bit.

I

2

C bus serial clock input. Pull-up to VDD core with 1 k



I

2

C bus serial data input. Pull-up to VDD core with 1 k



Spread spectrum enable. High = enabled, Low = disabled.

Output driver enable. Low = enabled, High = disabled.

Core voltage supply pin. See 6.2.

Output voltage supply pin for CLK0 and CLK1. See 6.2.

Output voltage supply pin for CLK2 and CLK3. See 6.2.

Output voltage supply pin for CLK4 and CLK5. See 6.2.

VDDOD

GND

14

Center Pad

P

P

Output voltage supply pin for CLK6 and CLK7. See 6.2.

Ground. Use multiple vias to ensure a solid path to GND.

1. I = Input, O = Output, P = Power.

2. Input pins are not internally pulled up.

Rev. 1.0

25

S i 5 3 5 1 A / B / C - B

9.2. Si5351B 20-Pin QFN

26

XA 1

XB

2

VC

3

SCL 4

SDA 5

GND

PAD

15

CLK7

14

VDDOD

13

CLK0

12

CLK1

11

VDDOA

Figure 20. Si5351B 20-QFN Top View*

Table 12. Si5351B Pin Descriptions

Pin Name

XA

XB

CLK0

CLK1

CLK2

CLK3

CLK4

Pin

Number

1

2

13

12

9

Pin Type

O

O

O

O

I

I

O

1

Function

Input pin for external crystal

Input pin for external crystal

Output clock 0

Output clock 1

Output clock 2

Output clock 3

Output clock 4

CLK5

CLK6

CLK7

VC

SCL

SDA

SSEN

OEB

VDD

VDDOA

VDDOB

VDDOC

8

19

17

16

15

3

4

5

6

7

20

11

10

18

I

I/O

I

I

O

O

O

I

P

P

P

P

Output clock 5

Output clock 6

Output clock 7

VCXO control voltage input

I

2

C bus serial clock input. Pull-up to VDD core with 1 k



I

2

C bus serial data input. Pull-up to VDD core with 1 k



Spread spectrum enable. High = enabled, Low = disabled.

Output driver enable. Low = enabled, High = disabled.

Core voltage supply pin

Output voltage supply pin for CLK0 and CLK1. See 6.2

Output voltage supply pin for CLK2 and CLK3. See 6.2

Output voltage supply pin for CLK4 and CLK5. See 6.2

VDDOD

GND

14

Center Pad

P

P

Output voltage supply pin for CLK6 and CLK7. See 6.2

Ground

1. I = Input, O = Output, P = Power

2. Input pins are not internally pulled up.

Rev. 1.0

S i 5 3 5 1 A / B / C - B

9.3. Si5351C 20-Pin QFN

XA 1

XB

2

INTR

3

SCL

4

SDA

5

GND

PAD

15 CLK7

14 VDDOD

13

CLK0

12

CLK1

11

VDDOA

Table 13. Si5351C Pin Descriptions

Pin Name

XA

XB

CLK0

CLK1

CLK2

Pin

Number

20-QFN

1

2

13

12

9

Pin Type

I

I

O

O

O

1

Function

Input pin for external crystal.

Input pin for external crystal.

Output clock 0.

Output clock 1.

Output clock 2.

CLK3

CLK4

CLK5

CLK6

CLK7

INTR

8

19

17

16

15

3

6

7

4

5

20

11

10

O

O

O

O

O

O

I

I/O

I

I

P

P

P

Output clock 3.

Output clock 4.

Output clock 5.

Output clock 6.

Output clock 7.

Interrupt pin. Open drain active low output, requires a pull-up resistor greater than 1 k



I

2

C bus serial clock input. Pull-up to VDD core with 1 k



I

2

C bus serial data input. Pull-up to VDD core with 1 k



SCL

SDA

CLKIN

OEB

VDD

VDDOA

VDDOB

PLL clock input.

Output driver enable. Low = enabled, High = disabled.

Core voltage supply pin

Output voltage supply pin for CLK0 and CLK1. See 6.2

Output voltage supply pin for CLK2 and CLK3. See 6.2

VDDOC

VDDOD

18

14

P

P

Output voltage supply pin for CLK4 and CLK5. See 6.2

Output voltage supply pin for CLK6 and CLK7. See 6.2

GND Center Pad P Ground.

Notes:

1. I = Input, O = Output, P = Power.

2. Input pins are not internally pulled up.

Rev. 1.0

27

S i 5 3 5 1 A / B / C - B

9.4. Si5351A 10-Pin MSOP

VDD

XA

XB

SCL

SDA

4

5

1

2

3

10

9

8

7

6

CLK0

CLK1

GND

VDDO

CLK2

Figure 21. Si5351A 10-MSOP Top View

Table 14. Si5351A 10-MSOP Pin Descriptions

Pin Name

XA

XB

CLK0

CLK1

CLK2

SCL

SDA

Pin

Number

10-MSOP

2

3

10

9

6

4

5

Pin Type*

O

O

I

I

I

O

I/O

Function

Input pin for external crystal.

Input pin for external crystal.

Output clock 0.

Output clock 1.

Output clock 2.

Serial clock input for the I

2

C bus. This pin must be pulled-up using a pullup resistor of at least 1 k

.

Serial data input for the I

2 resistor of at least 1 k

.

C bus. This pin must be pulled-up using a pull-up

VDD

VDDO

1

7

P

P

Core voltage supply pin.

Output voltage supply pin for CLK0, CLK1, and CLK2. See "6.2. Power

Supply Sequencing" on page 23.

GND 8 P

*Note: I = Input, O = Output, P = Power

Ground.

28 Rev. 1.0

S i 5 3 5 1 A / B / C - B

10. Ordering Information

Factory pre-programmed Si5351 devices (e.g., with bootup frequencies) can be requested using the ClockBuilder web-based utility available at: www.silabs.com/ClockBuilder . A unique part number is assigned to each custom

configuration as indicated in Figure 22. Blank, un-programmed Si5351 devices (with no boot-up frequency) do not

contain a custom code.

Figure 22. Device Part Numbers

An evaluation kit containing ClockBuilder Desktop software and hardware enable easy evaluation of the Si5351A/B/

C. The orderable part numbers for the evaluation kits are provided in Figure 23.

Figure 23. Si5351A/B/C Evaluation Kit

Rev. 1.0

29

S i 5 3 5 1 A / B / C - B

11. Package Outlines

Figure 24 shows the package details for the Si5351 in a 20-QFN package. Table 15 lists the values for the

dimensions shown in the illustration.

11.1. 20-pin QFN

B

D

C

A

A1

L

D2

D2/2

E

E2/2

E2

A

Figure 24. 20-pin QFN Package Drawing

e b

30 Rev. 1.0

S i 5 3 5 1 A / B / C - B

Table 15. Package Dimensions

Dimension

A

A1 b

D

D2 e

E

E2

L aaa bbb ccc

Min

0.80

0.00

0.20

2.65

2.65

0.35

Nom

0.85

0.25

4.00 BSC

2.70

0.50 BSC

4.00 BSC

2.70

0.40

Max

0.90

0.05

0.30

2.75

2.75

0.45

0.10

0.10

0.08

ddd — — 0.10

Notes:

1. All dimensions shown are in millimeters (mm) unless otherwise noted.

2. Dimensioning and Tolerancing per ANSI Y14.5M-1994.

3. This drawing conforms to JEDEC Outline MO-220, variation VGGD-5.

4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for

Small Body Components.

Rev. 1.0

31

S i 5 3 5 1 A / B / C - B

12. Land Pattern: 20-Pin QFN

Figure 25 shows the recommended land pattern details for the Si5351 in a 20-Pin QFN package. Table 16 lists the

values for the dimensions shown in the illustration.

Figure 25. 20-Pin QFN Land Pattern

32 Rev. 1.0

Table 16. PCB Land Pattern Dimensions

Symbol

C1

C2

E

X1

X2

Y1

Y2

Millimeters

4.0

4.0

0.50 BSC

0.30

2.70

0.80

2.70

Notes:

General

1. All dimensions shown are in millimeters

(mm) unless otherwise noted.

2. This land pattern design is based on IPC-

7351 guidelines.

Solder Mask Design

3. All metal pads are to be non-solder mask defined (NSMD). Clearance between the solder mask and the metal pad is to be

60 µm minimum, all the way around the pad.

Stencil Design

4. A stainless steel, laser-cut and electropolished stencil with trapezoidal walls should be used to assure good solder paste release.

5. The stencil thickness should be 0.125 mm

(5 mils).

6. The ratio of stencil aperture to land pad size should be 1:1 for all perimeter pads.

7. A 2x2 array of 1.10 x 1.10 mm openings on

1.30 mm pitch should be used for the center ground pad.

Card Assembly

8. A No-Clean, Type-3 solder paste is recommended.

9. The recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for

Small Body components.

S i 5 3 5 1 A / B / C - B

Rev. 1.0

33

S i 5 3 5 1 A / B / C - B

12.1. 10-Pin MSOP Package Outline

Figure 26 illustrates the package details for the Si5351 in a 10-pin MSOP package. Table 17 lists the values for the

dimensions shown in the illustration.



Figure 26. 10-pin MSOP Package Drawing

34 Rev. 1.0

S i 5 3 5 1 A / B / C - B

Table 17. 10-MSOP Package Dimensions

Dimension

A

A1

A2

D

E b c

Min

0.00

0.75

0.17

0.08

Nom

0.85

3.00 BSC

4.90 BSC

Max

1.10

0.15

0.95

0.33

0.23

q aaa bbb ccc

E1 e

L

L2

0.40

0

3.00 BSC

0.50 BSC

0.60

0.25 BSC

0.80

8

0.20

0.25

0.10

ddd — — 0.08

Notes:

1. All dimensions shown are in millimeters (mm) unless otherwise noted.

2. Dimensioning and Tolerancing per ANSI Y14.5M-1994.

3. This drawing conforms to the JEDEC Solid State Outline MO-137, Variation C

4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body

Components.

Rev. 1.0

35

S i 5 3 5 1 A / B / C - B

13. Land Pattern: 10-Pin MSOP

Figure 27 shows the recommended land pattern details for the Si5351 in a 10-Pin MSOP package. Table 18 lists

the values for the dimensions shown in the illustration.



Figure 27. 10-Pin MSOP Land Pattern

36 Rev. 1.0

S i 5 3 5 1 A / B / C - B

Table 18. PCB Land Pattern Dimensions

Symbol Millimeters

Min Max

C1

E

G1

X1

Y1

Z1

3.00

4.40 REF

0.50 BSC

1.40 REF

0.30

— 5.80

Notes:

General

1. All dimensions shown are in millimeters (mm) unless otherwise noted.

2. Dimensioning and Tolerancing per ASME Y14.5M-1994.

3. This Land Pattern Design is based on the IPC-7351 guidelines.

4. All dimensions shown are at Maximum Material Condition (MMC). Least

Material Condition (LMC) is calculated based on a Fabrication

Allowance of 0.05mm.

Solder Mask Design

5. All metal pads are to be non-solder mask defined (NSMD). Clearance between the solder mask and the metal pad is to be 60 µm minimum, all the way around the pad.

Stencil Design

6. A stainless steel, laser-cut and electro-polished stencil with trapezoidal walls should be used to assure good solder paste release.

7. The stencil thickness should be 0.125 mm (5 mils).

8. The ratio of stencil aperture to land pad size should be 1:1.

Card Assembly

9. A No-Clean, Type-3 solder paste is recommended.

10. The recommended card reflow profile is per the JEDEC/IPC J-STD-

020C specification for Small Body components.

Rev. 1.0

37

S i 5 3 5 1 A / B / C - B

14. Top Marking

14.1. 20-Pin QFN Top Marking

Figure 28. 20-Pin QFN Top Marking

14.2. Top Marking Explanation

Mark Method:

Pin 1 Mark:

Font Size:

Line 1 Mark Format

Laser

Filled Circle = 0.50 mm Diameter

(Bottom-Left Corner)

0.60 mm (24 mils)

Device Part Number Si5351

Line 2 Mark Format:

TTTTTT = Mfg Code*

Line 3 Mark Format:

YY = Year

WW = Work Week

Manufacturing Code from the Assembly Purchase

Order Form.

Assigned by the Assembly House. Corresponds to the year and work week of the assembly date.

*Note: The code shown in the “TTTTTT” line does not correspond to the orderable part number or frequency plan. It is used for package assembly quality tracking purposes only.

38 Rev. 1.0

14.3. 10-Pin MSOP Top Marking

S i 5 3 5 1 A / B / C - B

Figure 29. 10-Pin MSOP Top Marking

14.4. Top Marking Explanation

Mark Method:

Pin 1 Mark:

Font Size:

Line 1 Mark Format

Laser

Mold Dimple (Bottom-Left Corner)

0.60 mm (24 mils)

Device Part Number

Line 2 Mark Format:

TTTT = Mfg Code*

Line 3 Mark Format:

YWW = Date Code

Si5351

Line 2 from the “Markings” section of the Assembly

Purchase Order form.

Assigned by the Assembly House.

Y = Last Digit of Current Year (Ex: 2013 = 3)

WW = Work Week of Assembly Date.

*Note: The code shown in the “TTTT” line does not correspond to the orderable part number or frequency plan. It is used for package assembly quality tracking purposes only.

Rev. 1.0

39

S i 5 3 5 1 A / B / C - B

D

OCUMENT

C

HANGE

L

IST

Revision 0.75 to Revision 1.0

 Extended frequency range from 8 MHz-160 MHz to

2.5 kHz-200 MHz.

Updated block diagrams for clarity.

Added complete Si5350/1 family table, Table 1.

Added top mark information.

Added land pattern drawings.

Added PowerUp Time, PLL Bypass mode, Table 4.

Clarified Down Spread step sizes in Table 4.

Updated max jitter specs (typ unchanged) in Table 6.

Clarified power supply sequencing requirement,

Section 6.2.

40 Rev. 1.0

ClockBuilder Pro

One-click access to Timing tools, documentation, software, source code libraries & more. Available for

Windows and iOS (CBGo only).

www.silabs.com/CBPro

Timing Portfolio

www.silabs.com/timing

SW/HW

www.silabs.com/CBPro

Quality

www.silabs.com/quality

Support and Community

community.silabs.com

Disclaimer

Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.

Trademark Information

Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,

USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of

ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.

Silicon Laboratories Inc.

400 West Cesar Chavez

Austin, TX 78701

USA

http://www.silabs.com

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Silicon Laboratories

:

SI5351A-B04486-GT

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
