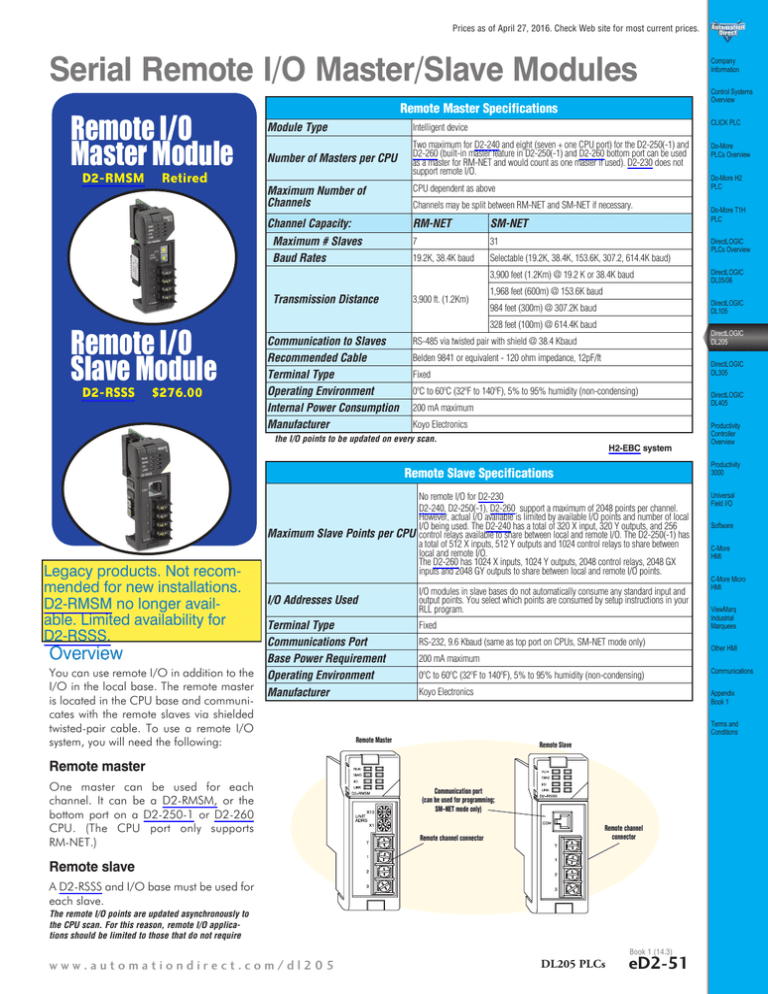

Serial Remote I/O Master/Slave Modules
Remote I/O
Master Module
D2-RMSM
Retired
Remote Master Specifications
Intelligent device
Number of Masters per CPU
Two maximum for D2-240 and eight (seven + one CPU port) for the D2-250(-1) and
D2-260 (built-in master feature in D2-250(-1) and D2-260 bottom port can be used
as a master for RM-NET and would count as one master if used). D2-230 does not
support remote I/O.
Maximum Number of
Channels
CPU dependent as above
Channel Capacity:
RM-NET
SM-NET
7
31
19.2K, 38.4K baud
Selectable (19.2K, 38.4K, 153.6K, 307.2, 614.4K baud)
Channels may be split between RM-NET and SM-NET if necessary.
3,900 feet (1.2Km) @ 19.2 K or 38.4K baud
Transmission Distance
Remote I/O
Slave Module
D2-RSSS
$276.00
3,900 ft. (1.2Km)
1,968 feet (600m) @ 153.6K baud
Belden 9841 or equivalent - 120 ohm impedance, 12pF/ft
0ºC to 60ºC (32ºF to 140ºF), 5% to 95% humidity (non-condensing)
200 mA maximum
Koyo Electronics
H2-EBC system
Overview
You can use remote I/O in addition to the
I/O in the local base. The remote master
is located in the CPU base and communicates with the remote slaves via shielded
twisted-pair cable. To use a remote I/O
system, you will need the following:
Terminal Type
Communications Port
Base Power Requirement
Operating Environment
Manufacturer
No remote I/O for D2-230
D2-240, D2-250(-1), D2-260 support a maximum of 2048 points per channel.
However, actual I/O available is limited by available I/O points and number of local
I/O being used. The D2-240 has a total of 320 X input, 320 Y outputs, and 256
control relays available to share between local and remote I/O. The D2-250(-1) has
a total of 512 X inputs, 512 Y outputs and 1024 control relays to share between
local and remote I/O.
The D2-260 has 1024 X inputs, 1024 Y outputs, 2048 control relays, 2048 GX
inputs and 2048 GY outputs to share between local and remote I/O points.
I/O modules in slave bases do not automatically consume any standard input and
output points. You select which points are consumed by setup instructions in your
RLL program.
Fixed
RS-232, 9.6 Kbaud (same as top port on CPUs, SM-NET mode only)
200 mA maximum
DirectLOGIC
DL405
Productivity
Controller
Overview
Universal
Field I/O
Software
C-More
HMI
C-More Micro
HMI
ViewMarq
Industrial
Marquees
Other HMI
Communications
Koyo Electronics
Appendix
Book 1
Terms and
Conditions
Remote Master
Remote Slave
Communication port
(can be used for programming;
SM–NET mode only)
Remote channel connector
Remote channel
connector
Remote slave
A D2-RSSS and I/O base must be used for
each slave.
The remote I/O points are updated asynchronously to
the CPU scan. For this reason, remote I/O applications should be limited to those that do not require
Book 1 (14.3)
www.automationdirect.com/dl205
DirectLOGIC
DL05/06
0ºC to 60ºC (32ºF to 140ºF), 5% to 95% humidity (non-condensing)
Remote master
One master can be used for each
channel. It can be a D2-RMSM, or the
bottom port on a D2-250-1 or D2-260
CPU. (The CPU port only supports
RM-NET.)
DirectLOGIC
PLCs Overview
Productivity
3000
Remote Slave Specifications
I/O Addresses Used
Do-More T1H
PLC
DirectLOGIC
DL305
Fixed
the I/O points to be updated on every scan.
Legacy products. Not recommended for new installations.
D2-RMSM no longer available. Limited availability for
D2-RSSS.
Do-More H2
PLC
DirectLOGIC
DL205
RS-485 via twisted pair with shield @ 38.4 Kbaud
Maximum Slave Points per CPU
Do-More
PLCs Overview
DirectLOGIC
DL105
984 feet (300m) @ 307.2K baud
328 feet (100m) @ 614.4K baud
Communication to Slaves
Recommended Cable
Terminal Type
Operating Environment
Internal Power Consumption
Manufacturer
Control Systems
Overview
CLICK PLC
Module Type
Maximum # Slaves
Baud Rates
Company
Information
DL205 PLCs
eD2-51
