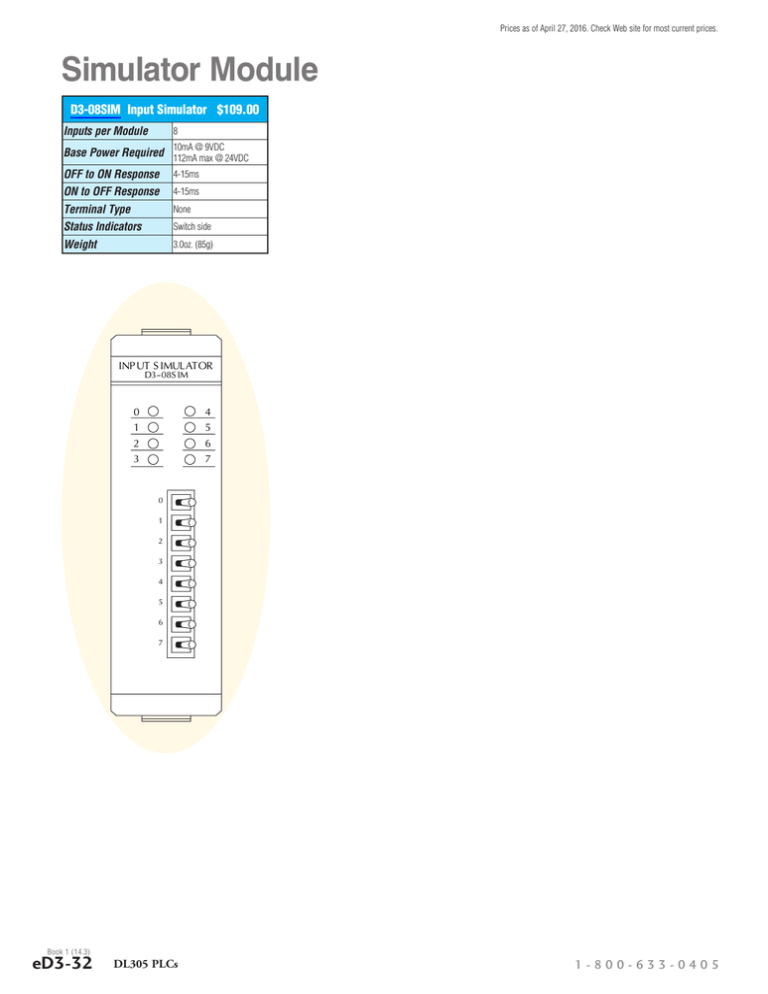

Simulator Module D3-08SIM Input Simulator $109.00

Simulator Module D3-08SIM  Input Simulator   $109.00
Prices as of April 27, 2016. Check Web site for most current prices.
Simulator Module
D3-08SIM Input Simulator $109.00
Inputs per Module
8
10mA @ 9VDC
Base Power Required 112mA max @ 24VDC
OFF to ON Response 4-15ms
ON to OFF Response
4-15ms
Terminal Type
None
Status Indicators
Switch side
Weight
3.0oz. (85g)
INP UT S IMULATOR
D3--08S IM
0
4
1
5
2
6
3
7
0
1
2
3
4
5
6
7
Book 1 (14.3)
eD3-32
DL305 PLCs
1-800-633-0405
Prices as of April 27, 2016. Check Web site for most current prices.
Power Budget
Managing your power
resource
The I/O configuration depends on your
choice of I/O modules, bases and I/O
location. When determining the types
and quantity of I/O modules you will be
using, it’s important to remember there is
a limited amount of power available from
the power supply.
The chart on the next page indicates the
power supplied and used by each DL305
device. The adjacent chart shows an
example of how to calculate the power
used by your particular system. These
two charts should make it easy for you to
determine if the devices you have chosen
fit within the power budget of your system
configuration.
If the I/O you have chosen exceeds
the maximum power available from
the power supply, you can resolve the
problem by shifting some of the modules
to an expansion base.
Use ZIPLinks to reduce
power requirements
If your application requires a lot of relay
outputs, consider using the ZIPLink AC
or DC relay output modules. These
modules can switch high current (10A)
loads without putting a load on your
base power budget. Refer to the Wiring
Solutions section in this catalog for more
information.
This logo is placed next to I/O modules
that are supported by the ZIPLink
connection systems. See the I/O module
specifications at the end of this section.
Company
Information
WARNING: It is extremely important to calculate the power budget correctly. If you exceed
the power budget, the system may operate in an
unpredictable manner, which may result in a risk
of personal injury or equipment damage.
3. Add the current used by the system devices
(columns 3, 4, and 5), starting with Slot 1, then
put the total in the row labeled “Maximum
Current Required” (Row E).
4. Subtract the row labeled “Maximum Current
Required” (Row E), from the row labeled
“Current Supplied” (Row B). Place the
difference in the row labeled “Remaining
Current” (Row F).
5. If “Maximum Current Required” is greater
than “Current Supplied” in columns 3, 4 or 5,
the power budget will be exceeded. It will be
unsafe to use this configuration and you will
need to restructure your I/O configuration.
Example: how to
calculate your
power usage
The following example shows how to
calculate the power budget for the DL305
system. The examples are constructed
around a single 5-slot base using the
devices shown. It is recommended you
construct a similar table for each base in
your DL305 system.
1. U
sing a chart similar to the one below, fill in
column 2.
2. U
sing the tables on the opposite page, enter
the current supplied and used by each
device (columns 3, 4, and 5). Devices which
fall into the “Other” category (Row D) are
devices such as the Handheld Programmer
or a Data Communication Unit, which also
have power requirements, but do not directly plug into the base.
A
Control Systems
Overview
CLICK PLC
Do-More
PLCs Overview
Do-More H2
PLC
Do-More T1H
PLC
DirectLOGIC
PLCs Overview
DirectLOGIC
DL05/06
DirectLOGIC
DL105
DirectLOGIC
DL205
DirectLOGIC
DL305
DirectLOGIC
DL405
Productivity
Controller
Overview
Productivity
3000
Column 1
Base # 0
Column 2
Device Type
Column 3
5 VDC (mA)
Column 4
9VDC (mA)
Column 5
24V(mA)
B Current Supplied
5-slot Base
D3-05BDC
Software
1400
800
500
C Current Required
CPU Slot
D3-330
300
50
0
Slot 0
D3-16NE3
0
130
0
Slot 1
D3-16NE3
0
130
0
Slot 2
D3-08TA-1
0
160
0
Slot 3
D3-08TA-1
0
160
0
50
50
0
360
680
0
1040
120
500
E Maximum Current Required
F Remaining Current
ViewMarq
Industrial
Marquees
Other HMI
Communications
Appendix
Book 1
Book 1 (14.3)
www.automationdirect.com/dl305
C-More
HMI
C-More Micro
HMI
D Other
Handheld prog D3-HPP
Universal
Field I/O
DL305 PLCs
eD3-23
Terms and
Conditions
Prices as of April 27, 2016. Check Web site for most current prices.
DL305 Power Requirements
This section shows the amount
of power supplied by the base
power supplies and the amount
of power used by each DL305
device. Note the base power
supplies provide three internal
voltages (5V, 9V, 24V). The chart
shows how much power from
each of these power sources is
required for each DL305 device.
Use this information when
calculating the power budget for
your system.
In addition to the three internal
power sources, the DL305
bases provide an external power
connection. There is 24 VDC
available from the 24 VDC output
terminals on the bases (except
D3-05BDC and D3-10BDC).
The 24 VDC can be used to
power external devices or DL305
modules that require external 24
VDC. The power used from this
external 24 VDC output reduces
the internal system 24 VDC that
is available to the modules by
an equal amount. When using
the 24 VDC output at the base
terminal, it is recommended that
100 mA not be exceeded.
Power Consumed
Device
Power Supplied
5V(mA) 9V(mA) 24V(mA) Ext
req.
CPUs
D3-330
D3-340
D3-350
300
300
500
50
20
0
0
0
0
0
0
0
DC Input Modules
D3-08ND2
0
D3-16ND2-1 0
F3-16ND3F 0
10
25
148
112
224
68
0
0
0
10
10
100
0
0
0
0
0
0
0
0
0
0
AC Input Modules
D3-08NA-1
D3-08NA-2
D3-16NA
0
0
0
AC/DC Input Modules
D3-08NE3
D3-16NE3
0
0
10
130
DC Output Modules
D3-04TD1
D3-08TD1
D3-08TD2
D3-16TD1-1
D3-16TD2
0
0
0
0
0
12
20
30
40
180
5
24
0
96
0
0
0
0
0
0
12
200
160
160
250
400
0
0
0
0
0
0
0
0
0
0
0
0
AC Output Modules
D3-04TAS
F3-08TAS-1
D3-08TA-1
D3-08TA-2
F3-16TA-2
D3-16TA-2
0
0
0
0
0
0
Device
5V(mA) 9V(mA) 24V(mA) 24 V (mA)
D3-05B-1
D3-08B-1
D3-10B-1
D3-05BDC
D3-10BDC
D3-05B-NR
D3-08B-NR
900
900
900
900
900
900
900
2000
2000
2000
2000
2000
2000
2000
500
500
500
500
500
500
500
100
100
100
None
None
100
100
D3-05BDC-NR 900
2000
500
None
Power Consumed
Device
5V(mA) 9V(mA) 24V(mA) External
required
Relay Output Modules
D3-08TR
F3-08TRS-1
F3-08TRS-2
D3-16TR
0
0
0
0
360
296
296
480
0
0
0
0
0
0
0
0
Analog Temperature and Thermocouple Modules
F3-04ADS
F3-08AD-1
F3-08THM-n
F3-16AD
F3-04DA-1
F3-04DAS
0
0
0
0
0
0
183
45
50
55
144
154
50
55
34
65
108
145
0
0
0
0
0
0
Communications and Networking
D3-232 DCU
D3-422 DCU
FA-UNICON
D3- DCM
500
500
0
0
0
0
0
300
0
0
0
0
Optional [email protected]
Optional [email protected]
24V or [email protected] 100mA
0
10
70
5
112
0
0
0
0
0
50
50
0
0
0
0
0
0
0
0
0
0
0
0
150
0
0
0
0
0
0
0
0
0
0
0
0
Specialty Modules
D3-08SIM
D3-HSC
D3-TCSU
0
0
40
Programming
D3-HP
D3-HPP
D2-HP
50
50
200
Specialty CPUs
F3-OMUX-1
F3-OMUX-2
F3-PMUX
F3-RTU
409
262
455
416
Operator Interface
DV-1000
150
C-more
210
Micro-Graphic
Book 1 (14.3)
eD3-24
DL305 PLCs
1-800-633-0405
