ND-E 16

ND-E 16

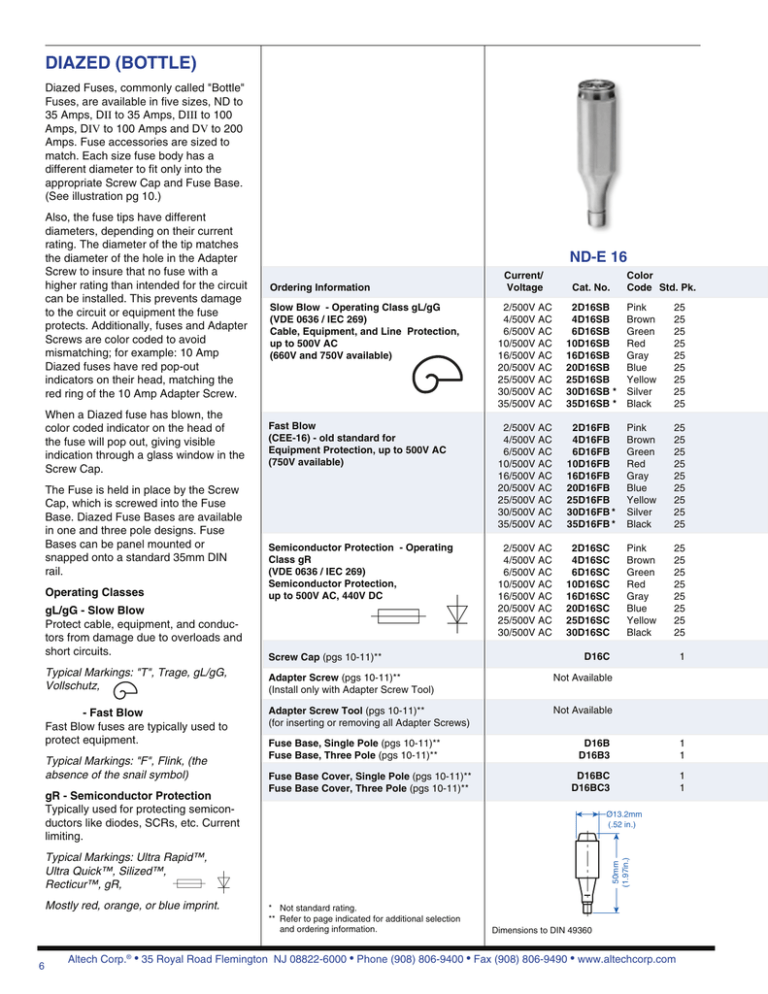

DIAZED (BOTTLE)
Diazed Fuses, commonly called "Bottle"
Fuses, are available in five sizes, ND to
35 Amps, DII to 35 Amps, DIII to 100
Amps, DIV to 100 Amps and DV to 200
Amps. Fuse accessories are sized to
match. Each size fuse body has a
different diameter to fit only into the
appropriate Screw Cap and Fuse Base.
(See illustration pg 10.)
Also, the fuse tips have different
diameters, depending on their current
rating. The diameter of the tip matches
the diameter of the hole in the Adapter
Screw to insure that no fuse with a
higher rating than intended for the circuit
can be installed. This prevents damage
to the circuit or equipment the fuse
protects. Additionally, fuses and Adapter
Screws are color coded to avoid
mismatching; for example: 10 Amp
Diazed fuses have red pop-out
indicators on their head, matching the
red ring of the 10 Amp Adapter Screw.
ND-E 16
Current/
Voltage
Cat. No.
Slow Blow - Operating Class gL/gG
(VDE 0636 / IEC 269)
Cable, Equipment, and Line Protection,
up to 500V AC
(660V and 750V available)
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
35/500V AC
2D16SB
4D16SB
6D16SB
10D16SB
16D16SB
20D16SB
25D16SB
30D16SB *
35D16SB *
Pink
Brown
Green
Red
Gray
Blue
Yellow
Silver
Black
25
25
25
25
25
25
25
25
25
Fast Blow
(CEE-16) - old standard for
Equipment Protection, up to 500V AC
(750V available)
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
35/500V AC
2D16FB
4D16FB
6D16FB
10D16FB
16D16FB
20D16FB
25D16FB
30D16FB *
35D16FB *
Pink
Brown
Green
Red
Gray
Blue
Yellow
Silver
Black
25
25
25
25
25
25
25
25
25
Operating Classes
Semiconductor Protection - Operating
Class gR
(VDE 0636 / IEC 269)
Semiconductor Protection,
up to 500V AC, 440V DC
gL/gG - Slow Blow
Protect cable, equipment, and conductors from damage due to overloads and
short circuits.
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
2D16SC
4D16SC
6D16SC
10D16SC
16D16SC
20D16SC
25D16SC
30D16SC
Pink
Brown
Green
Red
Gray
Blue
Yellow
Black
25
25
25
25
25
25
25
25
Screw Cap (pgs 10-11)**
Typical Markings: "T", Trage, gL/gG,
Vollschutz,
Adapter Screw (pgs 10-11)**
(Install only with Adapter Screw Tool)
Not Available
Adapter Screw Tool (pgs 10-11)**
(for inserting or removing all Adapter Screws)
Not Available
When a Diazed fuse has blown, the
color coded indicator on the head of
the fuse will pop out, giving visible
indication through a glass window in the
Screw Cap.
The Fuse is held in place by the Screw
Cap, which is screwed into the Fuse
Base. Diazed Fuse Bases are available
in one and three pole designs. Fuse
Bases can be panel mounted or
snapped onto a standard 35mm DIN
rail.
- Fast Blow
Fast Blow fuses are typically used to
protect equipment.
Typical Markings: "F", Flink, (the
absence of the snail symbol)
gR - Semiconductor Protection
Typically used for protecting semiconductors like diodes, SCRs, etc. Current
limiting.
Ordering Information
Fuse Base, Single Pole (pgs 10-11)**
Fuse Base, Three Pole (pgs 10-11)**
Fuse Base Cover, Single Pole (pgs 10-11)**
Fuse Base Cover, Three Pole (pgs 10-11)**
D16C
6
1
D16B
D16B3
1
1
D16BC
D16BC3
1
1
Ø13.2mm
(.52 in.)
50mm
(1.97in.)
Typical Markings: Ultra Rapid™,
Ultra Quick™, Silized™,
Recticur™, gR,
Mostly red, orange, or blue imprint.
Color
Code Std. Pk.
* Not standard rating.
** Refer to page indicated for additional selection
and ordering information.
Dimensions to DIN 49360
Altech Corp.® ● 35 Royal Road Flemington NJ 08822-6000 ● Phone (908) 806-9400 ● Fax (908) 806-9490 ● www.altechcorp.com
Cat. No.
Color
Code Std. Pk.
Current/
Voltage
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
35/500V AC
2D27SB
4D27SB
6D27SB
10D27SB
16D27SB
20D27SB
25D27SB
30D27SB*
35D27SB*
Pink
Brown
Green
Red
Gray
Blue
Yellow
Silver
Black
5
5
5
5
5
5
5
5
5
35/500V AC 35D33SB
40/500V AC 40D33SB*
50/500V AC 50D33SB
63/500V AC 63D33SB
80/500V AC 80D33SB*
100/500V AC 100D33SB*
Black
Black
White
Copper
Silver
Silver
5
5
5
5
5
5
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
35/500V AC
2D27FB
4D27FB
6D27FB
10D27FB
16D27FB
20D27FB
25D27FB
30D27FB*
35D27FB*
Pink
Brown
Green
Red
Grey
Blue
Yellow
Silver
Black
5
5
5
5
5
5
5
5
5
35/500V AC
40/500V AC
50/500V AC
63/500V AC
80/500V AC
100/500V AC
Black
Black
White
Copper
Silver
Silver
5
5
5
5
5
5
2/500V AC
4/500V AC
6/500V AC
10/500V AC
16/500V AC
20/500V AC
25/500V AC
30/500V AC
2D27SC
4D27SC
6D27SC
10D27SC
16D27SC
20D27SC
25D27SC
30D27SC
Pink
Brown
Green
Red
Grey
Blue
Yellow
Black
5
5
5
5
5
5
5
5
35/500V AC
50/500V AC
63/500V AC
D27C
1
Refer to pgs 10-11
Cat. No.
35D33FB
40D33FB*
50D33FB
63D33FB
80D33FB*
100D33FB*
Color
Code
Std. Pk.
For DIV fuses, please consult Altech.
35D33SC
50D33SC
63D33SC
Black
White
Copper
D33C
5
5
5
1
Refer to pgs 10-11
DAT
1
DAT
1
D27B
D27B3
1
1
D33B
D33B3
1
1
D27BC
D27BC3
1
1
D33BC
D33BC3
1
1
DV- R 2
Ø49.9mm
(1.96 in.)
Ø27mm
(1.07 in.)
50mm
(1.97in.)
50mm
(1.97in.)
Ø22mm
(.87 in.)
Dimensions to DIN 49515
Ø37mm
(1.46 in.)
63mm
(2.48in.)
Current/
Voltage
DIV- R 1.25
DIII-E 33
63mm
(2.48in.)
DII-E 27
Dimensions to DIN 49515
For DV fuses, please consult Altech.
Altech Corp.® ● 35 Royal Road Flemington NJ 08822-6000 ● Phone (908) 806-9400 ● Fax (908) 806-9490 ● www.altechcorp.com
7
