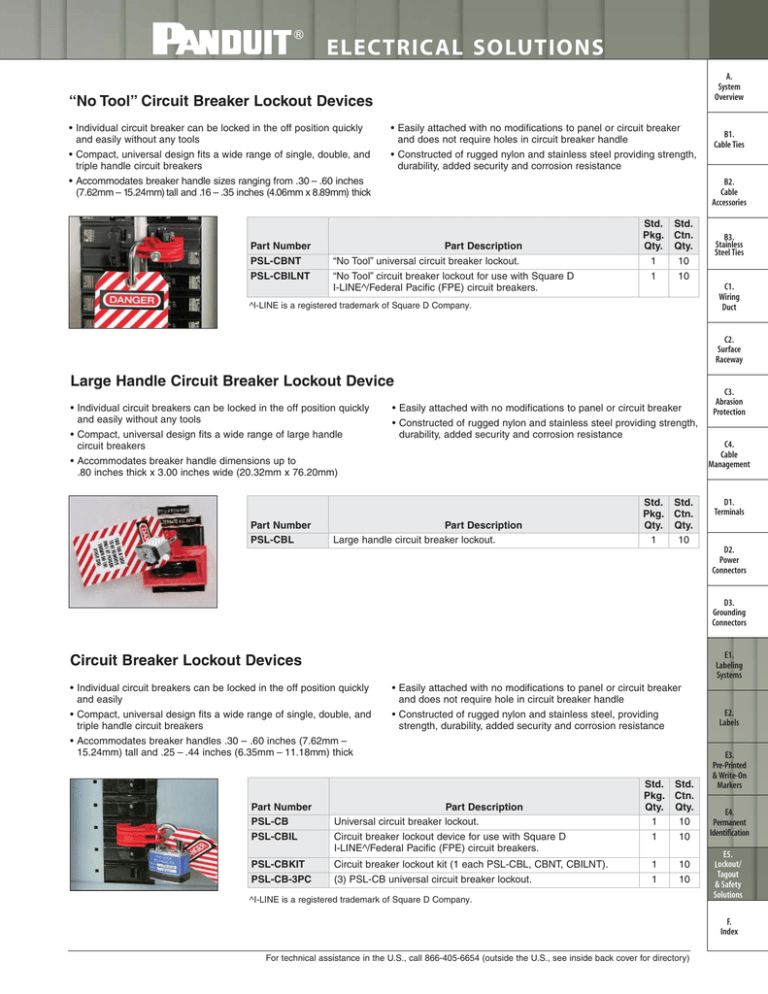

“No Tool” Circuit Breaker Lockout Devices
• Individual circuit breaker can be locked in the off position quickly
and easily without any tools
• Compact, universal design fits a wide range of single, double, and
triple handle circuit breakers
• Accommodates breaker handle sizes ranging from .30 – .60 inches
(7.62mm – 15.24mm) tall and .16 – .35 inches (4.06mm x 8.89mm) thick
Part Number
PSL-CBNT
PSL-CBILNT
• Easily attached with no modifications to panel or circuit breaker
and does not require holes in circuit breaker handle
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
B1.
Cable Ties
B2.
Cable
Accessories
Part Description
“No Tool” universal circuit breaker lockout.
“No Tool” circuit breaker lockout for use with Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
^I-LINE is a registered trademark of Square D Company.
C2.
Surface
Raceway
Large Handle Circuit Breaker Lockout Device
• Individual circuit breakers can be locked in the off position quickly
and easily without any tools
• Compact, universal design fits a wide range of large handle
circuit breakers
• Accommodates breaker handle dimensions up to
.80 inches thick x 3.00 inches wide (20.32mm x 76.20mm)
Part Number
PSL-CBL
• Easily attached with no modifications to panel or circuit breaker
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
C3.
Abrasion
Protection
C4.
Cable
Management
Part Description
Large handle circuit breaker lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
Circuit Breaker Lockout Devices
• Individual circuit breakers can be locked in the off position quickly
and easily
• Compact, universal design fits a wide range of single, double, and
triple handle circuit breakers
• Accommodates breaker handles .30 – .60 inches (7.62mm –
15.24mm) tall and .25 – .44 inches (6.35mm – 11.18mm) thick
• Easily attached with no modifications to panel or circuit breaker
and does not require hole in circuit breaker handle
• Constructed of rugged nylon and stainless steel, providing
strength, durability, added security and corrosion resistance
Part Number
PSL-CB
PSL-CBIL
Part Description
Universal circuit breaker lockout.
Circuit breaker lockout device for use with Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
PSL-CBKIT
PSL-CB-3PC
Circuit breaker lockout kit (1 each PSL-CBL, CBNT, CBILNT).
(3) PSL-CB universal circuit breaker lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
1
1
10
10
^I-LINE is a registered trademark of Square D Company.
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
