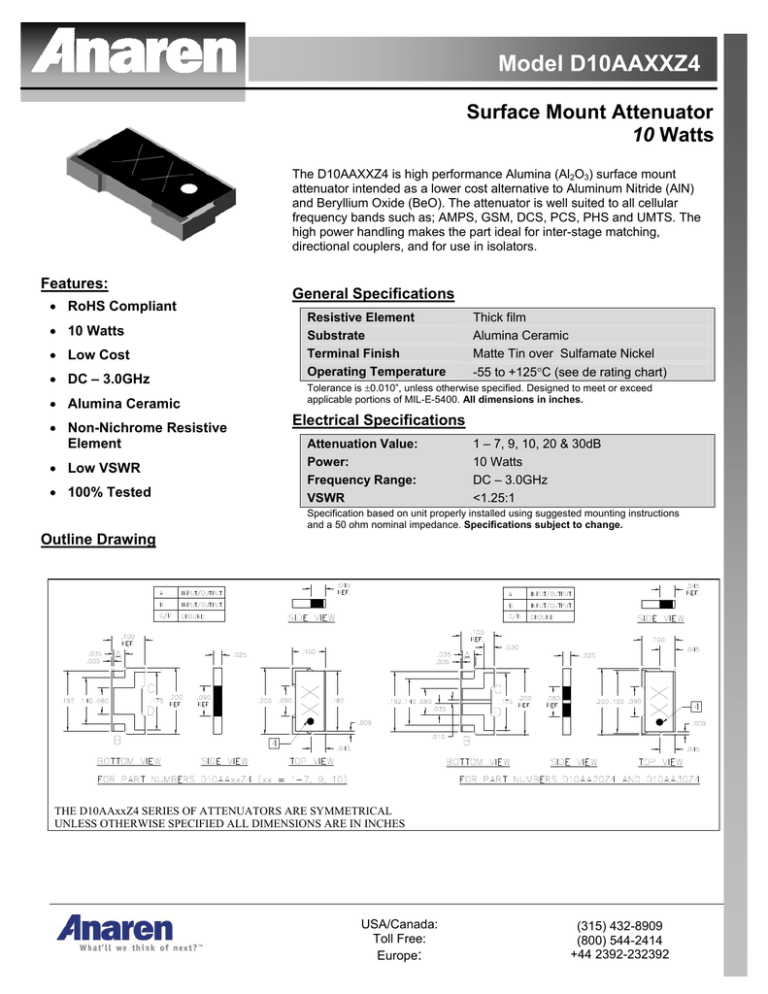

Model D10AAXXZ4
Surface Mount Attenuator
10 Watts
The D10AAXXZ4 is high performance Alumina (Al2O3) surface mount
attenuator intended as a lower cost alternative to Aluminum Nitride (AlN)
and Beryllium Oxide (BeO). The attenuator is well suited to all cellular
frequency bands such as; AMPS, GSM, DCS, PCS, PHS and UMTS. The
high power handling makes the part ideal for inter-stage matching,
directional couplers, and for use in isolators.
Features:
• RoHS Compliant
• 10 Watts
• Low Cost
• DC – 3.0GHz
• Alumina Ceramic
• Non-Nichrome Resistive
Element
• Low VSWR
• 100% Tested
General Specifications
Resistive Element
Substrate
Terminal Finish
Operating Temperature
Thick film
Alumina Ceramic
Matte Tin over Sulfamate Nickel
-55 to +125°C (see de rating chart)
Tolerance is ±0.010”, unless otherwise specified. Designed to meet or exceed
applicable portions of MIL-E-5400. All dimensions in inches.
Electrical Specifications
Attenuation Value:
Power:
Frequency Range:
VSWR
1 – 7, 9, 10, 20 & 30dB
10 Watts
DC – 3.0GHz
<1.25:1
Specification based on unit properly installed using suggested mounting instructions
and a 50 ohm nominal impedance. Specifications subject to change.
Outline Drawing
THE D10AAxxZ4 SERIES OF ATTENUATORS ARE SYMMETRICAL
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN INCHES
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 544-2414
+44 2392-232392
Model D10AAXXZ4
Specifications
PART NUMBER
ATTENUATION (dB)
TOL. (±dB)
POWER (WATTS)
VSWR
FREQ (GHZ)
D10AA1Z4
1
0.30
10
1.25:1
3.0
D10AA2Z4
2
0.30
10
1.25:1
3.0
D10AA3Z4
3
0.30
10
1.25:1
3.0
D10AA4Z4
4
0.30
10
1.25:1
3.0
D10AA5Z4
5
0.30
10
1.25:1
3.0
D10AA6Z4
6
0.30
10
1.25:1
3.0
D10AA7Z4
7
0.30
10
1.25:1
3.0
D10AA9Z4
9
0.25
10
1.25:1
3.0
D10AA10Z4
10
0.25
10
1.25:1
3.0
D10AA20Z4
20
0.50
10
1.25:1
3.0
D10AA30Z4
30
1.50
10
1.25:1
3.0
Power De-rating
Tape and Reel
*Actual performance could be limited by the solder properties of the application
Mounting Footprint and Procedure
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 544-2414
+44 2392-232392
