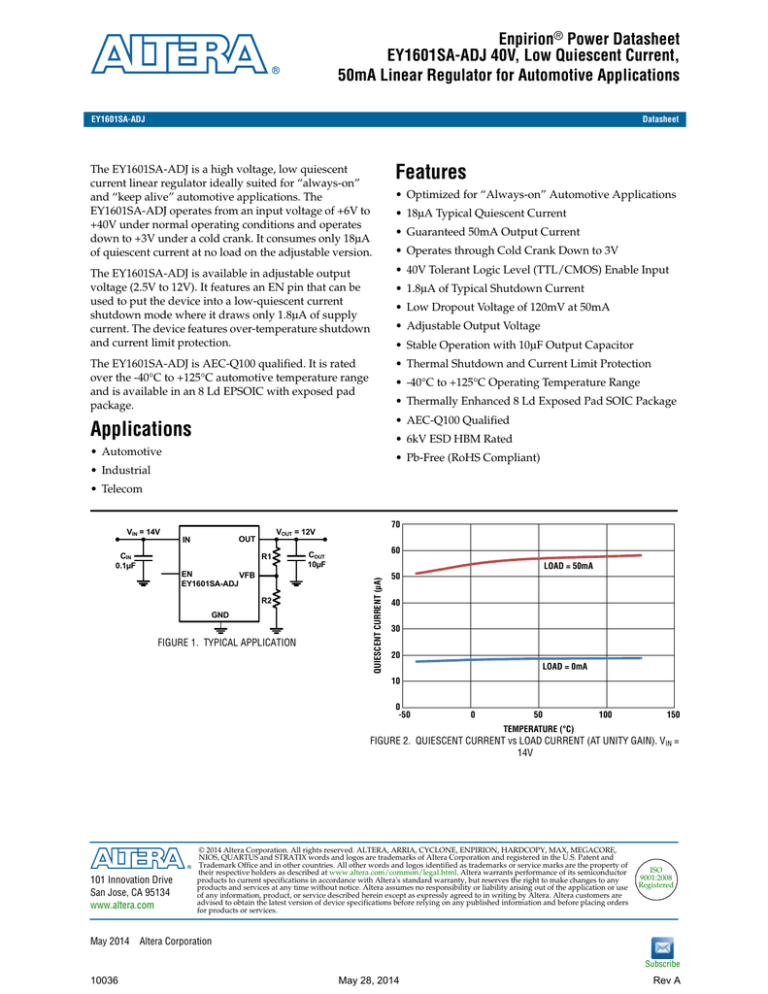

Enpirion® Power Datasheet
EY1601SA-ADJ 40V, Low Quiescent Current,
50mA Linear Regulator for Automotive Applications
EY1601SA-ADJ
Datasheet
The EY1601SA-ADJ is a high voltage, low quiescent
current linear regulator ideally suited for “always-on”
and “keep alive” automotive applications. The
EY1601SA-ADJ operates from an input voltage of +6V to
+40V under normal operating conditions and operates
down to +3V under a cold crank. It consumes only 18µA
of quiescent current at no load on the adjustable version.
Features
The EY1601SA-ADJ is available in adjustable output
voltage (2.5V to 12V). It features an EN pin that can be
used to put the device into a low-quiescent current
shutdown mode where it draws only 1.8µA of supply
current. The device features over-temperature shutdown
and current limit protection.
• 40V Tolerant Logic Level (TTL/CMOS) Enable Input
The EY1601SA-ADJ is AEC-Q100 qualified. It is rated
over the -40°C to +125°C automotive temperature range
and is available in an 8 Ld EPSOIC with exposed pad
package.
• Thermal Shutdown and Current Limit Protection
Applications
• AEC-Q100 Qualified
• Optimized for “Always-on” Automotive Applications
• 18µA Typical Quiescent Current
• Guaranteed 50mA Output Current
• Operates through Cold Crank Down to 3V
• 1.8µA of Typical Shutdown Current
• Low Dropout Voltage of 120mV at 50mA
• Adjustable Output Voltage
• Stable Operation with 10µF Output Capacitor
• -40°C to +125°C Operating Temperature Range
• Thermally Enhanced 8 Ld Exposed Pad SOIC Package
• 6kV ESD HBM Rated
• Automotive
• Pb-Free (RoHS Compliant)
• Industrial
• Telecom
CIN
0.1µF
70
VOUT = 12V
OUT
IN
R1
EN
VFB
EY1601SA-ADJ
R2
GND
FIGURE 1. TYPICAL APPLICATION
60
COUT
10µF
LOAD = 50mA
QUIESCENT CURRENT (µA)
VIN = 14V
50
40
30
20
LOAD = 0mA
10
0
-50
0
50
100
150
TEMPERATURE (°C)
FIGURE 2. QUIESCENT CURRENT vs LOAD CURRENT (AT UNITY GAIN). VIN =
14V
101 Innovation Drive
San Jose, CA 95134
www.altera.com
May 2014
© 2014 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, HARDCOPY, MAX, MEGACORE,
NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and
Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of
their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor
products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any
products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use
of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are
advised to obtain the latest version of device specifications before relying on any published information and before placing orders
for products or services.
ISO
9001:2008
Registered
Altera Corporation
Subscribe
10036
May 28, 2014
Rev A
Page 2
Ordering Information
PART NUMBER
(Notes 1, 2)
PART
MARKING
Y1601A
EY1601SA-ADJ
TEMP.
RANGE
(°C)
ENABLE
PIN
OUTPUT VOLTAGE
(V)
-40 to +125
Yes
ADJ
PACKAGE
(Pb-Free)
8 Ld EPSOIC
PKG.
DWG. #
M8.15B
NOTES:
1. Add “-T*” suffix for tape and reel. Please refer to Packing and Marking Information:
www.altera.com/support/reliability/packing/rel-packing-and-marking.html
2. These Altera Enpirion Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach
materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb
and Pb-free soldering operations). Altera Enpirion Pb-free products are MSL classified at Pb-free peak reflow temperatures that
meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
Pin Configuration
EY1601SA-ADJ
(8 LD EPSOIC)
TOP VIEW
IN
1
8
OUT
NC
2
7
VFB
NC
3
6
NC
EN
4
5
GND
Pin Descriptions
PIN NUMBER
PIN NAME
DESCRIPTION
1
IN
Input voltage pin. A minimum 0.1µF X5R/X7R capacitor is required for proper operation.
2, 3, 6
NC
Pins have internal termination and can be left not connected. Connection to ground is optional.
4
EN
5
GND
Ground pin.
7
VFB
In the adjustable output voltage option, this pin is connected to the external feedback resistor divider which sets
the LDO output voltage.
OUT
Regulated output voltage. A 10µF X5R/X7R output capacitor is required for stability.
EPAD
It is recommended to solder the EPAD to the ground plane.
8
High on this pin enables the device.
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
10036
May 28, 2014
May 2014
Altera Corporation
Rev A
Page 3
Absolute Maximum Ratings
Thermal Information
Supply Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +45V
IN pin to GND Voltage . . . . . . . . . . . . . . . . . .GND - 0.3V to VIN
OUT pin to GND Voltage . . . . . . . . . . . . . . . .GND - 0.3V to 16V
EN pin to GND Voltage. . . . . . . . . . . . . . . . . .GND - 0.3V to VIN
Output Short-circuit Duration . . . . . . . . . . . . . . . . . . . Indefinite
ESD Rating
Human Body Model (Tested per JESD22-A114E) . . . . . . 6kV
Machine Model (Tested per JESD-A115-A) . . . . . . . . . . 350V
Charge Device Model (Tested per JESD22-C101C) . . . 2.2kV
Latch Up (Tested per JESD78B; Class II, Level A). . . . . 100mA
Thermal Resistance (Typical)
θJA (°C/W) θJC (°C/W)
8 Ld EPSOIC Package (Notes 3, 4)
50
9
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . +150°C
Maximum Storage Temperature Range . . . . . .-65°C to +175°C
Recommended Operating Conditions
Ambient Temperature Range . . . . . . . . . . . . . . -40°C to +125°C
IN pin to GND Voltage . . . . . . . . . . . . . . . . . . . . . . .+3V to +40V
OUT pin to GND Voltage . . . . . . . . . . . . . . . . . . .+2.5V to +12V
EN pin to GND Voltage . . . . . . . . . . . . . . . . . . . . . . . .0V to +40V
CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product
reliability and result in failures not covered by warranty.
NOTES:
3. θJA is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features.
4. For θJC, the “case temp” location is the center of the exposed metal pad on the package underside.
Electrical Specifications Recommended Operating Conditions, unless otherwise noted. VIN = 14V, IOUT = 1mA, CIN = 0.1µF, COUT = 10µF, TA = TJ =
-40°C to +125°C, unless otherwise noted. Typical specifications are at TA = +25°C. Boldface limits apply over the operating temperature range, -40°C to
+125°C.
PARAMETER
SYMBOL
Input Voltage Range
TEST CONDITIONS
TYP
MAX
(Note 7) UNIT
6
40
V
Cold Crank condition
3
40
V
50
VIN
Guaranteed Output
Current
IOUT
VIN = VOUT + VDO
Output Voltage
VOUT
EN = High
VIN = 14V
IOUT = 0.1mA
Line Regulation
ΔVOUT/ΔVIN
Load Regulation
ΔVOUT/ΔIOUT
Dropout Voltage
(Note 5)
ΔVDO
VFB pin voltage
1.211
mA
1.223
1.235
V
3V ≤VIN ≤40V
IOUT = 1mA
0.04
0.115
%
VIN = VOUT +VDO
IOUT = 100µA to 50mA
0.25
0.5
%
IOUT = 1mA, VOUT = 3.3V
10
38
mV
IOUT = 50mA, VOUT = 3.3V
130
340
mV
IOUT = 1mA, VOUT = 5V
10
48
mV
IOUT = 50mA, VOUT = 5V
120
350
mV
1.8
3.64
µA
Shutdown Current
ISHDN
EN = LOW
Quiescent Current
IQ
EN = High
VIN = 14V
Power Supply Rejection
Ratio
MIN
(Note 7)
IOUT = 0mA, VFB Version, VOUT = VVFB
18
24
µA
IOUT = 1mA, VFB Version, VOUT = VVFB
22
42
µA
IOUT = 10mA, VFB Version, VOUT = VVFB
34
60
µA
IOUT = 50mA, VFB Version, VOUT = VVFB
56
82
µA
PSRR
f = 100Hz; Vin_ripple = 500mVP-P; Load = 50mA
VEN_H
VOUT = Off to On
VEN_L
VOUT = On to Off
58
dB
EN FUNCTION
EN Threshold Voltage
May 2014
10036
Altera Corporation
1.485
0.935
V
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
May 28, 2014
V
Rev A
Page 4
Electrical Specifications Recommended Operating Conditions, unless otherwise noted. VIN = 14V, IOUT = 1mA, CIN = 0.1µF, COUT = 10µF, TA = TJ =
-40°C to +125°C, unless otherwise noted. Typical specifications are at TA = +25°C. Boldface limits apply over the operating temperature range, -40°C to
+125°C. (Continued)
PARAMETER
SYMBOL
EN Pin Current
IEN
EN to Regulation Time
(Note 6)
tEN
MIN
(Note 7)
TEST CONDITIONS
VOUT = 0V
TYP
MAX
(Note 7) UNIT
0.026
1.65
µA
1.93
ms
PROTECTION FEATURES
Output Current Limit
ILIMIT
VOUT = 0V
Thermal Shutdown
TSHDN
Junction Temperature Rising
Thermal Shutdown
Hysteresis
THYST
60
118
mA
+165
°C
+20
°C
NOTES:
5. Dropout voltage is defined as (VIN - VOUT) when VOUT is 2% below the value of VOUT when VIN = VOUT + 3V.
6. Enable to Regulation is the time the output takes to reach 95% of its final value with VIN = 14V and EN is taken from VIL to VIH in 5ns. For the
adjustable versions, the output voltage is set at 5V.
7. Parameters with MIN and/or MAX limits are 100% tested at +25°C, unless otherwise specified. Temperature limits established by
characterization and are not production tested.
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
10036
May 28, 2014
May 2014
Altera Corporation
Rev A
Page 5
Typical Performance Curves
VIN = 14V, IOUT = 1mA, VOUT = 5V, TJ = +25 °C unless otherwise specified.
80
30
70
+125°C
+125°C
25
QUIESCENT CURRENT (µA)
QUIESCENT CURRENT (µA)
60
50
40
+25°C
-40°C
30
20
10
0
0
10
20
30
40
20
+25°C
10
5
0
50
0
10
LOAD CURRENT (mA)
FIGURE 3. QUIESCENT CURRENT vs LOAD CURRENT
20
INPUT VOLTAGE (V)
30
40
FIGURE 4. QUIESCENT CURRENT vs INPUT VOLTAGE (NO LOAD)
0.010
3.0
% OUTPUT VOLTAGE VARIATION
2.5
SHUTDOWN CURRENT (µA)
-40°C
15
VIN = 40V
2.0
1.5
VIN = 14V
1.0
0.5
0
-50
0
50
100
150
TEMPERATURE (°C)
10036
Altera Corporation
5V
0
-0.005
-0.010
-50
3.3V
0
50
100
150
TEMPERATURE (°C)
FIGURE 5. SHUTDOWN CURRENT vs TEMPERATURE (EN = 0)
May 2014
0.005
FIGURE 6. OUTPUT VOLTAGE vs TEMPERATURE (LOAD = 50mA)
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
May 28, 2014
Rev A
Page 6
Typical Performance Curves
VIN = 14V, IOUT = 1mA, VOUT = 5V, TJ = +25 °C unless otherwise specified. (Continued)
5.100
5.075
EN @ 500mV/DIV
OUTPUT VOLTAGE (V)
5.050
+125°C
+25°C
5.025
5.000
-40°C
4.975
4.950
VOUT @ 1V/DIV
4.925
TIME @ 500µs/DIV
4.900
0
10
20
30
40
50
LOAD CURRENT (mA)
FIGURE 7. OUTPUT VOLTAGE vs LOAD CURRENT
FIGURE 8. START-UP WAVEFORM
70
60
VOUT = 3.3V
PSRR (dB)
50
40
VOUT @ 100mV/DIV
VOUT = 5V
30
50mA
20
IOUT
10
0
100
0mA
TIME @ 5ms/DIV
1k
10k
100k
1M
FREQUENCY (Hz)
FIGURE 9. POWER SUPPLY REJECTION RATIO (LOAD = 50mA)
FIGURE 10. LOAD TRANSIENT RESPONSE
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
10036
May 28, 2014
May 2014
Altera Corporation
Rev A
Page 7
Block Diagram
VIN
EN
CONTROL
LOGIC
+
THERMAL
SENSOR
REFERENCE
+
SOFT-START
EA
FET DRIVER
WITH CURRENT
LIMIT
VOUT
VFB
GND
Functional Description
Functional Overview
The EY1601SA-ADJ is a high performance, high voltage, low-dropout regulator (LDO) with 50mA sourcing capability.
The part is qualified to operate over the -40°C to +125°C automotive temperature range. Featuring ultra-low quiescent
current, it makes an ideal choice for “always-on” automotive applications. It works well under a “load dump
condition” where the input voltage could rise up to 40V. The LDO continues to operate down to 3V under a “coldcrank” condition. The device also features current limit and thermal shutdown protection.
Enable Control
The EY1601SA-ADJ features an enable pin. When it is pulled low, the IC goes to a shutdown mode. In this condition,
the device draws less than 2µA. Driving the pin high turns the device on.
Current Limit Protection
The EY1601SA-ADJ has internal current limit functionality to protect the regulator during fault conditions. During
current limit, the output sources a fixed amount of current largely independent of the output voltage. If the short or
overload is removed from VOUT, the output returns to normal voltage regulation mode.
Thermal Fault Protection
In the event the die temperature exceeds typically +165°C, the output of the LDO will shut down until the die
temperature cools down to typically +145°C. The level of power dissipated, combined with the ambient temperature
and the thermal impedance of the package, will determine if the junction temperature exceeds the thermal shutdown
temperature. Also see the section on “Power Dissipation”.
Application Information
Input and Output Capacitors
For the output, a ceramic capacitor (X5R or X7R) with a capacitance of 10µF is recommended for the EY1601SA-ADJ to
maintain stability. The ground connection of the output capacitor should be routed directly to the GND pin of the
device and also placed close to the IC. A minimum of 0.1µF (X5R or X7R) is recommended at the input.
May 2014
10036
Altera Corporation
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
May 28, 2014
Rev A
Page 8
Output Voltage Setting
For the adjustable version of the EY1601SA-ADJ, the output voltage is programmed using an external resistor divider
as shown in Figure 11.
OUT
IN
CIN
0.1µF
COUT
10µF
R1
EN
ADJ
EY1601SA-ADJ
R2
GND
FIGURE 11. ADJUSTABLE VERSION
The output voltage is calculated using Equation 1:
⎛ R1
⎞
V OUT = 1.223V × ⎜ ------ + 1⎟
R
⎝ 2
⎠
(EQ. 1)
Power Dissipation
The junction temperature must not exceed the range specified in “Recommended Operating Conditions” on page 3.
The power dissipation can be calculated using Equation 2:
P D = ( V IN – V OUT ) × I OUT + V IN × I GND
(EQ. 2)
The maximum allowable junction temperature, TJ(MAX) and the maximum expected ambient temperature, TA(MAX) will
determine the maximum allowable junction temperature rise (DTJ), as shown in Equation 3:
ΔT J = T J ( MAX ) – T A ( MAX )
(EQ. 3)
To calculate the maximum ambient operating temperature, use the junction-to-ambient thermal resistance (θJA) as
shown in Equation 4:
T J ( MAX ) = P D ( MAX ) x θ JA + T A
(EQ. 4)
Board Layout Recommendations
A good PCB layout is important to achieve expected performance. Consideration should be taken when placing the
components and routing the trace to minimize the ground impedance, and keep the parasitic inductance low. The
input and output capacitors should have a good ground connection and be placed as close to the IC as possible. The
feedback trace in the adjustable version should be away from other noisy traces. Connect EPAD to the ground plane
for better heat dissipation. Thermal vias on the EPAD increase heat dissipation.
Revision History
The table lists the revision history for this document.
DATE
REVISION
May, 2014
1.0
CHANGE
Initial Release.
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
10036
May 28, 2014
May 2014
Altera Corporation
Rev A
Page 9
Small Outline Exposed Pad Plastic Packages (EPSOIC)
M8.15B
N
INDEX
AREA
H
0.25(0.010)
M
8 LEAD NARROW BODY SMALL OUTLINE EXPOSED PAD PLASTIC
PACKAGE
B M
E
INCHES
-B1
2
3
TOP VIEW
L
SEATING PLANE
-A-
A
D
hx
-C-
e
B
0.25(0.010) M
α
A1
C
0.10(0.004)
C A M
SYMBOL
MIN
MAX
MIN
MAX
NOTES
A
0.056
0.066
1.43
1.68
-
A1
0.001
0.005
0.03
0.13
-
B
0.0138
0.0192
0.35
0.49
9
C
0.0075
0.0098
0.19
0.25
-
D
0.189
0.196
4.80
4.98
3
E
0.150
0.157
3.81
3.99
4
e
45o
B S
SIDE VIEW
MILLIMETERS
0.050 BSC
1.27 BSC
-
H
0.230
0.244
5.84
6.20
-
h
0.010
0.016
0.25
0.41
5
L
0.016
0.035
0.41
N
8
0.89
6
8
7
a
0°
8°
0°
8°
-
P
-
0.094
-
2.387
11
P1
-
0.094
-
2.387
11
Rev. 5 8/10
NOTES:
1
2
3
1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of
Publication Number 95.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
P1
3. Dimension “D” does not include mold flash, protrusions or gate burrs.
Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006
inch) per side.
N
4. Dimension “E” does not include interlead flash or protrusions. Interlead
flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.
P
BOTTOM VIEW
5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.
6. “L” is the length of terminal for soldering to a substrate.
7. “N” is the number of terminal positions.
8. Terminal numbers are shown for reference only.
9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above
the seating plane, shall not exceed a maximum value of 0.61mm (0.024
inch).
10. Controlling dimension: INCH. Converted millimeter dimensions are not
necessarily exact.
11. Dimensions “P” and “P1” are thermal and/or electrical enhanced
variations. Values shown are maximum size of exposed pad within lead
count and body size.
May 2014
10036
Altera Corporation
Enpirion Power Datasheet EY1601SSA-ADJ 40V, Low Quiescent Current, 50mA Linear Regulator for
Automotive Applications
May 28, 2014
Rev A
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Altera:
EVB-EY1601SA-ADJ EY1601SA-ADJ
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
