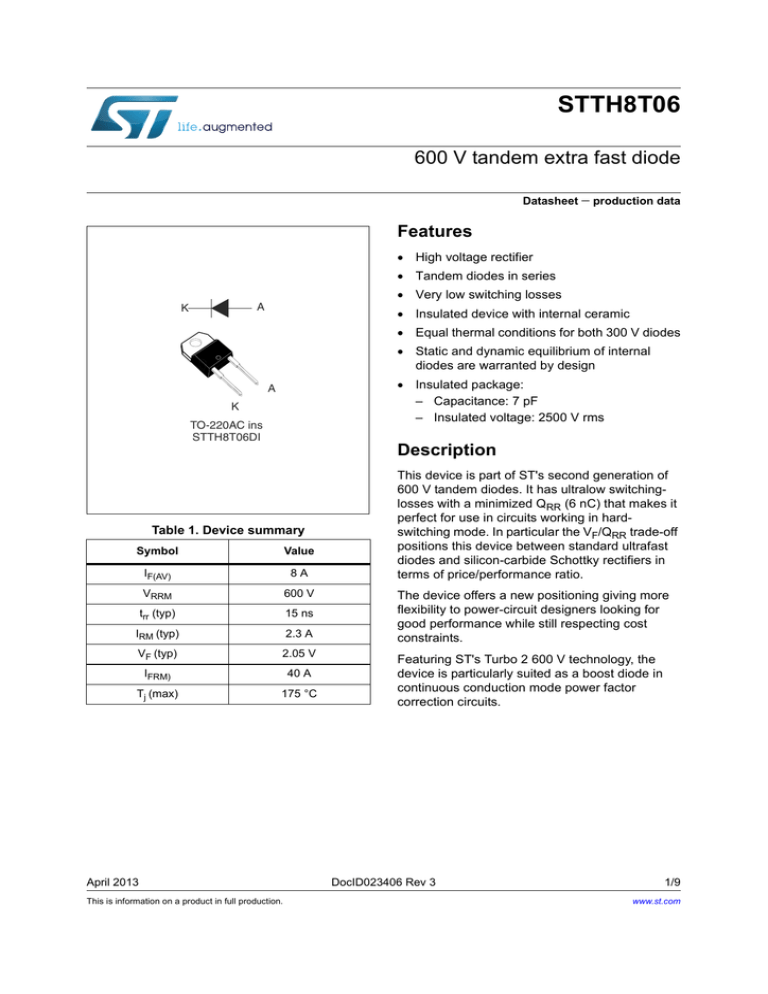

STTH8T06
600 V tandem extra fast diode
Datasheet  production data
Features
 High voltage rectifier
 Tandem diodes in series
 Very low switching losses
A
K
 Insulated device with internal ceramic
 Equal thermal conditions for both 300 V diodes
 Static and dynamic equilibrium of internal
diodes are warranted by design
 Insulated package:
– Capacitance: 7 pF
– Insulated voltage: 2500 V rms
A
K
TO-220AC ins
STTH8T06DI
Description
Table 1. Device summary
Symbol
Value
IF(AV)
8A
VRRM
600 V
trr (typ)
15 ns
IRM (typ)
2.3 A
VF (typ)
2.05 V
IFRM)
40 A
Tj (max)
175 °C
April 2013
This is information on a product in full production.
This device is part of ST's second generation of
600 V tandem diodes. It has ultralow switchinglosses with a minimized QRR (6 nC) that makes it
perfect for use in circuits working in hardswitching mode. In particular the VF/QRR trade-off
positions this device between standard ultrafast
diodes and silicon-carbide Schottky rectifiers in
terms of price/performance ratio.
The device offers a new positioning giving more
flexibility to power-circuit designers looking for
good performance while still respecting cost
constraints.
Featuring ST's Turbo 2 600 V technology, the
device is particularly suited as a boost diode in
continuous conduction mode power factor
correction circuits.
DocID023406 Rev 3
1/9
www.st.com
9
Characteristics
1
STTH8T06
Characteristics
Table 2. Absolute ratings (limiting values at Tj = 25 °C, unless otherwise specified)
Symbol
Parameter
VRRM
Repetitive peak reverse voltage
IF(RMS)
Forward rms current
Value
Tj from 25 to 150 °C
600
Tj = -40 °C
550
Unit
V
14
A
IF(AV)
Average forward current,  = 0.5
Tc = 100 °C
8
A
IFSM
Surge non repetitive forward current
tp = 10 ms sinusoidal
80
A
IFRM
Repetitive peak forward current
Tc = 100 °C,  = 0.1
40
A
Tstg
Storage temperature range
-65 to +175
°C
Operating junction temperature
-40 to +175
°C
Value
Unit
2.8
°C/W
Tj
Table 3. Thermal parameters
Symbol
Rth(j-c)
Parameter
Junction to case
Table 4. Static electrical characteristics
Symbol
Parameter
IR(1)
Reverse leakage current
VF(2)
Forward voltage drop
Test conditions
Tj = 25 °C
Tj = 125 °C
Tj = 25 °C
Tj = 150 °C
Min.
Max.
Unit
10
VR = VRRM
µA
30
300
2.95
IF = 8 A
1. Pulse test: tp = 5 ms,  < 2%
2. Pulse test: tp = 380 µs,  < 2%
To evaluate the conduction losses use the following equation:
P = 1.75 x IF(AV) + 0.10 IF2(RMS)
2/9
Typ.
DocID023406 Rev 3
V
2.05
2.55
STTH8T06
Characteristics
Table 5. Dynamic characteristics
Symbol
Test conditions
Parameter
Tj = 25 °C
Reverse recovery time
trr
Tj = 125 °C
IRM
Reverse recovery current
S
Reverse recovery charge
23
30
IF = 8 A, VR = 400 V,
dIF/dt = -200 A/µs
15
20
IF = 8 A, VR = 400 V,
dIF/dt = -200 A/µs
22
0.8
1.1
Tj = 125 °C
2.3
3
ns
A
1.6
IF = 8 A, VR = 400 V,
dIF/dt = -200 A/µs
Tj = 125 °C
QRR
IF = 1 A, VR = 30 V,
dIF/dt = -50 A/µs
Tj = 25 °C
Tj = 25 °C
Softness factor
Min. Typ. Max. Unit
0.8
Tj = 25 °C
6
Tj = 125 °C
28
nC
Figure 1. Average forward power dissipation
versus average forward current
Figure 2. Forward voltage drop versus forward
current (typical values)
PF(AV) (W)
IFM(A)
32
100.0
δ=0.1
28
δ=0.5
δ =0.2
δ=1
δ=0.05
24
Tj=150 °C
10.0
20
Tj=25 °C
16
Tj=125 °C
12
1.0
8
T
4
IF(AV)(A)
δ=tp/T
tp
VFM(V)
0.1
0
0
1
2
3
4
5
6
7
8
9
10
Figure 3. Relative variation of thermal
impedance, junction to case, versus pulse
duration
1.0
0.0 0.5 1.0
11
1.5 2.0 2.5 3.0 3.5
4.0 4.5 5.0 5.5 6.0
6.5 7.0
Figure 4. Peak reverse recovery current versus
dIF/dt (typical values)
IRM(A)
Z th(j-c)/Rth(j-c)
8
0.9
VR=400 V
Tj=125 °C
7
0.8
6
0.7
IF=2 x IF(AV)
5
0.6
0.5
4
0.4
3
IF=I F(AV)
0.3
Single pulse
IF=0.5 x IF(AV)
2
0.2
0.1
0.0
1.E-04
1
tp(s)
dIF/dt(A/µs)
0
1.E-03
1.E-02
1.E-01
1.E+00
1.E+01
1.E+02
0
100
DocID023406 Rev 3
200
300
400
500
600
700
800
900
1000
3/9
Characteristics
STTH8T06
Figure 5. Reverse recovery time versus dIF/dt
(typical values)
Figure 6. Reverse recovery charges versus
dIF/dt (typical values)
tRR(ns)
50
60
QRR(nC)
VR=400 V
Tj=125 °C
VR=400 V
Tj=125 °C
50
40
IF=2 x IF(AV)
40
30
IF=2 x IF(AV)
30
IF=I F(AV)
20
IF=0.5 x IF(AV)
20
IF=0.5 x IF(AV)
IF=I F(AV)
10
10
dIF/dt(A/µs)
dIF/dt(A/µs)
0
0
0
100
200
300
400
500
600
700
800
900
0
1000
Figure 7. Reverse recovery softness factor
versus dIF/dt (typical values)
100
200
300
400
500
600
700
800
900
1000
Figure 8. Relative variations of dynamic
parameters versus junction temperature
2.50
SFACTOR
2.0
IF=I F(AV)
VR=400 V
Reference: T j=125 °C
2.25
IF=I F(AV)
VR=400 V
Tj=125 °C
2.00
SFACTOR
1.75
1.5
1.50
1.25
1.0
1.00
0.75
0.5
IRM
0.50
QRR
0.25
dIF/dt(A/µs)
Tj(°C)
0.00
0.0
0
100
200
300
400
500
600
700
800
900
1000
Figure 9. Junction capacitance versus reverse
voltage applied (typical values)
C(pF)
25
75
100
125
Figure 10. Relative variation of non-repetitive
peak surge forward current versus pulse
duration
4.0
100
50
IFSM(tp)/IFSM (10ms)
sinusoidal waveform
F=1 MHz
VOSC=30 mVRMS
Tj=25 °C
3.5
3.0
2.5
2.0
1.5
VR (V)
10
4/9
tp (ms)
,
1.0
1
10
100
1000
0.1
DocID023406 Rev 3
1.0
10.0
STTH8T06
Characteristics
Figure 11. Relative variation of non-repetitive peak surge forward current versus initial junction
temperature (sinusoidal waveform)
1.2
IFSM(Tj)/IFSM(25 °C)
1.0
0.8
0.6
0.4
0.2
Tj (°C)
0.0
25
50
75
100
125
DocID023406 Rev 3
150
175
5/9
Package information
2
STTH8T06
Package information

Epoxy meets UL94, V0

Cooling method: by conduction (C)

Recommended torque: 0.4 to 0.6 N·m
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
Figure 12. T0-220AC ins dimension definitions
C
B
ØI
b2
L
F
A
I4
c2
a1
l2
a2
M
b1
e
6/9
DocID023406 Rev 3
c1
STTH8T06
Package information
Table 6. T0-220AC ins dimension values
Dimensions
Ref.
Millimeters
Min.
A
Typ.
15.20
a1
Inches
Max.
Min.
15.90
0.598
3.75
Typ.
Max.
0.625
0.147
a2
13.00
14.00
0.511
0.551
B
10.00
10.40
0.393
0.409
b1
0.61
0.88
0.024
0.034
b2
1.23
1.32
0.048
0.051
C
4.40
4.60
0.173
0.181
c1
0.49
0.70
0.019
0.027
c2
2.40
2.72
0.094
0.107
e
4.80
5.40
0.189
0.212
F
6.20
6.60
0.244
0.259
ØI
3.75
3.85
0.147
0.151
I4
15.80
16.80
0.622
L
2.65
2.95
0.104
0.116
l2
1.14
1.70
0.044
0.066
M
16.40
2.60
DocID023406 Rev 3
0.646
0.661
0.102
7/9
Ordering information
3
STTH8T06
Ordering information
Table 7. Ordering information
4
Order code
Marking
Package
Weight
Base qty
Delivery mode
STTH8T06DI
STTH8T06DI
TO-220AC ins
2.30 g
50
Tube
Revision history
Table 8. Document revision history
8/9
Date
Revision
Changes
16-Oct-2012
1
Initial release
07-Nov-2012
2
Expanded description section
11-Apr-2013
3
Added Figure 10 and Figure 11.
DocID023406 Rev 3
