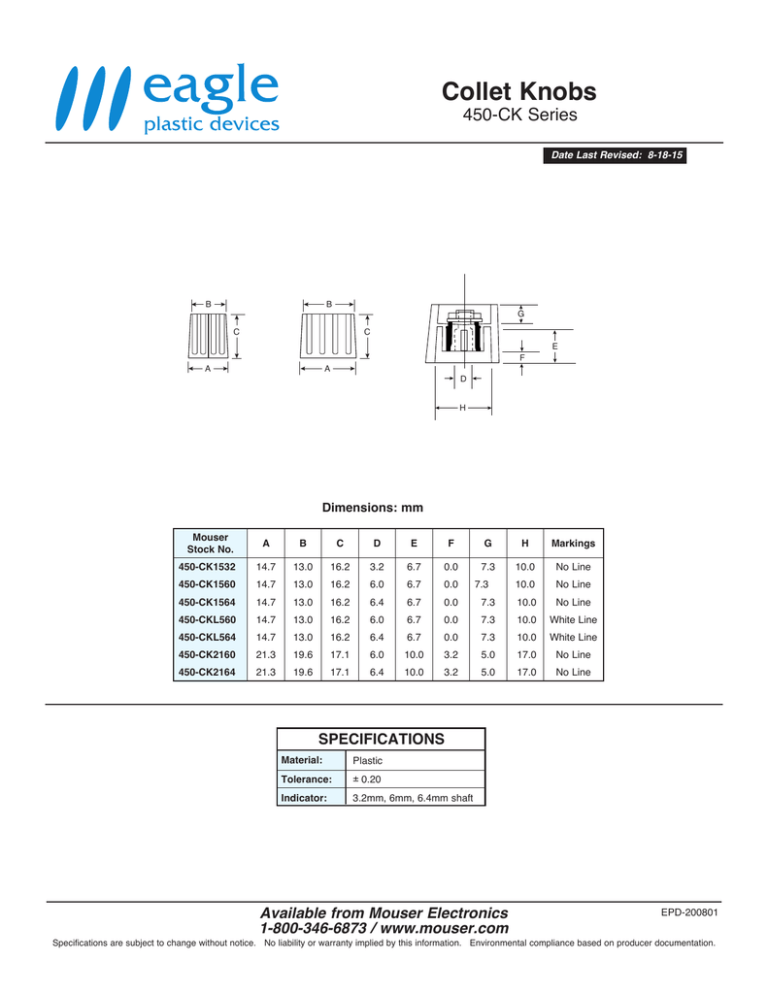

Collet Knobs 450-CK Series Dimensions: mm

Collet Knobs 450-CK Series Dimensions: mm
Collet Knobs
450-CK Series
Date Last Revised: 8-18-15
B
B
G
C
C
A
F
A
E
D
H
Dimensions: mm
Mouser
Stock No.
A
B
C
D
E
F
G
H
Markings
450-CK1532
14.7
13.0
16.2
3.2
6.7
0.0
7.3
10.0
No Line
450-CK1560
14.7
13.0
16.2
6.0
6.7
0.0
10.0
No Line
450-CK1564
14.7
13.0
16.2
6.4
6.7
0.0
7.3
10.0
No Line
450-CKL560
14.7
13.0
16.2
6.0
6.7
0.0
7.3
10.0
White Line
450-CKL564
14.7
13.0
16.2
6.4
6.7
0.0
7.3
10.0
White Line
450-CK2160
21.3
19.6
17.1
6.0
10.0
3.2
5.0
17.0
No Line
450-CK2164
21.3
19.6
17.1
6.4
10.0
3.2
5.0
17.0
No Line
7.3
SPECIFICATIONS
Material:
Plastic
Tolerance:
±
­ 0.20
Indicator:
3.2mm, 6mm, 6.4mm shaft
Available from Mouser Electronics
1-800-346-6873 / www.mouser.com
EPD-200801
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Eagle Plastic Devices:
450-CK1532 450-CK1560 450-CK1564 450-CK2160 450-CK2164 450-CKL560 450-CKL564
