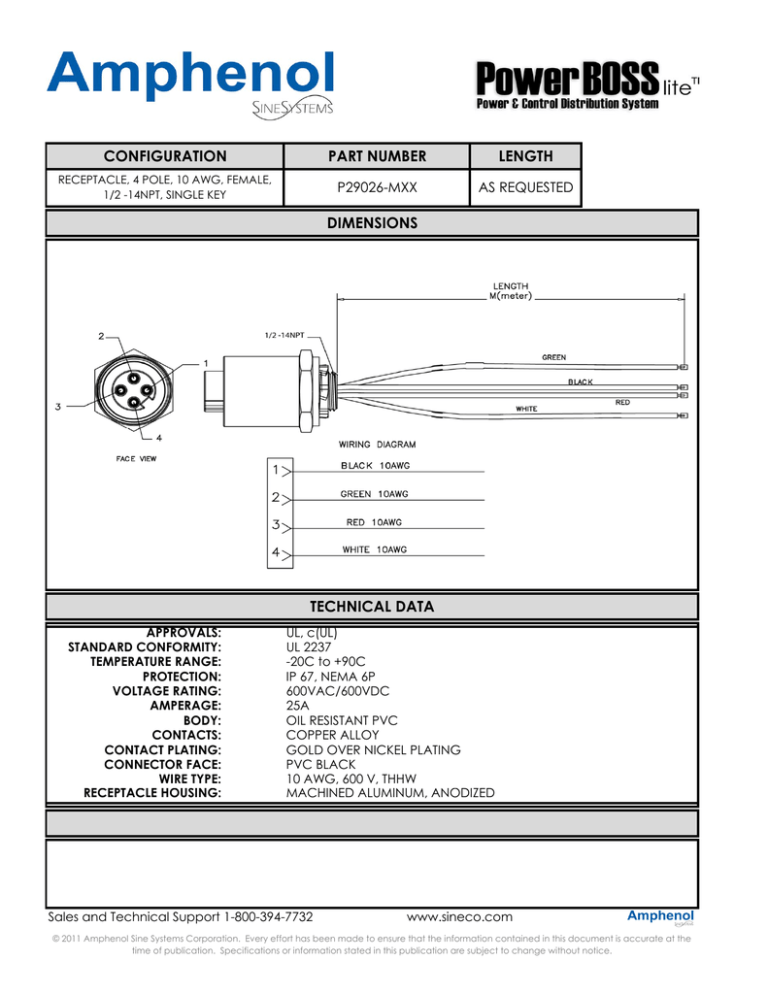

PART NUMBER LENGTH CONFIGURATION DIMENSIONS

PART NUMBER LENGTH CONFIGURATION DIMENSIONS
CONFIGURATION
PART NUMBER
LENGTH
RECEPTACLE, 4 POLE, 10 AWG, FEMALE,
1/2 -14NPT, SINGLE KEY
P29026-MXX
AS REQUESTED
DIMENSIONS
TECHNICAL DATA
APPROVALS:
STANDARD CONFORMITY:
TEMPERATURE RANGE:
PROTECTION:
VOLTAGE RATING:
AMPERAGE:
BODY:
CONTACTS:
CONTACT PLATING:
CONNECTOR FACE:
WIRE TYPE:
RECEPTACLE HOUSING:
UL, c(UL)
UL 2237
-20C to +90C
IP 67, NEMA 6P
600VAC/600VDC
25A
OIL RESISTANT PVC
COPPER ALLOY
GOLD OVER NICKEL PLATING
PVC BLACK
10 AWG, 600 V, THHW
MACHINED ALUMINUM, ANODIZED
Sales and Technical Support 1-800-394-7732
www.sineco.com
© 2011 Amphenol Sine Systems Corporation. Every effort has been made to ensure that the information contained in this document is accurate at the
time of publication. Specifications or information stated in this publication are subject to change without notice.
