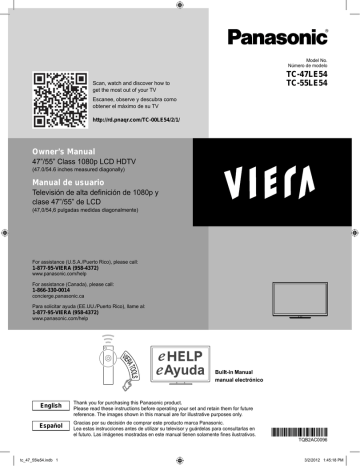

Model No.
Número de modelo
TC-47LE54
TC-55LE54
Scan, watch and discover how to
get the most out of your TV
Escanee, observe y descubra como
obtener el máximo de su TV
http://rd.pnaqr.com/TC-00LE54/2/1/
Owner’s Manual
47”/55” Class 1080p LCD HDTV
(47.0/54.6 inches measured diagonally)
Manual de usuario
Televisión de alta definición de 1080p y
clase 47”/55” de LCD
(47,0/54,6 pulgadas medidas diagonalmente)
For assistance (U.S.A./Puerto Rico), please call:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
For assistance (Canada), please call:
1-866-330-0014
concierge.panasonic.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
manual electrónico
English
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Español
Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en
el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.
TQB2AC0096
tc_47_55le54.indb 1
3/2/2012 1:45:18 PM
This product incorporates the following software or technology:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software based in part on the work of the Independent JPEG Group,
(4) the software developed by the FreeType Project,
(5) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE (LGPL) and/or,
(6) open sourced software other than the software licensed under the LGPL.
(7) “PlayReady”(digital right management technology) licensed by Microsoft Corporation or its affiliates.
For the software categorized as (5), please refer to the terms and conditions of LGPL, as the case may be at
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
In addition, the software categorized as (5) are copyrighted by several individuals.
Please refer to the copyright notice of those individuals at
http://www.am-linux.jp/dl/DTV12U/
The LGPL software is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information
provided below, for a charge no more than our cost of physically performing source code distribution,
a complete machine-readable copy of the corresponding source code covered under LGPL.
Contact Information
cdrequest@am-linux.jp
Source code covered under LGPL is also freely available to you and any other member of the public via our website below.
http://www.am-linux.jp/dl/DTV12U/
For the software categorized as (5) and (6), please refer to the applicable license terms included in the “Setup” menu on product.
Further, for PlayReady categorized as (7), please be aware of the following.
(a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this
technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
(b) Content owners use Microsoft PlayReady(TM) content access technology to protect their intellectual property, including
copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or
WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require
Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected
content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content.
If you decline an upgrade, you will not be able to access content that requires the upgrade.
2
tc_47_55le54.indb 2
3/2/2012 1:45:18 PM
VIERA Link™ is a trademark of
Panasonic Corporation.
HDMI, the HDMI logo and HighDefinition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
Contents
Please read before using the unit
SDXC Logo is a trademark of SD3C, LLC.
“AVCHD” and the “AVCHD” logo
are trademarks of Panasonic
Corporation and Sony Corporation.
DLNA®, the DLNA Logo and DLNA
CERTIFIED™ are trademarks,
service marks, or certification
marks of the Digital Living Network
Alliance.
QuickTime and the QuickTime
logo are trademarks or registered
trademarks of Apple Inc., used
under license there from.
Precautions·································· 4
• Safety
Accessory ················ 8
• Accessories/Optional
········································· 11
• Connections
Controls ································14
• Identifying
Time Setup ····································15
• First
eHELP (Built-in Manual) ·················16
• Using
Asked Questions (FAQ) ···········17
• Frequently
and Cleaning ·································17
• Care
·······································18
• Specifications
Warranty
• Limited
(for U.S.A. and Puerto Rico only) ··············19
Services Directory
• Customer
(for U.S.A. and Puerto Rico) ····················20
• Limited Warranty (for Canada)··················21
This product qualifies for ENERGY
STAR in the “Home Use” setting
and this is the setting in which
energy savings will be achieved.
Any modifications to the “Home
Use” setting or other factory default
settings could result in greater
energy consumption beyond
levels that meet ENERGY STAR
qualifications.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDAVI Control™ is a trademark of Panasonic Corporation.
Skype™ is a trademark of Skype limited.
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC
Standard (“AVC Video”) and/or (ii) decode AVC Video
that was encoded by a consumer engaged in a personal
and non-commercial activity and/or was obtained from a
video provider licensed to provide AVC Video. No license
is granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
3
tc_47_55le54.indb 3
3/2/2012 1:45:18 PM
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead
within a triangle is intended to tell the
user that parts inside the product are a
risk of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating and
servicing instructions are in the
papers with the appliance.
Note to CATV System Installer
This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.
Secure Ventilation
Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD
TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space
around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This
LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
Important Safety Instructions (TV set)
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
Only use attachments / accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied
to your home, consult your television dealer or local power company.
Follow all warnings and instructions marked on the LCD TV.
Never push objects of any kind into this LCD TV through cabinet
slots as they may touch dangerous voltage points or short out parts EXAMPLE OF ANTENNA
GROUNDING AS PER
that could result in a fire or electric shock. Never spill liquid of any
(NEC) NATIONAL
kind on the LCD TV.
ANTENNA
ELECTRICAL
If an outside antenna is connected to the television equipment,
LEAD-IN WIRE
CODE
be sure the antenna system is grounded so as to provide some
GROUND CLAMP
protection against voltage surges and built up static charges.
ANTENNA
In the U.S. Section 810-21 of the National Electrical Code
DISCHARGE UNIT
provides information with respect to proper grounding of the mast
ELECTRIC
(NEC SECTION 810-20)
SERVICE
and supporting structure, grounding of the lead-in wire to an
GROUNDING
EQUIPMENT
antenna discharge unit, size of grounding conductors, location of
CONDUCTORS
antenna discharge unit, connection to grounding electrodes, and
(NEC SECTION 810-21)
requirements for the grounding electrode.
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
4
tc_47_55le54.indb 4
3/2/2012 1:45:19 PM
19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a.
When the power cord or plug is damaged or frayed.
b.
If liquid has been spilled into the LCD TV.
c.
If the LCD TV has been exposed to rain or water.
d.
If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the LCD TV to normal operation.
e.
If the LCD TV has been dropped or the cabinet has been damaged.
f.
When the LCD TV exhibits a distinct change in performance - this indicates a need for service.
21) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that
have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET
(INCLUDING ON SHELVES ABOVE, ETC.).
23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL
PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS
AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.
24) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all
times.
25) WARNING: Do not place this TV in any medical institutions or locations with medical devices.
Radio waves from this TV may interfere with the medical devices and cause accidents due to the
malfunction.
26) WARNING: Do not use this TV near any automatic control devices such as automatic doors or fire alarms.
Radio waves from this TV may interfere with the automatic control devices and cause accidents due to the
malfunction.
27) WARNING: Keep this TV away at least 9 inches (22 cm) from the location where a cardiac pacemaker is implanted.
Radio waves from this TV may interfere with the operation of the pacemaker.
28) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves as the main
disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power.
Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet
in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when
left unused for a long period of time (for example, when on vacation).
29) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
30) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.
31) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.
NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC
house current are exactly the same as in North America.
5
tc_47_55le54.indb 5
3/2/2012 1:45:19 PM
FCC and IC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded
interface cable with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not
expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.
FCC Declaration of Conformity
Models:
Responsible Party:
Contact Source:
Telephone No.:
Email:
TC-47LE54, TC-55LE54
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Panasonic Consumer Marketing Company of North America
1-877-95-VIERA (958-4372)
consumerproducts@panasonic.com
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
RF Exposure Warning:
• This TV is provided with USB port on rear enclosure for exclusive use for insertion of optional provided Wireless LAN Adapter.
• Other transmitters shall not be used in this port, unless specifically recommended. Other third-party wireless transmitters have
not been RF exposure evaluated for use with this TV and may not comply with RF exposure requirements.
• This transmitter complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment for mobile use
with minimum 8 inches (20 cm) spacing requirement between transmitters and all person’s body (excluding extremities of
hands, wrist and feet) during wireless modes of operation.
<Only for Wireless Adaptor if capable of transmission in the 5.15 ~ 5.25 GHz frequency band>
This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC and IC require this
product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with and/or damage this product.
■ About wireless LAN adapter (Optional Accessory)
● Wireless LAN adapter and Access point need to be obtained separately.
For the latest information on applicable wireless LAN adapters, check the following website:
http://Panasonic.com/NetConnect
● Check that the Access point supports WPS*.
(If it does not support WPS, “Password” of the Access point is required when configuring settings.)
● Follow the instructions on the Access point setup screen and configure the appropriate security settings.
For more details on setting of Access point, please refer to operating manual for the Access point.
● We recommend using 11n (5 GHz) for the wireless system between the wireless LAN adapter and Access point.
Communication is also possible with 11a, 11b, and 11g (2.4 GHz), but the communication speed may be slower.
● If the wireless system of the Access point is changed, devices that could connect by wireless LAN may no longer be able to
connect.
● When Online Movies, DLNA, or other device is using the network, do not disconnect the wireless LAN adapter.
● Data transmitted and received over radio waves may be intercepted and monitored.
● Keep the TV away from the following devices as much as possible:
Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals. Otherwise, the TV failures such as
malfunction may occur due to the radio wave interference.
● When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case,
turn the TV Off with power On / Off switch, then turn it On again.
* WPS: Wi-Fi Protected Setup
6
tc_47_55le54.indb 6
3/2/2012 1:45:19 PM
CEA CHILD SAFETY NOTICES
WARNING
Flat panel displays are not always supported on the
proper stands or installed according to the manufacturer’s
recommendations. Flat panel displays that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and may cause personal injury or
even death.
The consumer electronics industry (of which Panasonic is
a member) is committed to making home entertainment
enjoyable and safe. To prevent personal injury or death, be
sure to follow the following safety guidelines:
TUNE INTO SAFETY:
• One size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your
flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don’t allow children to climb on or play with furniture and
television sets.
• Don’t place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
• Remember that children can become excited while watching
a program, especially on “larger than life” flat panel
displays. Care should be taken to install the display where it
cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables
connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall
mount manufacturers.
• If you have any doubts about your ability to safely
install your flat panel display, contact your retailer about
professional installation.
• Make sure the wall where you are mounting the display
is appropriate. Some wall mounts are not designed to
be mounted to walls with steel studs or old cinder block
construction. If you are unsure, contact a professional
installer.
• A minimum of two people are required for installation. Flat
panel displays can be heavy.
Panasonic recommends that a qualified installer perform
the wall-mount installation. See page 8.
The American Academy of Pediatrics discourages media
viewing for children younger than two years. For more
details, see www.aap.org.
7
tc_47_55le54.indb 7
3/2/2012 1:45:19 PM
Accessories/Optional Accessory
Accessories
Check you have all the items shown.
Accessories
Remote Control
Transmitter
•
Batteries for the Remote
Control Transmitter (2)
•
N2QAYB000705
How to assemble (p. 9)
AA Battery
Power cord
•
Cable clamper
Owner’s Manual
Quick Start Guide
Child safety
Product Registration Card (U.S.A.)
TV
Pedestal
TC-47LE54
•
TC-55LE54
Component/AV adapter
•
K2KYYYY00199
Wireless LAN Adaptor
• To use the Wireless LAN Adaptor for VIERA, an access point needs to be obtained.
for VIERA and exclusive • It is recommended to use the Wireless Adaptor for VIERA with its exclusive stand.
stand
• To avoid malfunctions caused by radio wave interference, keep the TV away from the
TY-WL20U
devices such as other wireless LAN devices, microwaves and the devices that use
2.4 GHz and 5 GHz signals when using the Wireless Adaptor for VIERA.
• Depending on the area, this optional accessory may not be available.
• Additional information for Wireless LAN Adaptor and access point may be on the
following website.
http://panasonic.jp/support/global/cs/tv/
•
Optional Accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional
details, please refer to the optional accessories installation manual.
Communication Camera
● TY-CC20W
• This camera can be used with VIERA Connect.
• It is recommended to connect the communication camera directly to the TV’s USB2 ports.
• For details, read the manual for the Communication Camera.
Wall-hanging bracket
Please contact a professional installer to purchase the recommended UL qualified wall-hanging bracket. For
additional details, please refer to the wall-hanging bracket installation manual.
Back of the TV
15.7 ”
(400 mm)
Screw for attaching the TV to the wallhanging bracket (not supplied with the TV)
15.7 ”
(400 mm)
Depth of screw:
Minimum: 0.39 ” (10.0 mm)
Maximum: 0.55 ” (14.0 mm)
M6
Holes for wall-hanging bracket
installation
(View from the side)
WARNING
Always be sure to ask a qualified technician to carry out set-up.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before
hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
Incorrect wall-hanging bracket or incorrect fitting may cause equipment to fall, resulting in injury and product damage.
Panasonic disclaims liability for any damage or injury arising from incorrect wall-hanging bracket, incorrect fitting or
otherwise failure to follow the above instructions.
8
tc_47_55le54.indb 8
3/2/2012 1:45:19 PM
Attaching the pedestal to TV
■Assembling the pedestal
Fix securely with assembly screws A
(Total 4 screws).
Tighten screws firmly.
A
Make sure that the bracket is
anchored before fixing the screws.
Bracket
Accessories
Assembly screws
(4 of each)
Front
A
XSS5+15FNK size
(M5 x 15)
Base
■Set-up
B
(Image)
XYN4+F25FJK size
(M4 × 25)
Tighten assembly screws B (total 4 screws) loosely at first,
then tighten them firmly to fix securely.
Rear view
Bracket (1)
TBL5ZA32821
B
Rear side
Base (1)
TBL5ZX0270 (for 47”)
TBL5ZX03841 (for 55”)
Arrow
mark
Arrow
mark
Base
Hole for pedestal
installation
bracket
(Image)
Work on a flat surface
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall
hanging bracket or repacking the TV.
Remove the assembly screws B from the TV.
Lift the TV from the pedestal.
Remove the assembly screws A from the bracket.
WARNING
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than that provided with this TV.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure. (above)
Otherwise the TV and/or pedestal may fall over and become damaged, and personal injury may result.
tc_47_55le54.indb 9
9
3/2/2012 1:45:20 PM
Installing the remote’s batteries
Close
Pull
open
Hook
Caution
Incorrect installation may cause
battery leakage and corrosion,
resulting in damage to the remote
control.
not mix old and new batteries.
• Do
not mix different battery types (such
• Do
as alkaline and manganese batteries).
not use rechargeable (Ni-Cd)
• Do
batteries.
Note the correct
polarity (+ or -).
Do not burn or break batteries.
Power cord connection
Insert the power cord plug (included) firmly into place.
disconnecting the power cord, be absolutely
• When
sure to disconnect the power cord plug from the
wall outlet first.
included power cord is for use with this unit
• The
only.
10
tc_47_55le54.indb 10
3/2/2012 1:45:20 PM
Connections
Connection Panels
Back of the TV
SD card
slot
USB1/2
terminal
Ethernet
connector
PC
terminal
● For
,
,
connections, please refer to
p. 12
Antenna or Cable connection
Back of the TV
VHF/UHF Antenna
Cable TV
Power Cord
(Connect after all the
other connections have
been made.)
or
VHF/UHF Antenna
• NTSC (National Television System Committee):
ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV), standard-definition television
(SDTV), data broadcasting, multi-channel surround audio and interactive television.
Cable
● You need to subscribe to a cable TV service to enjoy viewing their programming.
● You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.
The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 12)
Note
● When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.
● When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
● For additional assistance, visit us at: www.panasonic.com/help
www.panasonic.ca
11
tc_47_55le54.indb 11
3/2/2012 1:45:20 PM
AV cable connection
Best
To use HDMI terminals
HDMI
AV OUT
AV Equipment
e.g. Blu-ray Disc
player
DVI OUT
AV Equipment
HDMI-DVI
Conversion cable
(not in use)
white
L
white
AUDIO OUT
e.g. Blu-ray Disc
player
R
red
red
Component/AV
adapter
To use COMPONENT terminals
Good
Y
green/
yellow
green
green green
PB COMPONENT
blue
blue
blue
blue
VIDEO OUT
PR
Component/AV
adapter
red
red
red
red
L
white
AUDIO
white white OUT
R
white
red
red
red
AV Equipment
e.g. Blu-ray Disc
player
red
To use COMPOSITE terminals
Basic
(Not HD)
yellow
green/
yellow
AV Equipment
yellow yellow
(not in use)
L
Component/AV
adapter
white
COMPOSITE
white OUT
e.g. DVD Recorder
or
R
white
red
red
white
red
e.g. VCR
red
Note
● In some cases, it is not possible to connect depending on the type of cable or equipment.
● The Green/Yellow terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN)
connection. When using COMPOSITE (VIDEO IN) connection the Yellow connector (Video) should be
inserted into Green/Yellow connection.
Input select:
INPUT
Video
Comp.
OK
select
(For more details, please refer to eHELP (p. 16).)
12
tc_47_55le54.indb 12
3/2/2012 1:45:20 PM
Audio connection
Audio equipment
Optical cable
DIGITAL
AUDIO IN
e.g. Amplifier
PC / Computer connection (VGA)
Component/AV adapter
(not in
use)
Connect cable which matches the
audio out terminal on the computer
Audio cable
white white
Computer
Audio OUT
red red
PC OUT
RGB PC cable
Conversion adapter
(if necessary)
Cable Binding Instructions
To attach
To remove
hole
Snaps
Cable clamper
Keep pushing
both sides till
they snap
Insert
To bundle
hooks
To loosen
Set
knob
Keep pushing
the knob
● Do not bundle the Antenna cable and AC cord together (could cause distorted image).
● Fasten the cables with the Cable clamper as necessary.
● When using the options, follow the option’s assembly manual to fix cables.
13
tc_47_55le54.indb 13
3/2/2012 1:45:21 PM
Identifying Controls
TV controls/indicators
Front of the TV
Back of the TV
Changes the input mode
Chooses Menu and
Submenu entries
(Press and hold down for
MENU function)
Selects channels
in sequence
Volume up/down
Remote control sensor within
about 23 feet (7 meters)
in front of the TV set
POWER button
• An image of the control panel is displayed on the screen while
using it.
Power indicator (on: red, off: no light)
C.A.T.S (Contrast Automatic Tracking System)
Note
The TV consumes a small amount of electric energy even when turned off.
Do not place any objects between the TV remote control sensor and remote control.
Remote control
Closed Caption On/Off
POWER
CC
Switches TV On or Off (Standby)
SAP
Selects Secondary Audio Programming
INPUT SD/USB EXIT
Select source to watch
OK
Displays Option Menu for special
functions (when available)
Colored buttons
(used for various functions)
Volume up/down
OPTION
R
Exits from menu screen
VI
TOOLS
ERA
Displays Main Menu
MEN
U
RN
INTE ET
RETURN
G
B
Y
Viewing from external media (SD/USB)
Displays VIERA Connect Home
screen
Display VIERA TOOLS Menu
Selects/OK/Change
Go back to previous menu
CH
VOL
MUTE FORMAT INFO FAVORITE
Channel up/down, when viewing from
ANT/Cable source
Sound mute On/Off
@
ABC
DEF
Operates the Favorite channel list
function
GHI
JKL
MNO
Displays or removes the channel banner
PQRS
TUV
WXYZ
Changes aspect ratio and zoom
Switches to previously viewed channel
or input
LAST
,
External equipment operations
Numeric keypad to select any channel
or press to enter alphanumeric input in
menus
Use for digital channels.
TV
14
tc_47_55le54.indb 14
3/2/2012 1:45:21 PM
First Time Setup
The first time setup screen is displayed only when the TV is turned on for the first time, after the power cord
is inserted into a wall outlet and when “Auto power on” is set to “No”.
(Press MENU --> Setup --> Advanced setup -->Auto power on)
Turn the TV On with the POWER button
or
(TV)
(Remote)
POWER
or
Setup the following items
● Select your language
● Select your country
● Select your viewing mode (Be sure to select “Home Use”)
POWER
OK
If you select “Store Demonstration” by mistake, confirmation screen will be
displayed.
To display the “Set viewing mode” screen again and select “Home Use”, do one of
the following:
• Press and hold down the POWER button on the TV for at least five seconds.
• Unplug power cord for 30 seconds and plug in again.
● ANT/Cable setup
Select and set the settings according to your ANT/Cable environment.
Select “Yes” on the confirmation screen to start the scanning process.
After scanning is finished completely, press OK to continue.
● Label the inputs for easy identification
To name each input, follow the instructions on screen.
When done, select NEXT and press OK to go to the next step.
● Configure Network settings
Select the Network type and select the setting mode.
If you select “Wireless (WiFi)”, start “Wireless network settings”
Select “Automatic” or set “Manual” setting, start connection test.
When you complete “Network settings” successfully, the completion screen will be
displayed.
● Adjust the Clock
Select the clock mode and set other settings.
When “Auto” is selected, clock will be set automatically according to Time zone
and DST.
Complete First time setup
Completion screen is displayed.
TV
You can repeat the First time setup
• Press MENU --> Setup --> First time setup
To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR,
gaming device, etc.), press the INPUT button and select the appropriate input.
15
tc_47_55le54.indb 15
3/2/2012 1:45:21 PM
Using eHELP (Built-in Manual)
eHELP (built-in manual) helps you understand how to easily operate the TV features by pressing the VIERA
TOOLS button.
Display eHELP
OK
TOOLS
ERA
VI
select
next
[Top page]
When you enter eHELP again after exit, the confirmation screen is
displayed while the TV is turned on.
You can select “TOP PAGE” or “LAST PAGE”.
Select the desired page from the menu
Categories
Menus
select
OK
Sub menus
select
OK
next
Desired page
select
OK
Change the menus using ▲/ ▼
next
RETURN
To return the previous menu/layer
EXIT
To exit from eHELP
Operate eHELP
Display the Menu related to the explanation page after exiting eHELP.
Menu
Audio
Setup
1/2
Channel surf mode
All
Language
Clock
Network
Timer
Lock
ANT/Cable setup
Input labels
Closed Caption
VIERA Link settings
Setup
16
tc_47_55le54.indb 16
“Go to Menu” is available depending on the situation or condition.
3/2/2012 1:45:21 PM
Frequently Asked Questions (FAQ)
Questions
Answers
Why doesn’t the Remote
Control work?
Check that the batteries are fresh, are of the same type and are
installed with the correct polarity (+ & -).
To operate other devices, such as changing channels when using
Cable or Satellite boxes or operating non-Panasonic Blu-ray
players, use the remote supplied with the device.
Why is there no picture or just
a blue, black or snowy screen
being displayed?
Check if the power cord is plugged in and the TV is turned on (front
red LED light should be on, not blinking)
Press the INPUT button on the remote to select the correct input source.
Ensure all connections are correct and secure.
When using external video source, such as a Cable/Satellite box or DVD
player, check that the device is on and functioning correctly.
Press MENU on the TV’s remote control. If the menu is displayed,
then the TV is working; recheck above steps.
Why is the screen blank and the
power indicator blinking?
The TV has gone into shutdown mode to protect itself. Try unplugging it for a
few minutes and connecting it again. If there was a temporary power surge
on the AC line it may now be OK. If the blinking returns, call 1-877-95-VIERA
(U.S.A.) or 1-866-330-0014 (Canada).
How do I display eHELP (built-in Manual) ?
Press VIERA TOOLS on the TV’s remote control to display eHELP.
(p. 16)
Care and Cleaning
First, unplug the Power cord plug from the wall outlet.
Display panel
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lintfree cloth.
If the surface is particularly dirty, after cleaning up the dust, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild
liquid dish soap diluted by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to
wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.
Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile
substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.
Cabinet
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in diluted mild liquid dish soap and then wring the cloth dry. Use this cloth to
wipe the cabinet and then wipe it dry with a dry cloth.
Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV.
If water droplets get inside the unit, operating problems may result.
Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface
may be adversely affected or the coating may peel off.
Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.
Pedestal
Cleaning
Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small
amount of mild liquid dish soap has been added and then wipe with a dry cloth.
Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating.
(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)
Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with
rubber, vinyl products, or the like. (Doing so will cause deterioration.)
Power cord plug
Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim
any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.
tc_47_55le54.indb 17
17
3/2/2012 1:45:22 PM
Specifications
TC-47LE54
Power Source
AC 110 - 127 V, 60 Hz
Power Consumption
(Rated power / Standby power) 126 W / 0.1 W
TC-55LE54
158 W / 0.15 W
Display Panel
Panel System
LCD panel (LED backlight)
Screen size
47 ” class
(47.0 inches measured diagonally)
55 ” class
(54.6 inches measured diagonally)
W × H × Diagonal
40.9 ” × 23.0 ” × 47.0 ”
(1,040 mm × 585 mm × 1,193 mm)
47.6 ” × 26.8 ” × 55.0 ”
(1,210 mm × 680 mm × 1,390 mm)
Number of pixels
1,920 × 1,080
Speaker Output
20 W [10 W + 10 W] (10 % THD)
Channel Capability
(Digital/Analog)
VHF/ UHF: 2 - 69, CATV: 1 - 135
Operating Conditions
Temperature: 32 °F - 95 °F (0 °C - 35 °C)
Connection Terminals
VIDEO IN
Humidity: 20 % - 80 % RH (non-condensing)
RCA PIN (VIDEO, AUDIO-L, AUDIO-R)
Dimensions
Mass
COMPONENT IN
RCA PIN (Y, PB, PR, AUDIO-L, AUDIO-R)
HDMI IN 1/2/3/4
TYPE A Connector (supports “HDAVI Control 5” function)
USB 1/2
USB2.0 Type A connector
PC IN
D-SUB 15PIN (VGA, SVGA, XGA, WXGA, SXGA)
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fiber Optic
OTHERS
SD CARD slot, ETHERNET (10BASE-T/100BASE-TX)
Including pedestal
(W × H × D)
43.6 ” × 28.1 ” × 10.6 ”
(1,107 mm × 712 mm × 268 mm)
50.5 ” × 32.0 ” × 11.2 ”
(1,281 mm × 811 mm × 282 mm)
TV Set only
(W × H × D)
43.6 ” × 26.3 ” × 2.1 ”
(1,107 mm × 666 mm × 52 mm)
50.5 ” × 30.2 ” × 2.1 ”
(1,281 mm × 765 mm × 52 mm)
Including pedestal
44.1 lb. (20.0
) NET
59.6 lb. (27.0
) NET
TV Set only
36.4 lb. (16.5
) NET
53.0 lb. (24.0
) NET
Note
Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
18
tc_47_55le54.indb 18
3/2/2012 1:45:22 PM
Limited Warranty (for U.S.A. and Puerto Rico only)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way
Secaucus, New Jersey 07094
Panasonic LCD Television
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Marketing
Company of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which
starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or
refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The
decision to repair, replace or refund will be made by the warrantor.
LCD TV CATEGORIES
Up to 42” (diagonal)
46” (diagonal) and larger
PARTS
LABOR
1 (ONE) YEAR
1 (ONE) YEAR
SERVICE
Carry-In
On-Site
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will
be no charge for parts.
You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable batteries
are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States
or Puerto Rico. This Limited Warranty is extended only to the original purchaser of a new product which was not sold “as is”. A
purchase receipt or other proof of the original purchase date is required for Limited Warranty service.
On-Site or Carry-In Service
For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372).
On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and does not include
removal or re-installation of an installed product. It is possible that certain on-site repairs will not be completed on-site, but will require that
the product or parts of the product, at the servicer’s discretion be removed for shop diagnosis and/or repair and then returned.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining replacement, please ship the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
panacare@us.panasonic.com
When shipping the unit, carefully pack, include all accessories, and send it prepaid, adequately insured and preferably in the
original carton. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as
Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and
provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting from viewing fixed
images (including, among other things, non-expanded standard 4:3 pictures on wide screen TVs, or onscreen data in a stationary
and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other
business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or
damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for
lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items
listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE LIMITED
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
Limited Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a
problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If
the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed
for the warrantor.
PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT
COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
19
tc_47_55le54.indb 19
3/2/2012 1:45:22 PM
Customer Services Directory (for U.S.A. and Puerto Rico)
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;
purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web
Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-877-95-VIERA (958-4372)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
■ For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web
Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)
Panasonic Consumer Marketing Company of North America - National Parts Center
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
■ For hearing or speech impaired TTY users, TTY: 1-866-605-1277
20
tc_47_55le54.indb 20
3/2/2012 1:45:22 PM
Limited Warranty (for Canada)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Viera TV (46” & over)
In-home service
One (1) year, parts (including panel) and labour.
Viera TV (under 46”)
Carry-in service
One (1) year, parts (including panel) and labour.
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic
service facility.
In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include
removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of
the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential
damages.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are
also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is
not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives
you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
Our Customer Care Centre:
1-800 #:
1-866-330-0014
or visit our website: https://concierge.panasonic.ca
For product repairs, please contact Viera Customer Care Agent using the above contact info.
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
21
tc_47_55le54.indb 21
3/2/2012 1:45:22 PM
TC-47LE54
47" LCD HDTV
SPECIFICATIONS
Dimensions (W x H x D)
Mass
Power Source
Power Consumption
43.6" (1,107 mm) x 28.1" (712 mm) x 10.6" (268 mm)
(Including TV stand)
43.6" (1,107 mm) x 26.3" (666 mm) x 2.1" (52 mm)
(TV Set only)
44.1 lb. (20.0 kg) (Including TV stand)
36.4 lb. (16.5 kg) (TV Set only)
AC 110-127 V, 60 Hz
126 W (Rated power)
0.1 W (Standby power)
DIMENSIONS
JACKS
Top View
Side Panel
Front View
Side View
2.1 (52)
26.3 (666)
28.1 (712)
43.6 (1107)
4.7 (117)
17.0 (430)
10.6 (268)
Back View
15.8 (400)
15.8 (400)
Bottom Panel
Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.
Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
P120402
TC-55LE54
55" LCD HDTV
SPECIFICATIONS
Dimensions (W x H x D)
Mass
Power Source
Power Consumption
50.5" (1,281 mm) x 32.0" (811 mm) x 11.2" (282 mm)
(Including TV stand)
50.5" (1,281 mm) x 30.2" (765 mm) x 2.1" (52mm)
(TV Set only)
59.6 lb. (27.0 kg) (Including TV stand)
53.0 lb. (24.0 kg) (TV Set only)
AC 110-127 V, 60 Hz
158 W (Rated power)
0.15 W (Standby power)
DIMENSIONS
JACKS
Top View
Side Panel
Front View
Side View
2.1 (52)
32.0 (811)
30.2 (765)
50.5(1281)
5.2 (131)
11.2 (282)
18.8(475)
Back View
15.8 (400)
15.8 (400)
Bottom Panel
Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.
Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
P120402
USA Only: Disposal may be regulated in your community due to
Environmental considerations. For disposal or recycling information,
please visit Panasonic website: http://www.panasonic.com/environmental
or call 1-888-769-0149.
Sólo Estados Unidos: La disposición puede estar regulada en su
comunidad debido a consideraciones ambientales. Para información
sobre la disposición o reciclaje, por favor visite la página web de
Panasonic: http://www.panasonic.com/environmental
ó llame al 1-888-769-0149.
Customer’s Record
The model number and serial number of this product can be found on its back cover. You should note this serial number in
the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid
in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Serial Number
Anotación del cliente
El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio
provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición,
para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los
servicios que le ofrece la garantía.
Modelo
Número de serie
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus
New Jersey 07094 U.S.A.
 2012 Panasonic Corporation of North America. All Rights Reserved.
 2012 Panasonic Corporation of North America. Todos los Derechos Reservados.
tc_47_55le54.indb 22
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 CANADA
Printed in U.S.A.
Impreso en EE.UU.
3/2/2012 1:45:22 PM
