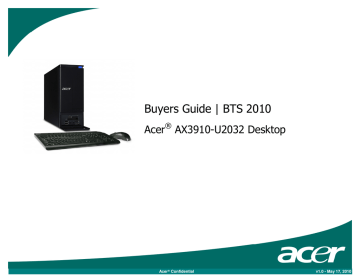

Buyers Guide | BTS 2010
Acer® AX3910-U2032 Desktop
Acer® Confidential
v1.0 - May 17, 2010
Acer® AX3910-U2032 Desktop
Multitasking Productivity Made Small
Selling Points
Product Messaging
1 Petite Size, Robust Features
The streamlined and stylish Aspire X3910 is just one-third the
size of a traditional PC taking up little desk space while providing
flexibility and scalability to satisfy all home computing needs.
Model
Acer® AX3910-U2032 Desktop
MSRP
On-Shelf date
$499.99
June 20, 2010
With the power of two cores, the Intel® Pentium® processor
delivers multitasking power for everyday computing so you can
push play and creativity further.
Work and play fast with 4GB DDR3 Memory providing quick
system response so you can multitasking effortlessly.
Always have a way to connect to the Internet reliablly with
802.11b/g/n Wirless and 10/100/1000 Gigabit Ethernet LAN.
High Level Specifications
Intel® Pentium® Processor E6600
(3.06GHz, 2MB L2 Cache, 1066Mhz FSB)
Windows® 7 Home Premium 64-bit
Intel® G43 Express Chipset
4096MB DDR3 1333MHz Memory
Integrated Intel® Graphics Media Accelerator X4500
640GB 7200RPM SATA Hard Drive
16X DVD±R/RW SuperMulti Drive
High-Definition Audio support with 5.1 Channel Output
Multi-in-1 Digital Media Card Reader
10/100/1000 Gigabit Ethernet LAN (RJ-45 port)
Integrated 802.11b/g/n Wireless
9 - USB 2.0 Ports (5 Front, 4 Rear)
Taglines
Multitasking Productivity Made Small
Positioning Statement
The sleek all-black Aspire AX3910 Desktop with illuminated blue
power button is designed with multitasking performance, flexibility
and expandability to satisfy your multitasking and personal
computing needs. With powerful Intel® Pentium™ processing,
4GB of Memory, large 640GB Hard Drive and great media
features its the perfect PC to surf the web, sharing your photos
and videos, power through tasks and enjoy more of your
entertainment.
2 An Exciting Entertainment Experience
Integrated Intel® graphics make the most of your visual
experience with stunning visuals, beautiful video playback, and
excellent mainstream gaming performance.
Extend your HD movies and the highest-quality content to your big
screen television or external LCD easily with a single cable
through the HDMI Port.
Watch movies and burn DVDs and CDs of your favorite music,
digital photos and movies with the SuperMulti optical drive.
High-Definition Audio support with 5.1 Channel Output
provides intuitive surround sound and enhanced base from any
pair of spreakers.
3 Lots of Storage and Plenty of Extras
1 - HDMI Port
Acer Arcade Deluxe is your all-in-one media portal that offers an
effortless approach to manage your digital media.
1 - eSATA Port
USB Keyboard and Optical Mouse
Stylish and Classic Small-Form Factor Design
The large 640GB Hard Drive has plenty of space to store your
digital photo albums, music library and rich media files so you can
save all your favorites in one spot.
Packaging and Documentation
Hardware Items
USB Keyboard and Optical Mouse
AC Power Cord
Documentation
Setup Poster
Registration / Limited Warranty Card
Online Documentation
User's Guide
The Multi-in-1 Digital Media Card Reader is located in the front
for convenient access when transfering photos, music and video
from popular digital devices.
eSATA port provides a high-speed connection to external hard
drives to quickly off load files or expand your storage space.
Windows® 7 Home Premium makes it easy to create a home
network and share all of your favorite photos, videos and music. If
you like media, Home Premium is for you.
Page 2
Acer® Confidential
v1.0 - May 17, 2010
Acer® AX3910-U2032 Desktop
Detailed Product Specifications
Processor
Intel® Pentium® Processor E6600
(3.06GHz, 2MB L2 Cache, 1066Mhz FSB)1
Chipset
Intel® G43 Express Chipset
Memory
4096MB DDR3 Dual-Channel 1333MHz Memory2
(2 x 2048MB); Expandable to 8GB
4 DDR3 Slots (Total) | 2 DDR3 Slot (Available)
Video
Integrated Intel® Graphics Media Accelerator X4500
Audio
High-Definition Audio support with 5.1 Channel Output
Hard Drive
640GB 7200RPM SATA Hard Drive3
Optical Drive
16X DVD±R/RW SuperMulti Drive
Write Max: 16X DVD±R, 6X DVD-RW, 8X DVD+RW,
8X DVD±R DL, 5X DVD-RAM, 48X CD-R,
32X CD-RW
Read Max: 16X DVD-ROM, 40X CD-ROM
Digital Media Card Reader
Multi-in-1 Digital Media Card Reader
CompactFlash® (Type I and II), CF+™ Microdrive,
MultiMediaCard (MMC), Reduced-Size MultiMediaCard (RSMMC), Secure Digital™ (SD) Card, xD-Picture Card™, Memory
Stick®, Memory Stick PRO™
Communications
10/100/1000 Gigabit Ethernet LAN (RJ-45 port)
Integrated 802.11b/g/n Wireless
Input Devices
USB Keyboard and Optical Mouse
Case Design
Stylish and Classic Small-Form Factor Design
Interfaces
9 - USB 2.0 Ports (5 Front, 4 Rear)
1 - HDMI Port
1 - eSATA Port
1 - VGA Port
1 - Optical S/PDIF Port
1 - High-Definition Headphone Jack
1 - Microphone Jack
2 - PS2 Ports (Keyboard and Mouse)
5 - Audio Ports
1 - Ethernet RJ-45 Port
Expansion Slots
Total
1 - PCI-E x1
1 - PCI-E x16
Available
0 - PCI-E x1
1 - PCI-E x16
Expansion Bays
Total
1 - 3.5" HDD
1 - 5.25" ODD
Available
0 - 3.5" HDD
0 - 5.25" ODD
McAfee® Internet Security Suite Trial5
Microsoft® Works and Office Home and Student 2007 Trial5
Nero® 9 Essentials
Acer Arcade Deluxe
Power Supply
220W
Dimensions (System)
10.5 (H) x 4.0 (W) x 13.9 (D) inches
265 (H) x 100 (W) x 352 (D) mm
Dimensions (Box)
14 (H) x 7 (W) x 20 (L) inches
355.6 (L) x 177.8 (W) x 508 (D) mm
Weights
12 lbs. | 5.4 kg (system unit only)
Approximately 19 lbs. | 8.6 kg (box)
Pallet Quantity
84 units per pallet
Limited Warranty
1 Year Parts and Labor Limited Warranty with Toll Free
Tech Support4
UPC
884483168231
(1) Overall system performance is based on several PC attributes. GHZ, processor clock speed, is one of the
attributes.
(2) Shared system memory may be allocated to support integrated graphics depending on system memory
size and other factors. Actual system memory available to the operating system will be reduced by the amount
of shard system memory utilized by the graphics solution and resources required by the operating
environment.
(3) 1 GB is 1 billion bytes. Actual formatted capacity is less and may vary depending on preloaded materials
and operating environment. Acer eRecovery Management utilizes up to 8 GB (10 GB with Microsoft® Works
with Office Home and Student 2007 Trial) of the stated hard disk capacity as dedicated backup space.
(4) For a free copy of the standard limited warranty end‐users should see a reseller where Acer products are
sold or write to Acer America Corporation, Warranty Department, P.O. Box 6137, Temple, TX 76503. TFT
displays commonly exhibit a small number of discolored dots, so‐called
‐
“nonconforming pixels.” This
phenomenon is a limitation of TFT LCD technology, not a product defect and, as such, is not covered by the
limited warranty or by the upgrade programs. For International travelers warranty Valid only in countries where
Acer has an authorized repair facility. For a list of those countries go to http://global.acer.com/support/itw.htm.
‐
‐
Services and response times may vary in countries outside the U.S. and Canada
or call 800‐816‐2237.
(5) 60-days of complimentary subscription. Internet connection required to start trial.
Part Number
PT.SED02.004
Page 3
Software
Windows® 7 Home Premium 64-bit
Acer eRecovery Management
Adobe® Flash® Player
Adobe® Reader®
Google Toolbar
© 2010 Acer Inc. All rights reserved. Acer, the Acer logo, and Aspire are registered trademarks of Acer Inc. Other trademarks, registered
trademarks, and/or service marks, indicated or otherwise, are the property of their respective owners.
Acer® Confidential
v1.0 - May 17, 2010
