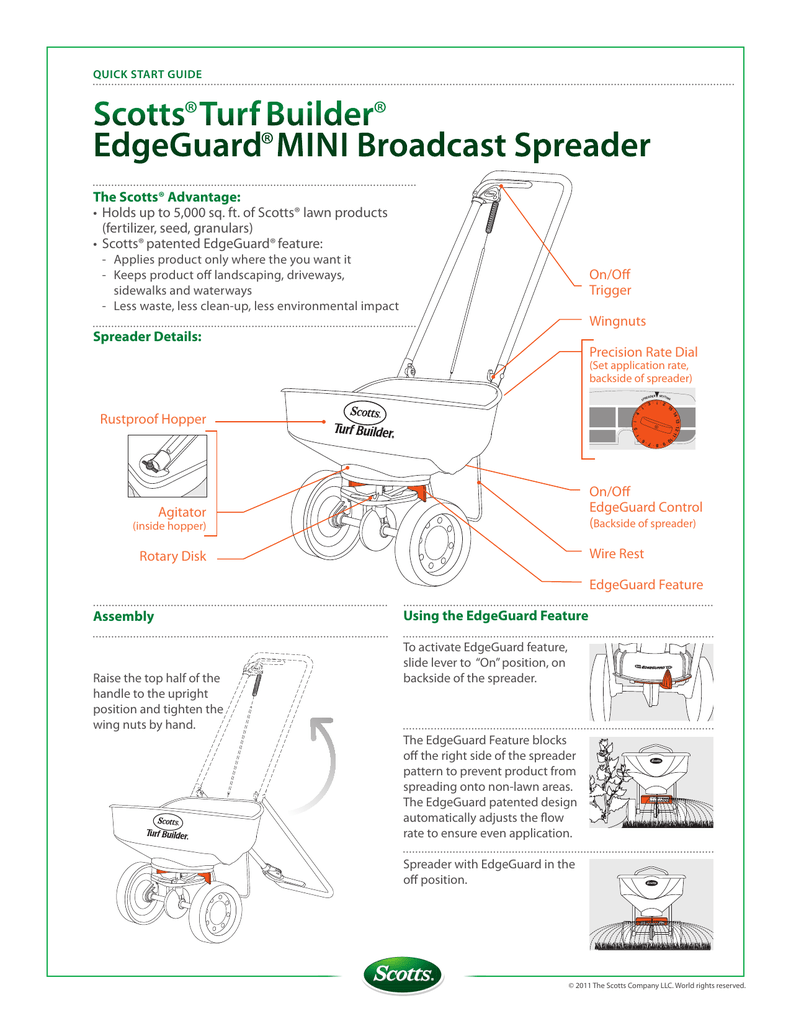

Scotts EdgeGuard

QUICK START GUIDE
Scotts®Turf Builder®
EdgeGuard®MINI Broadcast Spreader
The Scotts® Advantage:
• Holds up to 5,000 sq. ft. of Scotts® lawn products (fertilizer, seed, granulars)
• Scotts® patented EdgeGuard® feature:
-
-
-
Applies product only where the you want it
Keeps product off landscaping, driveways,
sidewalks and waterways
Less waste, less clean-up, less environmental impact
On/Off
Trigger
Wingnuts
Spreader Details:
Precision Rate Dial
(Set application rate,
backside of spreader)
DER
REA
SP
2
•
•
15
•
•
Rustproof Hopper
SETTI
NG
•
9• 8
3
•
10
•
•
5
•
•
4
• 13 • 12 •
11 •
14
•
7
•
6
DER
REA
SP
SETTI
NG
On/Off
EdgeGuard Control
(Backside of spreader)
3
•
•
2
15
•
•
•
•
•
5
•
•
10
4
• 13 • 12 •
11 •
14
Agitator
(inside hopper)
•
9• 8
•
7
•
6
Wire Rest
Rotary Disk
EdgeGuard Feature
Assembly
Raise the top half of the
handle to the upright
position and tighten the
wing nuts by hand.
Using the EdgeGuard Feature
To activate EdgeGuard feature,
slide lever to “On” position, on
backside of the spreader.
ON
F
OF
The EdgeGuard Feature blocks
off the right side of the spreader
pattern to prevent product from
spreading onto non-lawn areas.
The EdgeGuard patented design
automatically adjusts the flow
rate to ensure even application.
ON
ON
F
OF
F
OF
Spreader with EdgeGuard in the
off position.
© 2011 The Scotts Company LLC. World rights reserved.
QUICK START GUIDE
Scotts® Turf Builder® EdgeGuard®MINI Broadcast Spreader
Quick Start Instructions:
1. Fill hopper with
4. When finished,
Scotts® lawn product of
your choice
sweep stray particles
back onto lawn area. If
product lands on any hard
surface such as a driveway,
sidewalk, or road, sweep
the product back onto the
lawn to keep it from being
washed into the storm
sewers and ultimately
surface waters.
2. Turn orange rate dial to
DER
REA
SP
2
15
•
•
9• 8
7
•
•
6
5. Never leave product in
SETTI
NG
•
2
15
•
•
•
•
•
3
10
•
•
5
•
•
4
• 13 • 12 •
11 •
14
DER
REA
SP
•
•
5
•
•
4
• 13 • 12 •
11 •
14
10
3. To apply product, begin
•
9• 8
•
7
•
6
walking at a steady pace
(approx. 4ft./sec.),
then squeeze and
hold trigger
(See diagrams below)
3
•
SETTI
NG
•
•
correct setting listed in
the Spreader Setting
section on the back of
each package of Scotts
product under. “Scotts®
Broadcast/Rotary
Spreaders”
the spreader. Pour leftover
material back into the
package and seal the
package tightly After each use, wash
thoroughly over the
lawn to remove all
material clinging to the
spreader. Hot water may
be required at times to
remove stubborn residue.
Allow the spreader to dry
thoroughly in the sun.
Store your spreader in a
clean dry place.
Application Tips
For Rectangular Lawns:
Apply two header strips across
each end for a turning area. Then
apply back and forth in the longest
direction.
For Irregular-Shaped Lawns:
Spreader Overlap:
Apply one header strip around the
entire lawn for a turning area, then
apply back and forth.
Using wheel tracks as a guide, make
each pass 5 feet from the previous to
ensure proper overlap and even lawn
coverage. Do not leave spreader
open when making turns.
5 FEET
SWATH WIDTH
Header Strip
Header Strip
© 2011 The Scotts Company LLC. World rights reserved.
