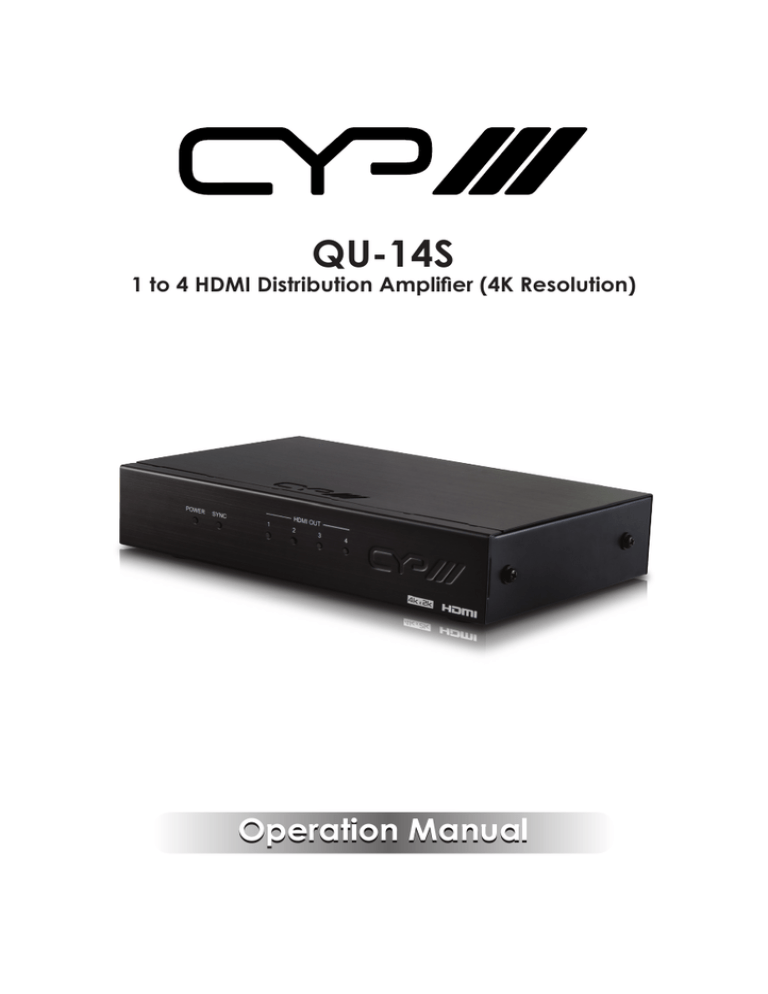

QU-14S

1 to 4 HDMI Distribution Amplifier (4K Resolution)

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 22/15/13 Preliminary release

RDV2 08/07/13 EDID behavior

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 1

6. Operation Controls and Functions ....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel .........................................3

7. Specifications ........................................ 4

8. Connection and Installation ................. 5

9. Acronyms ............................................... 6

1. INTRODUCTION

This range of high performance HDMI splitters provide one HDMI in to four HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Coloer as well as High definition Lossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

2. APPLICATIONS

• Simultaneously display one HDMI source on 4 TVs/projectors

• Showroom display

• University lecture hall display

• Retail sales display

• Commercial presentation switcher/scaler

3. PACKAGE CONTENTS

• 1 x 1 by 4 HDMI Splitter

• 1 x 5V DC Power Supply Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped source devices such as a DVD/Blu-ray play with

HDMI cables or DVI to HDMI cables

• HDMI equipped displays (TV or monitors) with HDMI cables

5. FEATURES

• Supports HDTV resolutions up to 4Kx2K/30Hz

• HDMI and DVI compatible

• Supports [email protected], Deep Color 12-bit

• Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

• Supports 3D

• Supports System reset and EDID selection functions

Note: Displaying HDMI 4Kx2K resolution require the standard 4Kx2K

HDMI cable and display in order for proper image displaying.

1

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER SYNC

1

HDMI OUT

2 3 4

4Kx2K

1 2 3

1

POWER LED

Once the power supply is connected the LED will illuminate.

2

SYNC

This LED will illuminate when the HDMI input port is connected to an active source.

3

HDMI OUT LEDs

These LEDs will illuminate when HDMI output are connected to TV or display monitor.

2

6.2 Rear Panel

HDMI IN

1 2

HDMI OUT

3 4

DC 5V

1 2 3 4 5 6

1

SYS RESET ON/OFF

This switch allows the user to perform a system reset. The default setting is OFF, leave as it is when in normal use. By switching

ON, the unit will perform a reset every 8~10 minutes, in order to perfrom this function the displays must have CEC supported.

When performed successfully, the system will automatically switch the displays to HDMI input 1. They system reset will not perform on those displays that do not have a CEC function.

2

EDID STD/TV

The default factory setting is on TV, leave as it is when the display is properly. The unit will detect the 1 st HDMI output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to all other output ports.

If the 1 st

HDMI output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device will use the last output port 1's EDID when output port 1 is not connected to a display after every power cycling or switch in between the EDID setting.

Switch to STD to use build-in EDID if the display has problem. STD

EDID’s video at [email protected] and audio at LPCM 2CH.

3

SERVICE

This slot is reserved for factory service only.

4

HDMI IN

Connect with source equipment such as DVD/Blu-ray or PS3 player.

3

SYS

RESET EDID SERVICE

ON OFF

STD TV

5

HDMI OUT

Connect to HDMI display for instant image display or cascade with another family type transmitter.

6

DC 5V

Plug the 5V DC power supply into the unit and connected the adaptor to an AC outlet.

7. SPECIFICATIONS

Video Bandwidth

300Mbps/9Gbps

Input ports

Output ports

Resolution

Power Supply

Dimensions

Weight

Chassis Material

Silkscreen Color

ESD Protection

1 x HDMI,

1 x USB (Service only)

4 x HDMI

Up to 4kx2k ([email protected]/25/30Hz/4096x

[email protected])

5V / 2.6 A DC (US/EU standards, CE/FCC/

UL certified)

215mm(W) x 140mm(D) x 48mm(H)

858 g

Metal

Black

Human Body Model: ±8kV (air-gap discharge)

±4kV (contact discharge)

Operating Temperature

0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F

Storage Temperature

-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

Relative Humidity

Power Consumption

20~90% RH (non-condensing)

4W

4

8. CONNECTION AND INSTALLATION

Blu-ray Player

HDMI Input

Example Shown:

1 to 4 HDMI Splitter

TV/Monitors

5

9. ACRONYMS

ACRONYM

DTS

EDID

HDCP

HDMI

HDTV

COMPLETE TERM

Digital Theater System

Extended Display Identification Data

High-bandwidth Digital Content Protection

High-Definition Multimedia Interface

High-Definition Television

6
