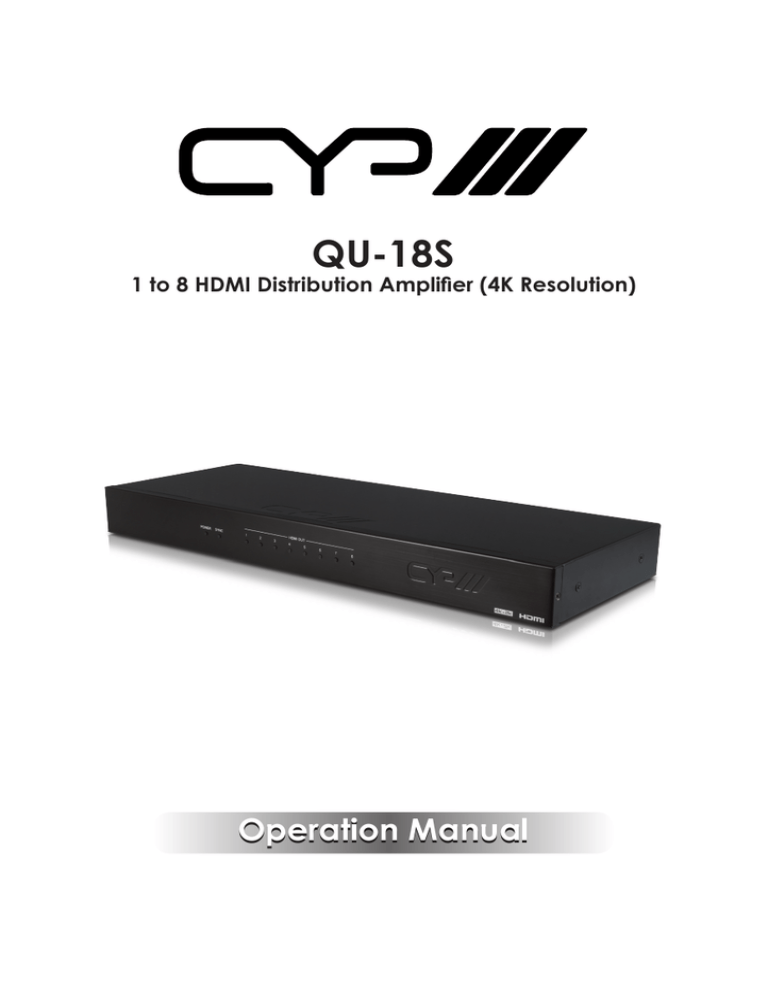

QU-18S
1 to 8 HDMI Distribution Amplifier (4K Resolution)
Operation Manual
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
•
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO.
DATE DD/MM/YY SUMMARY OF CHANGE
RDV1
22/05/13
Preliminary release
RDV2
08/07/13
EDID behavior
CONTENTS
1. Introduction�������������������������������������������� 1
2. Applications������������������������������������������� 1
3. Package Contents�������������������������������� 1
4. System Requirements���������������������������� 1
5. Features�������������������������������������������������� 1
6. Operation Controls and Functions������� 2
6.1 Front Panel����������������������������������������2
6.2 Rear Panel�����������������������������������������3
7. Connection Diagram���������������������������� 4
8. Specifications���������������������������������������� 5
9. Acronyms����������������������������������������������� 6
1. INTRODUCTION
This range of high performance HDMI splitters provide one HDMI in to
eight HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Coloer as well
as High definition Lossless Audio. With its 3Gbps bandwidth and the
additional features of the latest HDMI standards you can be sure of
great HDMI distribution.
2. APPLICATIONS
• Simultaneously display one HDMI source on 8 TVs/projectors
• Showroom display
• University lecture hall display
• Retail sales display
• Commercial presentation switcher/scaler
3. PACKAGE CONTENTS
• 1 x 1 by 8 HDMI Splitter
• 1 x 5V DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices such as a DVD/Blu-ray play with
HDMI cables or DVI to HDMI cables
• HDMI equipped displays (TV or monitors) with HDMI cables
5. FEATURES
• Supports HDTV resolutions up to 4Kx2K/30Hz
• HDMI and DVI compatible
• Supports [email protected], Deep Color 12-bit
• Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
• Supports 3D
• Supports System reset and EDID selection functions
Note:
Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
1
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
HDMI OUT
POWER
SYNC
1 2
1
2
3
4
5
6
7
8
3
1 POWER LED:
Once the power supply is connected the LED will illuminate
2 SYNC:
This LED will illuminate when the HDMI input port is connected to an
active source.
3 HDMI OUT LEDs:
These LEDs will illuminate when HDMI output are connected to TV
or display monitor.
2
6.2 Rear Panel
HDMI IN
HDMI OUT
1
SYS
RESET
ON
EDID
OFF
STD
2
3
4
5
6
7
8
DC 5V
SERVICE
TV
1 2
3
4
5
6
1 SYS RESET ON/OFF:
This switch allows the user to perform a system reset. The default
setting is OFF, leave as it is when in normal use. By switching
ON, the unit will perform a reset every 8~10 minutes, in order to
perfrom this function the displays must have CEC supported.
When performed successfully, the system will automatically switch
the displays to HDMI input 1. They system reset will not perform on
those displays that do not have a CEC function.
2 EDID STD/TV:
The default factory setting is on TV, leave as it is when the display
is properly. The unit will detect the 1st HDMI output’s EDID when
it obtain a 4Kx2K EDID and send out the signal accordingly to all
other output ports. If the1st HDMI output is without a 4Kx2K's EDID
the unit will detect all output's EDID and send out the signal that all
output can accept.
This device obtain the last memory function therefore, the device
will use the last output port 1's EDID when output port 1 is not
connected to a display after every power cycling or switch in
between the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD
EDID’s video at [email protected] and audio at LPCM 2CH.
3 SERVICE:
This slot is reserved for factory service only.
4 HDMI IN:
Connect with source equipment such as DVD/Blu-ray or PS3
player.
5 HDMI OUT:
3
Connect to HDMI display for instant image display or cascade with
another family type transmitter.
6 DC 5V:
Plug the 5V DC power supply into the unit and connected the
adaptor to an AC outlet.
7. CONNECTION DIAGRAM
Blu-ray Player
HDMI Input
Power
Supply
Example Shown:
HDMI IN
HDMI OUT
1
SYS
RESET
ON
OFF
EDID
STD
2
3
4
SERVICE
TV
5
6
7
8
DC 5V
1 by 8 HDMI
Splitter
Simultaneous
HDMI Outputs
TV/Monitors
4
8. SPECIFICATIONS
Video Bandwidth
300Mbps/9Gbps
Input ports
1 x Female HDMI type A,
1 x USB (Service only)
Output ports
8 x HDMI,
Resolution
Up to 4Kx2K ([email protected]/25/30Hz/4096
[email protected])
Power Supply
5V / 3A DC (US/EU standards, CE/FCC/UL
certified)
Dimensions
436 mm(W) x 166 mm(D) x 49 mm(H)
Weight
884
Chassis Material
Metal
Silkscreen Color
Black
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature
Operating from 0°C ~ 40°C
Storage Temperature
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity
20 ~ 90% RH (non-condensing)
Power Consumption
9W
5
9. ACRONYMS
ACRONYM
COMPLETE TERM
DTS
Digital Theater System
EDID
Extended Display Identification Data
HDCP
High-bandwidth Digital Content Protection
HDMI
High-Definition Multimedia Interface
HDTV
High-Definition Television
6
