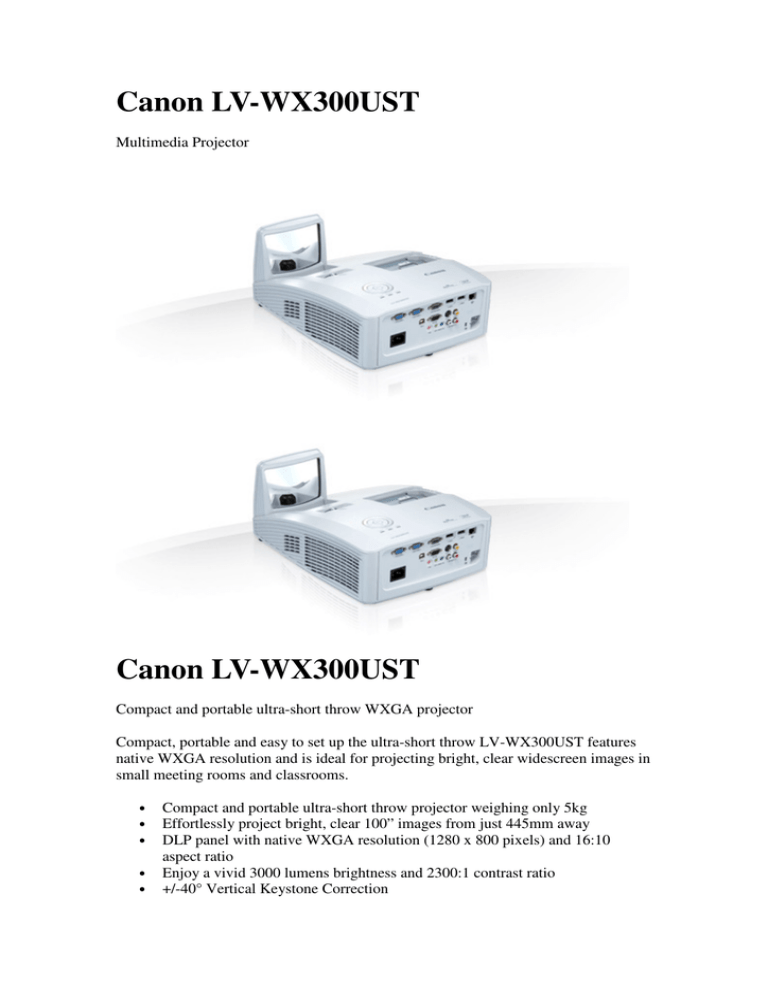

Canon LV-WX300UST
Canon LV-WX300UST
Multimedia Projector
Canon LV-WX300UST
Compact and portable ultra-short throw WXGA projector
Compact, portable and easy to set up the ultra-short throw LV-WX300UST features
native WXGA resolution and is ideal for projecting bright, clear widescreen images in
small meeting rooms and classrooms.
•
•
•
•
•
Compact and portable ultra-short throw projector weighing only 5kg
Effortlessly project bright, clear 100” images from just 445mm away
DLP panel with native WXGA resolution (1280 x 800 pixels) and 16:10
aspect ratio
Enjoy a vivid 3000 lumens brightness and 2300:1 contrast ratio
+/-40° Vertical Keystone Correction
•
•
•
•
Up to 8000h lamp life and only 29dBA in Eco mode
6 Axis colour adjustment with advanced screen colour tuning
2 x HDMI ports and RJ-45 network port
Built-in 2 x 10W speakers
PANEL
DLP™ chip
Type
0.65”
diagonal, Single chip
Size and Number
Aspect Ratio 16:10
Native Resolution 1280 x 800 (WXGA), 1024000 pixels
OPTICS
Back to Top
230W
Lamp Type
Lens F Number and Focal Length F2.5; f=5.1mm
Zoom Magnification and Control 1.0x Fixed
Manual
Focus Control
IMAGE AND AUDIO
Back to Top
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance
Coverage
Screen Size
Projection Ratio
Keystone Correction
Range
Digital RGB
Compatibility
Analogue RGB
Compatibility
Digital Video Scan
Systems
Component Video Scan
Systems
Video / S-Video Colour
Systems
Display Modes
Image Enhancement
Built-in Speaker
3000 lumens (2500 Eco Mode)
75%
2300:1
28.2cm – 44.5cm (28.2cm for 80 inch image)
80” – 100” (1.29m x 0.81m – 21.5 x 1.35m)
0.35:1
Vertical: Manual +/-40°
UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA
/ XGA / SVGA / VGA
UXGA / SXGA+ / WXGA / SXGA / XGA / SVGA /
VGA / Mac
1080p / 1080i / 720p / 576p / 480p / 480i
1080p / 1080i / 720p / 576p / 480p / 480i
PAL B/G/H/I, / NTSC / NTSC4.43 / SECAM
Presentation, Standard, sRGB, Movie, User 1 & 2
10–bit Colour Reproduction (1.07 billion colours)
10.0W x 2 RMS
PORTS AND CONNECTORS
Back to Top
Digital RGB / Analogue HDMI™ V1.3 x 2 (with Deep Colour)
RGB Input 1
Mini D-Sub 15-pin (Component Video via optional cable
/ SCART–RGB via optional cable)
Analogue RGB Input 2 Mini D-Sub 15-pin (shared with RGB output)
Analogue RGB Output Mini D-Sub 15-pin (shared with RGB input 2)
Mini DIN 4-pin
S-Video Input
Composite Video Input Mini DIN 4-pin
3.5mm stereo mini-jack (input for RGB 1)
Audio Input 1
RCA (L/R) input for video
Audio Input 2
3.5mm stereo mini-jack (variable level)
Audio Output
Service Port / Projector
Mini D-Sub 9-pin (RS232c)
Control
RJ-45
Network Port
Analogue RGB Input 1
MECHANISMS
Back to Top
Front Elevation Mechanism 1 x rotary foot (fine adjustment)
Rear Elevation Mechanism 2 x rotary feet
RATINGS
Back to Top
Dimensions (W x H x D) 287.7mm x 186mm x 374.5mm (including protrusions)
5kg
Weight
100-120 / 200-240 V AC, 50/60Hz
Power Source
Power Consumption Modes – Normal: 310W / Eco: 260W
Modes – Normal: 33dBA / Eco: 29dBA
Noise Level
Operating Environment 0°C to +40°C
Storage Environment -10°C to +60°C
3 years
Warranty
•
•
All data is based on Canon standard testing methods except where indicated
Subject to change without notice.
