User manual | IL-CL12 ‘Clipboard’ Portable Induction Loop

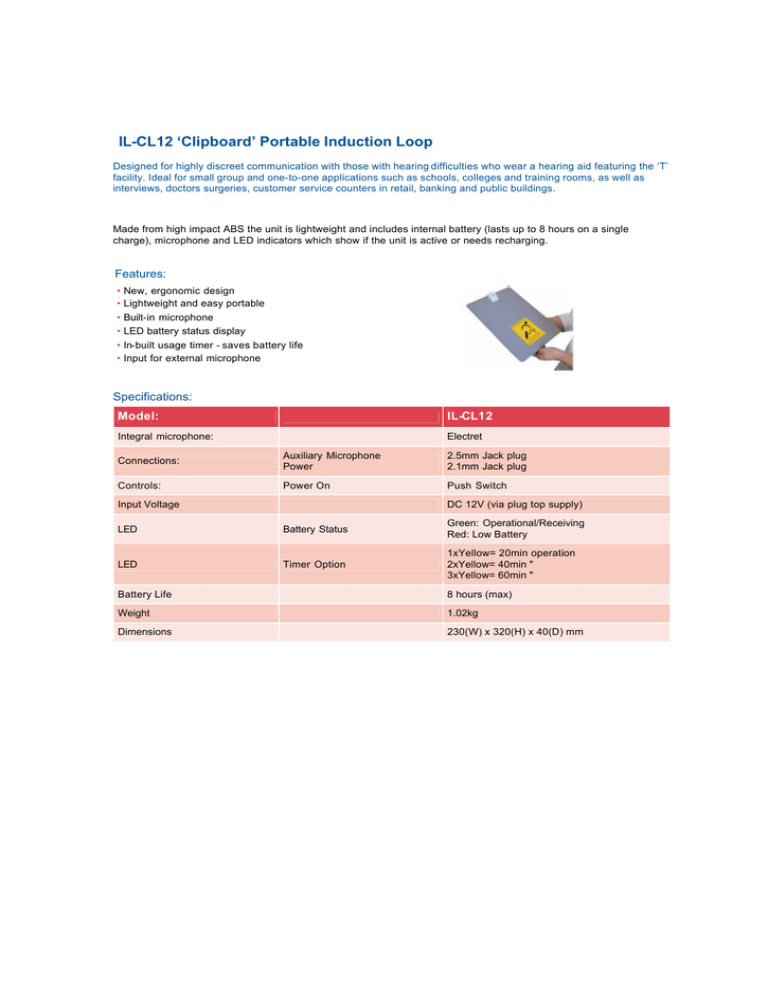

IL-CL12 ‘Clipboard’ Portable Induction Loop
Designed for highly discreet communication with those with hearing difficulties who wear a hearing aid featuring the ‘T’
facility. Ideal for small group and one-to-one applications such as schools, colleges and training rooms, as well as
interviews, doctors surgeries, customer service counters in retail, banking and public buildings.
Made from high impact ABS the unit is lightweight and includes internal battery (lasts up to 8 hours on a single
charge), microphone and LED indicators which show if the unit is active or needs recharging.
Features:
• New, ergonomic design
• Lightweight and easy portable
• Built-in microphone
• LED battery status display
• In-built usage timer - saves battery life
• Input for external microphone
Specifications:
Model:
IL-CL12
Integral microphone:
Electret
Connections:
Auxiliary Microphone
Power
2.5mm Jack plug
2.1mm Jack plug
Controls:
Power On
Push Switch
Input Voltage
DC 12V (via plug top supply)
LED
Battery Status
Green: Operational/Receiving
Red: Low Battery
LED
Timer Option
1xYellow= 20min operation
2xYellow= 40min "
3xYellow= 60min "
Battery Life
8 hours (max)
Weight
1.02kg
Dimensions
230(W) x 320(H) x 40(D) mm
