M P D L P

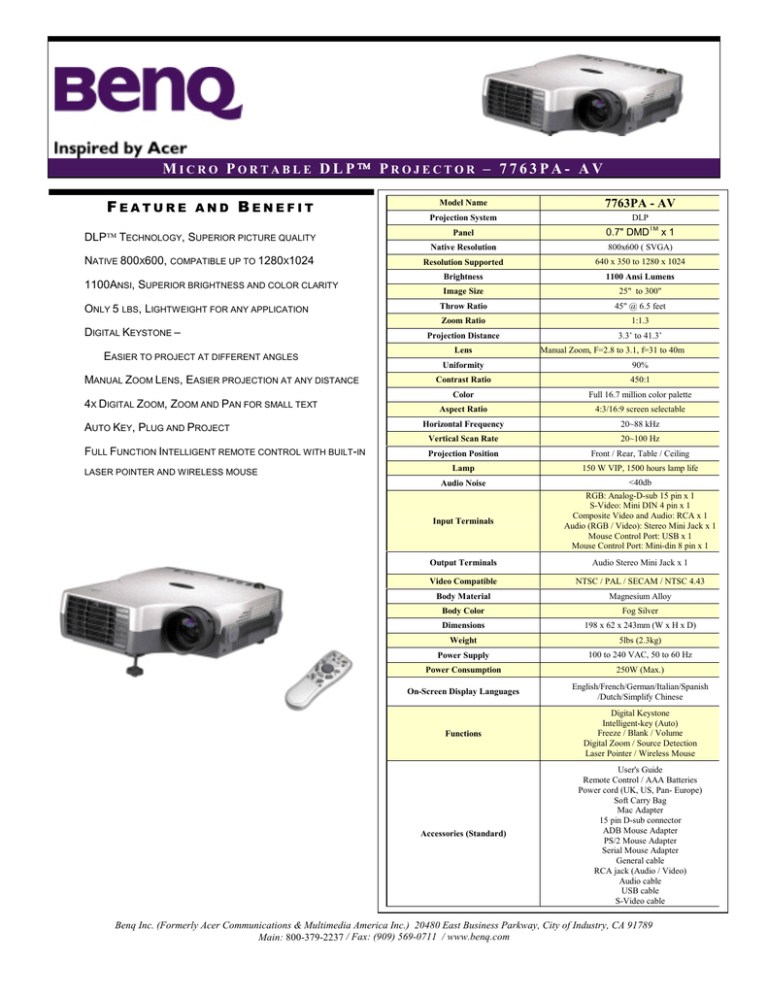

MICRO PORTABLE DLP PROJECTOR – 7763PA- AV
FEATURE
AND
BENEFIT
DLP TECHNOLOGY, SUPERIOR PICTURE QUALITY
NATIVE 800X600, COMPATIBLE UP TO 1280X1024
1100ANSI, SUPERIOR BRIGHTNESS AND COLOR CLARITY
ONLY 5 LBS, LIGHTWEIGHT FOR ANY APPLICATION
DIGITAL KEYSTONE –
EASIER TO PROJECT AT DIFFERENT ANGLES
MANUAL ZOOM LENS, EASIER PROJECTION AT ANY DISTANCE
4X DIGITAL ZOOM, ZOOM AND PAN FOR SMALL TEXT
AUTO KEY, PLUG AND PROJECT
FULL FUNCTION INTELLIGENT REMOTE CONTROL WITH BUILT-IN
LASER POINTER AND WIRELESS MOUSE
Model Name
7763PA - AV
Projection System
DLP
Panel
0.7" DMDTM x 1
Native Resolution
800x600 ( SVGA)
Resolution Supported
640 x 350 to 1280 x 1024
Brightness
1100 Ansi Lumens
Image Size
25" to 300"
Throw Ratio
45" @ 6.5 feet
Zoom Ratio
1:1.3
Projection Distance
3.3’ to 41.3’
Lens
Manual Zoom, F=2.8 to 3.1, f=31 to 40m
Uniformity
90%
Contrast Ratio
450:1
Color
Full 16.7 million color palette
Aspect Ratio
4:3/16:9 screen selectable
Horizontal Frequency
20~88 kHz
Vertical Scan Rate
20~100 Hz
Projection Position
Front / Rear, Table / Ceiling
Lamp
150 W VIP, 1500 hours lamp life
Audio Noise
<40db
RGB: Analog-D-sub 15 pin x 1
S-Video: Mini DIN 4 pin x 1
Composite Video and Audio: RCA x 1
Audio (RGB / Video): Stereo Mini Jack x 1
Mouse Control Port: USB x 1
Mouse Control Port: Mini-din 8 pin x 1
Input Terminals
Output Terminals
Audio Stereo Mini Jack x 1
Video Compatible
NTSC / PAL / SECAM / NTSC 4.43
Body Material
Magnesium Alloy
Body Color
Fog Silver
Dimensions
198 x 62 x 243mm (W x H x D)
Weight
5lbs (2.3kg)
Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
250W (Max.)
On-Screen Display Languages
English/French/German/Italian/Spanish
/Dutch/Simplify Chinese
Functions
Digital Keystone
Intelligent-key (Auto)
Freeze / Blank / Volume
Digital Zoom / Source Detection
Laser Pointer / Wireless Mouse
Accessories (Standard)
User's Guide
Remote Control / AAA Batteries
Power cord (UK, US, Pan- Europe)
Soft Carry Bag
Mac Adapter
15 pin D-sub connector
ADB Mouse Adapter
PS/2 Mouse Adapter
Serial Mouse Adapter
General cable
RCA jack (Audio / Video)
Audio cable
USB cable
S-Video cable
Benq Inc. (Formerly Acer Communications & Multimedia America Inc.) 20480 East Business Parkway, City of Industry, CA 91789
Main: 800-379-2237 / Fax: (909) 569-0711 / www.benq.com
