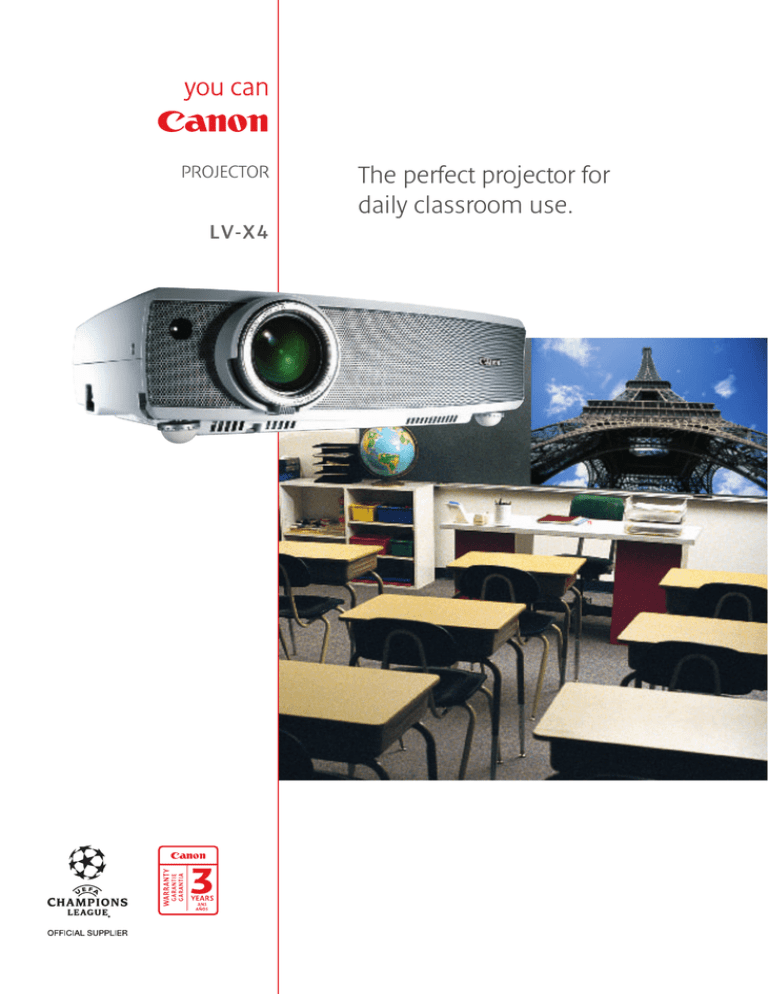

PROJECTOR
LV-X4
The perfect projector for
daily classroom use.
Combining excellent
value and exceptional
quality.
Ensuring precise image projection that is easy on the eyes, the
compact and affordable LV-X4 is especially suitable for heavy
educational use. Easy projector placement, clear projection on
blackboard surfaces and quiet, effortless operation make it ideal for
classroom surroundings. Plus extensive image settings and
advanced multimedia connectivity provide the versatility required
for a wide range of applications.
ULTRA COMPACT, QUIET
AND EASY TO CONTROL
Original image
Bright and clear
projected image
HIGH IMAGE RESOLUTION
THAT'S EASY ON THE EYES
Combining true XGA projection with the requisite
brightness of 1,500 lumens (as recommended by BECTA),
the LV-X4 ensures exceptional image quality while reducing
any risk of eye strain. The result is a projector that perfectly
suits the needs of constant classroom use, whether in
daylight or dimmer viewing conditions. A contrast ratio of
400:1 enhances colour clarity, making images more vibrant.
Plus Canon's unrivalled experienced in optical and lens
technology guarantees low image distortion as well as high
colour fidelity.
This compact, portable projector weighs only
2.8 kg and has a small A4+ footprint. Operation
is quiet, just 36db in quiet mode, so there is
no distraction. Plus the LV-X4 is exceptionally
easy to set up and use. A range of features can
be selected automatically from the remote
control, for push-button simplicity. You're
always in charge, as a Key Lock function
disables the keys on the projector's control
panel or remote control.
Plus there's a laser pointer, on-screen pointer
or spotlight function to draw attention to
specific areas on the screen.
Original image
Blackboard Mode On
Blackboard Mode Off
CLEAR BLACKBOARD PROJECTION
Save yourself the time, effort and expense of setting up a screen in every
classroom or lecture hall. The LV-X4 features a special Blackboard Mode,
allowing you to project flawless images directly onto blackboard surfaces.
This mode achieves an excellent colour balance, with white areas and text
projected cleanly and clearly.
FLEXIBLE IMAGE SETTINGS
FOR ALL SURROUNDINGS
Interlaced scanning
Progressive scanning
Enjoy exceptional flexibility for picture adjustment, with a
choice of eight settings. Apart from blackboard mode, you
can switch to Hi-Contrast Mode to make graphs and photos
sharper. Cinema Mode is ideal for watching films in a
darkened room. Whilst Custom Mode lets you fine-tune
images that are too light or too dark. An Auto Image Mode
is especially useful for video/DVD projection in darkened
rooms, giving crisp, pure black tones. In addition
Progressive Scanning provides high quality video
projection, with smooth movement and reduced
flickering of images.
Data projection
Video projection
Standard
Standard
Hi-Contrast
Cinema
Blackboard
Blackboard
Custom
Custom
ADVANCED MULTIMEDIA CONNECTIVITY
Connect multimedia hardware to the LV-X4 with ease.
The analogue RGB port can be used for input as well as
output signals, allowing the projector to be hooked up to an
external monitor such as a desktop PC screen. An optional
SCART Connector, or optional Component Adapter, allows
easy connection to a wide range of equipment from
different manufacturers. This includes VCRs, DVD players,
HDTV, digital camcorders and even game consoles.
HIGHLY FLEXIBLE PROJECTOR
PLACEMENT
Projecting in crowded classroom conditions
can cause problems. That's where the LV-X4
makes all the difference. Canon's wide angle
lens allows a large image to be projected
even from a short distance. For added
flexibility, a 1.6x zoom ratio offers an
optimum image size from a remarkably
wide range of throw distances. This includes
perfect projection on a large 100-inch screen
from just 2.5 meters right up to 4.0 metres.
Also, Vertical Keystone Correction rectifies
any image distortion if the projector is slightly
tilted from the screen.
100”
ZOOM off
1,6 x ZOOM on
2,5m
4,0m
Specifications LV-X4
Projection Panel
Size and number
Number of pixels
Contrast ratio
Light source
F number & focal length
Zoom magnification
Zooming and focusing
Lens shifting
Image elevation adjustment
Brightness
Uniformity
Projection distance coverage
Screen size
Supported RGB input
HDTV
Electronic zoom magnification
Keystone correction
Horizontal resolution (video input)
Scanning frequency
Poly-silicon TFT
0.79" (4:3 aspect ratio), x 3
1024 x 768 (XGA)
400:1
200 W SHP lamp
F1.73 - 2.5, f = 20.3 to 32.5 mm
1.6x
Manual
9:1
Up to 11.9 degrees
1500 Lumens
90%
1.0 to 7.7 m
40" to 300"
SXGA (Comp.) /XGA / SVGA / VGA
1080i/1035i/720p compatible
x 0.5 - x16 (Area ratio)
Vertical: ±20°
550 TV lines
Horizontal:
15 to 100 kHz
Vertical:
50 to 100 Hz
Dot clock:
130 MHz
NTSC, PAL, SECAM, NTSC4.43, PAL-M and PAL-N s
Progressive scanning (480i/575i)
AMSS (Automatic Scanning System)
10bit Digital Gamma Correction
Picture Image Select (Standard, High contrast/Cinema, Custom)
Colour systems
Others features
Built-in speaker
Analog RGB Input / Output
Digital Input
Video Input
Audio input
Audio output
Mouse control
Dimensions
Weight
Rated supply voltage
Power consumption
Fan noise
Ambient temperature range
Storage temperature range
Warranty
True Throwing Distance
Screen size
Zoom max
Zoom min
4 cm x 3 cm, 1 W, Monaural
Mini D-sub15-pin
(Component input, SCART input with an optional cable)
RCA x 1: composite,
Mini DIN 4-pin x 1: S-Video
Stereo mini-jack x 1
Stereo mini-jack x 1
Mini DIN 8-pin(serial), USB type B
W: 300 mm, D: 238 mm, H: 94 mm
2.8 kg
100 V, 100 to 120 V, 200 to 240 V, 50/60 Hz
260W (Quiet Mode 230W)
38dBA (Quiet Mode 36dBA)
5 to 35° C
-10 to 60° C
3 years (90 days for Lamp)
40"
1.0m
1.6m
100"
2.5m
4.0m
300"
7.7m
12.1m
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods.
Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks
and/or registered trademarks of their respective manufacturers in their markets and/or countries.
True throwing distances
12,1m
7,7m
4,0m
2,5m
300”
1.6m
1.1m
Min.
zoom
100”
40”
Max.
zoom
300”
100”
H1
40”
H2
Screen size
40”
100”
300”
Zoom max
1.0m
2.5m
7.7m
Zoom min
1.6m
4.0m
12.1m
Height, H1
54cm
135cm
405cm
Height, H2
6cm
15cm
45cm
Accessories
Optional
In-box
Remote Controller
AC Power Cable
Mouse Control Cable
Canon Inc
www.canon.com
Canon Europa N.V.
www.canon-europe.com
English UK Edition
© Canon Europa N.V., 2004 (0704)
VGA Cable
Canon (UK) Ltd
Woodhatch
Reigate
Surrey
RH2 8BF
Tel: 08705 143 723
www.canon.co.uk
Carry Case
SCART Cable
LV-CA31
Component Cable
LV-CA32
Replacement Lamp
LV-LP21
Ceiling Attachment
LV-CL08
