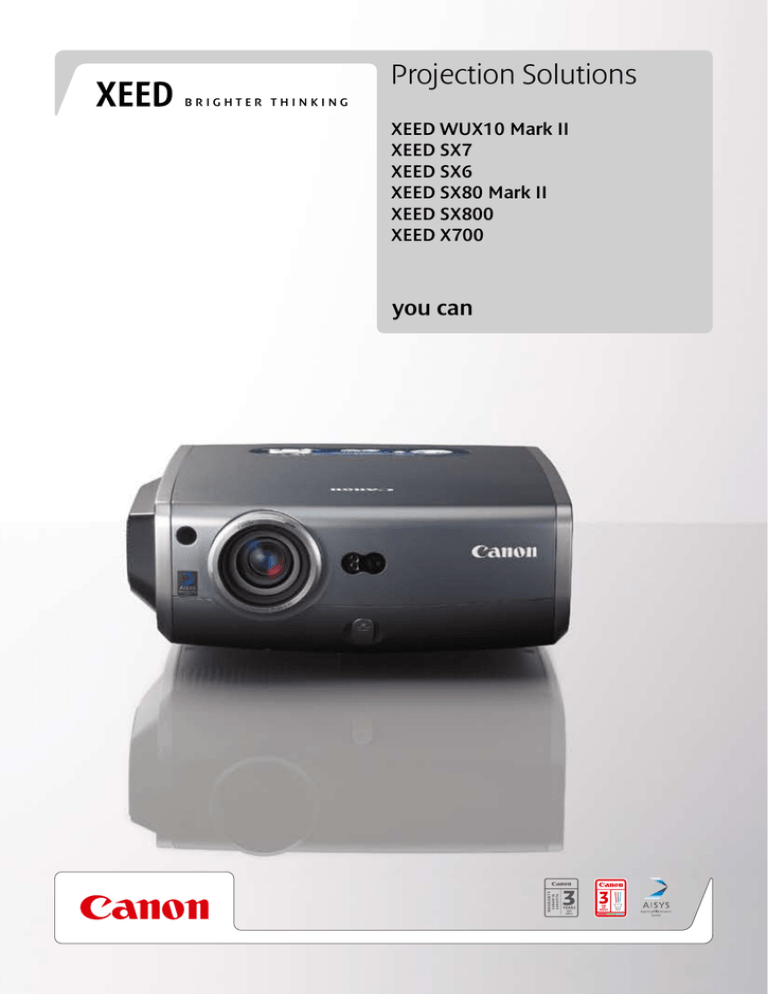

Projection Solutions you can XEED WUX10 Mark II XEED SX7

Projection Solutions you can XEED WUX10 Mark II XEED SX7

B R I G H T E R T H I N K I N G

Projection Solutions

XEED WUX10 Mark II

XEED SX7

XEED SX6

XEED SX80 Mark II

XEED SX800

XEED X700 you can

B R I G H T E R T H I N K I N G

Make an Impact.

For professionals who understand the importance of visual impact, a XEED projector is the natural choice. Canon’s combination of awardwinning optics and LCOS technology delivers outstanding images – and with most models projecting at SXGA+ resolution or higher, presentations can be supercharged with High Definition content.

XEED WUX10 Mark II | XEED SX7 | XEED SX6 | XEED SX80 Mark II | XEED SX800 | XEED X700

Designed for Versatility.

The high resolution and precision optics of the XEED range allow for a broad range of applications – including technical or medical uses where ultra-fine detail is essential. For designers, printers and other graphics professionals, selected models support the Adobe RGB colour space.

Quiet and Compact.

Thanks to the light path efficiency of AISYS, XEED projectors deliver heavyweight performance from a compact, lightweight form.

Complemented by whisper-quiet operation with minimal fan noise,

XEED helps keep the audience focused on your presentation.

The XEED Formula.

Total Optical Excellence.

BRILLIANT AISYS IMAGING

Canon AISYS (Aspectual Illumination System) features a compact optical array, capable of highly efficient light control. This works with

LCOS technology to deliver a previously impossible combination: simultaneous high brightness and high contrast from a compact projector. With brightness levels of up to 4000 lumens and contrast ratios of up to 1000:1, every XEED delivers vivid images with striking colours and deep, pure blacks.

LCD technology

LCOS Reflective LCD

Inside the XEED Projector

AISYS Optical System

XEED LCOS technology

THE LCOS ADVANTAGE

To overcome the unsightly ‘lattice’ and ‘rainbow’ effects, the XEED range uses superior LCOS panels. These combine the best of LCD and DLP projection technologies, to produce smooth, flawless images with faithful colour reproduction and exceptionally fast response, making them ideal for both still and moving images.

Projection Lens

Projection Lens

AISYS (Aspectual Illumination System)

Illumination Optical System

Projection Lamp

Colour Separation /

Recombination System

GENUINE CANON OPTICS

Every XEED projector incorporates a wide-angle Canon projection lens with power-driven zoom. The XEED WUX10 Mark II, XEED SX80 Mark II and XEED SX800 all feature a 1.5x zoom lens, which virtually eliminates image distortion by using a special double-sided aspherical element.

Also included is 10:0 image offset, which matches the lower edge of the projected image to the optical axis of the lens – making installation straightforward, and reducing the need for Keystone Correction.

Other XEED models offer an increased range of throw distances for a given image size, via a 1.7x powered zoom lens.

Dual-sided aspherical lens

B R I G H T E R T H I N K I N G

Future Proof.

From television to computing, High Definition is changing the face of visual content. That’s why most XEED projectors offer native SXGA+ resolution (1400 x 1050 pixels)*. These models are HD Ready and give top quality results with HD sources – ensuring that you won’t be left behind in the future.

* All models operate at SXGA+ resolution, except XEED WUX10 Mark II (WUXGA) and XEED X700 (XGA).

COMPARATIVE RESOLUTION CHART

XGA

1024 x 768

WXGA

1280 x 800

PC Compatibility

SXGA

1280 x 1024

WXGA+

1440 x 900

WSXGA+

1680 x 1050

WUXGA

1920 x 1200

Projector

Resolution

XGA

720p

WXGA

SXGA+

1080p

WUXGA

1024 x 768

1280 x 720

1280 x 800

1400 x 1050

1920 x 1080

1920 x 1200

Professional

Image Quality

Video Compatibility

HD Ready

(720p)

Full HD

(1080p)

WUXGA (1920 x 1200 pixels) 16:10

SXGA+ (1400 x 1050 pixels) 4:3

RESOLUTIONS COMPARED

SVGA (800 x 600 pixels) 4:3

XGA (1024 x 768 pixels) 4:3

WXGA (1280 x 768 pixels) 5:3

SXGA (1280 x 1024 pixels) 5:4

HIGH RESOLUTION, HIGH QUALITY

Because quality presentations call for quality detail, XEED reproduces high resolution content with extra precision. Fine lines are rendered with pin-sharp accuracy, text remains legible at smaller font sizes, and multiple windows can be displayed without loss of image clarity.

LCD projector – XGA resolution

LCOS projector – SXGA+ resolution

COMPATIBLE WITH MORE

Whatever the source, the XEED high resolution range of projectors ensures exceptional image quality.

PC – As native resolution on computer monitors continues to expand – with many new desktops and laptops offering SXGA+ resolution or above – the XEED range ensures that the audience sees exactly what’s on your screen.

VIDEO – Display High Definition video as it should be seen. SXGA+ resolution allows most XEED models to reproduce 720p images without compression. And for stunning Full HD (1080p) image display, the XEED WUX10 Mark II features native

WUXGA resolution (1920 x 1200 pixels).

Get Connected.

Connect instantly to all standard image sources, via a comprehensive range of analogue and digital connectivity options – plus dedicated audio and control ports. Selected XEED models expand your presentation options with network connectivity, digital links to High Definition sources, and direct connections to USB flash drives or PictBridge-enabled digital cameras.

NETWORK READY

For easy, centralised control and monitoring, the XEED WUX10 Mark II and XEED SX80 Mark II both feature a built-in RJ-45 port. An optional

Network Adaptor is available as an accessory for most other XEED models.

INTEGRATION OPTIONS

Screen

Video recorder

Document scanner

DVD player

PC

NETWORK CONNECTIVITY

PC

Projector 1

Dimmer control

Projector 1

Video camera

PC PC

Projector 2

Example:

Corporate LAN

Controller

Centralized management

PC

Touch panel

Projector 3

LOSSLESS DETAIL

Both the XEED SX80 Mark II and XEED WUX10

Mark II include DVI and HDMI™ terminals, giving exacting image reproduction from High Definition sources like personal computers and set-top boxes.

NO PC REQUIRED

With the new “PC-Free Presentation” feature found on the

XEED SX80 Mark II, you can project images straight from USB flash drives or PictBridge-enabled digital cameras - perfect for spontaneous presentations, or for occasions when carrying a computer is impractical.

Dedicated Photo Mode.

For optimum display of photographic images, the WUX10 Mark II and

SX80 Mark II feature a new PHOTO image mode. This mode adjusts the image to compensate for the brightness and tone of the ambient light, reproducing colours as they would appear on an sRGB monitor.

Without Photo

Mode

Without Auto Focus and

Keystone Correction

With Photo Mode

Focus and Keystone are adjusted automatically, in a matter of seconds

Automatic Intelligence.

Auto Focus* automatically sets the projector focus to the optimum position, taking into account throw distance and projection angle.

Auto Vertical Keystone Correction compensates for projector tilt up to

+/- 20 degrees, to deliver perfectly square images with parallel edges.

Auto Screen Colour Correction* compensates for the colour of the projection surface, to deliver perfect images with natural-looking colours.

*Not available on XEED SX800.

TARGET MARKETS

Business & Education: Boardrooms; Lecture

Theatres, Conference Centres

Specialist Applications: Publishing, Printing &

Pro Photo Applications; CAD & CAE; Simulation

& Virtual Reality; Photographic exhibitions;

Sports & Media Bars

WUXGA and Full HD – the Best of Both Worlds.

With industry-leading WUXGA resolution (1920 x 1200 pixels),

Full HD support and a new ‘Photo’ mode for colour-accurate images, the WUX10 Mark II is ideal for business and specialist AV use.

• Native WUXGA resolution (1920 x 1200 pixels) and Full HD capability (1080p)

• Canon LCOS panel technology for perfect, seamless images

• 3200 lumens brightness using Canon

AISYS optical system

• 1000:1 contrast ratio for vivid colours and deep blacks

• Canon 1.5x powered zoom lens with

10:0 offset

• ‘PHOTO’ image mode for colour-accurate still images in any lighting environment

• Fully automatic setup configures Focus,

Keystone Correction, Input Selection and

Screen Colour Correction

• Near-silent operation: just 32dBA in

Quiet Mode

• DVI port and HDMI™ Connector for digital image input

• RJ-45 network port for control and monitoring via a network

2 1 3

5 4 6 7 9 8 10

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input

2. HDMI™ v. 1.3

(with Deep Colour)

Digital Video and Digital

Audio Input

3. Mini D-sub 15-pin

Analogue RGB Input 2 /

Analogue RGB (Monitor)

Output (Component input via optional adaptor cable)

4. RCA x 1

Composite Video Input

AUDIO INPUT AND

OUTPUT

5. 3.5mm mini-jack

Stereo Audio Input 1

6. 3.5mm mini-jack

Stereo Audio Input 2

7. 3.5mm mini-jack

Stereo Audio Input 3

8. 3.5mm mini-jack

Stereo Audio Output

(Variable level)

PROJECTOR CONTROL

9. Mini D-Sub 9-pin

Control Port (RS-232C)

10. RJ-45

Network Connection

IN BOX ACCESSORIES

Remote Controller

AAA Batteries

AC Mains Power Cable

Computer Connection Cable

Component Video Adaptor Cable

Lens Cap

Carrying Case

Warranty Card

Instruction Book

Quick Operation Guide

OPTIONAL ACCESSORIES

Lamp Assembly RS-LP04

DVI Cable (2 metres) LV-CA29

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

TARGET MARKETS

Business & Education: Boardrooms; Lecture

Theatres; Conference Centres

Specialist Applications: Photo Enthusiasts;

Publishing, Printing & Pro Photo Applications;

Museums; CAD & CAE; Simulation

Superior Brightness.

Perfect Detail.

The XEED SX7 is ideal for boardrooms, large venues and AV installations. Delivering an ultra-bright 4000 lumens projection at SXGA+ resolution, the XEED SX7 incorporates Canon’s unique

AISYS optical system for high brightness.

• Native SXGA+ resolution and LCOS technology for seamless, lattice-free images

• Canon Advanced AISYS Optical System delivers an ultra-bright 4000 lumens and

1000:1 contrast, for clear projection and vivid colours

• Fully automatic setup: Auto Focus, Auto

Keystone Correction, Auto Screen Colour

Correction and Auto Input Selection

• Canon powered wide-angle 1.7x zoom lens for flexible projector placement

• HD Ready, with HDCP-enabled DVI port

• Support for Adobe RGB and sRGB colour spaces, with bright sRGB mode

• Quiet operation: runs at just 31dBA in

Quiet Mode, to minimise audience distraction

• Compact, lightweight design – weighs just 4.8kg

1 2 3

6 7 8 11 4 5 10 9

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input 1

2. Mini D-sub 15-pin

Analogue RGB Input 2

(Component/SCART via adaptor cable)

3. Mini D-sub 15-pin

Analogue RGB (Monitor)

Output

4. Mini DIN 4-pin

S-Video Input

5. RCA x 1

Composite Video Input

AUDIO INPUT AND

OUTPUT

6. 3.5mm mini-jack

Stereo Audio Input 1

7. 3.5mm mini-jack

Stereo Audio Input 2

8. 3.5mm mini-jack

Stereo Audio Input 3

9. 3.5mm mini-jack

Stereo Audio Output (Variable level)

PROJECTOR CONTROL

10. USB Type ‘B’

USB Mouse Control

11. Mini-DIN 8-pin

Service Port

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

Replacement Lamp: RS-LP04

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

SCART cable: LV-CA31

RS-232C control cable: RS-CA01

Network Adaptor: RS-NA01

TARGET MARKETS

Business & Education:

Boardrooms; Lecture Theatres

Specialist Applications: Publishing, Printing &

Pro Photo Applications; CAD & CAE; Medical

Superior Projection for

Enhanced Presentations.

Packed with powerful technology, the XEED SX6 is the ideal projector for maximum impact, high quality presentations. LCOS technology combines with SXGA+ resolution and Canon’s unique AISYS optical system to provide detailed, seamless projection. The XEED SX6 offers advanced colour reproduction for graphics specialists.

• Native SXGA+ resolution and LCOS technology for seamless, lattice-free images

• Canon’s Advanced AISYS Optical System delivers a bright 3500 lumens and

1000:1contrast ratio, for clear projection and vivid colours

• Fully automatic setup: Auto Focus, Auto

Keystone Correction, Auto Screen Colour

Correction and Auto Input Selection

• Canon powered wide-angle 1.7x zoom lens for flexible projector placement

• HD Ready, with HDCP-enabled DVI port

• Support for Adobe RGB and sRGB colour spaces

• Quiet operation: runs at just 31dBA in Quiet Mode, to minimise audience distraction

1 2 3

6 5 4 7 8

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input 1

2. Mini D-sub 15-pin

Analogue RGB Input 2

(Component SCART via adaptor cable)

3. Mini D-sub 15-pin

Analogue RGB (Monitor)

Output

4. Mini DIN 4-pin

S-Video Input

5. RCA x 1

Composite Video Input

AUDIO INPUT AND

OUTPUT

6. 3.5mm mini-jack

Stereo Audio Input

PROJECTOR CONTROL

7. USB Type ‘B’

USB Mouse Control

8. Mini-DIN 8-pin

Service Port

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

Replacement Lamp: RS-LP02

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

SCART cable: LV-CA31

RS-232C control cable: RS-CA34

Network Adaptor: RS-NA01

TARGET MARKETS

Business & Education: Boardrooms; Lecture

Theatres; Conference Centres

Specialist Applications: Professional

Photography, Simulation, Design, Publishing

Unrivalled Clarity.

Complete Connectivity.

The SX80 Mark II produces crystal-clear SXGA+ images from most sources, including HDMI, DVI and USB flash drives.

A dedicated ‘Photo’ mode ensures superb colour accuracy in any lighting environment.

• Native SXGA+ resolution (1400 x 1050 pixels) with Canon LCOS technology

• 3000 lumens brightness using Canon

AISYS Optical System

• 900:1 contrast ratio for vivid colours and deep blacks

• Canon 1.5x powered zoom lens with

10:0 offset

• ‘PHOTO’ image mode for colour-accurate still images in any lighting environment

• Fully automatic setup configures Focus,

Keystone Correction, Input Selection and

Screen Colour Correction

• PC-Less presentation: Display images directly from USB flash drives and digital cameras

• Near-silent operation: just 31dBA in

Quiet Mode

• DVI port and HDMI™ Connector for digital image input

• RJ-45 port for control and monitoring via a network

1 2 3

5 6 8 9 10 11 12

4

13 7

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input

2. HDMI™ v. 1.3

(with Deep Colour)

Digital Video and Digital

Audio Input

3. Mini D-sub 15-pin

Analogue RGB Input 2

(Component input via optional adaptor cable)

4. Mini D-sub 15-pin

Analogue RGB (monitor) output

5. Min-DIN 4 Pin

S video input

6. RCA x 1

Composite Video Input

7. USB Type A

USB Connection, PictBridge input

AUDIO INPUT AND

OUTPUT

8. 3.5mm mini-jack

Stereo Audio Input 1

9. 3.5mm mini-jack

Stereo Audio Input 2

10. 3.5mm mini-jack

Stereo Audio Input 3

11. 3.5mm mini-jack

Stereo Audio Output (Variable level)

PROJECTOR CONTROL

12. Mini D-Sub 9-pin

Control Port (RS-232C)

13. RJ-45

Network connection

IN BOX ACCESSORIES

Remote Controller

AAA Batteries

AC Mains Power Cable

Computer Connection Cable

Component Video Adaptor Cable

Lens Cap

Carrying Case

Warranty Card

Instruction Book

Quick Operation Guide

OPTIONAL ACCESSORIES

Lamp Assembly RS-LP05

DVI Cable (2 metres) LV-CA29

Ceiling Mounting Bracket: RS-CL10

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

TARGET MARKETS

Business & Education:

Hotels - Conference Facilities, General Business

Use, (Meetings, Presentations), Higher

Education, Medical Imaging

The affordable way to

SXGA+ quality.

With Canon LCOS technology and a bright 3000 lumens output, the

XEED SX800 offers top-quality SXGA+ imaging at a price point more often associated with XGA models. The addition of Canon’s 1.5x zoom lens ensures flexible placement and perfect image geometry.

• Native SXGA+ resolution with Canon LCOS panel technology for outstanding image quality

• Canon AISYS Optical System delivers 3000 lumens brightness

• 900:1 contrast ratio for vivid colours and deep blacks

• Canon 1.5x powered zoom lens with

10:0 lens shift for easy installation

• Automatic Setup: Auto Keystone Correction and Auto Input Selection

• Near-silent operation: just 31dBA in

Quiet Mode

• Body and ceiling bracket designed for easy installation and maintenance

1 2 8

VIDEO INPUT AND

OUTPUT

1. Mini D-sub 15-pin

Analogue RGB Input 1

(Component via optional adaptor cable)

2. Mini D-sub 15-pin

Analogue RGB Input 2

3. RCA x 1

Composite Video Input

AUDIO INPUT AND

OUTPUT

4. 3.5mm mini-jack

Stereo Audio Input 1

5. 3.5mm mini-jack

Stereo Audio Input 2

6. 3.5mm mini-jack

Stereo Audio Input 3

7. 3.5mm mini-jack

Stereo Audio Output

(Variable level)

PROJECTOR CONTROL

8. Mini D-Sub 9-pin

Control Port (RS-232C)

IN BOX ACCESSORIES

Remote Control (with batteries)

AC Mains Power Cable

Computer Connection Cable

Component Video Adaptor Cable

Carrying Case

Warranty Card

Instruction Book

Quick Operation Guide

OPTIONAL ACCESSORIES

Lamp Assembly RS-LP05

Ceiling Attachment RS-CL10

Ceiling Pipe 400 - 600mm RS-CL08

Ceiling Pipe 600 - 1000mm RS-CL09

3 6 4 5 7

TARGET MARKETS

Business & Education: School Halls; Lecture

Theatres; Large Meeting Rooms

Specialist Applications: Exhibition Halls;

Auditoriums; Large Venues; Public Signage;

Sports and Media bars

Startling Brightness.

Seamless Clarity.

When brightness and image quality are essential, the XEED X700 provides 4000 lumens at XGA resolution. Smooth LCOS imaging, enhanced by Canon’s unique AISYS technology, make the XEED X700 ideal for medium to large spaces, including spaces with high levels of ambient light.

• Native XGA resolution and LCOS technology for seamless images

• Canon Advanced AISYS Optical System delivers an ultra-bright 4000 lumens for clear projection, even in daylight and large venues

• 1000:1 contrast ratio for vivid colours and deeper blacks

• Fully automatic setup: Auto Focus,

Auto Keystone Correction, Auto Screen

Colour Correction and Auto Input Selection

• Canon powered wide-angle 1.7x zoom lens for flexible projector placement

• Just 31dBA operation in Quiet Mode

• HDCP-enabled DVI port for pin-sharp images from digital sources

• Support for sRGB colour space

• Optional Network Adaptor for control and monitoring

1 2 3

6 7 8 11 4 5 10 9

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input 1

2. Mini D-sub 15-pin

Analogue RGB Input 2

(Component/SCART via adaptor cable)

3. Mini D-sub 15-pin

Analogue RGB (Monitor)

Output

4. Mini DIN 4-pin

S-Video Input

5. RCA x 1

Composite Video Input

AUDIO INPUT AND

OUTPUT

6. 3.5mm mini-jack

Stereo Audio Input 1

7. 3.5mm mini-jack

Stereo Audio Input 2

8. 3.5mm mini-jack

Stereo Audio Input 3

9. 3.5mm mini-jack

Stereo Audio Output

(Variable level)

PROJECTOR CONTROL

10. USB Type ‘B’

USB Mouse Control

11. Mini-DIN 8-pin

Service Port

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

Replacement Lamp: RS-LP04

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

SCART cable: LV-CA31

RS-232C control cable: RS-CA01

Network Adaptor: RS-NA01

Specifications XEED WUX10 Mark II

Product Class

LCD PANEL

Type

Size and Number

Aspect Ratio

Native Resolution

0.7” diagonal (15.4mm x

9.6mm), 3 panels

16:10

1920 x 1200 (WUXGA),

2,304,000 pixels

OPTICS

Lamp Type

Lens F Number and Focal

Length

Zoom Magnification and

Control

Focus Control

Lens Shift

IMAGE AND AUDIO

Brightness

Brightness Uniformity

Contrast Ratio

Projection Distance Coverage

F1.85 - F2.65; f=21.8 - 31.9mm

1.5x Motorised

10:0, fixed

3200 lumens

275W NSHA

1.2m - 9.1m

(3.0 - 4.4m for 100" image)

Screen Size

Digital Zoom Magnification

Keystone Correction Range

Digital RGB Compatibility

Analogue RGB Compatibility

Component Video Scan

Systems

Video / S-Video Colour

Systems

Scanning Frequency

Vertical: +/- 20°

(Auto / Manual),

Horizontal: None

WUXGA / UXGA / WSXGA+ /

SXGA+ / WXGA+ / SXGA /

XGA / SVGA / VGA

WUXGA / UXGA / SXGA+ /

WXGA+ / SXGA / WXGA /

XGA / SVGA / VGA

1080p / 1080i / 1035i / 720p

/ 576p / 576i / 480p / 480i

XEED SX7 XEED SX6

Ultra-Portable

LCOS Reflective Display, TFT Active Matrix

0.7” diagonal (15mm x 11mm), 3 panels

1400 x 1050 (SXGA+), 1,470,000 pixels

270W NSH

F1.85 – F2.5; f=21.7 – 35.8mm

1.7x Motorised

Motorised Auto Focus

9:1, fixed

Vertical: +/- 20° (Auto / Manual),

Horizontal: +/- 20° (Manual)

SXGA+ / SXGA / WXGA / XGA / SVGA / VGA

1080i / 1035i / 720p / 575p / 575i / 480p / 480i

XEED SX80 Mark II

0.55” diagonal (11.2mm x 8.4mm), 3 panels

4:3

4000 lumens 3500 lumens 3000 lumens

88%

1000:1 (full on / full off)

1.2m – 9.0m

(3.0m -4.9m for 100" image)

40" – 300" (81 x 61cm - 610 x 457cm)

1x – 12x

900:1 (full on / full off)

1.2m - 9.1m

(3.0 - 4.4m for 100" image)

PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM

230W NSHA

XEED SX800

F1.95 - F2.6; f=16.6 - 24.8mm

1.5x Motorised

Motorised Auto / Manual Focus

10:0, fixed

Motorised Manual Focus

Vertical: +/- 20° (Auto / Manual),

Horizontal: None

UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA

1080p / 1080i / 1035i / 720p / 576p / 576i / 480p / 480i

Image Modes

Image Enhancement

Horizontal: 15-75kHz,

Vertical: 50-85Hz,

Clock: 170 MHz

Standard, Presentation,

Movie, sRGB, Photo

XEED X700

0.7” diagonal (15mm x

11mm), 3 panels

1024 x 768 (XGA),

786,432 pixels

275W NSHA

F1.85 – F2.5; f=21.7 – 35.8mm

1.7x Motorised

Motorised Auto Focus

9:1, fixed

4000 lumens

1000:1 (full on / full off)

1.2m – 9.0m

(3.0m - 4.9m for 100" image)

Vertical: +/- 20°

(Auto / Manual),

Horizontal: +/- 20° (Manual)

XGA / SVGA / VGA

1080i / 1035i / 720p / 575p /

575i / 480p / 480i

Horizontal: 15-100kHz, Vertical: 50-100Hz,

Clock: 170MHz

Standard, Presentation, Movie

& Photo, Adobe RGB, sRGB

Standard, Presentation, Movie

& Photo, Adobe RGB, sRGB

12-bit Digital Gamma Correction, 6-axis Colour Adjust

Horizontal: 15-75kHz, Vertical: 50-85Hz,

Standard, Presentation,

Movie, sRGB, Photo

Clock: 170MHz

Horizontal: 15-100kHz, Vertical: 50-100Hz,

Clock: 170MHz

Standard, Presentation,

Movie, sRGB

12-bit Digital Gamma Correction

12-bit Digital Gamma

Correction, 6-axis Colour Adjust

1.0W RMS, Monaural Built-In Audio

CONNECTORS

Digital RGB /

Analogue RGB Input 1

Digital Video /

Digital Audio Input

Analogue RGB Input 2

Analogue RGB Output

Component Video Input

S-Video Input

Composite Video Input

Audio Input 1

Audio Input 2

Audio Input 3

Audio Output

Mouse Control

DVI-I 29-pin

(HDCP compatible)

Mini-D-Sub 15-pin

(Analogue only)

DVI-I 29-pin

(HDCP compatible)

HDMI Version 1.3

(with Deep Colour)

— —

HDMI Version 1.3

(with Deep Colour)

Mini D-Sub 15-pin

— —

Mini D-Sub 15-pin — Mini D-Sub 15-pin

3.5mm stereo mini-jack

3.5mm stereo mini-jack

3.5mm stereo mini-jack (variable level)

Mini D-Sub 9-pin

RJ-45

USB Type B

Mini-DIN 8-pin

Via 3x RCA adaptor cable (supplied)

Mini-DIN 4-pin

RCA x 1

3.5mm stereo mini-jack

Via optional network adaptor

3.5mm stereo mini-jack

3.5mm stereo mini-jack

3.5mm stereo mini-jack (variable level)

USB Type A

(PictBridge enabled)

Mini D-Sub 9-pin

RJ-45

Mini-DIN 4-pin

USB Type B

Mini-DIN 8-pin

Via optional network adaptor

Service Port / Projector Control

Network Port

MECHANISMS

Front Elevation Mechanism

Rear Adjustment Mechanism

RATINGS

Dimensions (W x H x D)

Weight

Rated Supply Voltage

Power Consumption

Noise Level

284 x 114 x 336mm

5.0kg

Normal Mode: 400W / Quiet

Mode: 330W / Standby: 11W

Normal Mode: 36dBA /

Quiet Mode: 32dBA

One-Touch mechanical foot, 10° maximum image elevation

Two rotary feet for fine adjustment

4.8kg

266 x 114 x 336mm

Normal Mode: 360W / Quiet

Mode: 290W / Standby: 7W

332 x 121 x 340mm

4.7kg

5.2kg

100V – 240V AC, 50/60Hz

Normal Mode: 355W / Quiet

Mode: 290W / Standby: 7W

Normal Mode: 330W / Quiet

Mode: 270W / Standby: 15W

5.0kg

Normal Mode: 320W / Quiet

Mode: 260W / Standby: 8W

Normal Mode: 35dBA / Quiet Mode: 31dBA

266 x 114 x 336mm

4.8kg

Normal Mode: 360W / Quiet

Mode: 290W / Standby: 7W

Operating Environment

Storage Environment

Warranty

+5°C to +35°C

-30°C to +60°C

3 years

Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods. Specifications are subject to change without notice.

™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.

Canon Inc.

www.canon.com

Canon Europa N.V.

www.canon-europe.com

English Edition 0137W189

© Canon Europa N.V., 2009 (0909)

Canon Europe Ltd

3 The Square

Stockley Park

Uxbridge

Middlesex

UB11 1ET

United Kingdom

Canon (Irl.) Business

Equipment Ltd.

Arena Road

Sandyford

Industrial Estate Dublin 18

Ireland

Home Products FREE AV guides Tel: 01754 769967 / 0800 018 9967

Welcome to Wedgwood

UK specialist education, medical, government, MOD and business supplier since 1996 with over 9,000 audio visual products

LCD monitors

Medical monitors

SPECIAL OFFER: Wedgwood AV has partnered with

Repeat Software to give you a FREE Repeat Signage V4

Standalone Edition digital signage software licence with any purchase order over £500+VAT.

This means if you purchase goods to the value of £2,000+VAT you receive 4 Repeat Signage licences, each worth £145+VAT.

Also please check our

Special Offers

page as we have weekly and monthly offers. Plus FREE delivery for our customers, when quoting code: WAV-V4, on your purchase orders.

[email protected]

Tel: 01754 769967.

With

Repeat Signage V4

you can easily create a presentation in minutes for your reception area display screen, to promote your own products, services and activities. Exciting new features in V4 allow page-turning PDF’s, conveyor-belt pictures and has touch screen support.

www.repeatsoftware.com

Touch screens

Digital signage

Commercial TV Projectors Whiteboards Lecterns

Mounting solutions Document cameras Audio solutions

Wedgwood AV Ltd. Tel: 01754 769967 Order fax line: 01754 768036 UK sales: [email protected] www.wedgwood-group.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
