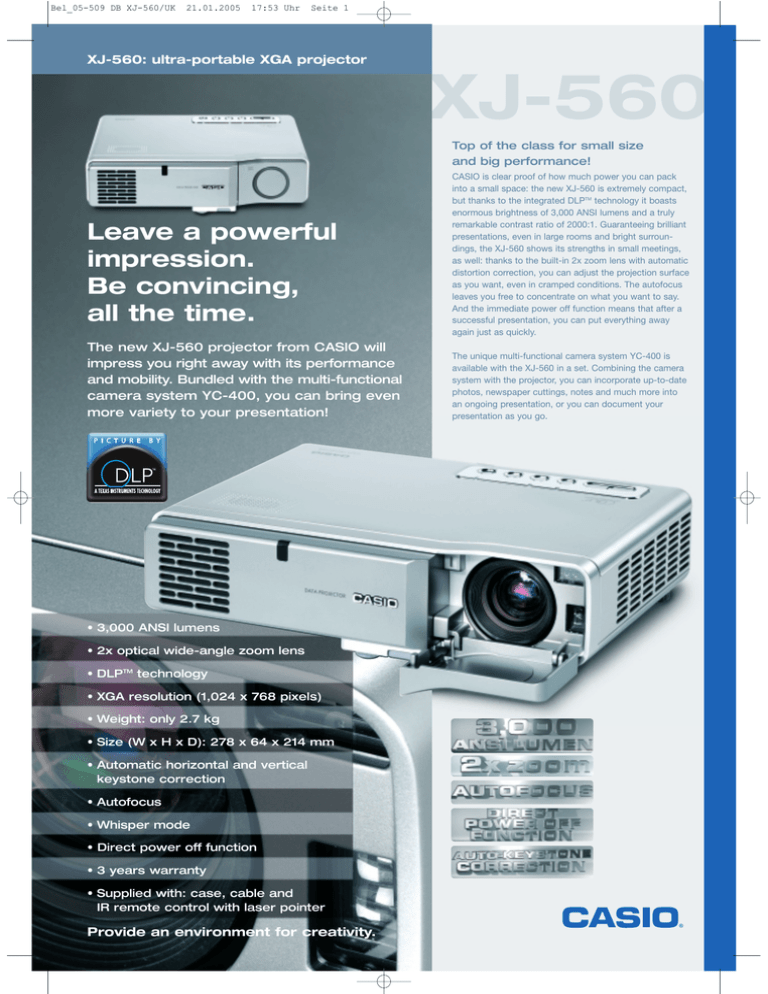

XJ-560: ultra-portable XGA projector
XJ-560
Top of the class for small size
and big performance!
Leave a powerful
impression.
Be convincing,
all the time.
The new XJ-560 projector from CASIO will
impress you right away with its performance
and mobility. Bundled with the multi-functional
camera system YC-400, you can bring even
more variety to your presentation!
• 3,000 ANSI lumens
• 2x optical wide-angle zoom lens
• DLPTM technology
• XGA resolution (1,024 x 768 pixels)
• Weight: only 2.7 kg
• Size (W x H x D): 278 x 64 x 214 mm
• Automatic horizontal and vertical
keystone correction
• Autofocus
• Whisper mode
• Direct power off function
• 3 years warranty
• Supplied with: case, cable and
IR remote control with laser pointer
Provide an environment for creativity.
CASIO is clear proof of how much power you can pack
into a small space: the new XJ-560 is extremely compact,
but thanks to the integrated DLPTM technology it boasts
enormous brightness of 3,000 ANSI lumens and a truly
remarkable contrast ratio of 2000:1. Guaranteeing brilliant
presentations, even in large rooms and bright surroundings, the XJ-560 shows its strengths in small meetings,
as well: thanks to the built-in 2x zoom lens with automatic
distortion correction, you can adjust the projection surface
as you want, even in cramped conditions. The autofocus
leaves you free to concentrate on what you want to say.
And the immediate power off function means that after a
successful presentation, you can put everything away
again just as quickly.
The unique multi-functional camera system YC-400 is
available with the XJ-560 in a set. Combining the camera
system with the projector, you can incorporate up-to-date
photos, newspaper cuttings, notes and much more into
an ongoing presentation, or you can document your
presentation as you go.
Bel_05-509 DB XJ-560/UK
21.01.2005
17:53 Uhr
Seite 2
XJ-560: ultra-portable XGA projector
Technical Data XJ-560
Display
120 cm image width
Technology
Resolution
Brightness
Contrast ratio
Colour depth
Technology
Focal length/aperture
Projection ratio
Offset
min./max. distance*
Focusing
Type
Lamp lifetime
Vertical
Horizontal
Computer
Video
S-video
Component video
Audio
Mouse control
Resolution
1 x 0.7" 12° DLPTM
XGA 1,024 x 768 pixels
3,000 ANSI lumens
2000 : 1 (tele mode)
16.7 million
Optical 2x automatic zoom
f: 20 - 40 mm/F: 2.0 - 2.8
1.4 - 2.8 : 1 (distance : image width)
100 %
0.80 m/5.30 m
Automatic
250 W high-pressure mercury lamp
c. 2,000 h
+/- 30° automatic
+/- 30° automatic
1 x 15pin HD
1 x RCA
1 x mini-DIN
Opt. adaptor via 15pin HD
3.5 mm jack
USB
800 x 600 (expanded) to
1,600 x 1,200 (compressed)
15 - 92 kHz/50 - 85 Hz
hor./vert. frequency
Analogue RGB
Signal
PAL-N, PAL-M, PAL60, SECAM, NTSC,
Standards
Composite video, YC, YPbPr
Signals
Stereo mini jack x 1/1 x 1 W
Loudspeaker
Wireless IR with mouse function
Technology
and laser pointer
278 x 64 x 214 mm
Measurements (W x H x D)
2.7 kg
Weight
Magnesium alloy
Casing
Silver
Colour
100 - 240 V AC 50/60 Hz
Mains voltage
approx. 270 W
Power consumption
5° C - 35° C
Operating temperature
33 dB (A) whisper mode
Operating noise
3 years
Warranty
1,000 h or 90 days
Lamp warranty
Kensington slot, key lock, power-on password
4x Digital zoom, direct power off function, rear projection, business logo,
picture-in-picture, mute, freeze, whisper mode, ceiling mounting possible
RGB cable, USB cable, video cable, power cable, IR remote control,
batteries, case, user manual on CD, quick start card, warranty card,
registration card
Lens
Lamp
Digital keystone
correction
Connections
Computer
compatibility
Video compatibility
Audio system
Remote control
General
Security
Other functions
Included in package
* for autofocus and auto keystone.
The DLP™ logo and the DLP™ medallion are registered trademarks of Texas Instruments.
Correct as at January 2005. Errors and technical changes excepted.
Automatic setup
1.6 metres
distance
3.2 metres distance
120 cm
image width
Make a big impression even in a small
room: The optical 2x zoom.
You don't know yet what kind of room you will be giving
the presentation in? Thanks to the optical 2x zoom, the size
of the image can be adjusted to fit nearly every projection
distance and surface. This way, you needn't worry about
the size of the room – and you've got optimum image
quality at all times!
Pretty straight(forward):
The fully automatic trapezoidal correction.
With the XJ-560, image distortion is
automatically a thing of the past: if the
conditions in your presentation room
don't allow straight projection, you
can set up the projector at an angle
of up to 30° to the projection
surface. Projecting at an angle
normally causes distortion, but the
XJ-560 has an integrated sensor
system that compensates for any
distortion – immediately and automatically.
Flexible presentations with the multifunctional camera system YC-400.
Manual input selection
Autofocus/Auto keystone
Power
Zoom control
RGB input
USB mouse control
Video input
S-video input
IR remote control
with laser pointer
Audio input
Operating panel
An absolute innovation, and nothing short of a revolution in
its field! Available as an optional extra, the multi-functional
camera system YC-400 really expands your presentation
possibilities: direct document capture and projection,
on-the-spot photos of flipcharts or whiteboards, and much
more. Of course the camera can be removed from the
system, so you have a quality digital camera to take with
you wherever you go. And when you're ready to transfer the
pictures to your computer, just plug the camera into the USB
port, start the software program supplied and off you go!
Mains connection
805LEAF560-EU
www.casio-projectors.com
CASIO Europe GmbH • Bornbarch 10 • D-22848 Norderstedt
Telephone: +49 (0)40/ 528 65-0 • Fax: +49 (0)40/ 528 65-525
