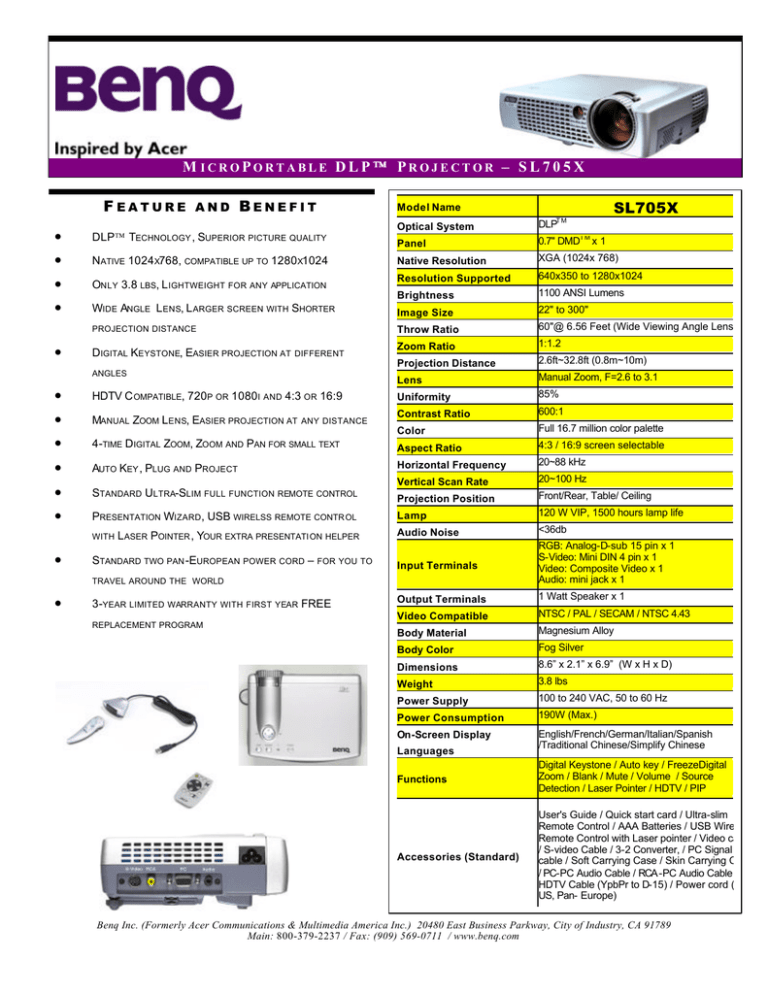

 M P
M ICROPORTABLE DLP PROJECTOR – S L 7 0 5 X
F EATURE AND BENEFIT
SL705X
Model Name
Optical System
DLPT M
Panel
0.7" DMDT M x 1
Native Resolution
XGA (1024x 768)
Resolution Supported
640x350 to 1280x1024
•
DLP TECHNOLOGY , SUPERIOR PICTURE QUALITY
•
NATIVE 1024X768, COMPATIBLE UP TO 1280X1024
•
ONLY 3.8 LBS, L IGHTWEIGHT FOR ANY APPLICATION
•
Brightness
1100 ANSI Lumens
WIDE ANGLE LENS, L ARGER SCREEN WITH SHORTER
Image Size
22" to 300"
PROJECTION DISTANCE
Throw Ratio
60"@ 6.56 Feet (Wide Viewing Angle Lens)
Zoom Ratio
1:1.2
Projection Distance
2.6ft~32.8ft (0.8m~10m)
Lens
Manual Zoom, F=2.6 to 3.1
Uniformity
85%
Contrast Ratio
600:1
•
DIGITAL KEYSTONE, EASIER PROJECTION AT
DIFFERENT
ANGLES
•
HDTV C OMPATIBLE, 720P OR 1080I AND 4:3 OR 16:9
•
MANUAL ZOOM LENS, EASIER PROJECTION AT
•
Color
Full 16.7 million color palette
4-TIME DIGITAL ZOOM, ZOOM AND PAN FOR SMALL TEXT
Aspect Ratio
4:3 / 16:9 screen selectable
•
AUTO KEY , PLUG AND PROJECT
Horizontal Frequency
20~88 kHz
•
Vertical Scan Rate
20~100 Hz
STANDARD ULTRA-SLIM FULL FUNCTION REMOTE CONTROL
Projection Position
Front/Rear, Table/ Ceiling
•
PRESENTATION WIZARD , USB WIRELSS REMOTE CONTR OL
Lamp
120 W VIP, 1500 hours lamp life
Audio Noise
<36db
Input Terminals
RGB: Analog-D-sub 15 pin x 1
S-Video: Mini DIN 4 pin x 1
Video: Composite Video x 1
Audio: mini jack x 1
Output Terminals
1 Watt Speaker x 1
Video Compatible
NTSC / PAL / SECAM / NTSC 4.43
Body Material
Magnesium Alloy
Body Color
Fog Silver
Dimensions
8.6” x 2.1” x 6.9” (W x H x D)
Weight
3.8 lbs
Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
190W (Max.)
On-Screen Display
English/French/German/Italian/Spanish
/Traditional Chinese/Simplify Chinese
WITH
•
ANY DISTANCE
LASER POINTER , YOUR EXTRA PRESENTATI ON HELPER
STANDARD TWO PAN -EUROPEAN POWER CORD – FOR YOU TO
TRAVEL AROUND THE WORLD
•
3-YEAR LIMITED WARRANTY WITH FIRST YEAR FREE
REPLACEMENT PROGRAM
Languages
Functions
Digital Keystone / Auto key / FreezeDigital
Zoom / Blank / Mute / Volume / Source
Detection / Laser Pointer / HDTV / PIP
Accessories (Standard)
User's Guide / Quick start card / Ultra-slim
Remote Control / AAA Batteries / USB Wireless
Remote Control with Laser pointer / Video cable
/ S-video Cable / 3-2 Converter, / PC Signal
cable / Soft Carrying Case / Skin Carrying Case
/ PC-PC Audio Cable / RCA-PC Audio Cable /
HDTV Cable (YpbPr to D-15) / Power cord (UK,
US, Pan- Europe)
Benq Inc. (Formerly Acer Communications & Multimedia America Inc.) 20480 East Business Parkway, City of Industry, CA 91789
Main: 800-379-2237 / Fax: (909) 569-0711 / www.benq.com
