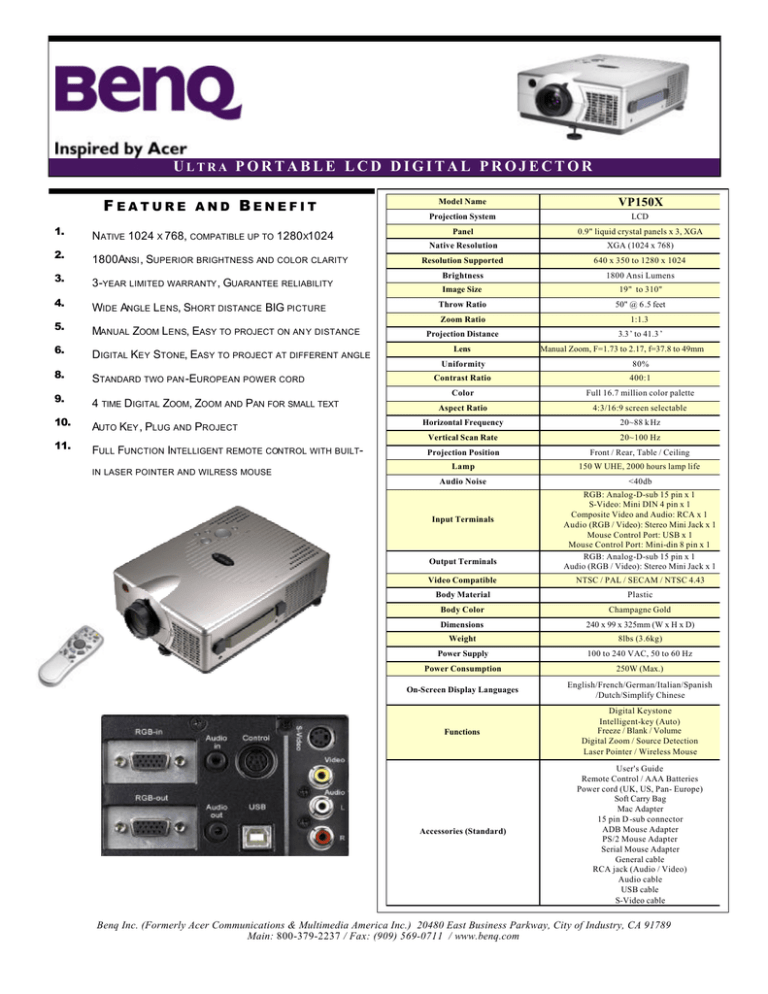

User manual | U P O R T A B L E ... F

ULTRA PORTABLE LCD DIGITAL PROJECTOR
F EATURE AND BENEFIT
1.
NATIVE 1024 X 768, COMPATIBLE UP TO 1280X1024
2.
1800ANSI , SUPERIOR BRIGHTNESS AND COLOR CLARITY
3.
3-YEAR LIMITED WARRANTY , GUARANTEE RELIABILITY
4.
WIDE ANGLE LENS, SHORT DISTANCE BIG PICTURE
5.
MANUAL ZOOM LENS, EASY TO PROJECT ON AN Y DISTANCE
6.
DIGITAL KEY STONE, EASY TO PROJECT AT DIFFERENT ANGLE
8.
STANDARD TWO PAN -EUROPEAN POWER CORD
9.
4 TIME DIGITAL ZOOM, ZOOM AND PAN FOR SMALL TEXT
10.
11.
AUTO KEY , PLUG AND PROJECT
FULL FUNCTION INTELLIGENT REMOTE CONTROL WITH BUILTIN LASER POINTER AND WILRESS MOUSE
Model Name
VP150X
Projection System
LCD
Panel
0.9" liquid crystal panels x 3, XGA
Native Resolution
XGA (1024 x 768)
Resolution Supported
640 x 350 to 1280 x 1024
Brightness
1800 Ansi Lumens
Image Size
19" to 310"
Throw Ratio
50" @ 6 .5 feet
Zoom Ratio
1:1.3
Projection Distance
3.3 ’ to 41.3 ’
Lens
Manual Zoom, F=1.73 to 2.17, f=37.8 to 49mm
Uniformity
80%
Contrast Ratio
400:1
Color
Full 16.7 million color palette
Aspect Ratio
4:3/16:9 screen selectable
Horizontal Frequency
20~88 k Hz
Vertical Scan Rate
20~100 Hz
Projection Position
Front / Rear, Table / Ceiling
Lamp
150 W UHE, 2000 hours lamp life
Audio Noise
Input Terminals
Output Terminals
Video Compatible
<40db
RGB: Analog-D-sub 15 pin x 1
S-Video: Mini DIN 4 pin x 1
Composite Video and Audio: RCA x 1
Audio (RGB / Video): Stereo Mini Jack x 1
Mouse Control Port: USB x 1
Mouse Control Port: Mini-din 8 pin x 1
RGB: Analog-D-sub 15 pin x 1
Audio (RGB / Video): Stereo Mini Jack x 1
NTSC / PAL / SECAM / NTSC 4.43
Body Material
Plastic
Body Color
Champagne Gold
Dimensions
240 x 99 x 325mm (W x H x D)
Weight
8lbs (3.6kg)
Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
250W (Max.)
On-Screen Display Languages
English/French/German/Italian/Spanish
/Dutch/Simplify Chinese
Functions
Digital Keystone
Intelligent-key (Auto)
Freeze / Blank / Volume
Digital Zoom / Source Detection
Laser Pointer / Wireless Mouse
Accessories (Standard)
User's Guide
Remote Control / AAA Batteries
Power cord (UK, US, Pan- Europe)
Soft Carry Bag
Mac Adapter
15 pin D -sub connector
ADB Mouse Adapter
PS/2 Mouse Adapter
Serial Mouse Adapter
General cable
RCA jack (Audio / Video)
Audio cable
USB cable
S-Video cable
Benq Inc. (Formerly Acer Communications & Multimedia America Inc.) 20480 East Business Parkway, City of Industry, CA 91789
Main: 800-379-2237 / Fax: (909) 569-0711 / www.benq.com
