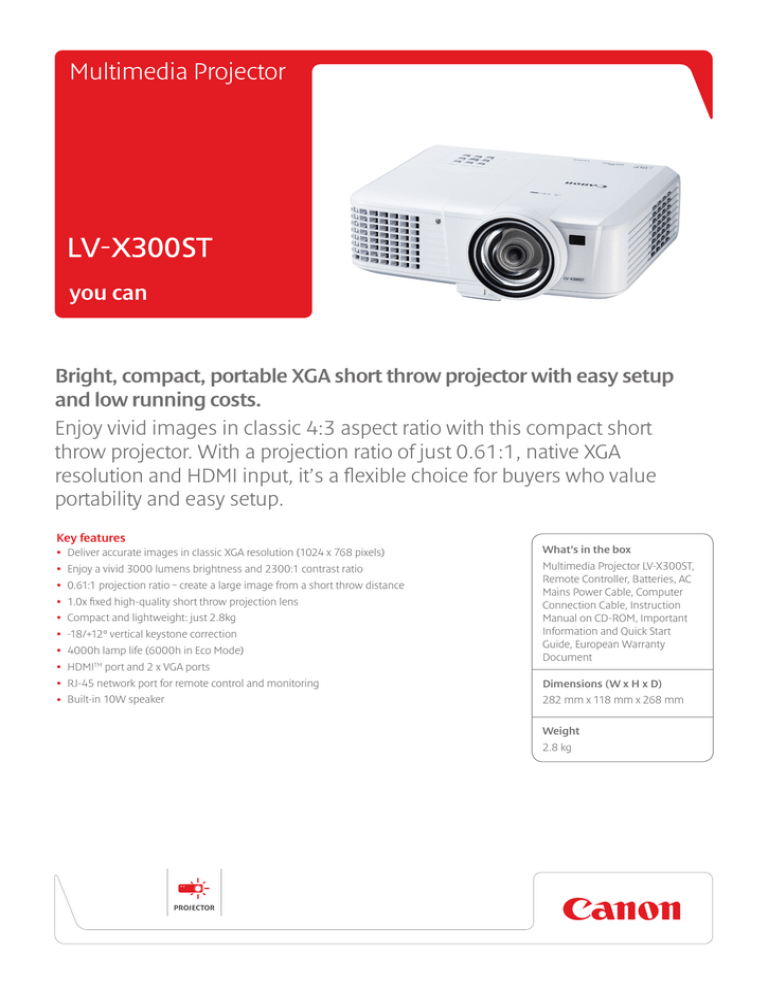

Canon-LV-X300ST.pdf
Multimedia Projector
you can
Bright, compact, portable XGA short throw projector with easy setup
and low running costs.
Enjoy vivid images in classic 4:3 aspect ratio with this compact short
throw projector. With a projection ratio of just 0.61:1, native XGA
resolution and HDMI input, it’s a flexible choice for buyers who value
portability and easy setup.
Key features
• Deliver accurate images in classic XGA resolution (1024 x 768 pixels)
• Enjoy a vivid 3000 lumens brightness and 2300:1 contrast ratio
• 0.61:1 projection ratio – create a large image from a short throw distance
• 1.0x fixed high-quality short throw projection lens
• Compact and lightweight: just 2.8kg
• -18/+12° vertical keystone correction
• 4000h lamp life (6000h in Eco Mode)
• HDMITM port and 2 x VGA ports
• RJ-45 network port for remote control and monitoring
• Built-in 10W speaker
What’s in the box
Multimedia Projector LV-X300ST,
Remote Controller, Batteries, AC
Mains Power Cable, Computer
Connection Cable, Instruction
Manual on CD-ROM, Important
Information and Quick Start
Guide, European Warranty
Document
Dimensions (W x H x D)
282 mm x 118 mm x 268 mm
Weight
2.8 kg
PROJECTOR
Specifications
MULTIMEDIA PROJECTOR
Product Class
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
OPTICS
Lamp Type
Lens F Number and
Focal Length
Zoom Magnification
and Control
Focus Control
Lens Shift
IMAGE AND AUDIO
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Projection Ratio
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Digital Video Scan Systems
Component Video Scan
Systems
Video / S-Video Colour Systems
Display Modes
Built-in Speaker
PORT AND CONNECTORS
Digital RGB / Digital Video
Input
Analogue RGB Input 1
Analogue RGB Input 2
S-Video Input
Composite Video Input
Audio Input 1
Audio Output
Projector Control
Network Port
Service Port
Ultra-Portable
Reflective DLP™ chip
0.55” diagonal, Single chip
4:3
1024 x 768 (XGA), 786432 pixels
190W P-VIP
F2.60; f=6.9mm
1.0x Fixed
MECHANISMS
Front Elevation Mechanism
Rear Adjustment Mechanism
Manual
65% (fixed)
3000 lumens (2200 Lumens Eco mode)
80%
2300:1 (with lamp control)
0.74m – 1.48m (1.23m for 100” image)
60” - 120” (129 x 81cm - 258 x 162cm)
0.61:1
2x maximum
Vertical: Manual -18° / +12°
(UXGA / SXGA+ / WXGA+ / FWXGA) / WXGA / SXGA / XGA / SVGA / VGA
(UXGA / SXGA+ / WXGA+ / FWXGA) / WXGA / SXGA / XGA /
SVGA / VGA / MAC
1080p / 1080i / 720p / 576p / 480p
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
RATINGS
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
Noise Level
Operating Environment
Warranty
HDMI™ V1.3 with Deep Colour
Mini D-Sub 15-pin (Component Video via optional cable)
Mini D-Sub 15-pin (Component Video via optional cable)
Mini DIN 4-pin
RCA x1
3.5mm stereo mini-jack
3.5mm stereo mini-jack (variable level)
Mini D-Sub 9-pin (RS-232C)
RJ-45 (100BASE-TX / 10BASE-T)
USB Type B
1x Mechanical foot, 6° maximum image elevation
1x Mechanical foot
282 mm x 118 mm x 268 mm (including protrusions)
2.8 kg
100V - 240V AC, 50/60Hz
Normal Mode: 330W / Eco Mode: 270W / Standby: 3W,
Standby (LAN off): 0.5W
Normal Mode: 36dBA / Eco Mode: 29dBA
0°C to +40°C
3 years
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
™ and ®: All company and/or product names are trademarks and/or registered trademarks
of their respective manufacturers in their markets and/or countries.
PAL / PAL-M / PAL-N / PAL-60 / NTSC / NTSC4.43 / SECAM
Presentation, Standard, sRGB, Movie, User 1 & 2
10W RMS, Monaural
Connectivity
1 USB type B: Service port
2 RJ-45: Network connection (100BASE - TX / 10BASE-T)
3 HDMI: HDMI input
4 Mini Dsub 15 x 2: Analog PC input/Conponent video input
5 Dsub9: RS232C Connection
6 RCA: Video input
7 Mini DIN4: S-video input
1
2
3
4
5 6
7
8
8 Mini jack x2: Audio input x1, Audio output x1
Canon Inc
Canon Europe Ltd
canon.com
3 The Square, Stockley Park
Uxbridge, Middlesex
UB11 1ET UK
Canon Europe
canon-europe.com
English Edition
© Canon Europa N.V., 2014
Multimedia Projector
you can
Bright, compact, portable XGA short throw projector with easy setup
and low running costs.
M E R CU R Y CO D E S
The whole range consists of:
XEED:WUX5000, WUX5000 Medical, WUX4000,
WUX4000 Medical, WX6000, WX6000 Medical,
SX6000, SX6000 Medical, WUX450, WUX450
Medical, WUX400ST, WUX400ST Medical,WX520,
WX520 Medical, WX450ST, WX450ST Medical.
LV:LV-S300, LV-WX300, LV-WX300ST, LV-X300,
LV-X300ST, LV-8235UST, LV-7490.
Box Dimensions (W x H x D)
185 mm x 345 mm x 377 mm
PRO D U CT
Name
Multimedia Projector LV-X300ST (E)
Multimedia Projector LV-X300ST (GB)
Mercury Code
9882B003AA
9882B005AA
EAN Code
4549292021639
8714574624952
O PT I O N S
Remote Controller LV-RC08
Soft Carrying Case LV-SC01
Projector Lamp LV-LP38
0029C001AA
5331B001AA
0031C001AA
4549292024203
4960999787930
4549292024234
Box Weight (Gross / Net)
Approx. 3.7 Kg / 2.7 Kg
Packet style
Pallet
Quantity of item
Logistical = 1
Financial = 1
Screen
T H R O W D I S T A N CE S ( 4: 3 aspe c t r at io )
Image Size
(4:3)
Projection Distance
Diagonal (type)
60
70
80
90
100
110
120
Width (m)
1.2
1.4
1.6
1.8
2.0
2.2
2.4
Height (m)
Projection Distance L (m)
www.canon.com/lcd-sim
PROJECTOR
0.9
1.1
1.2
1.4
1.5
1.7
1.8
0.74
0.86
0.99
1.11
1.23
1.36
1.48
