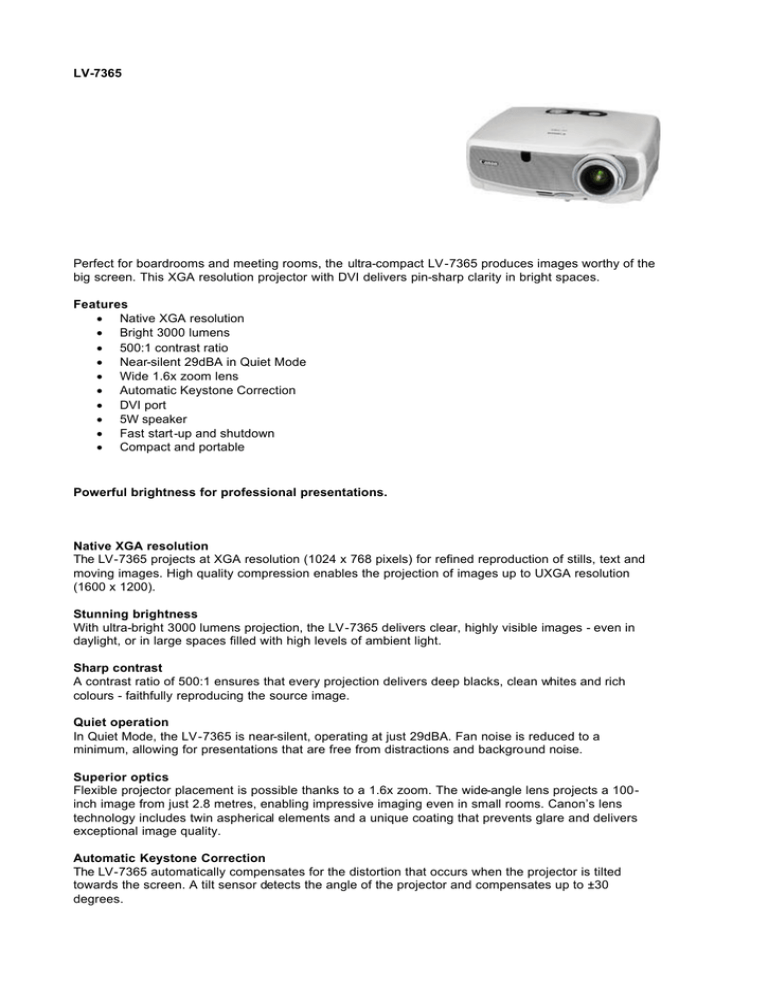

LV-7365
Perfect for boardrooms and meeting rooms, the ultra-compact LV-7365 produces images worthy of the
big screen. This XGA resolution projector with DVI delivers pin-sharp clarity in bright spaces.
Features
• Native XGA resolution
• Bright 3000 lumens
• 500:1 contrast ratio
• Near-silent 29dBA in Quiet Mode
• Wide 1.6x zoom lens
• Automatic Keystone Correction
• DVI port
• 5W speaker
• Fast start-up and shutdown
• Compact and portable
Powerful brightness for professional presentations.
Native XGA resolution
The LV-7365 projects at XGA resolution (1024 x 768 pixels) for refined reproduction of stills, text and
moving images. High quality compression enables the projection of images up to UXGA resolution
(1600 x 1200).
Stunning brightness
With ultra-bright 3000 lumens projection, the LV-7365 delivers clear, highly visible images - even in
daylight, or in large spaces filled with high levels of ambient light.
Sharp contrast
A contrast ratio of 500:1 ensures that every projection delivers deep blacks, clean whites and rich
colours - faithfully reproducing the source image.
Quiet operation
In Quiet Mode, the LV-7365 is near-silent, operating at just 29dBA. Fan noise is reduced to a
minimum, allowing for presentations that are free from distractions and background noise.
Superior optics
Flexible projector placement is possible thanks to a 1.6x zoom. The wide-angle lens projects a 100inch image from just 2.8 metres, enabling impressive imaging even in small rooms. Canon’s lens
technology includes twin aspherical elements and a unique coating that prevents glare and delivers
exceptional image quality.
Automatic Keystone Correction
The LV-7365 automatically compensates for the distortion that occurs when the projector is tilted
towards the screen. A tilt sensor detects the angle of the projector and compensates up to ±30
degrees.
Advanced igital imaging
The DVI (Digital Visual Interface) port of the LV-7365 provides exceptional imaging quality by enabling
a direct digital connection to compatible computers, DVD players and other digital sources. Support for
the HDCP standard allows playback of encrypted digital content.
Impressive on-board audio
Strong audio output is delivered via the integrated 5W speaker - ideal for getting the message across
in meetings and bringing presentations to life.
Ready to go
With an 8 second start-up, the LV-7365 is ready to use almost instantly. A short 30 second cooling
time means that the projector can be quickly packed away at the end of the presentation.
Portable and convenient
At just 3.3kg, the LV-7365 is light enough to be taken anywhere. All major connections are positioned
on a single panel at the rear, and key projector functions can be controlled via the remote control.
LV-7365
Product Specification
LCD PANEL
Type
Size and Number
Transmissive LCD, Poly-silicon
TFT Active Matrix
0.63" diagonal with microlens, 3
panels
4:3
1024 x 768 (XGA), 786432 pixels
Aspect Ratio
Native Resolution
OPTICS
Light Source
210W NSH lamp
Lens F Number and Focal F1.6 - F2.5; f=17.7 - 28.3mm
Length
Zoom Magnification and
1.6x Manual
Control
Focus Control
Manual
Lens Shift
8.4 : 1.6 (fixed)
IMAGE AND AUDIO
Brightness
3000 lumens (2400 lumens in Quiet
Mode)
Brightness Uniformity
85%
Contrast Ratio
500:1 (full on / full off)
Projection Distance
1.1m - 8.4m (2.8m - 4.3m for a 100
Coverage
inch image)
Screen Size
25" - 300" (51 x 38cm - 610 x 457cm)
Digital Zoom
1x - 4x (16x Area Ratio)
Magnification
Keystone Correction
Vertical: +/-30° (Auto / Manual)
Range
Digital RGB Compatibility SXGA+ / SXGA / XGA / SVGA / VGA
/ MAC
Analogue RGB
UXGA / SXGA / XGA / SVGA / VGA /
Compatibility
MAC
Video Colour Systems
PAL / PAL-M / PAL-N / PAL-60 /
NTSC / NTSC4.43 / SECAM
HD / Component Scan
1080i / 720p / 575p / 575i / 480p /
Systems
480i
Scanning Frequency
Horizontal: 15-100kHz, Vertical: 50-
Display Modes
Image Enhancement
Built-in Speaker
CONNECTORS
Digital
RGB/Video/Analogue RGB
Input 1
Analogue RGB Input 2
Analogue RGB Output
S-Video Input
Composite Video Input
Stereo Audio Input
Service Port / Projector
Control
MECHANISMS
Front Elevation
Mechanism
RATINGS
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
120Hz, Clock: 108MHz
Standard, Presentation, Movie, Video,
sRGB, Custom
Digital Gamma Correction
5.0W RMS, Monaural
DVI-I 29-pin, HDCP compatible
Mini D-Sub 15-pin (Component Video
via optional cable)
Mini D-Sub 15-pin
Mini Din 4-pin
RCA x 1
Input 1: 3.5mm² stereo mini-jack x 1
Input 2: RCA x 2 (L/R)
Mini-DIN 8-pin
Mechanical foot, 10° maximum image
elevation
310mm x 109mm x 265mm
3.3kg
100V - 240V AC, 50/60Hz
Normal Mode: 295W / Quiet Mode:
240W / Standby: 9W
Normal Mode: 35dBA / Quiet Mode:
29dBA
+5°C to +40°C
-10°C to +50°C
3 years
