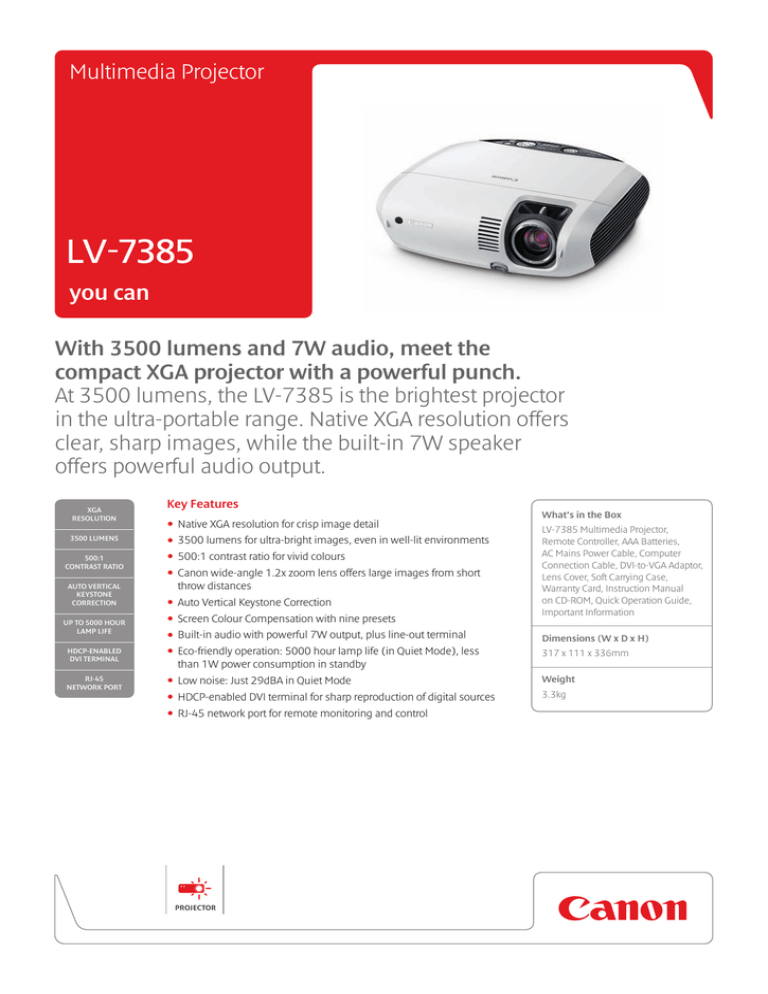

With 3500 lumens and 7W audio, meet the

With 3500 lumens and 7W audio, meet the
Multimedia Projector
you can
With 3500 lumens and 7W audio, meet the
compact XGA projector with a powerful punch.
At 3500 lumens, the LV-7385 is the brightest projector
in the ultra-portable range. Native XGA resolution offers
clear, sharp images, while the built-in 7W speaker
offers powerful audio output.
XGA
RESOLUTION
3500 LUMENS
500:1
CONTRAST RATIO
AUTO VERTICAL
KEYSTONE
CORRECTION
UP TO 5000 HOUR
LAMP LIFE
HDCP-ENABLED
DVI TERMINAL
RJ-45
NETWORK PORT
Key Features
• Native XGA resolution for crisp image detail
• 3500 lumens for ultra-bright images, even in well-lit environments
• 500:1 contrast ratio for vivid colours
wide-angle 1.2x zoom lens offers large images from short
• Canon
throw distances
• Auto Vertical Keystone Correction
• Screen Colour Compensation with nine presets
• Built-in audio with powerful 7W output, plus line-out terminal
operation: 5000 hour lamp life (in Quiet Mode), less
• Eco-friendly
than 1W power consumption in standby
• Low noise: Just 29dBA in Quiet Mode
• HDCP-enabled DVI terminal for sharp reproduction of digital sources
• RJ-45 network port for remote monitoring and control
PROJECTOR
What’s in the Box
LV-7385 Multimedia Projector,
Remote Controller, AAA Batteries,
AC Mains Power Cable, Computer
Connection Cable, DVI-to-VGA Adaptor,
Lens Cover, Soft Carrying Case,
Warranty Card, Instruction Manual
on CD-ROM, Quick Operation Guide,
Important Information
Dimensions (W x D x H)
317 x 111 x 336mm
Weight
3.3kg
Specifications
MULTIMEDIA PROJECTOR
Product Class
Ultra-Portable
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
Transmissive LCD, Poly-silicon TFT Active Matrix
0.63” diagonal with microlens, 3 panels
4:3
1024 x 768 (XGA), 786432 pixels
OPTICS
Lamp Type
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
230W NSHA
F1.7 – F2.0; f=19.8 – 23.7mm
1.2x Manual
Manual
8.44 : 1.56 (fixed)
IMAGE AND AUDIO
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Digital Video Scan Systems
Component Video Scan Systems
Video / S-Video Colour Systems
Display Modes
Image Enhancement
Built-in Speaker
3500 lumens
85%
500:1 (full on / full off)
0.8m – 11.3m (3.1m – 3.7m for 100 inch image)
21” - 300” (43 x 32cm - 610 x 457cm)
1x - 4x
Vertical: +/- 30° (Auto / Manual)
SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
1080i / 720p / 576p / 480p
1080i / 720p / 576p / 576i / 480p / 480i
PAL / PAL-M / PAL-N / PAL-60 / NTSC / NTSC4.43 / SECAM
Standard, Presentation, Cinema, Video, sRGB
Digital Gamma Correction
7.0W RMS, Monaural
CONNECTORS
Analogue RGB Input 1
Digital RGB / Analogue RGB Input 2
Analogue RGB Output
S-Video Input
Composite Video Input
Audio Input 1
Audio Input 2
Audio Input 3
Audio Output
Service Port / Projector Control
Network Port
MECHANISMS
Front Elevation Mechanism
Rear Adjustment Mechanism
RATINGS
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
Mini D-Sub 15-pin (Component Video via optional cable)
DVI-I 29-pin, HDCP compatible
Mini D-Sub 15-pin
Mini DIN 4-pin
RCA x 1
3.5mm stereo mini-jack
3.5mm stereo mini-jack
RCA x 2 (L/R)
3.5mm stereo mini-jack (variable level)
Mini D-Sub 9-pin
RJ-45
Mechanical foot, 10° maximum image elevation
One rotary foot for fine adjustment
317mm x 111mm x 336mm
3.3kg
100V - 240V AC, 50/60Hz
Normal Mode: 294W / Quiet Mode: 228W /
Sleep: 10W / Standby: 0.7W
Normal Mode: 35dBA / Quiet Mode: 29dBA
+5°C to +40°C
-10°C to +50°C
3 years
All data is based on Canon’s standard testing methods. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice.
™and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in
their markets and/or countries.
Connectivity
Mini D-sub 15-pin: Analogue RGB Input 1, Component Video
DVI-I 29-pin: Digital RGB / Digital Video / Analogue RGB Input 2
Mini D-sub 15-pin: Analogue RGB (Monitor) Output
Mini DIN 4-pin: S-Video Input
RCA x 1: Composite Video Input
3.5mm mini-jack: Stereo Audio Input 1 (for 1)
3.5mm mini-jack: Stereo Audio Input 2 (for 2)
RCA x 2 (L/R): Stereo Audio Input 3 (for 4, 5)
3.5mm mini-jack: Stereo Audio Output (Variable level)
Mini D-Sub 9-pin: Service Port (RS-232C)
RJ-45: Network Connection
