CP-X268
CP-X268

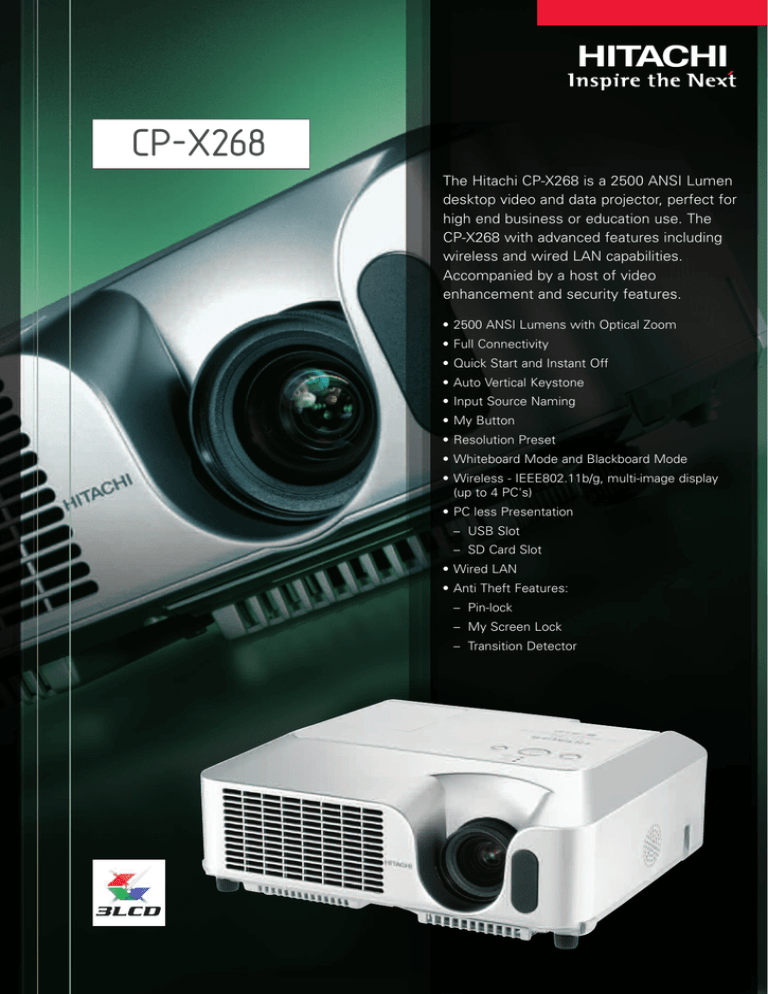

The Hitachi CP-X268 is a 2500 ANSI Lumen
desktop video and data projector, perfect for
high end business or education use. The
CP-X268 with advanced features including
wireless and wired LAN capabilities.
Accompanied by a host of video
enhancement and security features.
• 2500 ANSI Lumens with Optical Zoom
• Full Connectivity
• Quick Start and Instant Off
• Auto Vertical Keystone
• Input Source Naming
• My Button
• Resolution Preset
• Whiteboard Mode and Blackboard Mode
• Wireless - IEEE802.11b/g, multi-image display
(up to 4 PC's)
• PC less Presentation
– USB Slot
– SD Card Slot
• Wired LAN
• Anti Theft Features:
– Pin-lock
– My Screen Lock
– Transition Detector
CP-X268
CP-X268 SPECIFICATION
● 2500 ANSI Lumens with optical zoom.
OPTICAL
● Full Connectivity - 2 x RGB in and RGB monitor out with audio
LCD Panel
Resolution
Brightness
in/out and versatile video connections.
0.63" P-Si TFT x 3 with MLA
1024 dots x 768 lines
(Normal)
2500 ANSI Lumens
(Whisper)
2000 ANSI Lumens
500:1 (typ)
Contrast Ratio
Lens
F1.7~1.9, f=18.9~22.6mm, Manual Zoom x 1.2
200W UHB
Lamp
Focus Distance
0.9~9.3m (Wide), 1.1m~10.8m (Tele)
Distance to Width Ratio (:1) 1.5 (Wide), 1.7 (Tele)
Diagonal Display Size
30~300" (60"@1.8m, Wide)
COMPATIBILITY
Computer Compatibility
● Quick Start and Instant Off - These features are ideal for quick
presentations. The image will appear in just 3 seconds after
power on and the unit can be instantly powered off after a
presentation.
● Auto Vertical Keystone - Just press the button for a perfect
screen setting.
● Input Source Naming - The name of any input can be changed
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+,
UXGA Capability, MAC 13", MAC 16" (Pixelworks chip)
NTSC/PAL/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]/60Hz), 1125i([email protected]/60Hz)
DDC2B
FV 56~120Hz, FH 31.5~106kHz
Video Compatibility
Plug & Play
Frequency Range
FEATURES
Speakers
Other
1 x 1W
Freeze, Magnifying, Blank, Auto adjustment, Search, Page
Up & Down (for USB mouse function), Equalizing Gamma
Correction, 2-3 pull down, Progressive Scan, Noise
Reduction, Auto V keystone +/- 30°, My Screen, My Memory,
My Button, Blackboard/Whiteboard Mode, Input Source
Naming (English), Easy Lamp replace from Top, Easy Filter
Change with sliding system, Serial Number label on side,
Quick On (3 sec target), Direct On, Direct Off
Controling & Monitoring, WEB control, e-shot,
Scheduling function
IEEE802.11b/g, multi image display (up to 4 PCs)
USB slot, SD slot support (jpeg, bmp, png, motion picture
(MPEG4 standard profile) support)
Network application software (PJ Man, PJ Ctrl) support,
Image translation support
to one of your own choosing for easier use.
Network
Wireless
PC less presentation
● My Button - There are 2 user programmable
buttons on the remote control that may be set with
any command. The user can set up these buttons
from a simple, easy to understand menu.
Wired LAN
CONNECTORS
Computer Input
Computer Output
Video Input
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x RCA Jack (for composite)
1 x S-Video Jack Mini-DIN 4-pin
3 x RCA Jack (for component)
2 x Stereo Mini Jack
1 x RCA Jack
1 x Stereo Mini Jack
1 x 9-pin D-sub for RS232C Control
1 x USB
1 x RJ-45
● ‘Resolution Preset’ ensures special resolutions, such as WXGA
will be recognised and resized and placed in the optimum
position. Custom modes can also be stored to remember user’s
own resolutions.
Audio Input
Audio Output
Control
Mouse
Network Interface
POWER
Power Supply
Power Consumption
100~120/220~240V, 50/60Hz, 3.3A/1.4A
310W
PHYSICAL
on whiteboards may be too bright, whiteboard mode changes
the gamma curve to reduce the peak white brightness allowing
users to enjoy the benefits of a bright projector but reducing
potential health and safety risks of looking directly into one.
Blackboard mode provides better colour balance when projecting
onto a coloured background.
Dimensions (W x H x D)
Weight
Noise Level
306 x 106 x 249mm (excluding feet and extrusions)
3.3Kg
39dB/33dB
CERTIFICATION
UL60950/C-UL, FCC Part 15, Class B, CE, EN60950, WEE
OPTIONAL ACCESSORIES
DT00751
Replacement Lamp
All brand or product names are trademarks or registered trademarks of their respective owners.
b
The specification above and photography is for reference only and may be subject to change.
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road,
Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 500 www.hitachidigitalmedia.com
● Whiteboard Mode and Blackboard Mode – Images displayed
08/06
(Top)
a: Projection Distance
b: Lens centre to the higher edge of the screen
c: Lens centre to the lower edge of the screen
c
Normal Mode
Whiteboard Mode
(Bottom)
a
● Anti Theft Features – CP-X268 has an impressive suite of anti-
theft measures – security bar is a steel bar embedded in the
chassis which provides a strong anchor point for a chain. It is also
a visible security feature to prevent casual removal:
6 Way Theft Protection
PIN Lock
My Screen PIN Lock
– Pin-Lock is a means of in-activating the projector until a user
preset key sequence is input
– ’My Screen Lock’ allows users to personalise the start up
screen with a warning or ownership message and lock this
screen with a pin code number
– Transition detector that operates whenever the projection
angle or settings are changed from the installed position –
this is locked by a numeric pin code.
Image Size 4:3
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
1.4
1.2
1.8
2.1
3.0
3.6
4.5
5.4
6.0
7.2
9.0
10.8
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
1.3
1.5
2.3
1.9
3.2
3.9
4.9
5.8
7.8
6.5
9.8
11.7
Screen Height (cm)
c (bottom)
b (top)
55
6
82
9
137
15
206
23
274
30
411
46
Image Size 16:9
Screen Height (cm)
b (top)
c (bottom)
51
-2
-2
77
129
-4
193
-6
-8
257
386
-12
