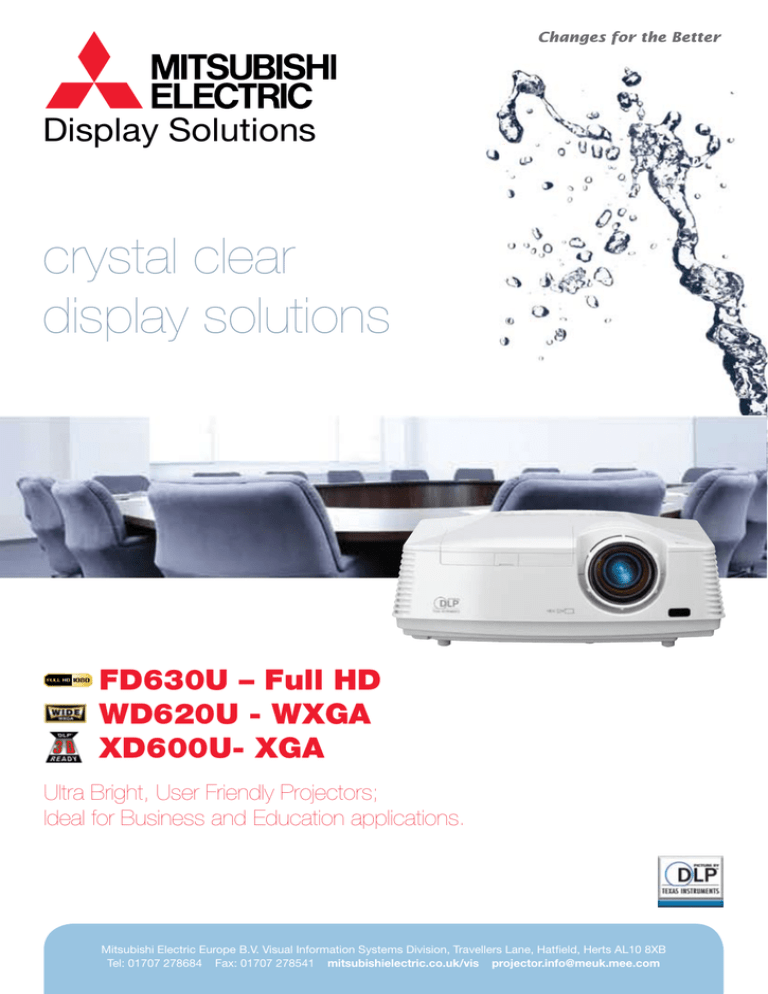

FD630U – Full HD
WD620U - WXGA
XD600U- XGA
Ultra Bright, User Friendly Projectors;
Ideal for Business and Education applications.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Tel: 01707 278684 Fax: 01707 278541 mitsubishielectric.co.uk/vis [email protected]
Amazing image quality combined with advanced
technological design; introducing the FD630U,
WD620U and XD600U.
Mitsubishi Electric, a leading manufacturer of innovative,
high quality display solutions has introduced three new
ultra bright, mobile projectors. Users can choose from
three different resolutions to match their specific installation
needs (FD630U, 1080p; WD620U, WXGA; XD600U, XGA).
Designed for reliability and durability, these projectors
incorporate an array of user-friendly functions and
advanced technology features. When it comes to visual
communications, the FD630U, WD620U and XD600U offer
a good balance between cost and features.
Ecological & Cost-efficient
Clear, Vivid Images
Stand-by Mode under 1W
High brightness and high contrast
When in stand-by (low) mode, the power consumption is less than 1W,
enabling increased energy savings and further contributing to environmental
preservation.
Ideal for large meeting rooms and conference halls, these projectors offer a
high brightness of 4500 ANSI lumens and a high contrast level of 2000:1.
Long 5,000hr Lamp Life
By increasing the estimated lamp life, we’ve reduced maintenance and
operating costs.
Filter-free design
DLP™ projectors are structurally airtight, eliminating the need for an intake
filter. The filter free design also reduces dirt and dust particles from entering
the projector, minimising service issues.
Exceptionally Quiet
High-power projection – Distance increased 1.5x
The FD630U, WD620U and XD600U are equipped with a specially calibrated
lens for high-power projections. A 60” screen is possible from 1.7 to 2.6m
(68in to 102in)* away from the screen and brilliant, crystal-clear images are
assured even when the projection distance is short.
* XD600U only
Silent 29dBA Operation
The FD630U, WD620U and XD600U operate at just 29dBA, making these
projectors virtually silent for undisrupted presentations.
Choose from a Variety of Screen Sizes
From XGA to 1080p- Select the Resolution that Best Matches Your Needs.
The trend towards wide-screen televisions and wide-screen computers
continues to grow. The FD630U and WD620U projectors offer wide-aspect
ratios suitable for displaying wide-screen content without distorting or
compressing the image. Additionally, switching from an XGA projector to
XGA
WXGA
a WXGA projector increases the display screen area by 1.3. What’s more,
upgrading to a 1080p projector gives a screen area that is 2.3 times larger
compared to XGA.
1080p
An Array of Convenient Functions
Visual PA to broadcast messages
Top-loading lamp for easier maintenance
Designed for convenience and utility, the XD600U and WD620U incorporate
Visual PA functionality. With this feature, a control room computer, equipped
with projector-control software can be used to send simultaneous messages
in real time, to a series of projectors connected to the LAN. Messages can
be of up to 350 characters long.
The projection lamp is installed in the upper
section of the main body. Whether sitting on
a shelf or suspended from the ceiling, lamp
replacements are made simple and easy,
and there is never a need to move the whole
projector. A lamp replacement attachment
is included to prevent the lamp from being
dropped during exchange.
Loud 10W built-in speaker
A high-volume 10W speaker is built-in, eliminating the need for an external
speaker.
Audio Mix functionality
Using the Audio Mix* feature and wireless
microphone (sold separately), the
presenter’s voice is reproduced loud and
clear in real-time
*Only compatible with stereo mini-jack. Not
compatible with RCA jack (L/R) or HDMI.
3D READY*
Experience the impact and allure of 3D images. This projector supports a
3D experience when users input and display their 3D content and watch the
display with optional DLP™ link compatible glasses.
*XD600U only
The FD630U is equipped with our new Visual PA2 feature, which provides
message input/save and voice announcement functions as well. Emergency
messages prepared in advance can be sent simultaneously to all projectors
connected on the LAN. The software is also capable of changing messages
via the keyboard to verbal announcements, increasing the effect of the
message. This system is ideal for broadcasting important information to
multiple rooms in schools or office buildings.
Input and Output Terminals
(XD600U/WD620U only)
MOBILE PROJECTOR
1
FD630U
WD620U
XD600U
FULL HD
WXGA
XGA
Color
Brilliant
ColorTM Enhancer
Wall
Screen
Top/Side
Loading
Lamp
Low
Long-life Stand-by
Lamp
Power
Picture Performance
2
1
2
3
4
5
6
7
8
User
Password Instant
10W
Logo
Speaker Projection
Lock
Shutdown
LAN
(RJ-45)
HDMI
Presentation
Closed
Caption
Low
Fan Noise
User-friendly
(XD600U only)
Specifications
3
4
5
6
7
8
Audio output
Audio input
S-Video/Video
HDMI
PC/Component video input
Monitor output
Serial RS-232C
LAN (RJ-45)
Model
FD630U
WD620U
XD600U
Display technology
Resolution
0.65" 1-chip DMD
1920 x 1080 (total 2,073,600 pixels)
0.65" 1-chip DMD
1280 x 800 (total 1,024,000 pixels)
0.7" 1-chip DMD
1024 x 768 (total 786,432 pixels)
Brightness
4000lm
4000lm
4500lm
Contrast ratio
2000 : 1
2000 : 1
2000 : 1
Picture size
40" - 300"
40" - 300"
40" - 300"
Throw ratio
1.4 - 2.1
1.5 - 2.2
230W (shut-off time 5000hr) in low mode, 280W (shut-off time 3000hr) in standard mode
1.4 - 2.1
Source lamp
PC compatibility
640 x 480 - 1920 x 1200,
True : 1920 x 1080, sync on green available
640 x 480 - 1280 x 1024,
True : 1280 x 800, sync on green available
640 x 480 - 1280 x 1024,
True : 1024 x 768, sync on green available
Video compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p),
Component video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 50/60Hz)
(
)
(
)
1080i 1125i 50/60Hz , 1080p 1125p 50/60Hz
Input terminals
Output terminals
Communication terminal
Audio speaker
Dimensions ( W x H x D)
Weight
Power requirements
Optional lamp
RGB; mini D-sub 15pin x 2
Video; RCA x 1, S-VIDEO x 1
RS-232C; mini DIN 8pin x 1
Audio; stereo mini jack (ø3.5mm) x 2, RCA jack (L/R) x 1
LAN; RJ-45 x 1
10W mono
345 x 129 x 270 mm / 13.6 x 5.1 x 10.6 inch
3.6kg / 7.9lbs
3.8kg / 8.3lbs
AC 100-240V, 50/60Hz
VLT-XD600LP
• Compliance with ISO21118-2005
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders
Screen Size and Projection Distance
Screen size chart (WD620U)
Height
Side view
Diagonal size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Hd
FD630U
WD620U
XD600U
Projection distance (L)
The above numbers are approximate, and may be slightly different from the actual measurements.
Screen size chart (FD630U)
Diagonal size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Digital; HDMI x 1
Audio; stereo mini jack (ø3.5mm) x 1
RGB; mini D-sub 15pin x 1
Screen (16 : 9)
Width (W)
inch
cm
35
89
52
133
70
177
87
221
131
332
174
443
218
553
261
664
Height
inch
20
29
39
49
74
98
123
147
(H)
cm
50
75
100
125
187
249
311
374
Distance from screen ( L)
Shortest (Wide) Longest (Tele)
inch
47
71
96
120
182
243
304
365
m
1.2
1.8
2.4
3.1
4.6
6.2
7.7
9.3
inch
71
107
144
180
271
362
453
–
m
1.8
2.7
3.6
4.6
6.9
9.2
11.5
–
Height projected
image ( Hd)
inch
6.6
9.9
13.2
16.5
24.7
33.0
41.2
49.5
cm
17
25
34
42
63
84
105
126
Screen (16 : 10)
Width (W)
inch
cm
34
86
51
129
68
172
85
215
127
323
170
431
212
538
254
646
Height
inch
21
32
42
53
79
106
132
159
(H)
Distance from screen ( L)
Shortest (Wide) Longest (Tele)
Height projected
image ( Hd)
Height
inch
24
36
48
60
90
120
150
180
(H)
Distance from screen ( L)
Shortest (Wide) Longest (Tele)
Height projected
image ( Hd)
cm
54
61
108
135
202
269
337
404
Screen size chart (XD600U)
Diagonal size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Screen (4 : 3)
Width (W)
inch
cm
32
81
48
122
64
163
80
203
120
305
160
406
200
508
240
610
cm
61
91
122
152
229
305
381
457
inch
48
73
98
123
186
248
311
373
inch
45
68
91
115
173
231
289
348
m
1.2
1.9
2.5
3.1
4.7
6.3
7.9
9.5
m
1.1
1.7
2.3
2.9
4.4
5.9
7.3
8.8
inch
72
110
147
184
277
370
463
–
inch
67
102
137
171
258
344
431
–
m
1.8
2.8
3.7
4.7
7.0
9.4
11.8
–
m
1.7
2.6
3.5
4.3
6.5
8.7
10.9
–
inch
6.2
9.2
12.3
15.4
23.1
30.8
38.5
46.2
inch
3.6
5.4
7.2
9.0
13.5
18.0
22.5
27.0
cm
16
23
31
39
59
78
98
117
cm
9
14
18
23
34
46
57
69
MITSUBISHI ELECTRIC EUROPE
Display Solutions
New publication, effective November 2009 Specifications subject to change without notice.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Tel: 01707 278684 Fax: 01707 278541 mitsubishielectric.co.uk/vis [email protected]
L-188-9-C8444-A KYO-0910 Printed in Japan(MDOC)
New publication, effective Oct. 2009
Specifications are subject to change without notice.
Home
Products
FREE AV guides
Tel: 01754 769967 / 0800 018 9967
Welcome to Wedgwood
UK specialist education, medical, government, MOD
and business supplier since 1996 with over 9,000 audio visual products
SPECIAL OFFER: Wedgwood AV has partnered with
Repeat Software to give you a FREE Repeat Signage V4
Standalone Edition digital signage software licence with
any purchase order over £500+VAT.
LCD monitors
This means if you purchase goods to the value of £2,000+VAT
you receive 4 Repeat Signage licences, each worth £145+VAT.
Also please check our Special Offers page as we have weekly
and monthly offers. Plus FREE delivery for our customers,
when quoting code: WAV-V4, on your purchase orders.
[email protected] Tel: 01754 769967.
Medical monitors
With Repeat Signage V4 you can easily create a presentation
in minutes for your reception area display screen, to promote
your own products, services and activities. Exciting new
features in V4 allow page-turning PDF’s, conveyor-belt pictures
and has touch screen support. www.repeatsoftware.com
Commercial TV
Mounting solutions
Projectors
Whiteboards
Document cameras
Touch screens
Digital signage
Lecterns
Audio solutions
Wedgwood AV Ltd. Tel: 01754 769967 Order fax line: 01754 768036 UK sales: [email protected] www.wedgwood-group.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
