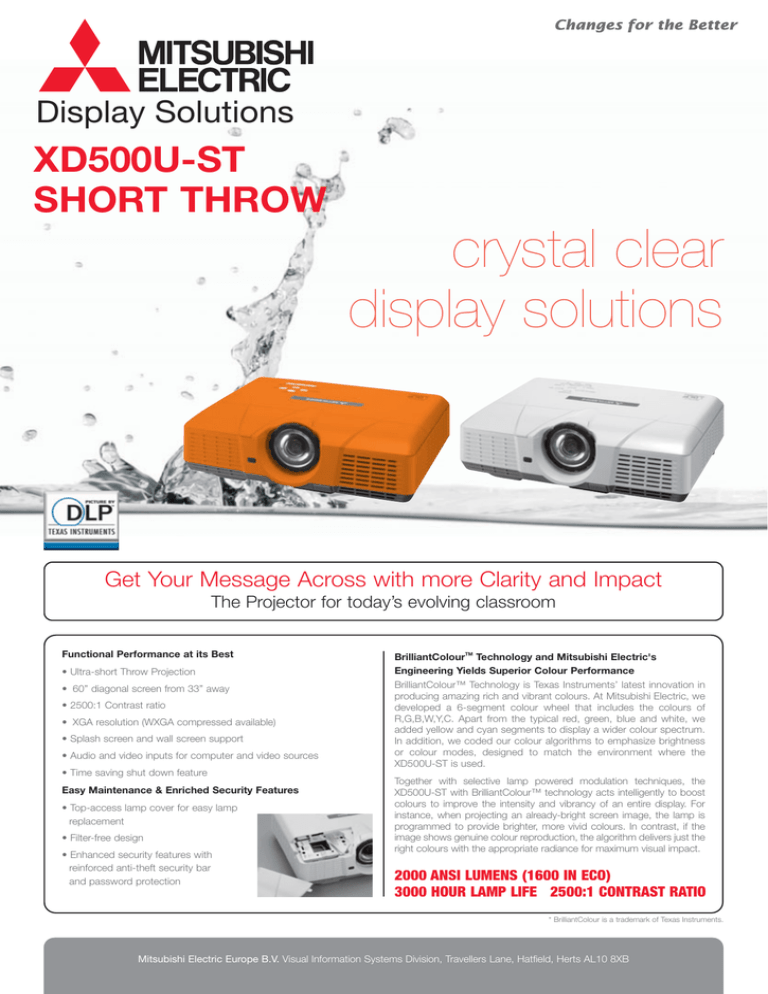

crystal clear display solutions XD500U-ST SHORT THROW

crystal clear display solutions XD500U-ST SHORT THROW
Display Solutions
XD500U-ST
SHORT THROW
crystal clear
display solutions
Get Your Message Across with more Clarity and Impact
The Projector for today’s evolving classroom
Functional Performance at its Best
• Ultra-short Throw Projection
• 60” diagonal screen from 33” away
• 2500:1 Contrast ratio
• XGA resolution (WXGA compressed available)
• Splash screen and wall screen support
• Audio and video inputs for computer and video sources
BrilliantColourTM Technology and Mitsubishi Electric's
Engineering Yields Superior Colour Performance
BrilliantColour™ Technology is Texas Instruments’ latest innovation in
producing amazing rich and vibrant colours. At Mitsubishi Electric, we
developed a 6-segment colour wheel that includes the colours of
R,G,B,W,Y,C. Apart from the typical red, green, blue and white, we
added yellow and cyan segments to display a wider colour spectrum.
In addition, we coded our colour algorithms to emphasize brightness
or colour modes, designed to match the environment where the
XD500U-ST is used.
• Time saving shut down feature
Easy Maintenance & Enriched Security Features
• Top-access lamp cover for easy lamp
replacement
• Filter-free design
• Enhanced security features with
reinforced anti-theft security bar
and password protection
Together with selective lamp powered modulation techniques, the
XD500U-ST with BrilliantColour™ technology acts intelligently to boost
colours to improve the intensity and vibrancy of an entire display. For
instance, when projecting an already-bright screen image, the lamp is
programmed to provide brighter, more vivid colours. In contrast, if the
image shows genuine colour reproduction, the algorithm delivers just the
right colours with the appropriate radiance for maximum visual impact.
2000 ANSI LUMENS (1600 IN ECO)
3000 HOUR LAMP LIFE 2500:1 CONTRAST RATIO
* BrilliantColour is a trademark of Texas Instruments.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
NEW
Ultra-short Throw XGA
XD500U-ST
Specifications
Input and Output Terminals
XD500U-ST
Model
1
2
3
4 5 6
7
8
0.55”1-Chip DMD
Display technology
Resolution
1024 x 768 (total 786,432 pixels)
Brightness
2000lm (1600 in eco mode)
2500:1
Contrast
Picture Size
40” ~ 300”
Source lamp
230W (Shut Off Time 3000Hrs) with Low Mode,
280W (Shut Off Time 2000Hrs) with Standard Mode
1
PC / Component Video output
Computer compatibility
2
PC / Component Video input
(mini D-sub 15pin)
Video compatibility
3
S-Video / RCA
Input terminals
4
Audio input [RCA jack (L/R)]
Output terminals
5
Audio input (stereo mini jack)
Communication terminals
6
Audio output
Audio speaker
7
Serial RS-232C
Dimensions (WxHxD)
8
USB terminal for Page Up/Down
640 x 480 ~ 1280 x 1024, True: 1024 x 768, Sync on green available
NTSC / NTSC4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video : 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
RGB : mini D-sub15pin x 2, Video : RCA x 1 + S-video x 1
Audio : stereo mini jack ( 3.5mm) x 1, RCA jack (L/R) x 1
RGB : mini D-sub15pin x 1, Audio : stereo mini jack ( 3.5mm) x 1
RS-232C (D-sub 9pin) x 1, USB terminal for Page Up/Down x 1
2W mono
332 x 102 x 250 mm / 13.1 x 4.0 x 9.8 inch (excluding height adjustment)
Weight
3.3kg / 7.3lbs
Power supply
AC100-240V, 50/60Hz
Optional lamp
VLT-XD520LP
zAll brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*
Screen size and Projection distance
Dimensions
XD500U-ST
Hd
69.8
Height
As seen from the side
Front
Projection Distance(L)
6
Diagonal size
19.0
24.3
8
87.0
101.7
Screen size chart
Side(Left)
Side(Right)
57.9
198.7
245.2
71.0
14.6
165.6
58.6
Distance from
screen ( L )
Height (H)
Height projected
image ( Hd )
inch
cm
inch
cm
inch
cm
inch
cm
inch
cm
40
102
32
81
24
61
22
55
1.8
5
60
152
48
122
36
91
33
83
2.7
7
80
203
64
163
48
122
44
112
3.6
9
100
254
80
203
60
152
55
140
4.5
11
150
381
120
305
90
229
83
212
6.8
17
200
508
160
406
120
305
111
283
9.0
23
250
635
200
508
150
381
139
354
11.3
29
300
762
240
610
180
457
167
425
13.5
34
Diagonal size
128.3
Screen (4:3 aspect ratio)
Width (W)
Screen (16:9 aspect ratio)
Width (W)
Distance from
screen ( L )
Height (H)
Height projected
image ( Hd )
inch
cm
inch
cm
inch
cm
inch
cm
inch
cm
40
102
35
89
20
50
23
60
5.2
13
60
152
52
133
29
75
36
91
7.9
20
80
203
70
177
39
100
48
122
10.5
27
100
254
87
221
49
125
60
153
13.1
33
331.2
300.0
150
381
131
332
74
187
91
230
19.6
50
Top
Bottom
200
508
174
443
98
249
121
308
26.2
66
250
635
218
553
123
311
152
386
32.7
83
300
762
261
664
147
374
182
463
39.3
100
Unit: mm
The above numbers are approximate, and may be slightly different from the actual measurements.
MITSUBISHI ELECTRIC EUROPE
New publication, effective August 2008 Specifications subject to change without notice.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Authorised Dealer: Wedgwood AV Ltd. Tel 01754 769967
