XD50U Mini-mits 3.4 Lbs. / 2" Thin S A

XD50U Mini-mits 3.4 Lbs. / 2" Thin S A

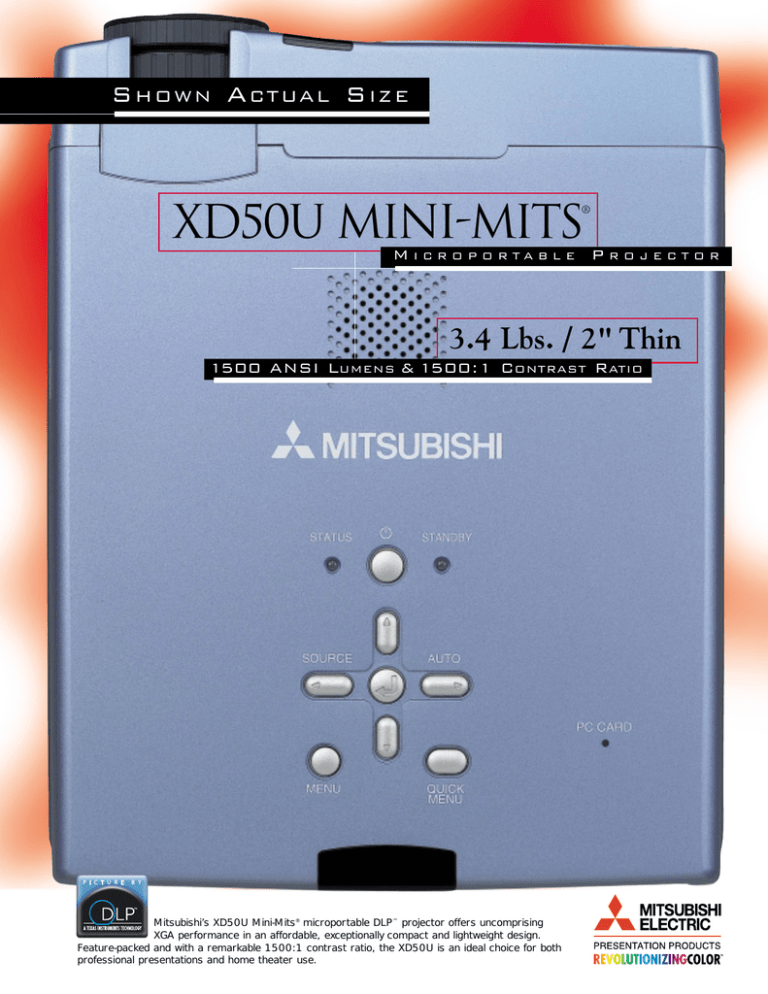

S HOWN A CTUAL S IZE
XD50U Mini-mits
®
MICROPORTABLE PROJECTOR
3.4 Lbs. / 2" Thin
1500 ANSI LUMENS & 1500:1 C ONTRAST R ATIO
Mitsubishi’s XD50U Mini-Mits® microportable DLP™ projector offers uncomprising
XGA performance in an affordable, exceptionally compact and lightweight design.
Feature-packed and with a remarkable 1500:1 contrast ratio, the XD50U is an ideal choice for both
professional presentations and home theater use.
®
XD50U
MINI-MITS
microportable projector
S P E C I F I C A T I O N S
SHOWN ACTUAL SIZE
specifications
Display Technology
Resolution
Brightness
Contrast Ratio
Projection Lens
Zoom/Focus
Picture Size
User Replaceable Lamp*
Computer Compatibility
Video Compatibility
Input Terminals
Screen
H
Height
Remote
control
Projection Distance
Projection Distance
(feet)
Screen Size (inch)
Screen Height (inch)
Screen Width (inch)
"H" Height (inch)
47.2
Tele
72.9 110.2 147.5 184.8 222.2 371.4
26.2
15.7
20.9
2.6
40.0 60.0
24.0 35.9
32.0 47.9
4.09 6.1
Projection Distance
(feet)
Screen Size (inch)
Screen Height (inch)
Screen Width (inch)
"H" Height (inch)
60.5
Wide
91.6 122.7 153.8 185.0 231.6 309.5
40.0
24.0
32.0
4.0
60.0
35.9
47.9
6.1
80.0 100.0 120.0 200.0
47.9 60.0 72.0 120.0
65.1 80.0 95.9 160.0
8.1 10.1 12.2 20.3
80.0 100.0 120.0 150.0 200.0
47.9 60.0 72.0 90.0 120.0
64.0 80.0 95.9 120.0 160.0
8.1 10.1 12.2 15.3 20.3
The above numbers are approximate, and may be slightly different from the
actual measurements.
Audio Speaker
Scanning Rates
Remote Control
Power Consumption
Dimensions (W x H x D)
Weight
Power Supply
Safety Approvals
Warranty
0.7" single chip digital micro device with R,G,B,W color wheel (W-52 type)
XGA 1024 x 768, 500 video lines (SXGA compressed 1280 x 1024 max.)
1500 ANSI Lumens
1500:1 (full-on, full-off)
F = 2.6 - 2.9
Manual zoom and manual focus lens
26" ~ 200"
150 W high-performance compact lamp; high and low mode lamp performance
SXGA (Compression), XGA (True), SVGA/VGA (Expansion/True)
NTSC 3.58/NTSC 4.43/PAL (including PAL-M, N)/SECAM/PAL-60/DVD Component/
HDTV input ready (480p, 1080i, 720p)
RGB: DVI 29-pin x 1; Audio: Stereo Mini Jack (Ο 3.5 mm) x 1,
S-Video: Mini DIN 4 pin x 1; Composite Video: RCA x 1
0.5 W Mono
Horizontal: 15 - 80 kHz, Vertical: 50 - 85 Hz, Dot clock: max. 140 MHz, DVI: 112 MHz
Projector full control; wireless remote
200 W (low mode 180 W)
7.5" x 2" x 9.4" (190 x 53 x 239 mm)
3.4 lbs (1.5 kg)
AC 100 - 120/220 - 240 VAC / ±10%, 50/60 Hz
UL approved (UL1950), CSA 950, FCC Class-A, CE mark
Three-year pan-European parts and labour warranty (excluding lamp)
UK mainland customers can request a loan replacement unit for next day delivery when and
where available
Accessories
Standard: Wireless remote control, power cable (1.8 m), DV I/RGB cable (1 m), video
cable (1 m), S-video cable (1 m), audio cable (1 m), audio adapter (0.15 m),
soft carrying case, soft pouch, User’s Manual (simplified edition), User’s Manual
(CD-ROM edition)
Optional: Spare lamp (VLT-XD50LP)
Special features
Full-auto adjustment, digital keystone correction (±50 degrees), digital zoom (x 0.9-10),
freeze, mute, nine language OSD, presentation timer, Kensington lock
For more information on the XD50U or any of Mitsubishi’s other projectors or presentation products,
contact Mitsubishi Electric Europe on 01707 278684.
©2003 Mitsubishi Electric Europe. Standard features, options and specifications subject to change without notice. Microsoft, Windows, and the
Windows logo are registered trademarks of Microsoft Corporation. Mac and the Mac logo are trademarks of Apple Computer, Inc, registered in the U.S. and other
countries. Digital Light Processing, DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments, Inc. All other trademarks or registered trademarks
are the property of their respective holders. *The projector lamp contains mercury. Please dispose of properly.
Mitsubishi Electric Europe B.V.
Visual Information Systems
Travellers Lane
Hatfield
Hertfordshire
email: [email protected]
Tel: 01707 278684
Fax: 01707 278541
www.mitsubishielectric.co.uk/vis
PP3043-05/03-15M-LITXD50
