XD520U
crystal clear
display solutions

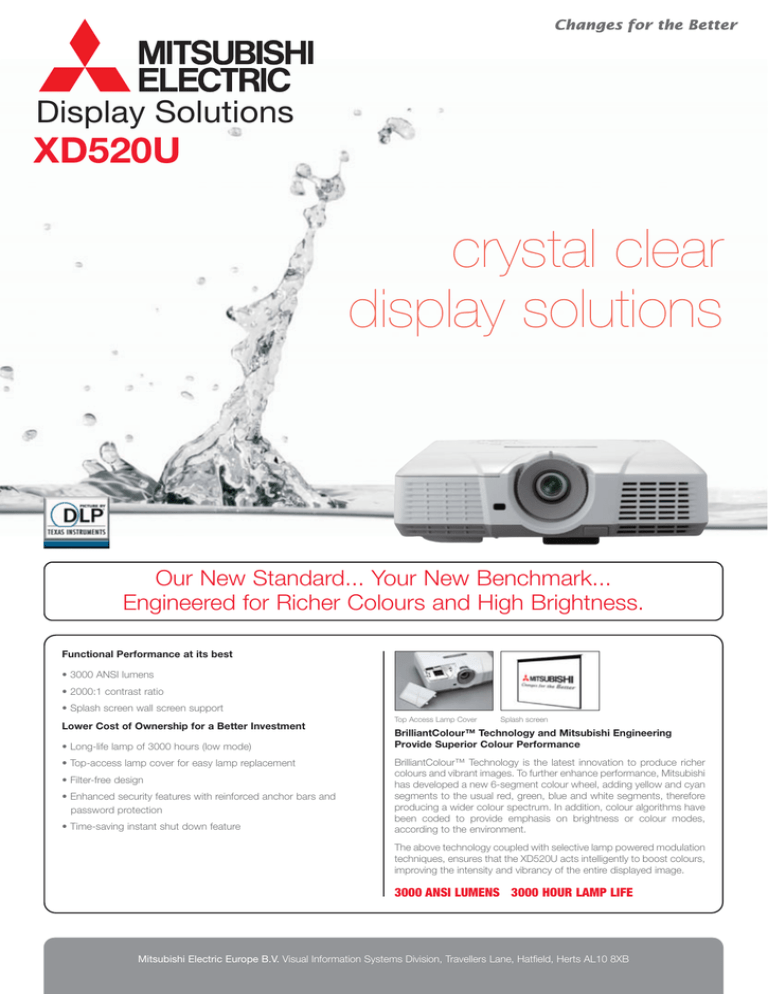

Our New Standard... Your New Benchmark...
Engineered for Richer Colours and High Brightness.
Functional Performance at its best
• 3000 ANSI lumens
• 2000:1 contrast ratio
• Splash screen wall screen support
Lower Cost of Ownership for a Better Investment
• Long-life lamp of 3000 hours (low mode)
• Top-access lamp cover for easy lamp replacement
• Filter-free design
• Enhanced security features with reinforced anchor bars and
password protection
• Time-saving instant shut down feature
Top Access Lamp Cover
Splash screen
BrilliantColour™ Technology and Mitsubishi Engineering
Provide Superior Colour Performance
BrilliantColour™ Technology is the latest innovation to produce richer
colours and vibrant images. To further enhance performance, Mitsubishi
has developed a new 6-segment colour wheel, adding yellow and cyan
segments to the usual red, green, blue and white segments, therefore
producing a wider colour spectrum. In addition, colour algorithms have
been coded to provide emphasis on brightness or colour modes,
according to the environment.
The above technology coupled with selective lamp powered modulation
techniques, ensures that the XD520U acts intelligently to boost colours,
improving the intensity and vibrancy of the entire displayed image.
3000 ANSI LUMENS 3000 HOUR LAMP LIFE
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
NEW
XD520U
Mobile XGA
Input and Output Terminals
Specifications
XD520U
Model
0.55”1-Chip DMD
Display technology
1
2
3
4 5 6
7
8
1024 x 768 (total 786,432 pixels)
Resolution
Brightness
3000lm
Contrast
2000:1
40” ~ 300”
Picture Size
18.4 ~ 22.00mm, F = 2.5 ~ 2.8
Lens
Source lamp
230W (Shut Off Time 3000Hrs) with Low Mode,
280W (Shut Off Time 2000Hrs) with Standard Mode
1
PC / Component Video output
Computer
compatibility
640 x 480 ~ 1280 x 1024
True: 1024 x 768, Sync on green available
2
PC / Component Video input
(mini D-sub 15pin)
Video
compatibility
NTSC / NTSC4.43 / PAL (including PAL-M, N) / SECAM/PAL-60 Component Video : 480i/p (525i/p)
576i/p (625i/p),720p (750p),1080i (1125i 60Hz), 1080i (1125i 50Hz)(mini D-sub 15pin)
3
S-Video / RCA
4
Audio input [RCA jack (L/R)]
5
Audio input (stereo mini jack)
6
Audio output
Audio speaker
7
Serial RS-232C
Fan noise
29dBA (Low Mode)
8
USB terminal for Page Up/Down
Dimensions(WxHxD)
332 x 102 x 250 mm
RGB : mini D-sub15pin x 2, Video : RCA x 1 + S-video x 1
Audio : stereo mini jack ( 3.5mm) x 1, RCA jack (L/R) x 1
Input terminals
Output terminals
RGB : mini D-sub15pin x 1, Audio : stereo mini jack ( 3.5mm) x 1
Communication terminals
RS-232C (D-sub 9pin) x 1, USB terminal for Page Up/Down x 1
2W mono
3.2kg / 7.0lbs
Weight
Power supply
AC100-240V, 50/60Hz
Optional lamp
VLT-XD520LP
*
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
Dimensions
57.9
165.6
58.6
198.7
Side(Left)
6
19.0
8
24.3
87.0
101.7
128.3
245.2
69.8
71.0
14.6
Front
331.2
300.0
Top
Bottom
Side(Right)
Unit:mm
Screen size and Projection distance
As seen from the side
Screen size chart
Screen (4:3 aspect ratio)
Hd
Height
Diagonal size Width (W)
Projection Distance(L)
Distance from screen ( L)
Height (H)
Shortest
Longest
Height projected
image ( Hd)
Distance from screen ( L)
Screen (16:9 aspect ratio)
Diagonal size Width (W)
Height (H)
Shortest
Longest
Height projected
image ( Hd)
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
40
102
32
81
24
61
51
1.3
62
1.6
1.8
5
40
102
34.9
89
19.6
50
56
1.4
68
1.7
5.2
13
60
152
48
122
36
91
77
2.0
94
2.4
2.7
7
60
152
52.3
133
29.4
75
84
2.1
102
2.6
7.9
20
80
203
64
163
48
122
103
2.6
125
3.2
3.6
9
80
203
69.7
177
39.2
100
113
2.9
137
3.5
10.5
27
100
254
80
203
60
152
129
3.3
157
4.0
4.5
11
100
254
87.2
221
49.0
125
141
3.6
171
4.4
13.1
33
150
381
120
305
90
229
195
4.9
236
6.0
6.8
17
150
381
130.7
332
73.5
187
213
5.4
258
6.5
19.6
50
200
508
160
406
120
305
260
6.6
315
8.0
9.0
23
200
508
174.3
443
98.1
249
284
7.2
344
8.7
26.2
66
250
635
200
508
150
381
326
8.3
394
10.0
11.3
29
250
635
217.9
553
122.6
311
356
9.0
430
10.9
32.7
83
300
762
240
610
180
457
391
9.9
–
–
13.5
34
300
762
261.5
664
147.1
374
427
10.8
–
–
39.3
100
The above numbers are approximate, and may be slightly different from the actual measurements.
