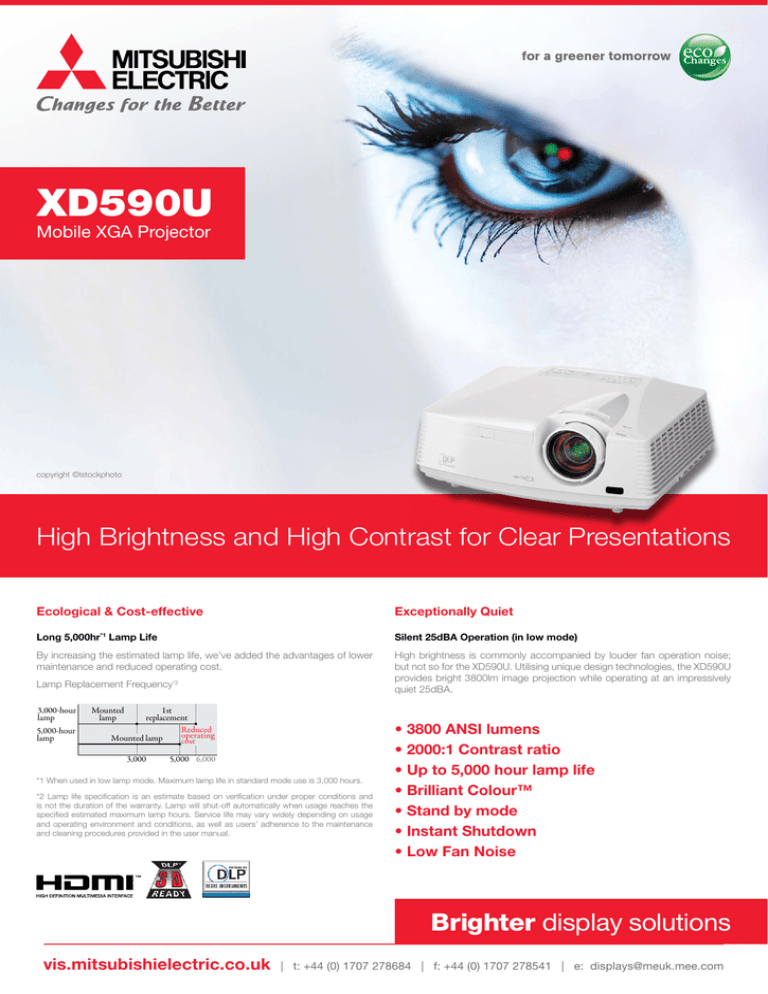

XD590U High Brightness and High Contrast for Clear Presentations Mobile XGA Projector

XD590U High Brightness and High Contrast for Clear Presentations Mobile XGA Projector
XD590U
Mobile XGA Projector
copyright ©Istockphoto
High Brightness and High Contrast for Clear Presentations
Ecological & Cost-effective
Exceptionally Quiet
Long 5,000hr*1 Lamp Life
Silent 25dBA Operation (in low mode)
By increasing the estimated lamp life, we’ve added the advantages of lower
maintenance and reduced operating cost.
High brightness is commonly accompanied by louder fan operation noise;
but not so for the XD590U. Utilising unique design technologies, the XD590U
provides bright 3800lm image projection while operating at an impressively
quiet 25dBA.
Lamp Replacement Frequency*2
3,000-hour
lamp
5,000-hour
lamp
Mounted
lamp
1st
replacement
Reduced
operating
Mounted lamp
cost
3,000
5,000 6,000
*1 When used in low lamp mode. Maximum lamp life in standard mode use is 3,000 hours.
*2 Lamp life specification is an estimate based on verification under proper conditions and
is not the duration of the warranty. Lamp will shut-off automatically when usage reaches the
specified estimated maximum lamp hours. Service life may vary widely depending on usage
and operating environment and conditions, as well as users’ adherence to the maintenance
and cleaning procedures provided in the user manual.
• 3800 ANSI lumens
• 2000:1 Contrast ratio
• Up to 5,000 hour lamp life
• Brilliant Colour™
• Stand by mode
• Instant Shutdown
• Low Fan Noise
Brighter display solutions
vis.mitsubishielectric.co.uk
| t: +44 (0) 1707 278684 | f: +44 (0) 1707 278541 | e: [email protected]
Specifications
XD590U
Model
XD590U
Display technology
Resolution
0.7" 1-chip DMD
1024 x 768 (total 786,432 pixels)
Brightness
3800lm
Contrast ratio
2000 : 1
Picture size
40" - 300"
Throw ratio
1.4 - 2.1
Source lamp
190W (shut-off time 5000hr) in low mode,
230W (shut-off time 3000hr) in standard mode
PC compatibility
640 x 480 - 1280 x 1024,
True : 1024 x 768, sync on green available
Video compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video; 480i/p (525i/p), 576i/p (625i/p),
720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Input terminals
RGB; mini D-sub 15pin x 2
Video; RCA x 1, S-VIDEO x 1
Digital; HDMI x 1
Audio; stereo mini jack (ø3.5mm) x 2, RCA jack (L/R) x 1
Output terminals
RGB; mini D-sub 15pin x 1
Audio; stereo mini jack (ø3.5mm) x 1
Communication terminal
Serial; mini DIN 8pin x 1 (RS-232C),
LAN; RJ-45 x 1
Audio speaker
10W mono
MOBILE XGA PROJECTOR
Low
Long-life Stand-by
Lamp
Power
Wall
Screen
Top/Side
Loading
Lamp
User
10W
Password Instant
Logo
Speaker Projection
Lock
Shutdown
LAN
(RJ-45)
HDMI
Closed
Caption
Picture Performance
Presentation
Low
Fan Noise
User-friendly
Other Special Features
Dimensions ( W x H x D)
Weight
High brightness 3800lm and
high contrast 2000:1
High-power projection – Distance increased 1.5x
3000lm
3800lm
Side view
ection lamp is installed in the upper section of the main
body. Whether sitting on a shelf or suspended from the ceiling,
lamp replacement is simple and easy*, and there’s never a need to
move the whole projector.
Hd
XD590U
Projection distance (L)
*A lamp replacement attachment is included to prevent the lamp from being
dropped during replacement.
Screen size chart (4:3 aspect ratio)
Loud 10W built-in speaker + Audio Mix
Projector
What’s
this?
Microphone capability
with mixing input audio source
What’s
this?
Using the “Audio Mix*” feature and wireless microphone
sold separately, the presenter’s voice is reproduced loud and
clear in real-time.
*Only compatible with stereo mini-jack. Not compatible with RCA jack (L/R) or HDMI.
Gather in
the schoolyard
Screen
Diagonal size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Width
inch
32
48
64
80
120
160
200
240
(W)
cm
81
122
163
203
305
406
508
610
Height
inch
24
36
48
60
90
120
150
180
Distance from screen ( L)
(H)
Shortest (Wide) Longest (Tele)
cm
61
91
122
152
229
305
381
457
inch
45
68
91
115
173
231
289
348
Control room
Room
via LAN
Room
IT manager inputs
message and sends
Same message is
displayed in each
classroom
A
B
Room
C
Gather in
the schoolyard
Gather in
the schoolyard
Input and Output Terminals
1
2
3
4
5
6
7 8
Gather in
the schoolyard
3D READY – Enjoy the future today
Experience the impact and allure of 3D imag
format and special electronic shutter glasses are required.
m
1.1
1.7
2.3
2.9
4.4
5.9
7.3
8.8
inch
67
102
137
171
258
344
431
517
m
1.7
2.6
3.5
4.3
6.5
8.7
10.9
13.1
Height projected
image ( Hd)
inch
3.6
5.4
7.2
9.0
13.5
18.0
22.5
27.0
The above numbers are approximate, and may be slightly different from the actual measurements.
Visual PA broadcasting of various written messages
Using a control room computer
equipped with projector-control
ware, simultaneously send
messages (up to 350 characters long)
in real-time to projectors connected
to the LAN. Ideal for broadcasting
important information to multiple
rooms in scho
s.
VLT-XD590LP
Screen Size and Projection Distance
Top-loading lamp for easier maintenance
A high-volume, 10W speaker is built-in, eliminating
the need for an external speaker.
AC 100-240V, 50/60Hz
Optional lamp
equipped with a specially calibrated lens for high-power projection.
Projection distances from 1.7 to 2.6m (68in to 102in) are possible using a 60-inch screen, and brilliant,
crystal-clear images are assured even when projection distance is short.
Loud 10W built-in speaker
3.7kg / 8.0lbs
Power requirements
A high brightness and a high contrast level for presentations
in large meeting rooms and conference halls.
345 x 129 x 270 mm / 13.6 x 5.1 x 10.6 inch
Height
Brilliant Colour
Colour TM Enhancer
o content must
quential
cm
9
14
18
23
34
46
57
69
Audio output
Audio input
S-Video/Video
HDMI
PC/Component
video input
6 Monitor output
7 Serial RS-232C
8 LAN (RJ-45)
1
2
3
4
5
Varies depended on condition.
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
Lamp life specification is an estimate based on verification under proper conditions and is not the duration of the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum lamp hours.
Service life may vary widely depending on usage and operating environment and conditions, as well as users’ adherence to the maintenance and cleaning procedures provided in the user manual.
“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”
Eco Changes is the Mitsubishi Electric Group’s environmental
statement, and expresses the Group’s stance on environmental
management. Through a wide range of businesses, we are
helping contribute to the realization of a sustainable society.
To find out more about XD590U and our projectors,visit us at
MITSUBISHI ELECTRIC EUROPE
New publication, effective December 2010 Specifications subject to change without notice.
vis.mitsubishielectric.co.uk
L-188-0-B8678-A KYO-1010 Printed in Japan(MDOC)
| t: +44 (0) 1707 278684 | f: +44 (0) 1707 278541 | e: [email protected]
New publication effective Oct. 2010.
Specifications subject to change without notice.
