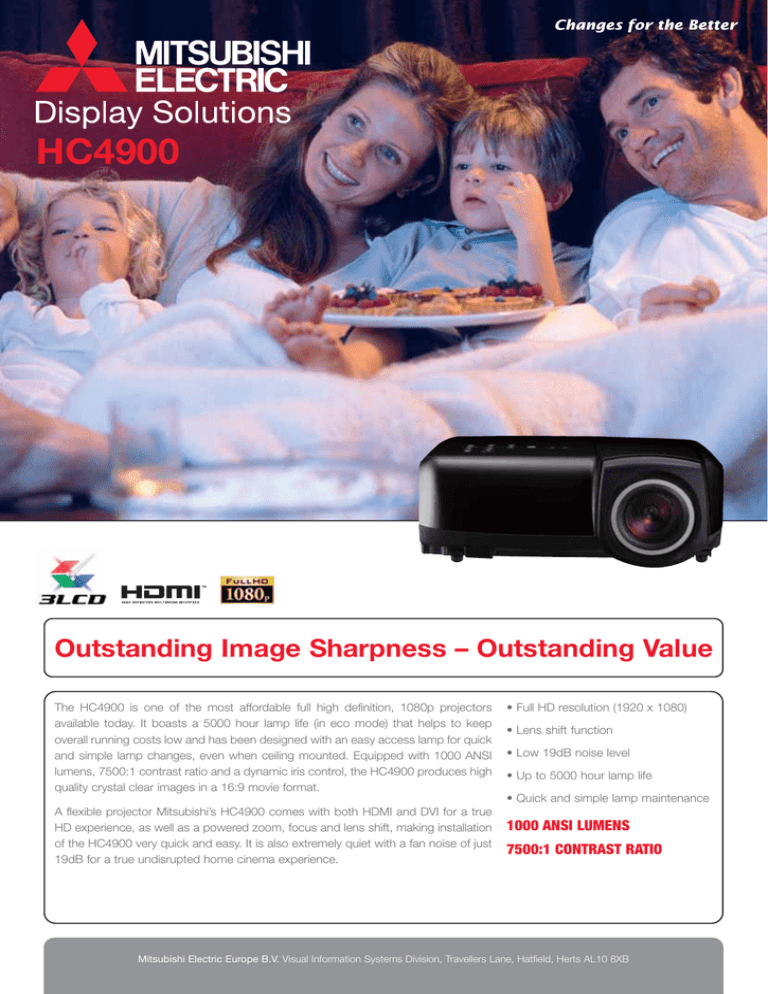

HC4900
Outstanding Image Sharpness – Outstanding Value
The HC4900 is one of the most affordable full high definition, 1080p projectors
available today. It boasts a 5000 hour lamp life (in eco mode) that helps to keep
overall running costs low and has been designed with an easy access lamp for quick
and simple lamp changes, even when ceiling mounted. Equipped with 1000 ANSI
lumens, 7500:1 contrast ratio and a dynamic iris control, the HC4900 produces high
quality crystal clear images in a 16:9 movie format.
• Full HD resolution (1920 x 1080)
• Lens shift function
• Low 19dB noise level
• Up to 5000 hour lamp life
• Quick and simple lamp maintenance
A flexible projector Mitsubishi’s HC4900 comes with both HDMI and DVI for a true
HD experience, as well as a powered zoom, focus and lens shift, making installation
of the HC4900 very quick and easy. It is also extremely quiet with a fan noise of just
19dB for a true undisrupted home cinema experience.
1000 ANSI LUMENS
7500:1 CONTRAST RATIO
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Illuminated
remote
control unit
Input and Output terminals
Specifications
Model
Projection system
HC4900
8
23.5 ~ 37.6
160W
Mirror color separation / prism synthesis system
Iris / Color wheel spec
Picture size (inches)
auto-iris
50 ~ 300
Brightness (lm)
Contrast ratio
Resolution
1000
7500:1 (on/off) with iris operation
PC input
Scanning frequency
VGA (640 X 480) - SXGA (1280 X 1024) (compressed)
Horizontal (kHz)
Vertical (Hz)
15 ~ 100
50 ~ 120
), SECAM,
NTSC, NTSC4.43, PAL (including
NTSC, NTSC4.43,
PAL (including PAL-M,N), SECAM,
NTSC,PAL-M,N
NTSC4.43,
PAL (including PAL-M,N),
SECAM, PAL-60
)
PAL-60, HDTV (480i/p, 576i/p,
1080i,
720p1080i
480i/p,
576i/p,
60/50, 1080pPAL-60,
60/50/24,HDTV
720p(480i/p, 576i/p, 1080i, 720p)
Video
Input
signal system
PC
PC/AT compatible machines, MAC
1 terminal
Analog RGB Mini D-sub15 pin
1 terminal each
Digital RGB HDMI/DVI-D(HDCP)
Composite RCA terminal
1 terminal
1 terminal
S-Video terminal
S
1 terminal (Component can be also input to Mini D-sub15 pin)
Component RCA terminal
Serial / RS-232C standard
Gamma mode
Function/other
Vertical keystone
Trapezoidal
distortion correction Horizontal keystone
1 terminal (D-sub9 pin)
3 patterns + 2 users
1
Video In
2
S-Video
3
Component (Y,PB/CB,PR/CR)
4
RGB/Component In x 1
5
DVI-D In (with HDCP)
6
HDMI x 1
7
RS-232C
8
Trigger Out
N/A
N/A
AC100-240V 50/60Hz
Power supply voltage
Power consumption (W)
Weight (kg)
250
5.6
Width (mm)
Main unit dimentions Depth (mm)
Height (mm)
334
352
125
Fan noise
Other
7
Stripe pattern
Optical system
Functions
6
Mortorized operation (V) 75%,(H)Screen Width 5%
Zoom/focus (Lens shift)
f (mm)
Optical specs
Light source lamp
Video
5
3 primary color liquid crystal shutter system
Lens
Input
3 4
1920 X 1080
Number of pixels
Drive system
Array
Images
2
0.74 type X 3 Aspect ratio 16:9
Panel size
Panel specs
1
Transmissive liquid crystal system
19dBA (Lamp Low Mode)
AC power cable, remote control unit,
AA-size batteries, RGB signal cable,RS-232C cable,
User's manual, User's manual CD, Safety manual
Supplied accessories
*VGA,SXGA is a registered trademark of IBM Corporation of the United States. *C2FINE is a trademark of Seiko Epson. *DarkChip2 is a trademark of Texas Instruments.
Options
Dimentions Unit (mm)
57
73.5
145.5
VLT-HC5000LP
291.3
273.5
361.8
352.6
13
.5
13
143 8
Top View
Lamp(HC4900)
22.4
80
334.8
13
.5
120
Bottom View
7
54.7
128.2
125.8
84.5
Front View
Side View
MITSUBISHI ELECTRIC EUROPE
New publication, effective October 2007 Specifications subject to change without notice.
