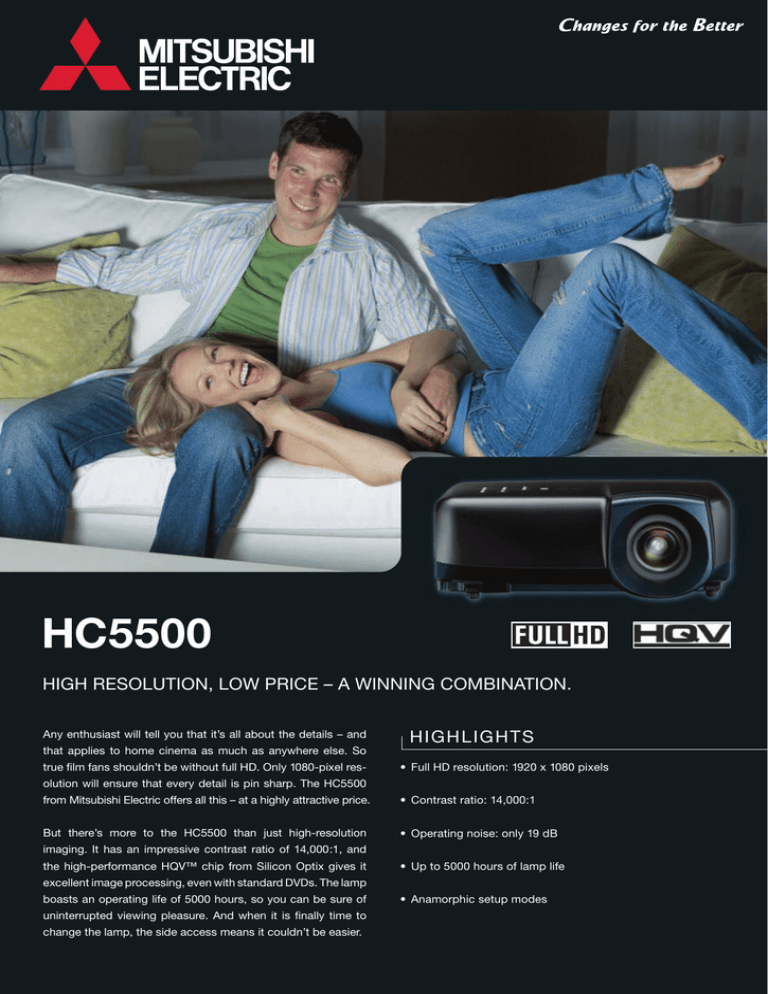

HC5500
HIGH RESOLUTION, LOW PRICE – A WINNING COMBINATION.
Any enthusiast will tell you that it’s all about the details – and
that applies to home cinema as much as anywhere else. So
true film fans shouldn’t be without full HD. Only 1080-pixel res-
HI G HLI G HTS
• Full HD resolution: 1920 x 1080 pixels
olution will ensure that every detail is pin sharp. The HC5500
from Mitsubishi Electric offers all this – at a highly attractive price.
• Contrast ratio: 14,000:1
But there’s more to the HC5500 than just high-resolution
• Operating noise: only 19 dB
imaging. It has an impressive contrast ratio of 14,000:1, and
the high-performance HQV™ chip from Silicon Optix gives it
• Up to 5000 hours of lamp life
excellent image processing, even with standard DVDs. The lamp
boasts an operating life of 5000 hours, so you can be sure of
uninterrupted viewing pleasure. And when it is finally time to
change the lamp, the side access means it couldn’t be easier.
• Anamorphic setup modes
Projection Screen (H)
Picture Size (16:9 format)
Lens Shift max.
50%
Projection Screen
50%
Lens Shift max.
Distance from Screen
Lens Shift
Diagonal Size
cm
Width
cm
Height (H)
cm
m/minimal with
maximal zoom
m/maximal with
minimal zoom
vertical, up/down
cm
127
152
178
203
229
254
279
305
381
508
635
111
133
155
177
199
221
244
266
332
443
553
62
75
87
100
112
125
137
149
187
249
311
1.6
1.9
2.2
2.5
2.9
3.2
3.5
3.8
4.8
6.4
8.0
1.9
2.3
2.7
3.1
3.5
3.9
4.3
4.6
5.8
7.8
–
+/– 31
+/– 37
+/– 44
+/– 50
+/– 56
+/– 62
+/– 68
+/– 75
+/– 93
+/– 125
+/– 156
Specifications
Model
HC5500
Technology
Resolution
Brightness
Contrast
Vertical Frequency (V-Sync)
Horizontal Frequency (H-Sync)
Band Width
Projection Lamp
Lamp Life
Lens
Throw Ratio
Focus/Zoom
Picture Diagonal
Fan Noise
PC Compatibility
Video Compatibility
3 x 0.74" LCD (with Micro Lens Technology)
1920 x 1080 pixels (total: 2,073,600 pixels)
1200 ANSI lumens
14,000:1 with automatic iris function
50–120 Hz
15–100 kHz
up to 162 MHz
160 W
approx. 5000 hours (low mode)¹
F/1.7–1.9, f = 24–29 mm
1.5–1.8:1
Motorised focus and zoom (adjustable in 2 levels, zoom ratio: 1.2:1)
1.27–6.35 m
19 dB (low mode)
640 x 480 (expand) to 1600 x 1200 (compress) pixels, Sync on green available
NTSC/NTSC 4.43, PAL (incl. PAL-M, N), PAL-60, SECAM, Comp. Video:
480i/p (525i/p), 576i/p (625i/p), 720p (750p, 50/60 Hz), 1080i (1125i, 50/60 Hz),
1080i (1125p, 24/50/60 Hz), SCART (RGB + 1 V-Sync)
Anamorphic lens mode (vertical stretch, horizontal compress), automatic iris function,
HQV™ technology (Silicon Optix, Reon), motorised lens shift (vertical, adjustable in 2 levels),
Digital Keystone Correction (vertical), 3D Y/C Digital Comb Filter, 3D Noise Reduction,
3D Colour Uniformity Correction, AV Memory function, 10-bit signal processing, user adjustable
gamma function, screen size select, 10-language OSD, PIN-code protection (key & menu access),
easy lamp access
PC (RGB): mini-D-sub 15-pin
Video: 2 x HDMI (vers. 1.3), RCA (Comp. Video), S-Video, RCA (Y, PB/CB, PR/CR)
12 V Trigger Out, stereo-mini-jack (Ø 3.5 mm)
RS-232C, D-sub 9-pin
Complete operation of the projector, illuminated, direct control of sources (incl. AV memory)
334 x 125 x 352 mm (excl. stand feet)
5.6 kg
250 W
AC 100–240 V, 50/60 Hz
Cable set, remote control (incl. battery), safety manual (incl. explanation for quick start),
multilingual user manual (CD-ROM), air filter
Features
Input Terminals
Output Terminals
Communication Terminals
Remote Control
Dimensions (W x H x D)
Weight
Power Consumption
Power Supply
Accessories (incl. in delivery)
1
Depending on the operating environment and application. This is an average value given by the manufacturer based on ideal conditions.
Mitsubishi Electric Europe B.V. Visual Information Systems Division, Travellers Lane, Hatfield, Herts AL10 8XB
Tel: 01707 278684 Fax: 01707 278541 www.mitsubishielectric.co.uk/vis email: [email protected]
The right to make technical changes is reserved; no liability is accepted for printing or other errors.
