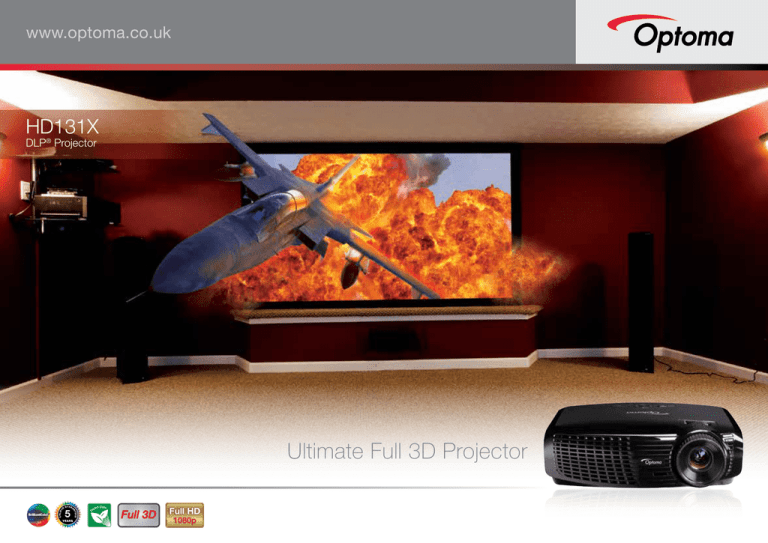

User manual | Ultimate Full 3D Projector HD131X www.optoma.co.uk DLP

www.optoma.co.uk
HD131X
DLP® Projector
Ultimate Full 3D Projector
5
Bring movies and games to life with the HD131X Full HD
1080p 3D projector.
Enjoy your favourite TV shows, sports and action-packed games in the ultimate home entertainment experience. Incorporating
a built in speaker, you can conveniently listen to your movies without the hassle of connecting external speakers. You can even
project up to a 300” image to create an extra-large screen for the true cinema experience, right in your own home.
Utilising the latest DLP® technology, the HD131X delivers exceptional Full HD 1080p and immersive 3D visuals.
Producing a stunningly bright image with perfectly balanced vivid colour and crystal clarity the HD131X provides the
exceptional light and shade detail only possible with a high contrast projector.
Full HD 1080p
Dynamic Black
Amazing Colours
Sharper more detailed projection with 1920 x 1080p pixels,
perfect for watching Blu-ray movies without downscaling
or compression.
Dynamic black smoothly adjusts the lamp output automatically,
based on the brightness information of each frame; to create
a stunning 20,000:1 contrast ratio. Bright scenes are crisp
and clear, while dark scenes remain detailed with deep blacks
which gives exceptional light and shade detail.
The HD131X incorporates BrilliantColor™ multi-colour
processing technology to bring stunning, vibrant colour to your
screen. Using six separate primary and secondary colours
to produce a new level of colour performance and control;
BrilliantColor™ increases colour brightness by up to 50% over
other technologies to create accurate true to life images. You
can even fine tune colours for ultimate precision.
BrilliantColor™
Without
With
Full 3D
Using the inherent speed of DLP technology, The Optoma
HD131X Full 3D projector can display true 3D content from
almost any 3D display device, including 3D Blu-ray, PS3,
Xbox and Sky3D.
24p
Most movies are shot at 24 frames per second. To preserve
the purity of the original image the HD131X can accept High
Definition sources at 24 frames per second and so to display
movies exactly as the director intended.
Without
With
Color Guarantee
We are so confident that the HD131X image colour quality
will remain as good as the day you bought it that Optoma will
guarantee it for five years.
5
DLP® Technology – The greatest 3D home cinema experience!
Create the most vivid & compelling 3D experience available
anywhere. Unlike competing technologies, DLP from Texas
instruments uses millions of tiny mirrors to maximise the
available light output and high contrast while the inherit
speed completely eliminates crosstalk.
DLP®Other
Why use a projector for 3D?
3D Movies:
3D Gaming:
It is a widely accepted fact that the bigger the image, the greater
the 3D effect - for the best results it is essential to fill your field of
vision, without having to be too close to the screen. Even a huge
50” TV can only create a window on the 3D world, whereas the
immersion & excitement created by a massive 150” projection
screen makes you feel like you are part of the action!
Now that all the latest 3D movies have arrived on Blu-ray 3D™
you can enjoy the same jaw-dropping 3D cinema experience
at home, now in fantastic 1080p Full High definition.
Set your sights on the HD131X for the greatest 3D gaming
experience. With an impeccable response time you can
line-up the perfect shot while sniper-rounds whizz past you;
watch burning ships zoom off into the distance; dodge axewielding zombies lurching out of the screen – the possibilities
are endless. Combine this with active-motion gaming for the
closest thing to your very own virtual reality suite.
D
Broadcast
s
3
150” Optoma Projector
®
ion
box 36
0
yStation
of vis
3
X
3D
Pla
ion
3
D
50” 3D Television
Field
of vis
Couldn’t get tickets for the big match? - The HD131X brings
the big picture home like never before. With more matches
broadcast in 3D every season, you’ll never miss the great
moments in sporting history and you can re-live them time
after time as though you were actually there.
u - ra y 3 D ™
Bl
Field
3D Sports:
Bring movies and games to life with the HD131X Full HD
1080p 3D projector.
Powerful Audio
Quick Resume
The only thing left is the glasses…
Complete your home cinema experience with the powerful
on-board 10W speaker. Offering exceptional sound quality
the HD131X is easy to set up without the need for costly
external speakers.
Save time by not waiting for the projector to cool down before
it can power up again. If the projector is accidentally turned
off, this feature allows the projector to be instantly powered
on again, if selected within a period of 100 seconds.
For that seamless 3D experience, use our second generation
wireless 3D glasses.
Cooling
N
Instant ON
10W
(within 100s)
Long Lamp Life
The new lamp technology incorporated into the HD131X
extends lamp life up to an incredible 6000 hours. If you watch a
two hour movie every day then typically the lamp will last
for over 8 years.
Developed in parallel with our “Full 3D” projectors, the ZF2100
system & glasses are optimised to provide you with higher
contrast & brighter images than ever before, while eliminating
tedious issues with emitter placement, limited range and potential
interference commonly experienced when using Infra-red.
Fully rechargeable, our ZF2100 glasses give you the peace
of mind that comes with knowing both installing and using
them will be hassle free.
HD131X
HD131X Specifications Highlights
Full HD
Brightness1
Dynamic Contrast
Audible Noise
Throw Ratio
Zoom
Lamp Life2
Connections
2D Compatibility
3D Compatibility
3D Viewing
Dimensions
Weight
Warranty
Part Number
EAN Number
In the box
Native 1080p (1920 x1080)
2000 ANSI Lumens
20,000:1
26dB
1.5 - 1.8
1.2x
6000 hours (Eco mode)
2x HDMI v1.4a 3D, 2x VGA (PC/YPbPr),
Inputs Component, Composite Video,
2x Audio In 3.5mm stereo socket
VGA, Audio Out 3.5mm stereo socket,
Output
3D-Sync Out (3-Pin VESA)
Control RS232
Speaker 10W
1080p, 1080i, 720p PAL, NTSC,
SECAM
Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
Requires ZF2100 system available separately
324 x 234 x 97mm
3.1Kg
Warranty may vary by country.
Please see or ask your local
supplier for details
95.8VC01GC0E
5060059048137
Lens Cover, AC Power Cord, Back-lit
IR Remote Control with Batteries, Quick
Start Card, Warranty Card
1
13
2
3
4
5
10
6
11
7
8
9
12
14
Projection
Distance (m)
Min Diagonal
Image Size (m)
Max Diagonal
Image Size (m)
Max Diagonal
Image Size (inch)
2.00
1.27
1.53
60.23
3.00
4.00
5.00
6.00
1.91
2.55
3.19
3.82
2.29
3.06
3.82
4.59
90.34
120.46
150.57
180.68
Optoma Accessories
Projector Mounts
HD131X Connections
1 USB Service
2 HDMI 1 (1.4a 3D)
3 HDMI 2 (1.4a 3D)
4 Composite Video
5 VGA 1 In
6 VGA 1 Out
7 Audio In (VGA 1/2)
8 Audio Out
9 3D-Sync
10 VGA 2 In
11 RS232
12 Audio In (Video)
13Power
14 Kensington™ Lock
For full specifications please visit the website at: www.optoma.co.uk
OCM818W
OCM818B
OCM815B
OCM815W
Universal ceiling mount with/without extension pole
(adjustable height 290mm–810mm/140 mm) available
in black and white.
Screens
Optoma screens use the highest grade of screen fabrics
to reflect the truest, most vivid and dynamic images.
Please visit www.optomaeurope.com
We know that improving our products is the best way
to reduce our impact on the environment. That’s why
at Optoma, we design our products to have a long
usable life, use fewer materials, ship with the minimum
packaging and be free of all possible toxic substances.
Naturally, energy efficiency and being recyclable are
built in at the design stage. With each new product,
we strive towards minimising our environmental impact.
For full details of Optoma Project Green please visit
our website.
Optoma Europe Limited 42 Caxton Way, Watford Business Park, Watford, Hertfordshire. WD18 8QZ
Tel: +44 (0) 1923 691800 Fax: +44 (0) 1923 691888
www.optoma.co.uk
V1.3 with DeepColor
V3 - 01/03/13
1
Brightness will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. 2Actual lamp life may vary due to different environment conditions and usage. For more information please visit our
website. DLP®, and the DLP logo are registered trademarks of Texas Instruments. All other product names and company names used herein are for identifications purposes only and may be trademarks or registered trademarks of their respective owners. All images of products are for representation purposes
only. Whilst every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add an Optoma logo to the front panel. Optoma reserves the right to amend or alter actual product or product images
without notice. Some images may have been simulated. Errors and omissions excepted, all specifications are subject to change without notice. Copyright © 2013, Optoma Europe Ltd.
