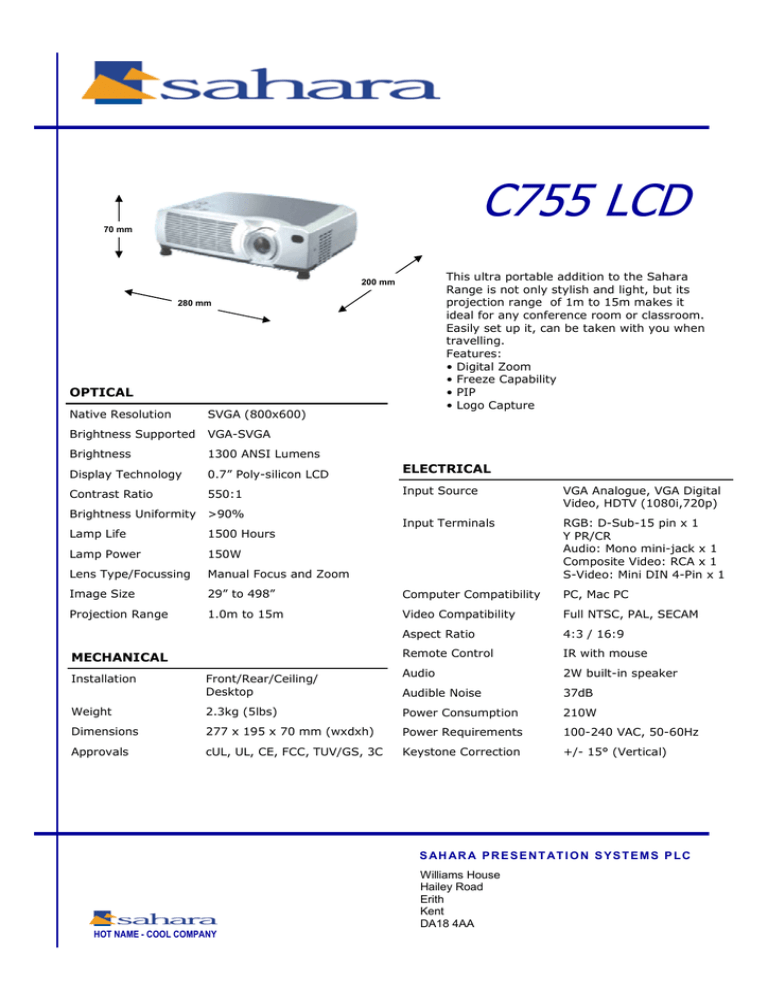

C755 LCD
C755 LCD
70 mm
This ultra portable addition to the Sahara
Range is not only stylish and light, but its
projection range of 1m to 15m makes it
ideal for any conference room or classroom.
Easily set up it, can be taken with you when
travelling.
Features:
• Digital Zoom
• Freeze Capability
• PIP
• Logo Capture
200 mm
280 mm
OPTICAL
Native Resolution
SVGA (800x600)
Brightness Supported
VGA-SVGA
Brightness
1300 ANSI Lumens
Display Technology
0.7” Poly-silicon LCD
ELECTRICAL
Contrast Ratio
550:1
Input Source
Brightness Uniformity
>90%
VGA Analogue, VGA Digital
Video, HDTV (1080i,720p)
Lamp Life
1500 Hours
Input Terminals
Lamp Power
150W
Lens Type/Focussing
Manual Focus and Zoom
RGB: D-Sub-15 pin x 1
Y PR/CR
Audio: Mono mini-jack x 1
Composite Video: RCA x 1
S-Video: Mini DIN 4-Pin x 1
Image Size
29” to 498”
Computer Compatibility
PC, Mac PC
Projection Range
1.0m to 15m
Video Compatibility
Full NTSC, PAL, SECAM
Aspect Ratio
4:3 / 16:9
Remote Control
IR with mouse
Audio
2W built-in speaker
Audible Noise
37dB
MECHANICAL
Installation
Front/Rear/Ceiling/
Desktop
Weight
2.3kg (5lbs)
Power Consumption
210W
Dimensions
277 x 195 x 70 mm (wxdxh)
Power Requirements
100-240 VAC, 50-60Hz
Approvals
cUL, UL, CE, FCC, TUV/GS, 3C
Keystone Correction
+/- 15° (Vertical)
S AH AR A P R E S E N T AT I O N S Y S T E M S P L C
HOT NAME - COOL COMPANY
Williams House
Hailey Road
Erith
Kent
DA18 4AA
