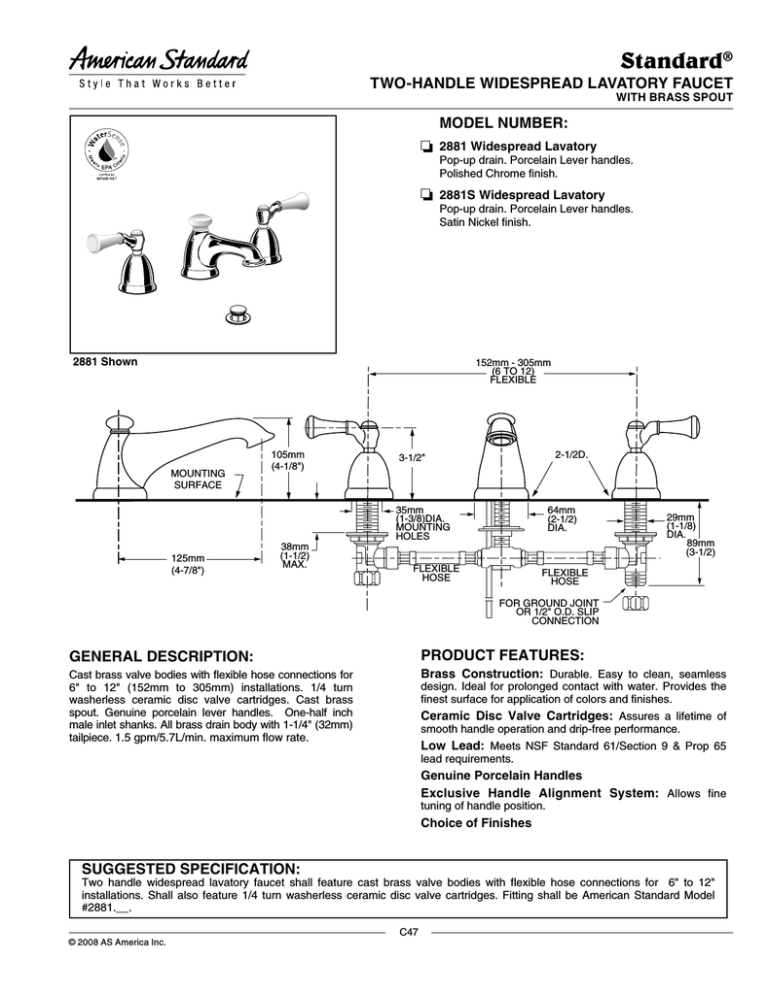

TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS SPOUT
MODEL NUMBER:
2881 Widespread Lavatory
Pop-up drain. Porcelain Lever handles.
Polished Chrome finish.
2881S Widespread Lavatory
Pop-up drain. Porcelain Lever handles.
Satin Nickel finish.
2881 Shown
152mm - 305mm
(6 TO 12)
FLEXIBLE
MOUNTING
SURFACE
125mm
(4-7/8")
105mm
(4-1/8")
38mm
(1-1/2)
MAX.
2-1/2D.
3-1/2"
35mm
(1-3/8)DIA.
MOUNTING
HOLES
64mm
(2-1/2)
DIA.
FLEXIBLE
HOSE
29mm
(1-1/8)
DIA.
89mm
(3-1/2)
FLEXIBLE
HOSE
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Cast brass valve bodies with flexible hose connections for
6" to 12" (152mm to 305mm) installations. 1/4 turn
washerless ceramic disc valve cartridges. Cast brass
spout. Genuine porcelain lever handles. One-half inch
male inlet shanks. All brass drain body with 1-1/4" (32mm)
tailpiece. 1.5 gpm/5.7L/min. maximum flow rate.
Brass Construction: Durable. Easy to clean, seamless
design. Ideal for prolonged contact with water. Provides the
finest surface for application of colors and finishes.
Ceramic Disc Valve Cartridges: Assures a lifetime of
smooth handle operation and drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65
lead requirements.
Genuine Porcelain Handles
Exclusive Handle Alignment System: Allows fine
tuning of handle position.
Choice of Finishes
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model
#2881.__.
© 2008 AS America Inc.
C47
Standard®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS SPOUT
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
Description
2881
Lavatory faucet with pop-up drain. Porcelain Lever handles. Polished Chrome finish.
2881S
Lavatory faucet with pop-up drain. Porcelain Lever handles. Satin Nickel finish.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America Inc.
C48
